Dažų storio matuoklis su LCD ekranu

Trumpai apie prekę

Prekė: Dažų storio matuoklis su LCD ekranu. Kategorija: Dažų storio matuokliai.

• Gamintojas: Benetech
• Modelis: GT233

⭐⭐⭐⭐⭐

COATINGS - VARNISH AND OTHER MATERIALS

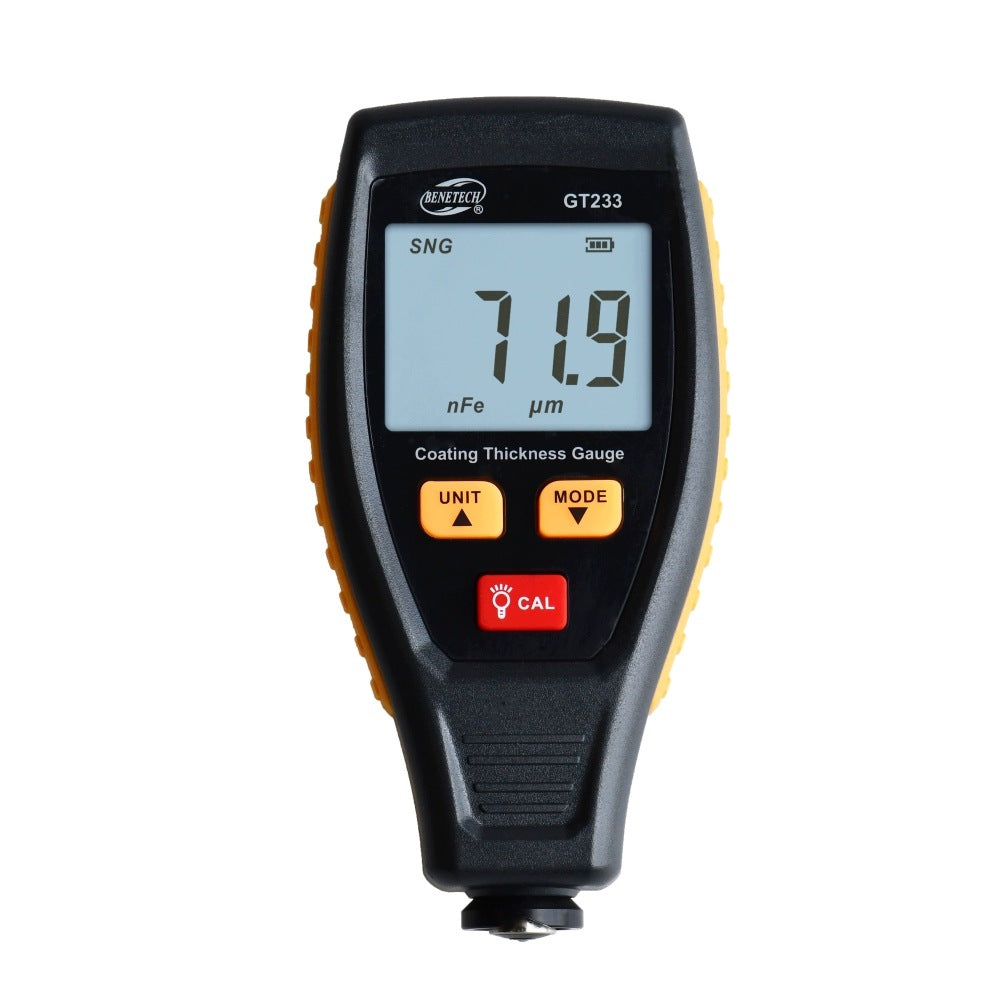

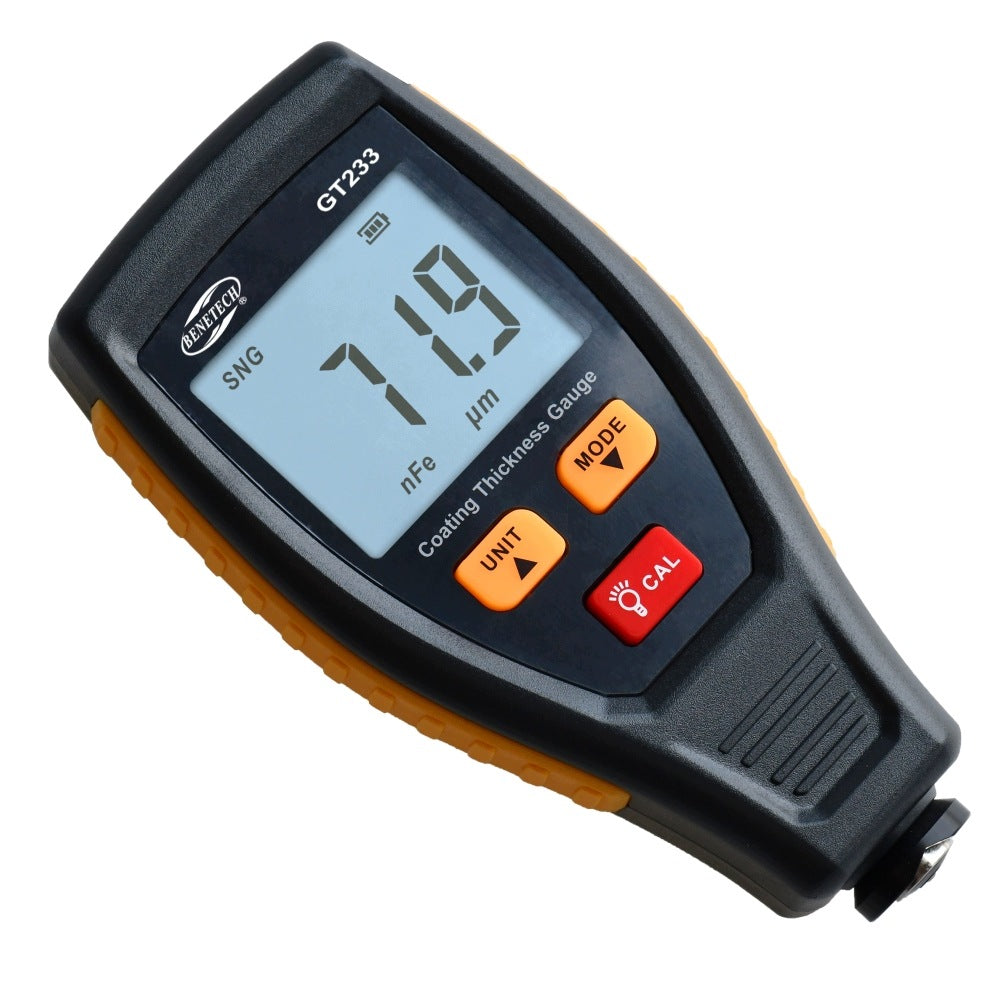

Looking for a professional, reliable, and lightning-fast paint coating thickness gauge? Benetech GT233 is a technologically advanced measuring device created for professionals in the automotive industry, property appraisers, autocommissions and anyone who wants to flawlessly assess the condition of the bodywork and paint of the vehicle before buying.

Forget about hidden defects, re-painted elements or a thick layer of putty hidden under the varnish. With this meter you gain absolute confidence.

This meter is a fast and accurate instrument for measuring the thickness of a non-metallic coating on a non-magnetic metal substrate and the thickness of a non-magnetic coating of a metal substrate.

The tester can automatically identify magnetic and non-magnetic metal substrate. It is widely used in automotive industry, metal processing industry, chemical industry, commodity inspection, etc.

⭐⭐⭐⭐⭐

The Benetech GT233 meter is equipped with an intelligent auto-detection algorithm that immediately and without user intervention recognizes the type of material on which the measurement is being performed:

• Magnetic substrate (Fe): Steel and iron (standard bodywork components).
• Non-magnetic substrate (nFe): Aluminum, copper and other metal alloys (increasingly commonly used in modern cars).
• Intelligent detection of the zinc layer (Fe+Zn): This is an uncompromising advantage of this model! The device automatically detects the presence of a non-magnetic coating (usually zinc) on a magnetic steel base. This allows you to immediately know whether a given body part has original factory anti-corrosion protection or whether the zinc layer has disappeared after bodywork repairs.

⭐⭐⭐⭐⭐

For maximum comfort and precision, the device offers 3 dedicated operating modes, switchable with a single click of the MODE button:

1. SINGLE MEASUREMENT (SNG): Takes a precise spot reading. Each probe placement results in a double beep (BI-BI) and freezes the reading on the screen.
2. CONTINUOUS MEASUREMENT (CTN): A mode that revolutionizes vehicle inspection. It allows you to smoothly slide the probe over the car body surface without lifting it. The gauge continuously updates the reading on the screen, enabling quick scanning of an entire panel for anomalies.
3. DIFFERENTIAL MEASUREMENT (DIF): Automatically calculates and displays the difference between the current and the immediately preceding reading. Ideal for instantly detecting paint transitions and gradients.

⭐⭐⭐⭐⭐

The GT233 gauge ensures repeatability and accuracy through an easy calibration process:

• Zero Point Calibration: Allows quick zeroing of the device directly on a clean, uncoated metal base.
• Offset Calibration: Enables precise fine-tuning of the gauge using the included calibration plates, ensuring factory-level accuracy across the entire measurement range.
• Factory Calibration Reset: In case of incorrect calibration, a special button sequence allows you to reset the device's memory to the manufacturer's default, precise settings in seconds.

⭐⭐⭐⭐⭐

Working in low light conditions or awkward positions is no longer a problem:

• Bright LCD Backlight: Ensures excellent readability in dark garages, diagnostic bays, and during vehicle inspections after dark.
• 180° Screen Rotation Function: A long press of the MODE button instantly flips the display image upside down. This allows you to easily read measurements on sills, wheel arches, lower bumper areas, or under-hood components without contorting yourself.

⭐⭐⭐⭐⭐

• Measurement Range: 0 to 1500 μm
• Resolution:

  For values < 100 μm: 0.1 μm

  For values > 100 μm: 1 μm (available units: mil / mm)

• Measurement Error:

  For values < 150 μm: ±5 μm

  For values > 150 μm: ±(3%H + 1 μm) (where H is the coating thickness)

• Minimum Substrate Diameter: Magnetic (Fe): 12 mm | Non-magnetic (nFe): 50 mm
• Minimum Substrate Thickness: 0.5 mm
• Minimum Substrate Curvature Radius: Convex: 2 mm | Concave: 11 mm
• Operating Temperature: -20 to 40°C
• Operating Humidity: 10-95% RH
• Power Supply: 2 x 1.5V AAA batteries
• Dimensions: 62 x 27 x 121.5 mm
• Weight: 94 g

⭐⭐⭐⭐⭐

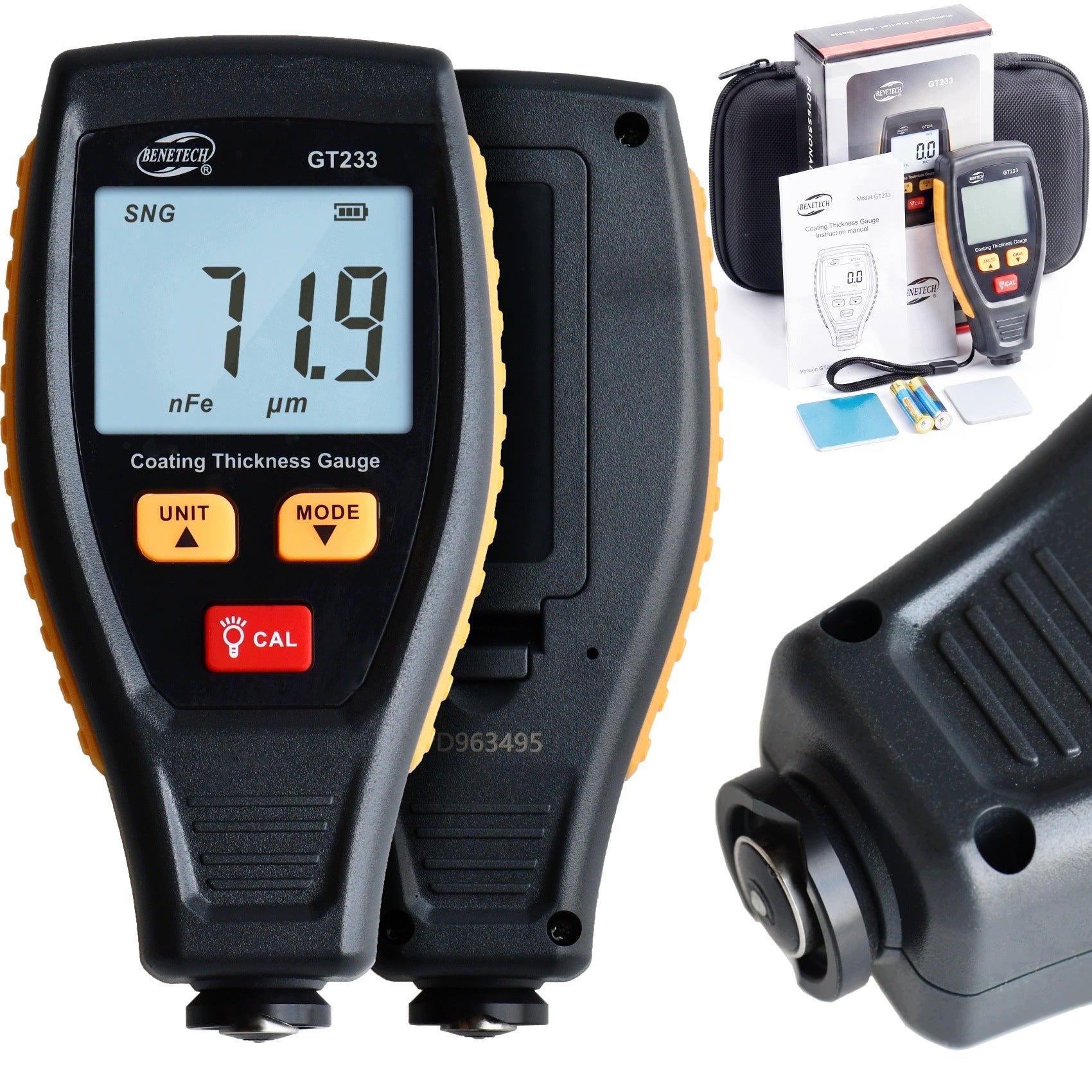

• 1 x Benetech GT233 Meter
• 1 x Protective case
• 1 x Set of calibration plates
• 1 x Wrist Lanyard
• 2 x 1.5V AAA batteries
• 1 x User manual in Polish and English!
• 1 x Original manufacturer's packaging

BENETECH is a manufacturer of advanced measuring and control equipment. A specialized supplier of professional digital measuring tools, as well as other electronic devices.

BENETECH POLAND is an authorized and direct distributor of this brand in Poland and Europe.

In the brand catalog you will find m.in:

• pyrometers and thermal imaging cameras,
• anemometers (wind meters),
• humidity meters and hygrometers,
• detectors and meters of gases and air quality,
• sonometers (decibel meters) and lux meters (light meters),
• laser rangefinders and tachometers,
• thermometers and pressure gauges,
• thickness and vibration meters (vibrometers),
• tools for electricians and cable detectors,
• electromagnetic radiation meter,
• home and industrial electronics equipment.

Directive EMC 2014/30/EU and RoHS 2011/65/EU

At the customer’s request, we attach a calibration report from the manufacturer translated into English. We receive the document electronically a few days later. In order to avoid delay in the execution of the order, we send the calibration report within about 7 working days to the e-mail provided in the order or assigned to the account.

The product meets European standards and directives, as evidenced by the CE certificate, at the customer's request this document is also attached.

The manufacturer’s calibration report and declaration of conformity (CE) is a free, optional document and therefore is not sold in this offer.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Benetech
Parametry	EAN (GTIN)	5903738812370
Parametry	Model	GT233
Parametry	Measuring range	0–1500 μm
Parametry	Probe type	built-in
Parametry	Read-out history	yes
Parametry	Manufacturer code	GT233
Parametry	Batteries included	yes
Parametry	Additional information	automatic shutdown,illuminated display,case included
