Dažų storio matuoklis su automatiniu LCD ekranu

Trumpai apie prekę

Prekė: Dažų storio matuoklis su automatiniu LCD ekranu. Kategorija: Dažų storio matuokliai.

• Gamintojas: Benetech
• Modelis: GT260

⭐⭐⭐⭐⭐

COATING METER - VARNISH AND OTHER MATERIALS

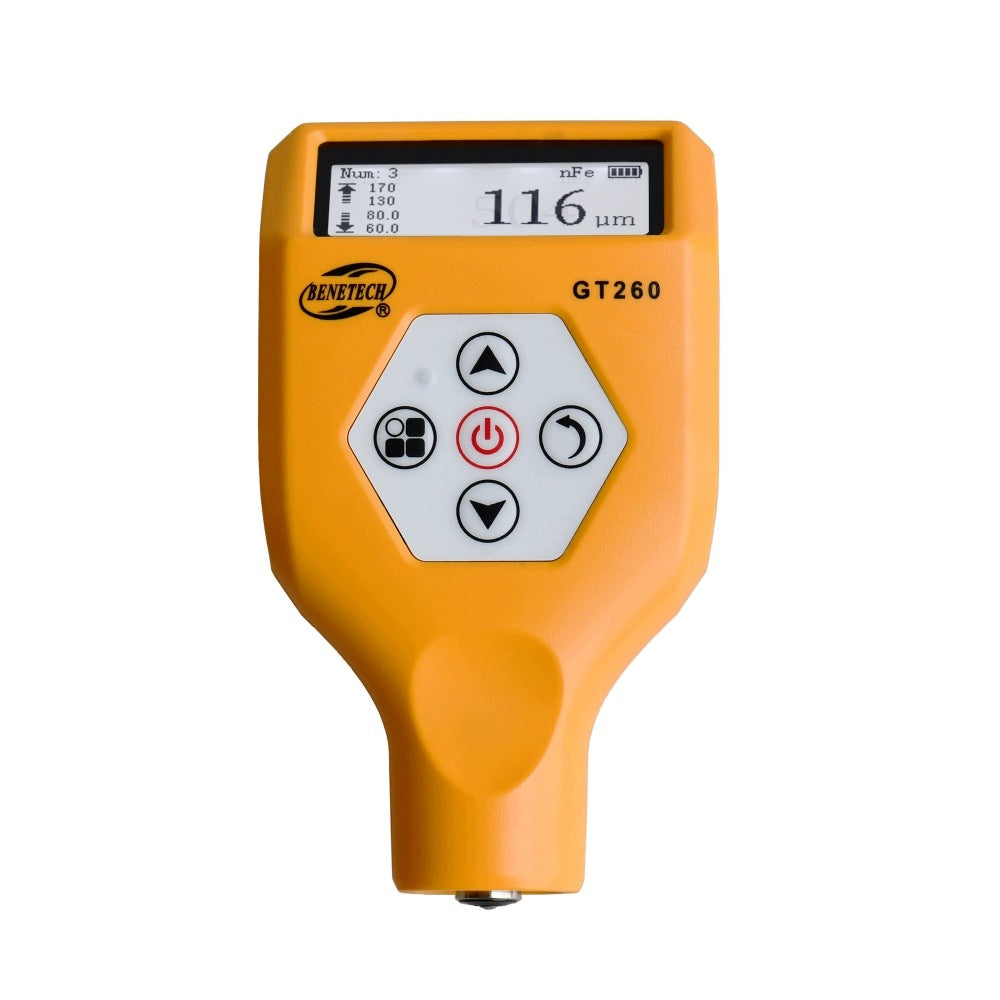

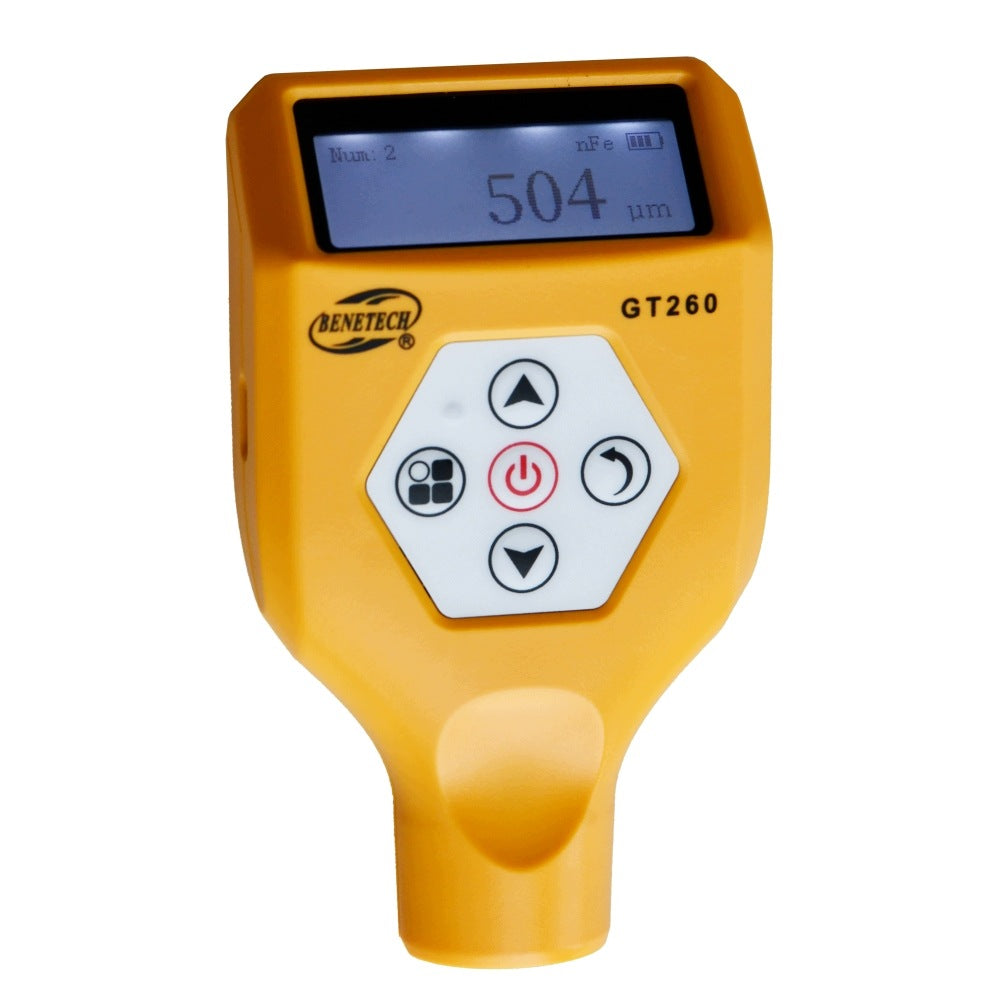

Are you looking for a reliable tool that will allow you to quickly and non-invasively assess the bodywork and paintwork condition of any vehicle? Benetech GT260 is a technologically advanced, portable paint coating thickness gauge. This device provides excellent support for both automotive industry professionals (car dealerships, paint shops, appraisers) and private individuals looking for an accident-free car. Thanks to automatic ground recognition and advanced car mode, vehicle analysis becomes extremely simple and precise.

This gauge is a fast and accurate instrument for measuring the thickness of a non-metallic coating on a non-magnetic metal substrate and the thickness of a non-magnetic coating on a magnetic metal substrate.

The tester can automatically identify magnetic and non-magnetic metal substrates . It is widely used in the automotive industry, metal processing industry, chemical industry, goods inspection, etc.

⭐⭐⭐⭐⭐

Benetech GT260 meter is equipped with an intelligent substrate detection algorithm that automatically recognizes the base material under the measured paint. The device distinguishes:

• Fe – magnetic substrates (steel, iron).
• nFe – non-magnetic substrates (aluminum, copper, etc. ).
• Fe+Zn – steel substrates covered with a zinc layer (key to verify whether the element was replaced with a cheaper substitute without a zinc layer or subjected to unprofessional repair). All this information is displayed immediately on the device's clear screen, eliminating the risk of error and the need to manually change settings.

⭐⭐⭐⭐⭐

This is one of the most revolutionary features of this model! Dishonest sellers often use a special putty with the addition of metal filings (iron dust) to trick simpler, cheaper paint gauges by imitating original sheet metal. Benetech GT260 easily exposes this practice. The device automatically identifies the presence of iron dust filler, warning you of an attempt to conceal a major accident repair.

⭐⭐⭐⭐⭐

Car mode is designed specifically for quick and complete car inspections. The meter allows you to take measurements divided into specific parts of the bodywork (e.g. hood, roof, doors, pillars).

• Visual point map: The device guides you step by step through individual vehicle elements ( m.in : roof, left pillar, right hood, fenders etc. ).
• Large database: Ability to save separate measurements for up to 999 independent vehicles!
• Local Part Memory: Each vehicle component can store up to 6 independent readings, making it easy to obtain precise averages and eliminating the need to manually record results.

⭐⭐⭐⭐⭐

The gauge has a built-in voice message function that reads out the results aloud. This allows you to fully concentrate on precisely placing the probe on the car body without constantly looking at the LCD display. This function can be easily turned on or off directly from the intuitive settings menu.

⭐⭐⭐⭐⭐

The device allows you to define your own threshold values for easier interpretation of results:

• For Standard Mode: Ability to set Super Low, Data Low, Data High, and Super High thresholds (in the range of 0 to 3000 μm). Exceeding the limits results in an immediate display of the value in a clear negative and a notification on the screen.
• For Car Mode: Predefined, configurable thresholds: Paint Thin, Paint Thick (second layer), and Area Repaired (putty). A clear message immediately appears on the screen indicating the coating condition!

⭐⭐⭐⭐⭐

To ensure the highest measurement accuracy in all weather conditions and on any substrate, the gauge offers 3 easily accessible calibration options:

1. Zero Calibration (Zero Cal): Quick zeroing on a clean, uncoated metal plate.
2. Two-Point Calibration (Two Point Cal): Correction of readings using the included precise calibration plate with high thickness (e.g., approx. 1000 μm).
3. Factory Calibration Reset: Allows you to restore the device's default factory settings with a single click.

⭐⭐⭐⭐⭐

The device is extremely versatile:

• Standard Mode: Allows for traditional, continuous measurements of any coatings with statistics display (measurement counter up to 60 records, maximum value MAX, minimum MIN, and average AVG). Ideal for industrial applications.
• Car Mode: Designed specifically for detailed paint diagnostics on passenger cars and SUVs, divided into key measurement zones.

⭐⭐⭐⭐⭐

Forget about constantly buying expensive alkaline batteries! Benetech GT260 has a built-in lithium-ion battery with a capacity of 600 mAh (3.7V) . The device is charged via a modern USB Type-C port located on the side of the housing. You can charge the meter with a classic phone charger (5V/1A), a power bank or directly in the car while driving.

⭐⭐⭐⭐⭐

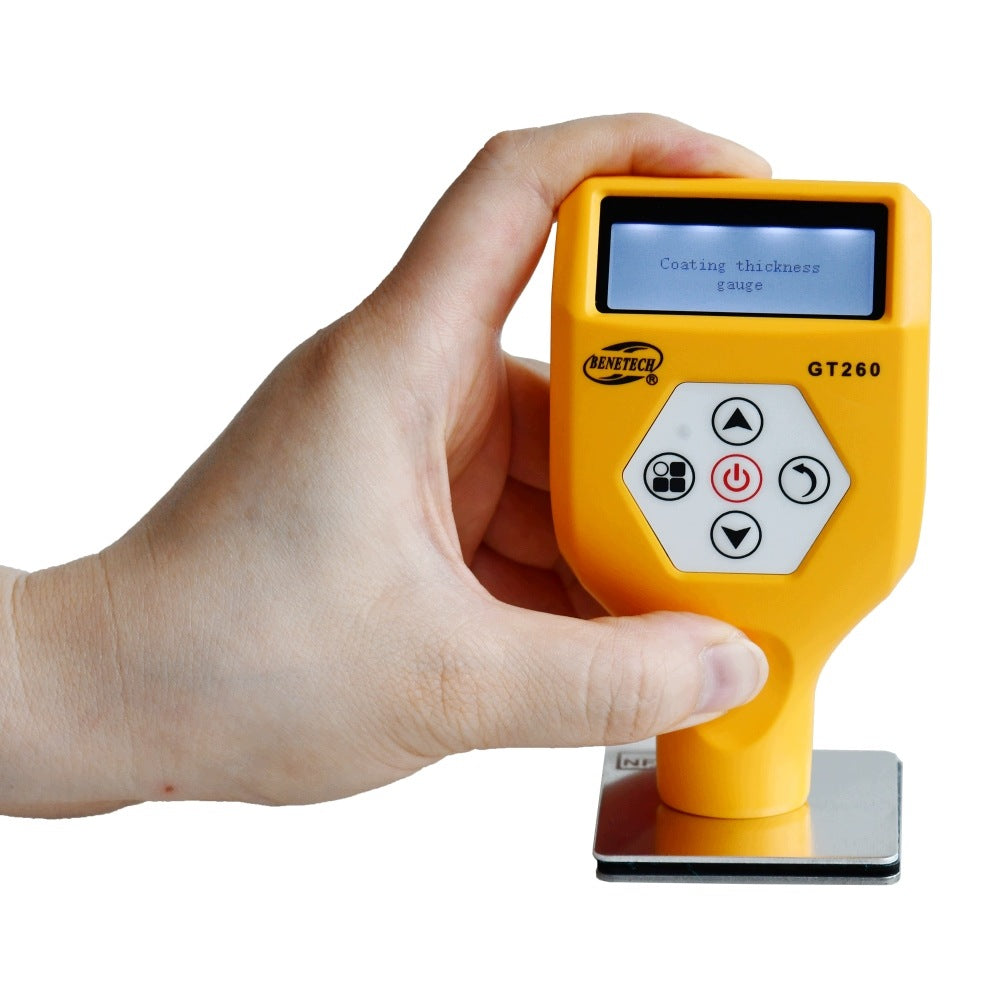

The device's design has been optimized for ergonomics. The housing, measuring 107 x 62 x 25 mm, fits perfectly in the hand, and its weight of only 82.5 g ensures that even long-term use does not cause fatigue. The integrated, spring-loaded measurement probe guarantees stable and repeatable pressure on the measured surface, which translates to excellent measurement precision without the risk of scratching the paint.

⭐⭐⭐⭐⭐

The LCD screen with bright and contrasting backlighting ensures excellent visibility even in direct sunlight or during evening vehicle inspections in low light conditions. Furthermore, the device has a function that automatically turns on the gauge when the probe is pressed against the paint, making it immediately ready for use!

⭐⭐⭐⭐⭐

• Measurement Range: 0 - 3000 μm (0 - 118 mil)
• Measurement Resolution:

  0.1 μm for values < 100 μm

  1 μm for values ≥ 100 μm

  0.01 mil (< 5 mil), 0.1 mil (5 - 100 mil), 1 mil (> 100 mil)

• Measurement Error:

  ≤ 150 μm: ±5 μm

  > 150 μm: ±(3% + 1 μm)

  > 1500 μm: ±(5% + 1 μm)

• Minimum Magnetic Substrate Diameter: 12 mm
• Minimum Magnetic Substrate Thickness: 0.5 mm
• Minimum Substrate Curvature Radius (Convex): 2 mm
• Minimum Substrate Curvature Radius (Concave): 11 mm
• Minimum Non-Magnetic Metal Substrate Diameter: 50 mm
• Minimum Non-Magnetic Metal Substrate Thickness: 0.5 mm
• Power Supply: Built-in 600 mAh 3.7 V Lithium Battery
• Memory Capacity: Standard Mode: 60 records | Car Mode: 999 vehicles
• Dimensions: 107 x 62 x 25 mm
• Weight: 82.5 g

⭐⭐⭐⭐⭐

• 1 x Benetech GT260 Thickness Gauge
• 1 x Protective case
• 1 x Set of calibration plates
• 1 x USB-C charging cable
• 1 x Lanyard for hanging on the wrist
• 1 x User manual in Polish and English!
• 1 x Original manufacturer's packaging

BENETECH is a manufacturer of advanced measuring and control equipment. A specialized supplier of professional digital measuring tools, as well as other electronic devices.

BENETECH POLAND is an authorized and direct distributor of this brand in Poland and Europe.

In the brand catalog you will find m.in:

• pyrometers and thermal imaging cameras,
• anemometers (wind meters),
• humidity meters and hygrometers,
• detectors and meters of gases and air quality,
• sonometers (decibel meters) and lux meters (light meters),
• laser rangefinders and tachometers,
• thermometers and pressure gauges,
• thickness and vibration meters (vibrometers),
• tools for electricians and cable detectors,
• electromagnetic radiation meter,
• home and industrial electronics equipment.

Directive EMC 2014/30/EU and RoHS 2011/65/EU

At the customer’s request, we attach a calibration report from the manufacturer translated into English. We receive the document electronically a few days later. In order to avoid delay in the execution of the order, we send the calibration report within about 7 working days to the e-mail provided in the order or assigned to the account.

The product meets European standards and directives, as evidenced by the CE certificate, at the customer's request this document is also attached.

The manufacturer’s calibration report and declaration of conformity (CE) is a free, optional document and therefore is not sold in this offer.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Benetech
Parametry	Product weight with unit packaging	0.1 kg
Parametry	EAN (GTIN)	5903738812233
Parametry	Model	GT260
Parametry	Measuring range	0–3000 μm
Parametry	Probe type	built-in
Parametry	Read-out history	yes
Parametry	Manufacturer code	GT260
Parametry	Additional information	automatic shutdown,illuminated display,case included
