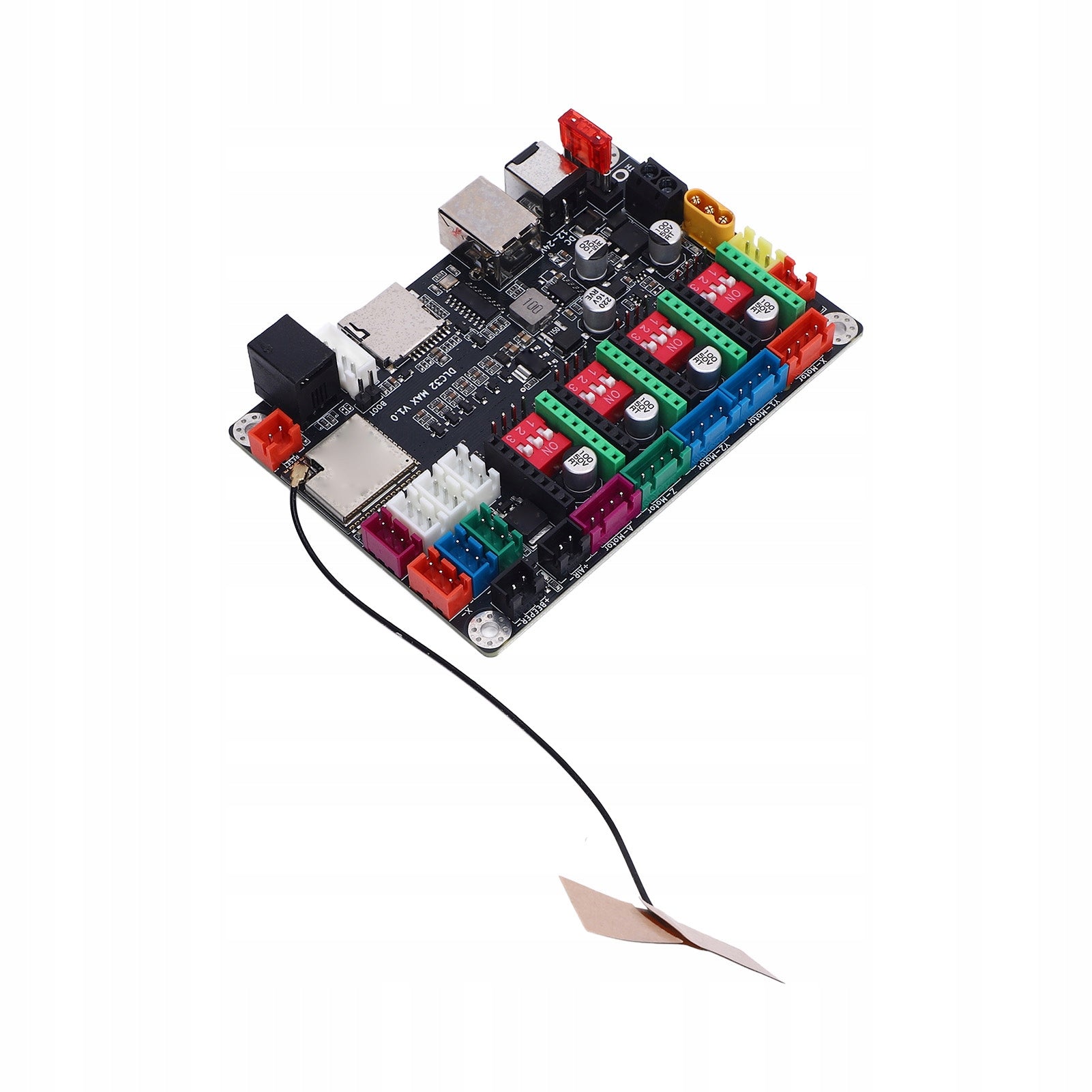

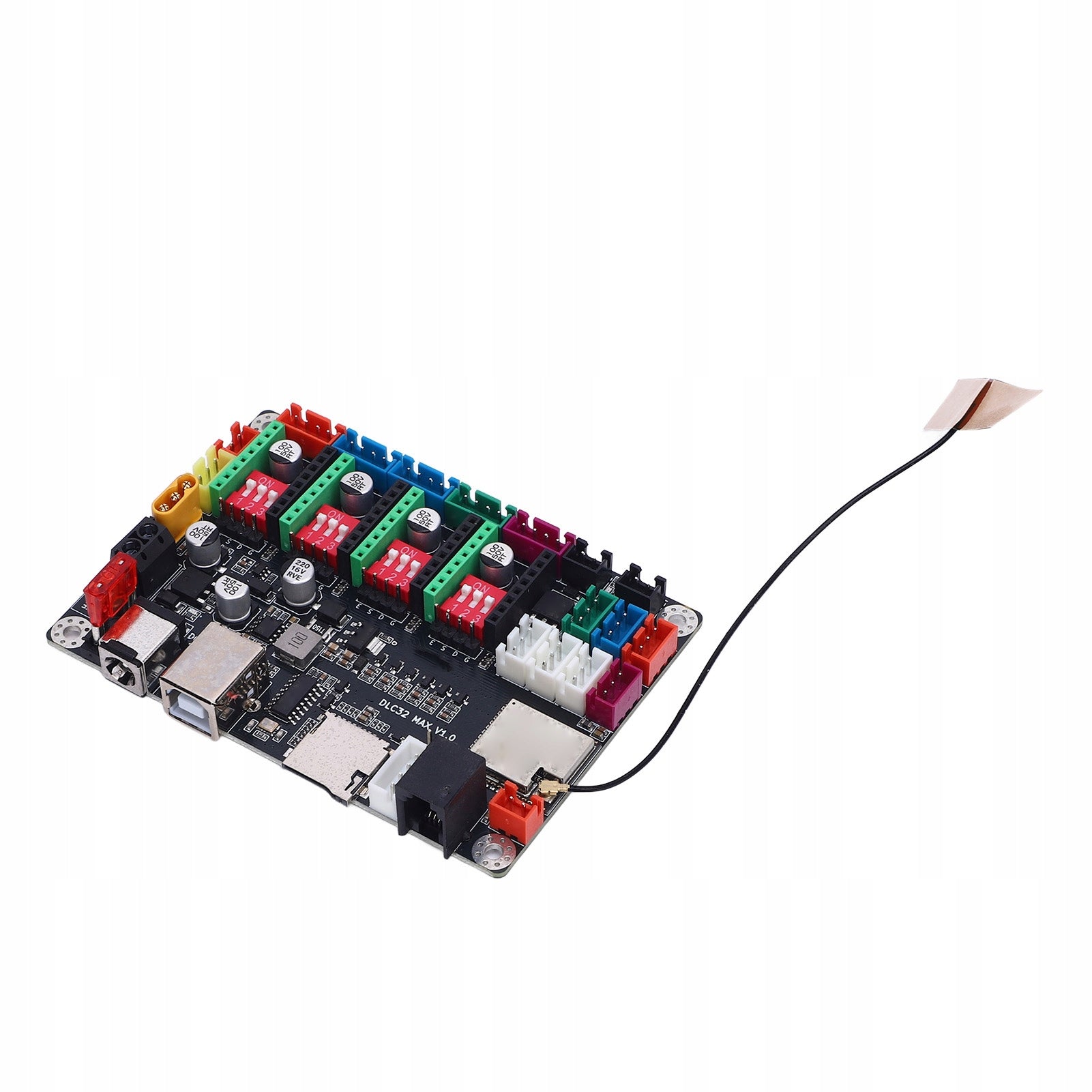

CNC pagrindinė plokštė DC12V-24V 10A, 4 ašių, 4R graviravimo staklėms

Trumpai apie prekę

Prekė: CNC pagrindinė plokštė DC12V-24V 10A, 4 ašių, 4R graviravimo staklėms. Kategorija: Rašaliniai ir lazeriniai spausdintuvai.

• Gamintojas: no brand
• Modelis: 7772KQEU

Function:

1. Technical parameters: developed by MakerBase (for MKS), for MKS DLC32 The maximum engraving control board is a high performance, highly scalable and intelligently controlled engraving solution. The chip for the ESP32-S3 series supports CNC and engraving, including CNC A Axes Control, providing power up to 60W and speeds up to 30 000mm/min to meet the needs of efficient creation

2. Flexible and expandable: Engraving machine motherboard is compatible with Ultra Quiet TMC2209 and TB67S109 controller modules, providing strong scalability and seamless connection to external servo motors and spikes for greater load output

3. Safe and convenient: The engraving machine control board is equipped with intelligent safety features such as lid protection and flame detection to ensure a safe innovative experience. Support serial offline engraving, no need to connect to computer for long time, support mobile applications and LAN remote control for more flexibility and convenience

4. Good cooling effect: main board with 4 Ultra Quiet TMC2209 V2.0 Motor Drivers, upgrade TMC2209 Heat Dissipation better, support more current, support non-sensor function. Nice replacement for original TMC2100 A4988 DRV8825

5. Versatile and practical: 32-bit motherboard set, whether for engraving or CNC applications, the maximum for MKS DLC32 is suitable for unleashing a lot of creativity

Specification:

• Item Type: Engraving Machine Main Plate
• Board model: for MKS DLC32 Maximum
• Power Input: 12V-24V 10A
• Processor model: for ESP32 S3
• Frequency: 240 MHz
• Drive Type: Connect or External
• Axles: Axle support
• PC WiFi Interface: Support
• WiFi App Interface: Support
• Offline Engraving: Support
• CNC mode switching: one-click switching
• CNC Controller: Operation
• Assist: Support
• Emergency Stop: Support
• Maximum engraving speed: 30000 mm/min
• Card slot on the main board: Small memory card (not included)
• Controlled Controller:
• Model: TMC2209 v2.0
• Material: PCB and aluminum alloy
• Microstep: 256 Subdivision
• Drive Current: 2.8a
• Configuration: step/dir or UART
• Factory Default Current: 0,85a
• Charging drive voltage motor voltage: 5,5-28v
• IC Operating voltage logic: 3-5v
• Application: various 3D control boards
• Recommended current: not more than 1,7a

How to use:

• According to the graphical introduction

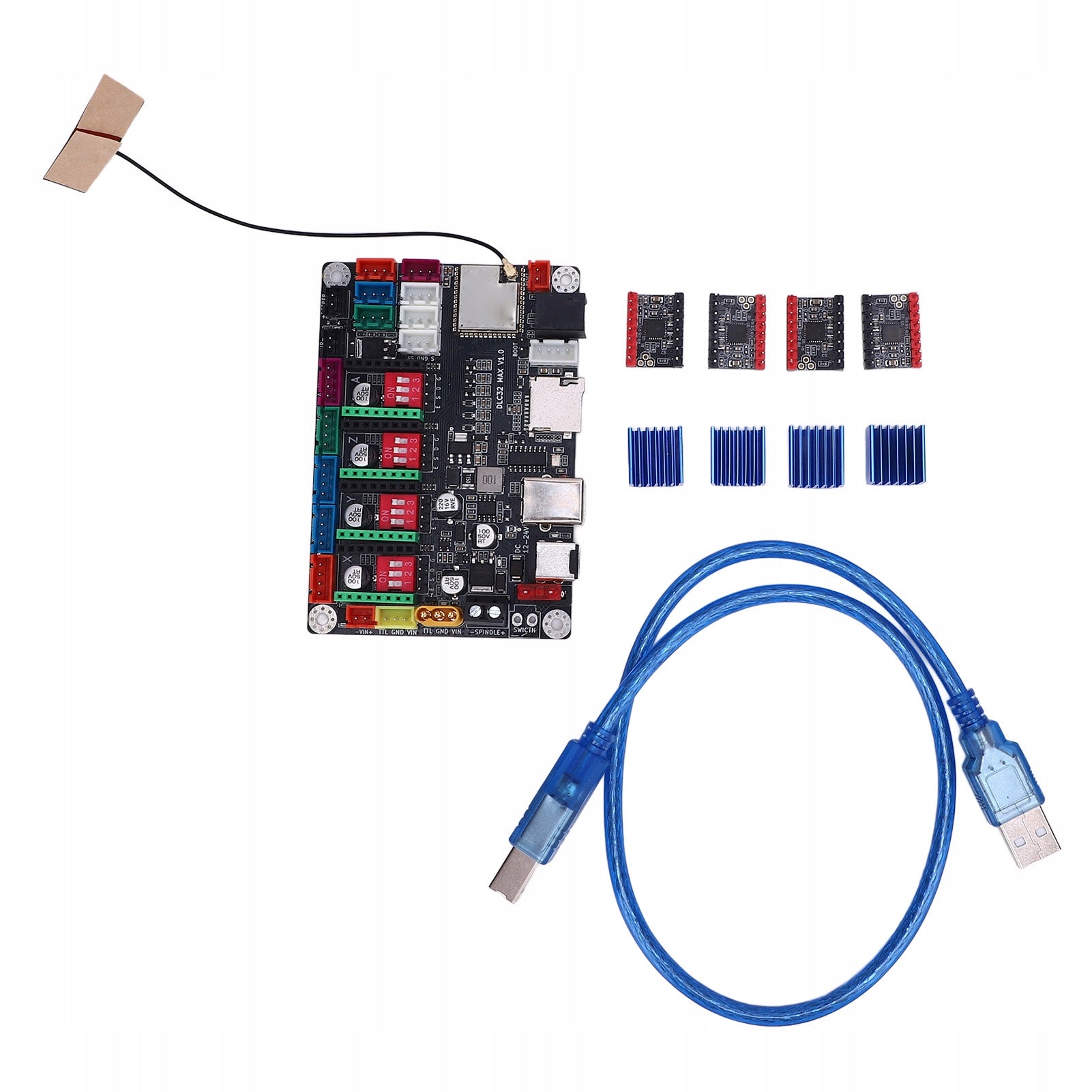

• List of packages

:

• Set of 1 x Main Board
• 1 x Blue USB Data Cable
• 4 x TMC2209 V2.0 Drivers
• 4 x Driver Heat
