Trumpai apie prekę
Prekė: Cinelifter rinkinys 9": Mark4 V2 rėmas + 4x T-Motor Velox V3008 1500kV. Kategorija: Dronai ir multikopteriai.
- Gamintojas: Avifly
- Modelis: Z04

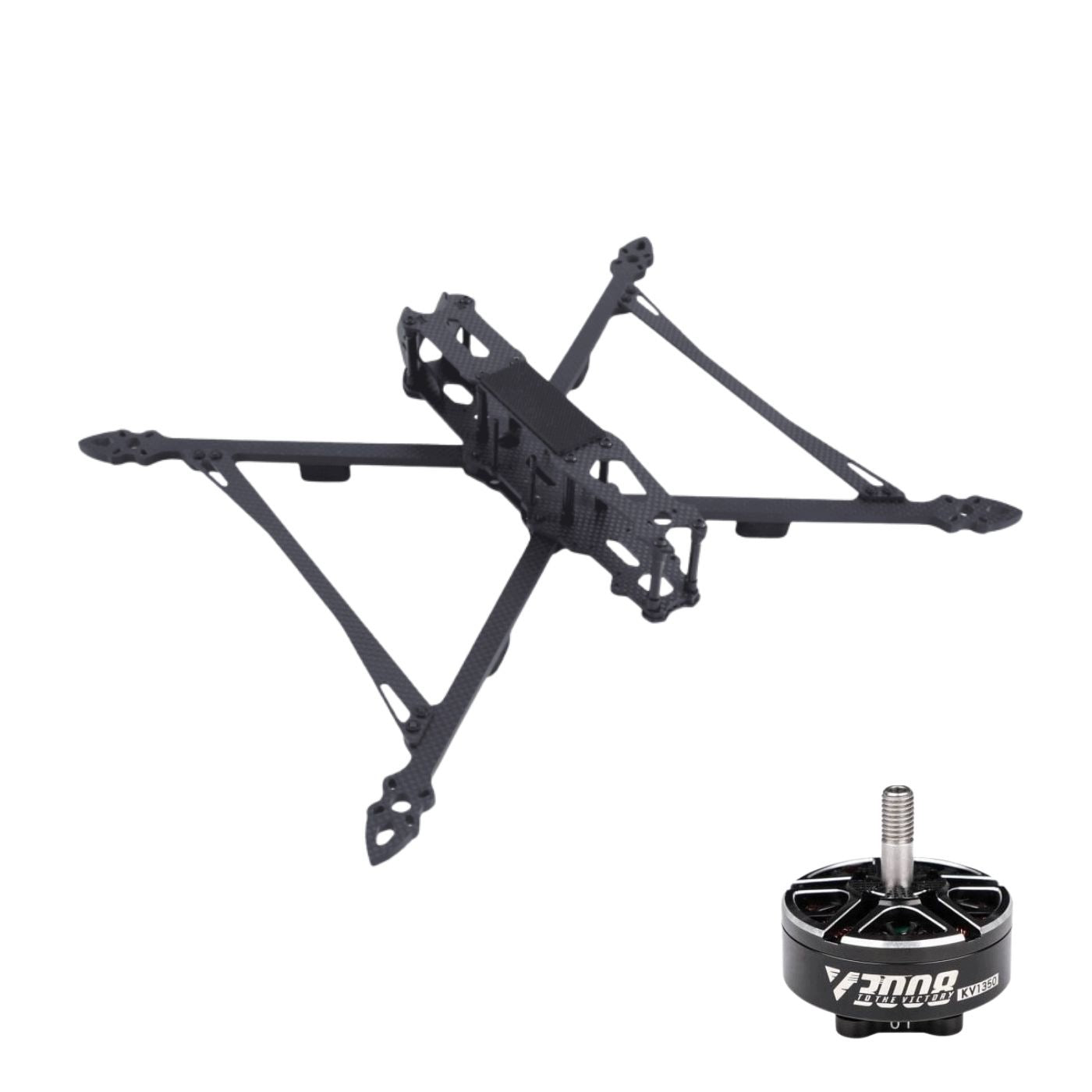

Mark4 V2 9 inch FPV Kit with 4 T-Motor VELOX V3008 1500KV Engines
A set for building a large FPV platform consisting of a carbon frame Mark4 V2 in the 9 inch version and four brushless motors T-Motor VELOX V3008 1500KV. The frame offers a wheelbase of 387 mm and a large mounting space, while the V3008 engines provide a Class 3008 design for larger FPV platforms.
The most important features of the set
- Complete mechanical set: 1x frame and 4x motor
- Mark4 V2 frame in 9 inch variant
- Frame wheelbase: 387 mm
- Frame weight: about 220 g
- Carbon arms with a thickness of 6 mm
- Installation of electronics: 20x20 mm and 30,5x30,5 mm
- 4 engines T-Motor VELOX V3008 version 1500KV
- Power motors: 4-6S LiPo
- Single motor weight: about 36,5 g without wires
- Engine mounting: 16x16 mm M3

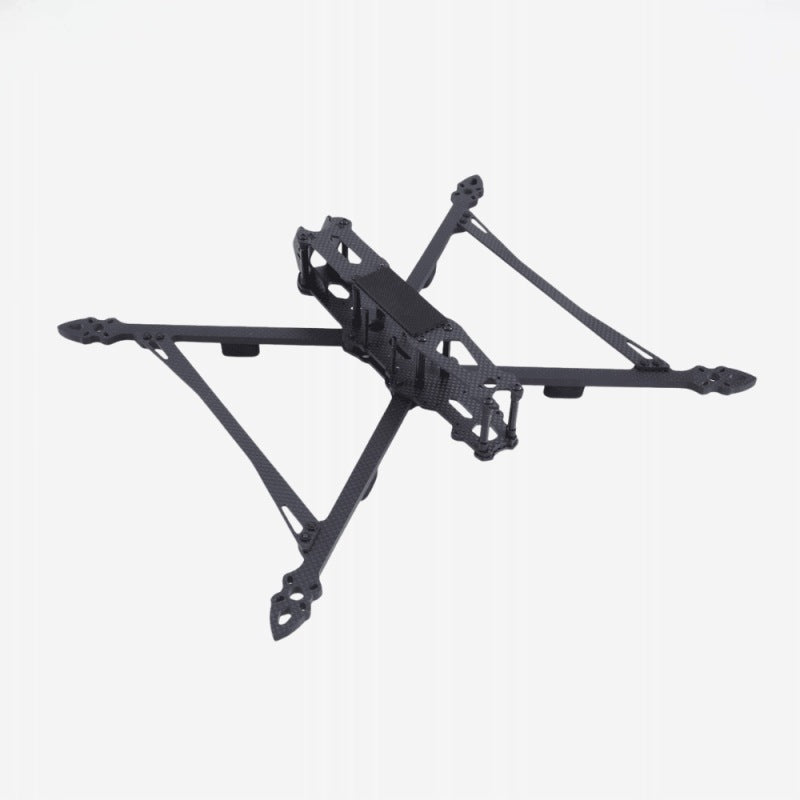

Frame Mark4 V2 9 inches
Mark4 V2 is a large FPV frame designed for the construction of platforms with wheelbase 387 mm. The construction uses arms with a thickness of 6 mm and additional stiffening elements. The internal space with a height of 35 mm allows for the installation of electronics needed in extensive FPV structures.

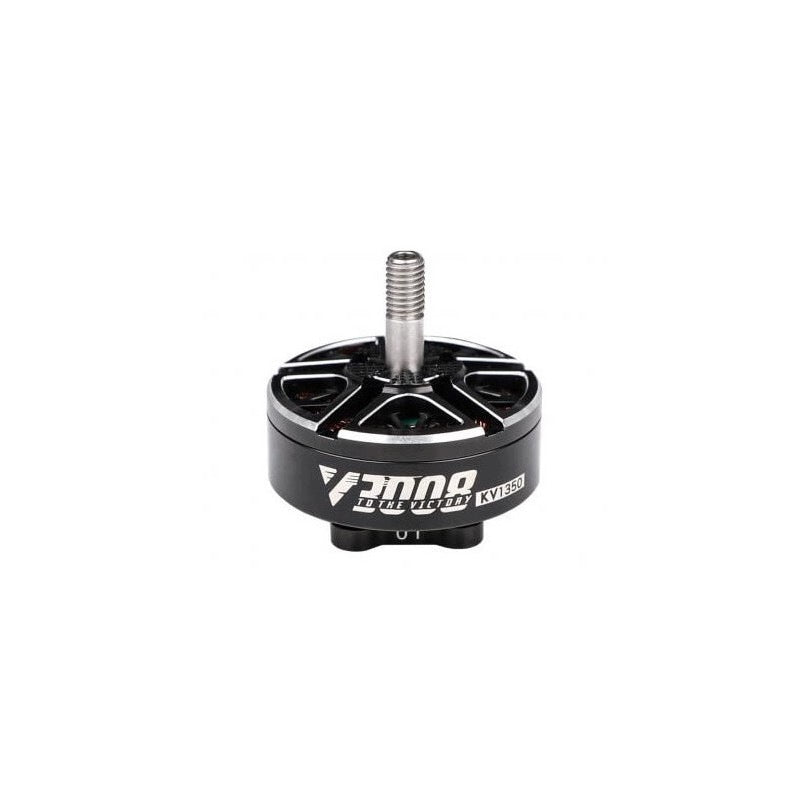

Engines T-Motor VELOX V3008 1500KV
The set includes 4 T-Motor VELOX V3008 1500KV engines. Each motor weighs approximately 36,5 g without wires, supports 4-6S LiPo power supply and uses the 16x16 mm M3 mounting standard, compatible with the holes provided in the Mark4 V2 frame.
Set specification
- Frame: Mark4 V2
- Frame Option: 9 inches
- Wheelbase: 387 mm
- Frame weight: about 220 g
- Bottom plate thickness: 3 mm
- Top plate thickness: 2 mm
- Arm Thickness: 6 mm
- Height of interior space: 35 mm
- Electronics assembly: 20x20 mm / 30,5x30,5 mm
- Engines: T-Motor VELOX V3008
- Number of engines: 4 pcs.
- KV: 1500KV
- Motor power supply: 4-6S LiPo
- Engine weight: about 36,5 g without wires
- Engine mounting: 16x16 mm M3
- Motor shaft diameter: 4 mm
Contents of the set
- 1x FPV frame Mark4 V2 9 inches 387 mm
- 4x T-Motor VELOX V3008 1500KV engine
Expert advice Avifly: Before selecting the propellers and the ESC regulator, the load of a specific V3008 1500KV drive set must be verified. The data available for the engine indicates use with 6-7-inch propellers, so you should not automatically select 9-inch propellers solely based on frame size.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Avifly |
| Parametry | Model | Z04 |
| Parametry | EAN (GTIN) | 5908080510844 |
| Parametry | Manufacturer code | Z04 |
