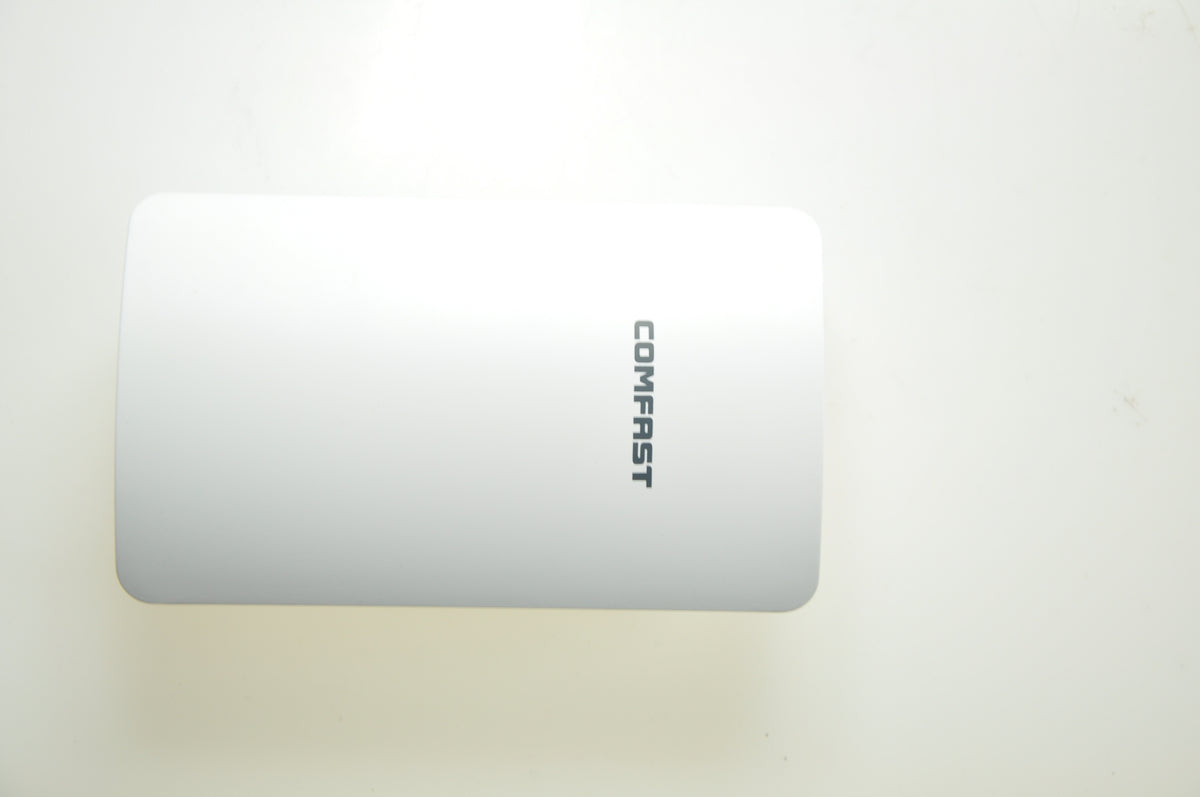

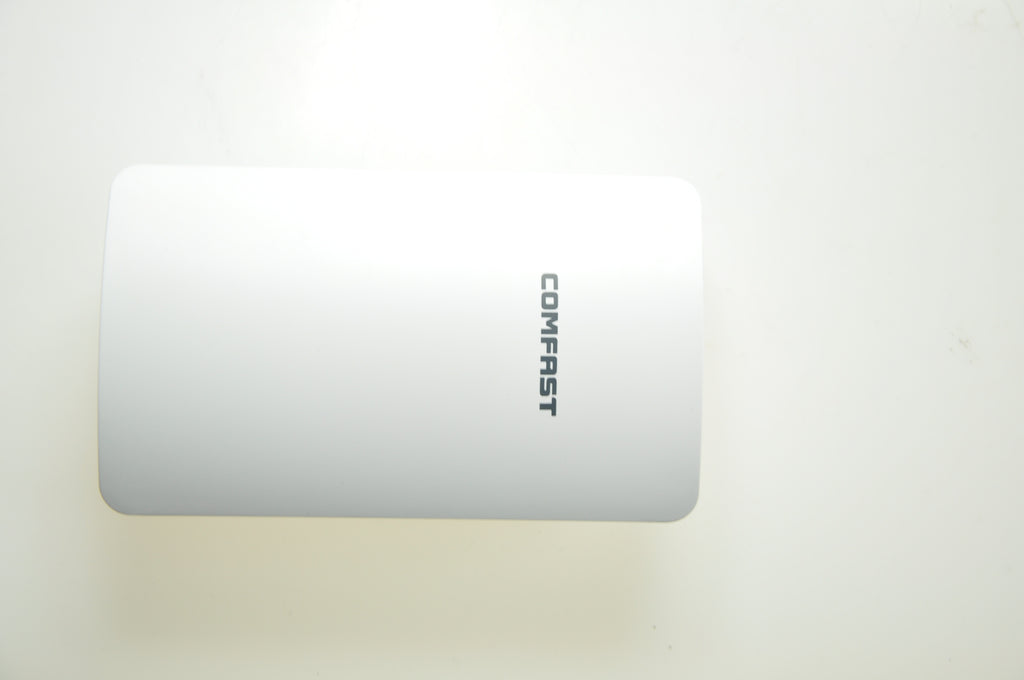

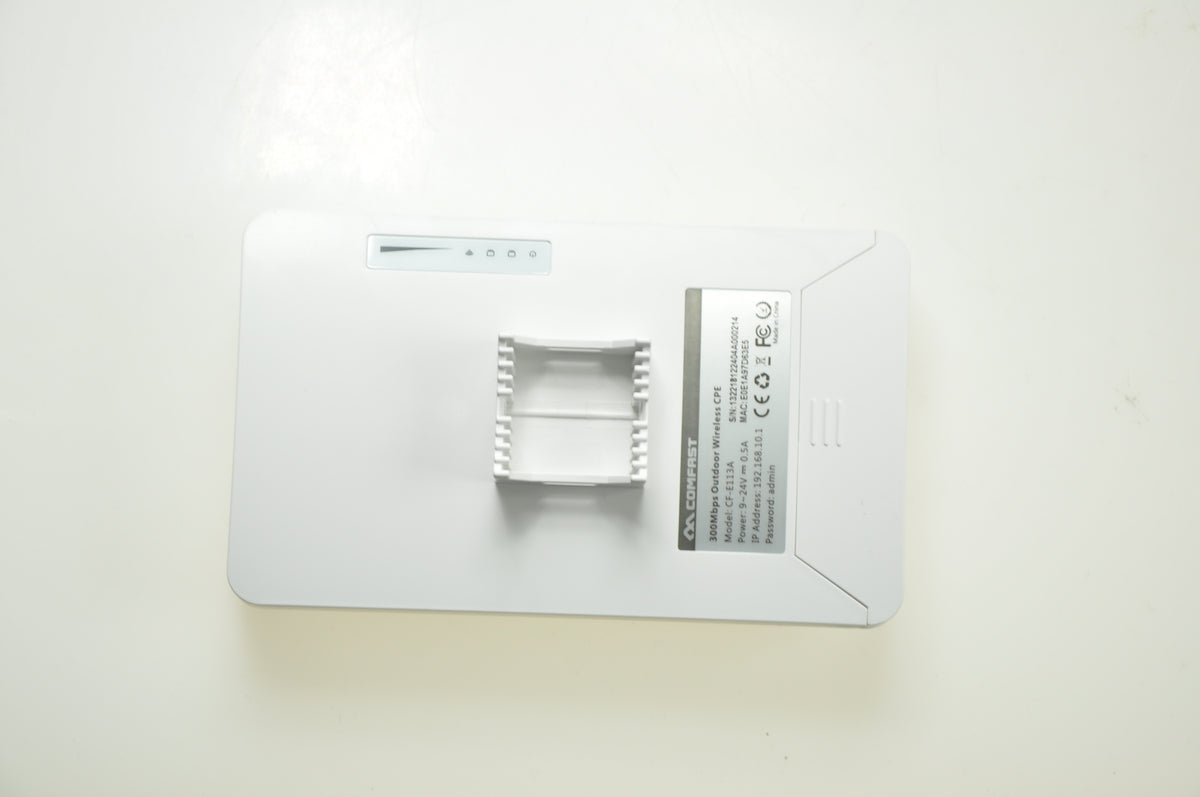

Belaidis WiFi prieigos taškas BRIDGE CPE, veikimo nuotolis iki 3 km

Trumpai apie prekę

Prekė: Belaidis WiFi prieigos taškas BRIDGE CPE, veikimo nuotolis iki 3 km. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Comfast
• Modelis: CF-E113A
• Plotis: 165 mm
• Aukštis: 95 mm

Does it take longer than expected to copy large files?

In the face of the dynamic development of high-speed Internet and upcoming revolutionary technologies, such as 5G GSM networks or fiber optics, it may happen that your existing WiFi solutions do not keep up with expectations. The solution to these challenges, which entail the need to transfer more and more data at increasingly higher speeds, is a product based on Qualcomm AR9344 technology.

We present COMFAST CF-E113A,

external access point powered by POE, which is very popular due to its simplicity of bridge configuration in ZERO-configuration technology. These devices are ready to operate and run the basic functionality of the bridge without the need for additional configuration.

This device 3w1, acting as an independent access point, bridge and station (SINAMAX STATION mode). It has 2 LAN POE 24V o ports of 100/10 MBps speed, including one LAN/WAN port. It can reach link speeds up to 300MBps in the 5,8GHz band, with 11dBi 5GHz antennas.

In bridge mode, it can provide range up to 3 km (only for point-to-point topology under appropriate conditions), and supports links in point-to-multipoint topology (with directional radiation characteristics, with a beam width of 60° horizontally and 30° vertically).

Switching IP packets from LAN/WAN to Wi-Fi reaches up to 95Mbps. It supports WPA2-PSK encryption with a key length of 64/128 bits and has a waterproof rating of IP65.

It can handle up to 60 users and even more in temporary workloads. Simple browser management SINAMAX is available in English. It is compatible with Windows 7, Windows 7 64-bit, Windows 8, Windows 8.1, Windows 10, Windows 10, Linux, and MAC OS.

CF-E113A offers 3 in 1 functions,

Which makes it extremely versatile. One of the main advantages of this device is the ability to run bridge mode without the need for configuration. This allows the router to transmit internet from the cable via WiFi to another device with a cable, and in addition, it can broadcast its own customizable WiFi network around one of the devices. Thus, in bridge mode, no additional mounting of the WiFi router is required.

Alternatively, by configuring both devices as access points (with the same or different SSIDs), you can use them as independent WiFi access points. Thanks to this, you can cover the next floors of apartments, restaurants, offices, cafes and their distant corners, called "dead corners" with WiFi signal. In larger facilities such as industrial halls, parking lots, stadiums or public facilities, as well as video surveillance systems, you can cover with WiFi signal by installing more access points in point-to-multipoint topologies, using the built-in SINAMAX system.

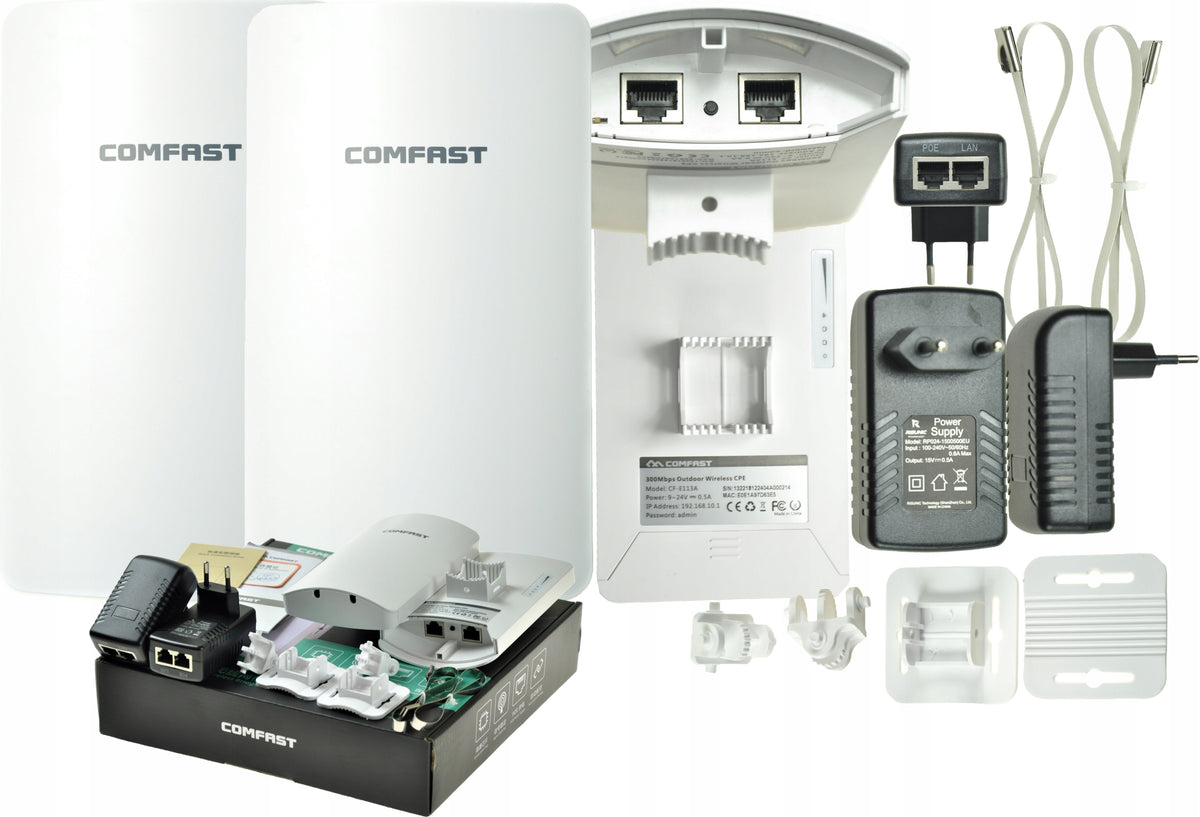

• We offer two CF-E113A 3W1 access points equipped with Sinamax software. Each includes two adjustable brackets both vertically and horizontally, along with a mounting kit that includes screws and clamps. Additionally, the kit includes two 24V 802.11af 100Mbps POE injectors.

The matte finish of the body and contrasting LEDs attract attention with their elegance, while guaranteeing the highest quality of electronic components. The miniaturized case hides a powerful Qualcomm AR9344 processor, clocked at 720MHz, supported by 128MB DDR RAM. It is an ideal proposition for users who value unique, branded design, stability and the possibility of expanding the system.

I would like to share some information about this model.

In this model, it was decided to double the number of internal antennas operating in the DUAL system, which means the presence of a double radiator. Thanks to this, the use of the device becomes more convenient, and the wireless network reaches a much greater range, without losing the signal so quickly even through obstacles such as walls or walls. For users looking for access point with higher parameters, we recommend a wide family of access points COMFAST.

On a daily basis, you can enjoy spectacular speeds in the ac standard. When you suddenly need to connect to an older type of network, you still remain compatible with your old b/g/n routers.

Do you want to save even more?

The use of wireless connectivity can increase productivity and comfort while reducing costs. Why bother with hanging LAN cables when you can have a tangle of wires on your desk? Increase productivity and reduce costs by replacing short computer cables with WiFi communication. Simplify your life with the CF-E113A.

Attract new customers by offering internet access at 2.4GHz and 5GHz frequencies in enclosed building complexes such as public facilities, shopping malls, playgrounds, "eagles", restaurant gardens, parks, parking lots, gardens, swimming pools, auditoriums, sports halls, aquaparks. Streamline production processes by delivering high-speed internet in production halls or warehouses. The 2.4GHz frequency will also allow the Internet to be delivered in all other open facilities.

In addition, the WiFi N speed reaches up to 300 Mbps, which allows you to download huge amounts of data (e.g. TV in 4K quality, online gaming) without long wait. Discover lower latency and highest data rates.

• 3W1 : accesspoint, bridge, station
• 2 LAN POE ports 9-24V 100/10 MBps, including one LAN/WAN port
• WiFi 802.11 a/an with WPA2-PSK encryption
• Speed up to 300MBps in the 5GHz band
• antennas 11dBi 5GHz
• transfer counters
• automatic resume of lost connection
• sensitivity -96dBm
• Transmission power: 27dBm (200mW)
• support for bridge WDS
• possibility of mounting on a wall or post
• own DHCP: no
• NAT: No
• watchdog
• statistics
• open development architecture without the need to root devices
• Power consumption only 8W
• Operating environment: Permissible operating temperature:-40℃~+55℃; Permissible storage temperature:-50℃~+70℃; Permissible air humidity:10%~90% non-condensing; Permissible storage humidity:5%~95% non-condensing
• dimensions 165mm x 95mm x 31mm
• weight 365g

Specifications
