Belaidis prieigos taškas TP-LINK EAP110

Trumpai apie prekę

Prekė: Belaidis prieigos taškas TP-LINK EAP110. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: no brand
• Modelis: 133375387
• Plotis: 305 mm
• Aukštis: 70 mm

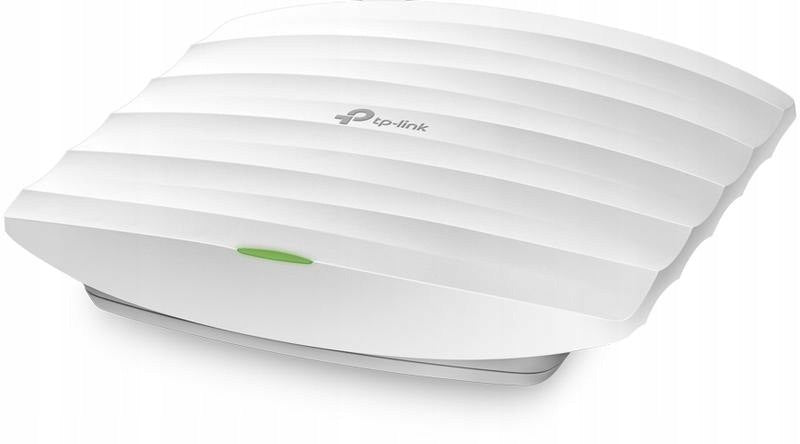

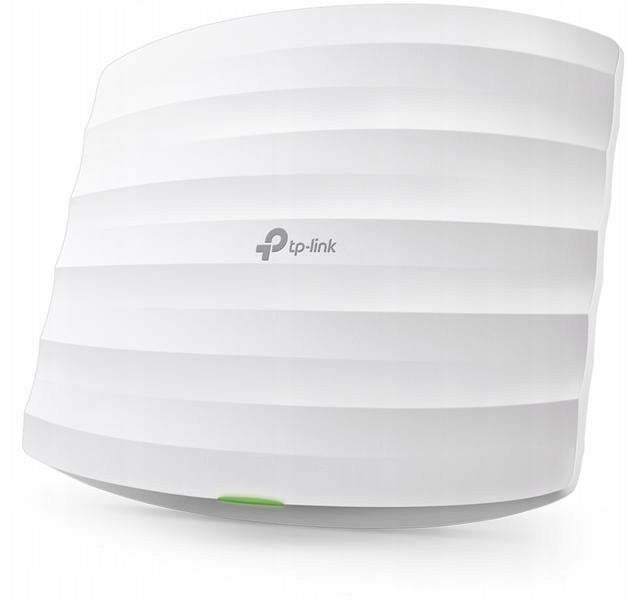

AP TP-LINK EAP110

AP TP-LINK EAP110

Model: EAP110

THE MOST IMPORTANT FEATURES

• Management software allows for central management of wireless network
• Passive PoE support up to 100m
• Easy to mount on the wall or ceiling
• Authentication with the Welcome Page
• Multi-SSID allows you to create subnets for different users
• Business-class security protects your WiFi network from attacks

USE OF THE PRODUCT

The EAP110 TP-LINK access point for business applications is a flexible, easy to install and manage, and secure solution for wireless networks. Its installation on the wall or ceiling is extremely simple. WLAN configuration and management has been simplified with central management software. With automatic RF management and welcome page authentication, EAP110 is the ideal solution for demanding environments such as e.g. campuses, hotels, shopping malls or offices

TECHNICAL SPECIFICATION

• HARDWARE FEATURES:
• Ports: 1 Fast Ethernet port (RJ-45) (supports passive PoE)
• Buttons: Reset
• Power supply: Passive PoE or external 24VDC/1A power supply
• Power consumption: 7,7W
• Wireless standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Dimensions (S x G x W): 180 x 180 x 47,5mm (7,1 x 7,1 x 1,9 inches)
• Antenna type: 2 internal 3dBi omnidirectional antennas
• Assembly: Wall/ceiling mounting (mounting kit included)
• Physical security: Kensington locking socket
• Watchdog: Yes
• PROPERTIES OF WIRELESS TRANSMISSION:
• Wireless standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Working frequency: 2,4-2,4835GHz
• Transmission speed: 11n Up to 300Mbps(dynamic) 11g Up to 54Mbps(dynamic) 11b Up to 11Mbps(dynamic)
• Receiver sensitivity: 300M -71dBm@10% PER 150M -75dBm@10% PER 54M -78dBm@10% PER 11M -93dBm@8% PER 6M -92dBm@10% PER 1M -96dBm@8% PER
• Wireless Transmission Functions: Multi-SSID （Up to 8 SSID） Wireless Network Switch Automatic Channel Selection QoS Transmission Power Control (WMM) Bandwidth Balancing Wireless Network Statistics Schedule based on SSID/AP/Customer
• Wireless transmission security: Welcome page authentication MAC address filtering Wireless network client isolation SSID to VLAN mapping Detection of unauthorized AP Support 802.1X Encryption 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
• Transmission power: CE < 20dBm FCC < 26dBm< /li>
• MANAGEMENT:
• EAP Controller software: Yes
• Email notifications: Yes
• LED switch: Yes
• Access control by MAC addresses: Yes
• SNMP: v1,v2c
• System log: Local and remote
• Telnet: Yes
• Browser management: HTTP/HTTPS
• OTHER:
• Certificates: CE, FCC, RoHS
• Package Content: EAP110 Passive PoE Adapter Power Supply Mounting Kit CD Installation Manual
• System requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8
• Working environment: Permissible operating temperature 0℃~40℃ (32℉~104℉); Permissible storage temperature -40℃~70℃ (-40℉~158℉) Permissible air humidity 10%~90% non-condensing; Permissible storage temperature 5%~90% non-condensing
