Trumpai apie prekę
Prekė: Belaidis prieigos taškas MikroTik routerboard LHG HP5, 802.11n Wi-Fi 4. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.
- Gamintojas: MikroTik
- Modelis: MikroTik routerboard LHG HP5
- Plotis: 460 mm
- Aukštis: 440 mm
- radio up to 28 dBm (630 mW)
- 5 GHz band
- standard 802.11 a/n
- Mesh antenna with a diameter of 391 mm and a gain of 24,5 dBi
- 2x2 MIMO
- power supply via PoE
- RouterOS system

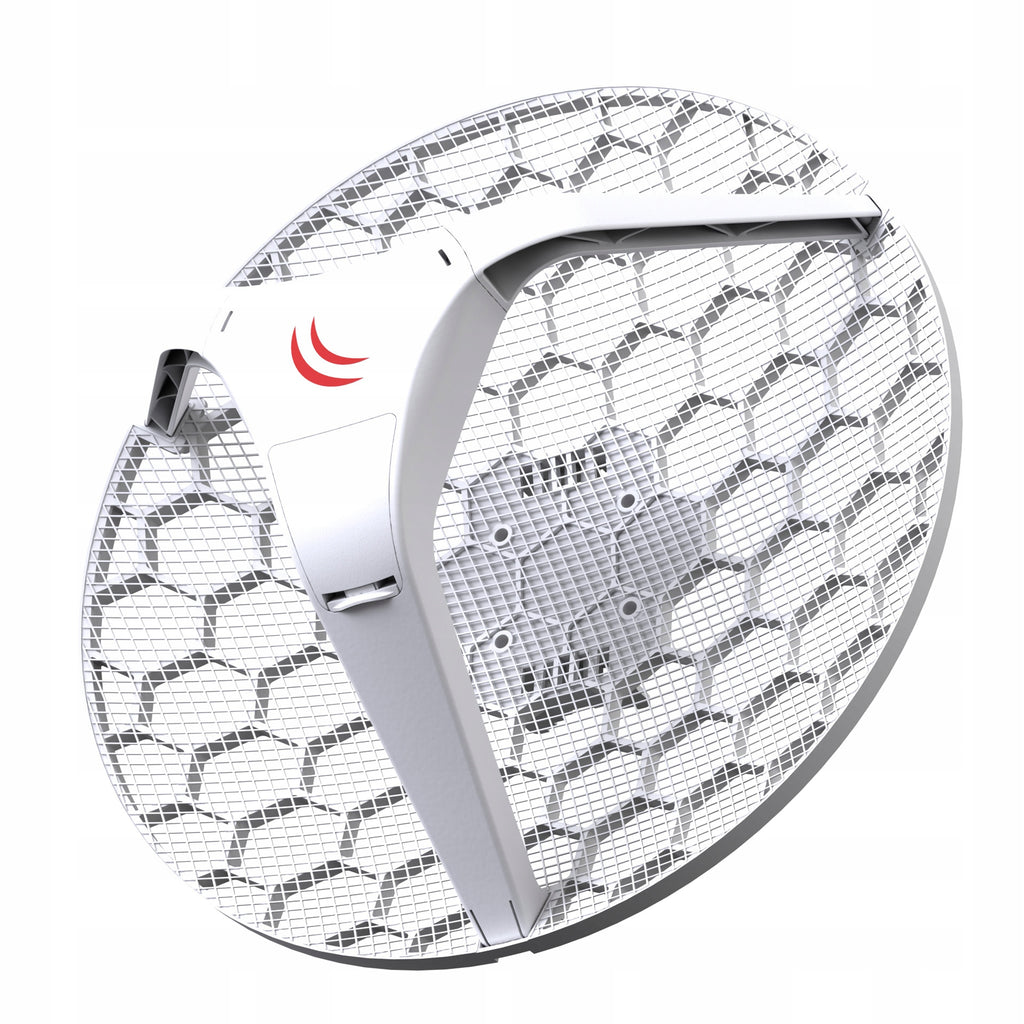

Mikrotik RouterBoard LHG HP5 (RBLHG-5HPnD) is a compact and lightweight wireless device with an integrated mesh antenna with a gain of 24.5 dBi.
The device is a more powerful version of the LHG 5. Mikrotik LHG HP5 is an ideal device for creating PtP links or as a client device on long-length links (3 license level). The mesh design provides protection against wind, in addition, by mounting the device inside the mesh, the losses associated with the wires connecting the device to the antenna have been eliminated.
The offered product uses the standards 802.11a/n and technology 2x2 MIMO. The maximum theoretical connection bandwidth is 300Mbps. The main beam has a slightly larger width than in LHG 5 - 10,4°.
The device is powered by passive PoE, voltage in the range of 10-28V DC. The set includes a 24 V, 0.38 A power supply and a PoE injector.
The device is delivered in a disassembled state, but assembling the device is not complicated. The kit includes a small adapter, thanks to which it is possible to rotate the antenna 5 degrees relative to the output position.
- CPU clocking: 600 MHz
- RAM: 64 MB
- Embedded memory: 16 MB flash
- Radio: AR9344
- Wireless properties: Standard 802.11a/n, Dual-chain (2x2 MIMO)
- Frequency range: 5150 - 5875 MHz
- Antenna gain: 24,5 dBi ± 0,5
- Beam width: 10,4°
- Ortagonal polarization: 15 dBi
- Port-port isolation: 18 dB
- Front/rear beam power ratio: 25 dB
- Bounce loss: 12 dB
- VSWR: 1.6:1
- Network interface: 1 fast Ethernet port 10/100 Mbps
- PoE Input: Yes
- Input voltage range: 10 - 28 V DC
- Maximum power consumption: 7 W
- Wind resistance: 186 N at 205 km/h
- Admissible operating temperature: From -40 to 70°C
- Admissible air humidity: 5%-95% non-condensing
- Shocks and vibrations: ETSI 300-019-1.4
- ETSI: EN 302 326 DN2
- Dimensions: Diameter 391 mm, Depth: 222 mm
- Weight: 560g (the device itself)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | MikroTik |
| Parametry | Band | 5 GHz |
| Parametry | Internal modem | no modem |
| Parametry | Management | website |
| Parametry | Number of LAN (RJ-45) ports | 1 |
| Parametry | LAN port operating standard | 10/100 Mbps |
| Parametry | Antenna | built-in |
| Parametry | Width | 460 mm |
| Parametry | Height | 440 mm |
| Parametry | Depth | 150 mm |
| Parametry | Product weight with unit packaging | 1.95 kg |
| Parametry | EAN (GTIN) | 4752224003706 |
| Parametry | Manufacturer code | RBLHG-5HPnD |
| Parametry | Model | MikroTik routerboard LHG HP5 |
| Parametry | The highest standard supported | 802.11n (Wi-Fi 4) |
| Parametry | Batteries included | no |
| Parametry | Mode of operation | Access Point,Router |
| Parametry | Wireless operation standard | 802.11n (Wi-Fi 4),802.11a |
