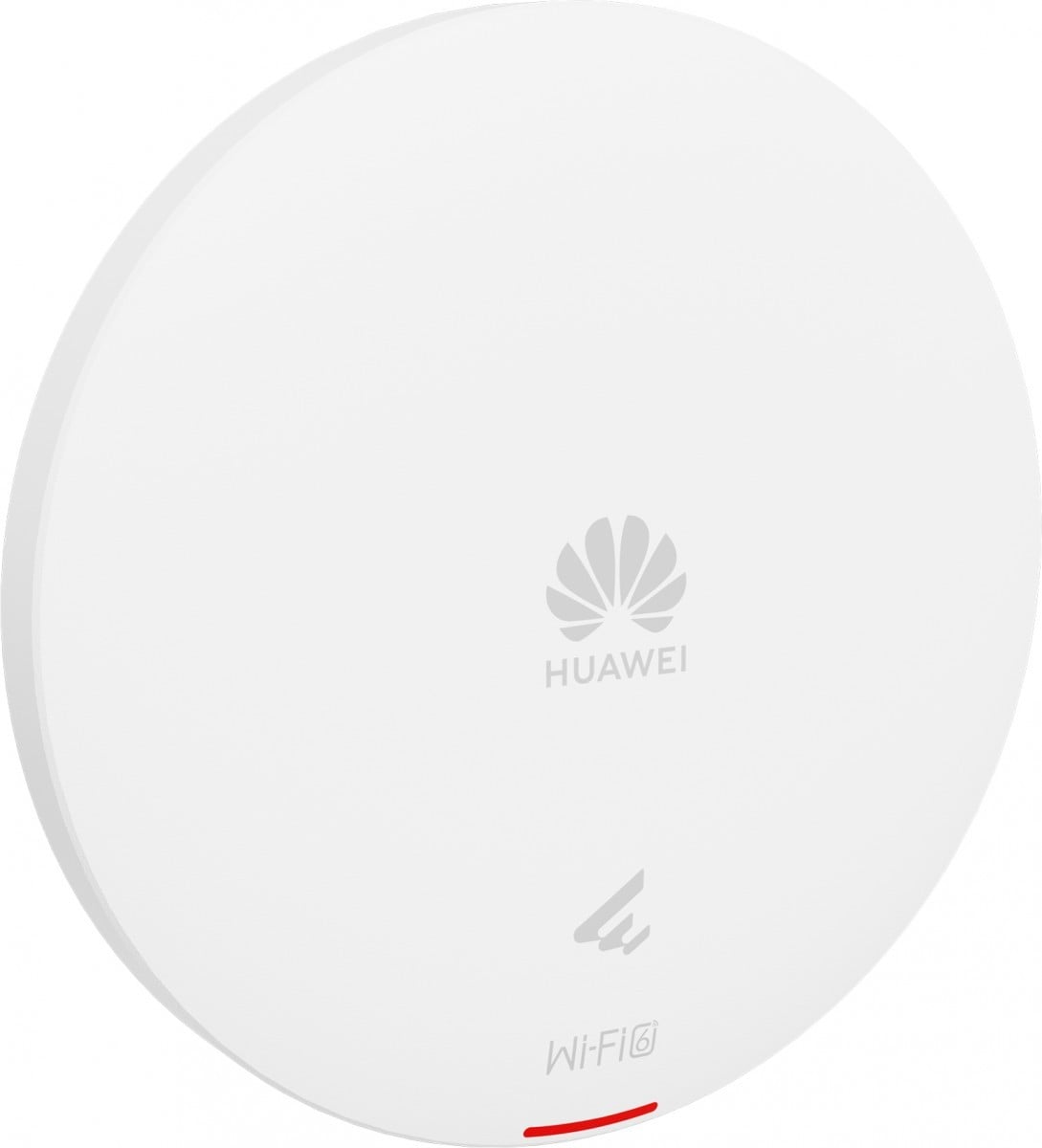

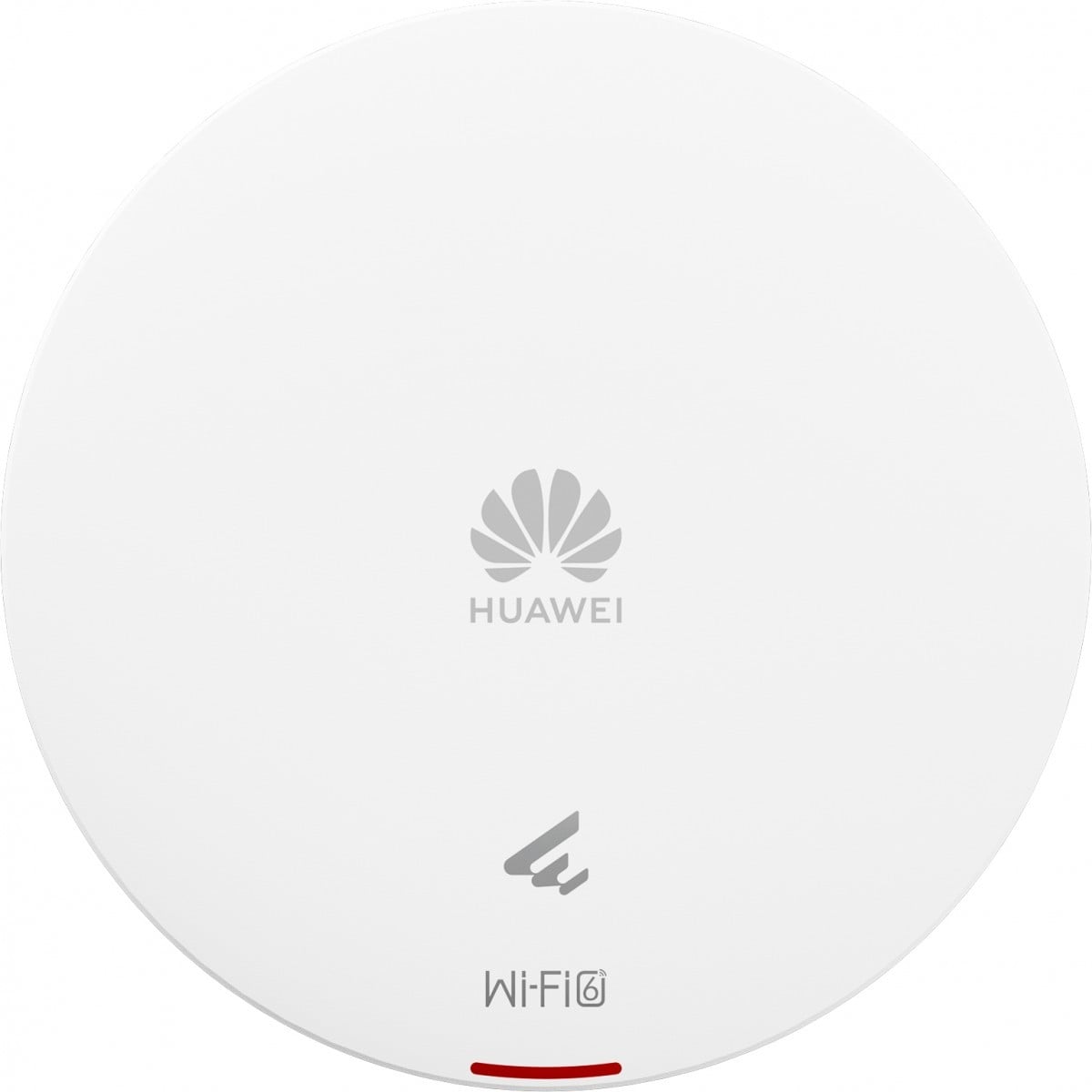

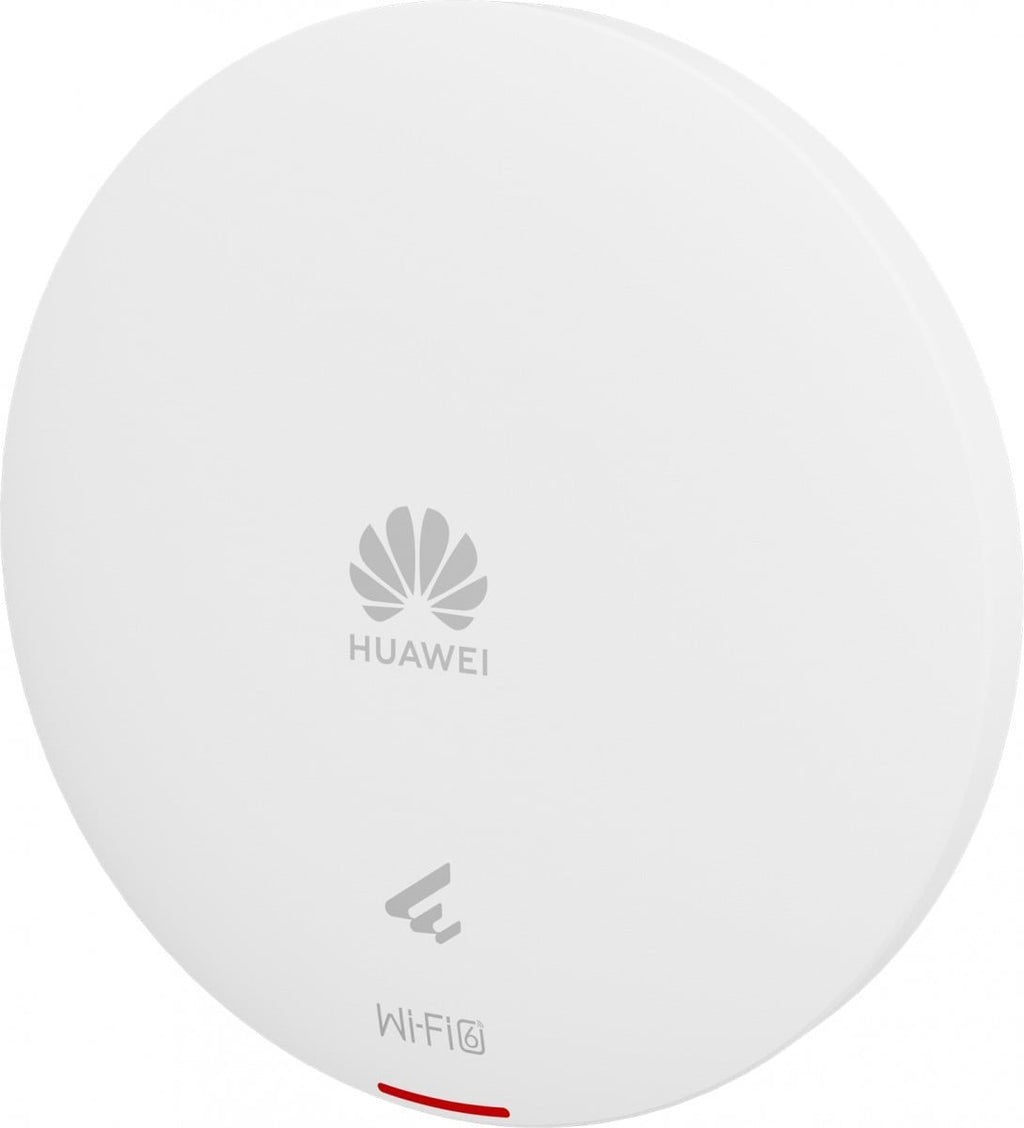

Belaidis prieigos taškas HUAWEI AP361, WiFi 6, AX1800, 1x GE, PoE IN, eKitEngine

Trumpai apie prekę

Prekė: Belaidis prieigos taškas HUAWEI AP361, WiFi 6, AX1800, 1x GE, PoE IN, eKitEngine. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Huawei
• Modelis: HUAWEI AP361 ACCESS POINT PUNKT DOSTĘPOWY
• Plotis: 180 mm
• Aukštis: 180 mm

Key features

• Sturdy, reinforced construction. The Huawei AP361 features a reinforced design, designed specifically for indoor use, ensuring durability and reliability in a variety of conditions.
• Fast wireless connectivity. With support for multiple generations of Wi-Fi, including Wi-Fi 6, the AP361 provides high-speed wireless connections in the 2,4 GHz and 5 GHz bands.
• Increased efficiency thanks to MIMO technology. The device uses 2x2 MIMO technology in both the 2,4 GHz and 5 GHz bands, which improves wireless network performance and increases coverage.
• Solid protection functions. Equipped with 4 kV surge protection for common mode and 0,5 kV for differential mode, the AP361 increases safety and reliability in a variety of environments.
• Flexible installation options. The compact access point housing allows for wall, ceiling, or DIN rail mounting, making installation versatile and convenient in a variety of conditions.

Huawei AP361 eKitEngine series access point supporting Wi-Fi 6 standard

It supports IEEE b/g/n/ax protocols in the 2,4 GHz band and IEEE 802.11 a/n/ac/ax protocols in the 5 GHz band. The maximum theoretical bandwidth is 574 Mbps in 2,4 GHz and 1201 Mbps in 5 GHz, respectively. The device supports MU-MIMO (simultaneous transmission and reception of data from multiple users) and BSS (transmission marking to reduce interference). The access point has a Smart antenna, the design of which consists of many elements that can work independently. Antenna components, depending on your needs, can modify the shape of the main beam and adapt to connected clients. The AP361 enclosure has been adapted for mounting on a wall, ceiling or guide rail with a T-groove. The device has a 1 gigabit Ethernet port (10/100/1000 Mb/s), which at the same time serves as a PoE power input in the IEEE 802.3 af standard.

The offered product can work in several modes: Fat AP, Fit AP or Cloud. In Fat AP mode, the device works as an independent, you can configure it like a regular wireless router. Cloud mode allows you to connect your device to a controller located in the cloud, and Fit AP mode is used to connect to another physical AC WLAN controller. eKitEngine solutions will enable you to create an extensive and efficient wireless network that can cover very large areas. The devices support data roaming, bandwidth control and multiple authentication methods. They are perfect for a wide range of applications, from home to large businesses and restaurants.

Wireless Wi-Fi 6 AX1800

AP361 is designed to transmit Wi-Fi 6 wireless network, supports IEEE 802.11 b/g/n/ax protocols in the 2,4 GHz band and IEEE 802.11 a/n/ac/ax in the 5 GHz band. The maximum theoretical bandwidth is 574 Mbps in 2,4 GHz and 1201 Mbps in 5 GHz, respectively. This speed is quite sufficient for most applications that a user can take on the Internet, including watching 4K videos online, playing games or downloading large files.

The access point also uses many additional functions that positively affect the quality of the network. MU-MIMO allows you to simultaneously transmit and receive data from multiple clients, which allows you to remove the phenomenon of data queuing. a Beamforming is used to shape the beam to improve connection to devices at the edge of range.

Gigabit Ethernet port, PoE power

The offered product is equipped with 1 gigabit Ethernet port (10/100/1000 Mbps), which simultaneously serves as a PoE power input, supports IEEE 802.3 af standard. The maximum power consumption is only 8,8 W.

Advanced wireless system

The offered product is adapted to work in a large wireless system consisting of multiple access points. The network created in this way is able to cover even very large areas, depending on the number of devices used. The system supports data roaming, users are automatically switched between individual access points, without losing connection.

Huawei solutions offer a wide range of features related to bandwidth control, improved transmission quality and security. You can use e.g. to authorize users. 802.1x, MAC address or captive portal. An advanced work management and monitoring system will allow you to reduce the time you spend on network administration, e.g. by automatically detecting and recognizing the type of errors.

Smart Antennas

The access point has Smart antennas, the antenna design consists of many elements that can work independently of each other. Antenna components, depending on your needs, can modify the shape of the main beam to bring the best possible range to connected customers. The device adapts to radio conditions and provides much better signal coverage than APs equipped with ordinary omnidirectional antennas. The energy gain is 4 dBi in the 2,4 GHz band and 5 dBi in 5 GHz.

Up to 128 customers

Huawei AP361 can handle up to 128 client devices connected simultaneously. The eKitEngine series APs are perfect for locations where multiple users are located, or potentially may be, in the eKitEngine series. This access point supports the basic function - bandwidth control and 5 GHz (5G-priority) priority setting. Client devices are mainly connected in the 5 GHz band to provide them with the best possible bandwidth. As a result, the load and interference in the 2,4 GHz band are significantly reduced.

Three modes of operation

The access point can operate in four modes:

• Fat AP - the access point works independently, configuring and managing looks similar to standard wireless routers. It will work in small networks where you only use one AP.
• Cloud AP - In this access point mode, you can manage from the cloud platform. This platform greatly facilitates the monitoring of work and conducting preconfigurations, and does not require the use of additional management devices.
• Fit AP - this is the basic mode of operation in which the access point connects to the controller.

Numerous applications

Huawei AP361 will work as a basic access point in networks where AX1800 bandwidth is sufficient. You can apply it to locations with a stable number of users, e.g. in homes or offices. When installing in conference rooms and other places where there may be a significant increase in users periodically, it is better to use the High density access point, e.g. A362. AP361 is distinguished by a very good price-quality ratio. At a relatively low cost, you can create an extensive wireless network using Wi-Fi 6 and many modern features.

 ✏️ Key Technical Specifications:

• Design - Product Color: White
• Design - Placement: Desktop
• Design - LED Indicators: Yes
• Features - 2.4 GHz: Yes
• Features - 5 GHz: Yes
• Features - 6 GHz: No
• Features - Maximum Data Transfer Rate (2.4 GHz): 575 Mbit/s
• Features - Maximum Data Transfer Rate (5 GHz): 1200 Mbit/s
• Features - Automatic Channel Scan: Yes
• Features - Tunnel Forwarding: Yes
• Features - MIMO Type: Multi User MIMO
• Features - Fast Roaming: Yes
• Features - WLAN Channel Features: WLAN channel management, WLAN channel frequency adjustment
• Features - Adaptive Bandwidth Management: Yes
• Features - BeamForming: Yes
• Features - Maximum Ratio Combining (MRC): Yes
• Features - Cyclic Delay Diversity (CDD): Yes
• Features - Cyclic Shift Diversity (CSD): Yes
• Features - Dynamic Frequency Selection (DFS): Yes
• Power - Maximum Power Consumption: 8.8 W
• Network - Maximum Data Transfer Rate: 1775 Mbit/s
• Network - Networking Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3af
• Network - Ethernet LAN Data Transfer Rate: 10, 100, 1000 Mbit/s
• Network - Auto MDI/MDI-X: Yes
• Network - Antenna Type: Internal
• Network - MIMO: Yes
• Network - VLAN Support: Yes
• Network - Virtual LAN Features: SSID-based VLAN assignment
• Ports & Interfaces - Ethernet LAN (RJ-45) Ports: 1
• Protocols - DHCP Client: Yes
• Protocols - IPv4 and IPv6 Features: IPv4/IPv6 access-control list (ACL), IPv6 source address validation improvement (SAVI)
• Security - Blacklist: Yes
• Security - Encryption / Security: 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA2, WPA2-PSK, WPA3, WPA3-SAE
• Security - Access Control List (ACL): Yes
• Security - DHCP Snooping: Yes
• Security - Wireless Intrusion Detection System (WIDS): Yes
• Security - Wireless Intrusion Prevention System (WIPS): Yes
• Security - Whitelist: Yes
• Antenna - Antenna Features: Integrated antenna
• Antenna - Antenna Gain Level (max): 5 dBi
• Operating Conditions - Operating Temperature Range: -10 - 50 °C
• Operating Conditions - Storage Temperature Range: -40 - 70 °C
• Operating Conditions - Relative Humidity Range: 5 - 95%
• Operating Conditions - Operating Altitude: -60 - 5000 m
• Sustainability - Sustainability Certificates: REACH, RoHS, WEEE
• Management Features - Quality of Service (QoS) Support: Yes
• Management Features - Wi-Fi Multimedia (WMM) / (WME): Yes
• Weight & Dimensions - Product Weight: 450 g
• Weight & Dimensions - Product Width: 180 mm
• Weight & Dimensions - Product Depth: 35 mm
• Weight & Dimensions - Product Height: 180 mm
• Power over Ethernet (PoE) - PoE Support: Yes
• Packaging Content - Number of Products Included: 1 pc
• Packaging Content - Quick Start Guide: Yes
• Classification - Manufacturer Code: AP361
• Classification - EAN: 6901443451135
• Classification - Product ID: 119624349
