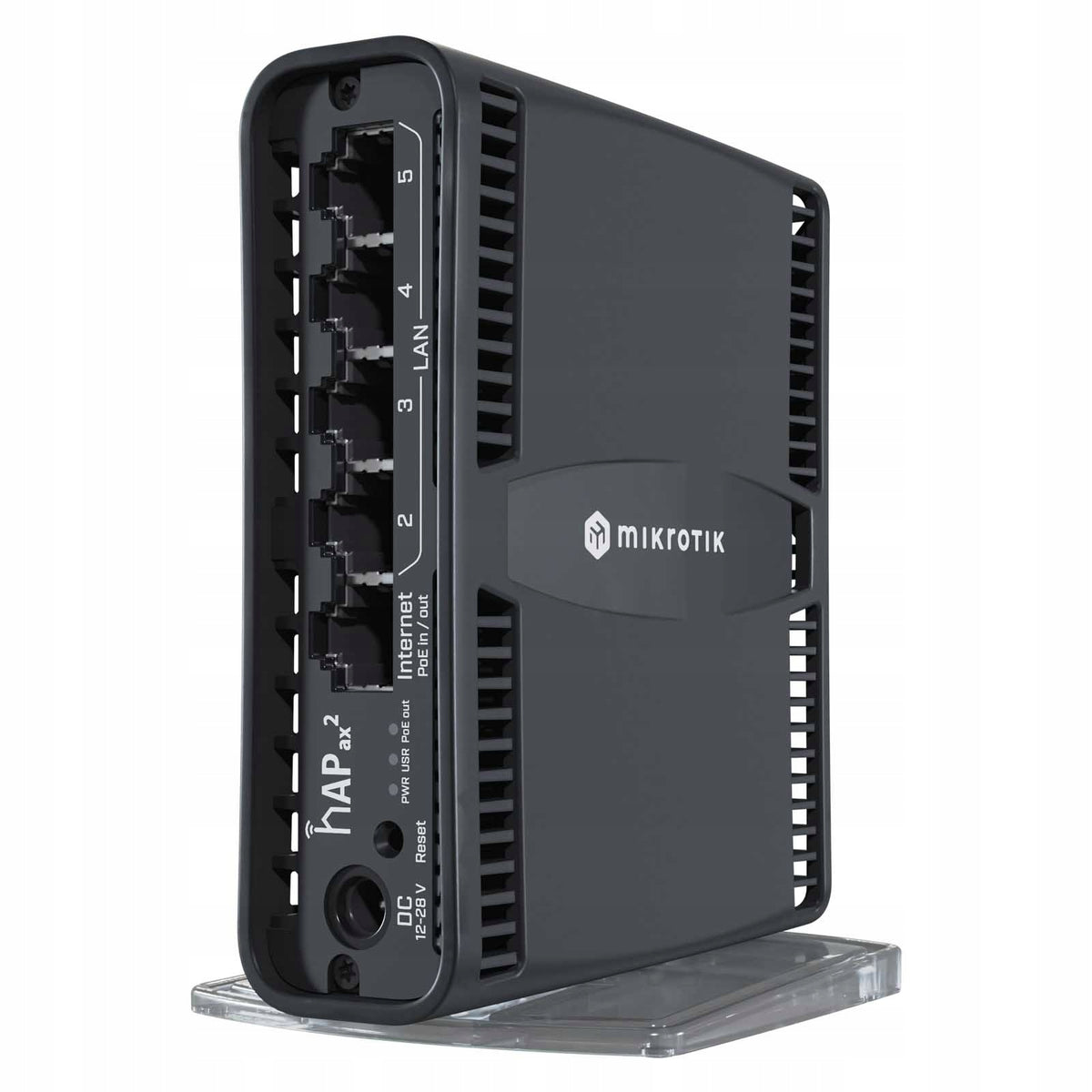

Belaidis maršrutizatorius MikroTik hAP ax2 C52iG-5HaxD2HaxD-TC, 2.4/5GHz, PoE

Trumpai apie prekę

Prekė: Belaidis maršrutizatorius MikroTik hAP ax2 C52iG-5HaxD2HaxD-TC, 2.4/5GHz, PoE. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: MikroTik
• Modelis: hAP ax2
• Plotis: 120 mm
• Aukštis: 101 mm

Wireless dual-band router operating in 802.11ax WiFi 6 AX1800 standard, with 5x gigabit ports

• standard 802.11ax WiFi 6 + Wave 2
• powerful IPQ-6010 processor (4 cores at 864 MHz)
• 1GB RAM
• operation in the 2,4 and 5 GHz bands simultaneously
• double polarity (2x2 MIMO / dual chain) in both bands
• 5x Gigabit Ethernet ports (including 1x PoE-out port)
• advanced WPA3 encryption
• RouterOS system with Level 4 license

MikroTik hAP ax² (hAP ax2, C52iG-5HaxD2HaxD-TC)

MikroTik hAP ax² (hAP ax2, C52iG-5HaxD2HaxD-TC) is the latest dual-band wireless router AX1800 WiFi 6 MikroTika from the hAP series.

It is equipped with 5x Gigabit Ethernet ports (including 1x PoE-out port). It can transmit wireless network in two bands simultaneously - 2,4 and 5 GHz.

MikroTik hAP ax2 has the most modern two-band, two-chain radio 4-4,5 dBi and standard 802.11ax with Wave2 support.

Comparing the model with the previous generation of WiFi5: depending on the overall configuration, this means up to 40% higher speed in the 5 GHz band and up to 90% higher speed in the 2,4 GHz band.

The HAP ax² router features a modern, quad-core IPQ-6010 processor running at 864 MHz combined with robust 1GB of RAM provides a powerful punch when it comes to heavy operations such as complex firewall rules, IPsec hardware encryption, using more threads or experimenting with the most advanced RouterOS features. And with the added support of advanced WPA3 encryption, network users are more secure than ever before.

Assembly

Like previous models, the MikroTik hAP ax² can be mounted vertically, horizontally or even on the wall – without sacrificing a strong signal.

WiFi, MU-MIMO

The wireless interface supports standard 802.11ax and is backwards compatible with older wireless standards. Older client devices that only support the 802.11ac standard will continue to benefit from many additional 802.11ac Wave 2 features, such as MU-MIMO and beamforming.

Power supply

hAP ax2 can be powered by DC plug or passive PoE. The input voltage range is 12 - 28 V DC, 24 V DC 1.2 A power supply is included.

• Processor: IPQ-6010
• Architecture: ARM 64 bit
• Number of cores: 4
• Clocking: 864 MHz
• RAM: 1 GB
• Embedded memory: 128 MB
• Type of built-in memory: NAND
• Polarization: Double in both 2x2 MIMO/dual-chain bands
• Antenna: Built-in omnidirectional antennas: 2.4 GHz (4.5 dBi), 5 GHz (4 dBi)
• Wireless standards: 2.4 GHz: 802.11 b/g/n/ax, 5 GHz: 802.11 a/n/ac/ax
• Wireless interface model: QCN-5052
• Power Supply: 24V 1.2A (included)
• Input voltage (PoE): 18 - 28 V DC
• Input voltage (DC socket): 12 - 28 V DC
• Maximum power consumption: 27 W, 12 W (without PoE)
• Network interface: 5x gigabit 10/100/1000 Mbps Ethernet ports
• PoE-out: Yes, Passive PoE on Ether1, max. Power (input < 30 V): 600mA
• Dimensions: 120 x 101 x 37 mm
• Admissible operating temperature: From -40 to 50°C
• Operating system: RouterOS
• License: Level 4
