Belaidė vaizdo perdavimo sistema QuattroPod T03 siųstuvas + R01 imtuvas, HDMI, USB, WiFi, Miracast

Trumpai apie prekę

Prekė: Belaidė vaizdo perdavimo sistema QuattroPod T03 siųstuvas + R01 imtuvas, HDMI, USB, WiFi, Miracast. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: no brand
• Modelis: T03+R01

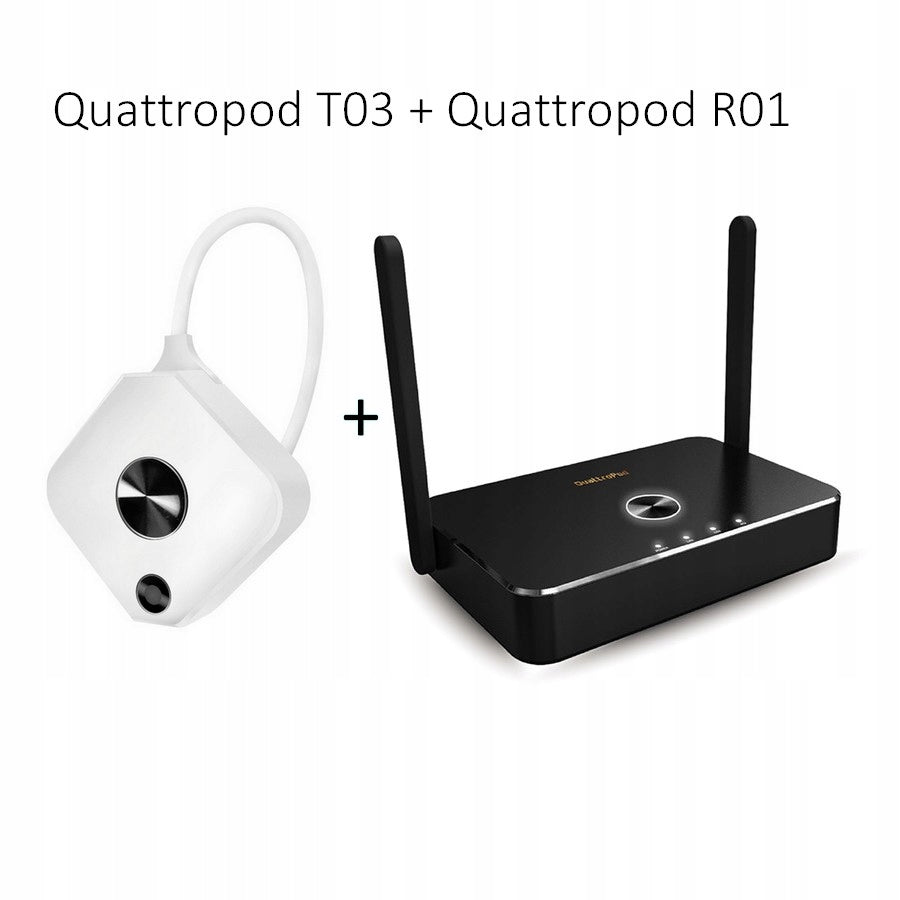

• Set: Quattropod T03 transmitter + Quattropod R01 receiver

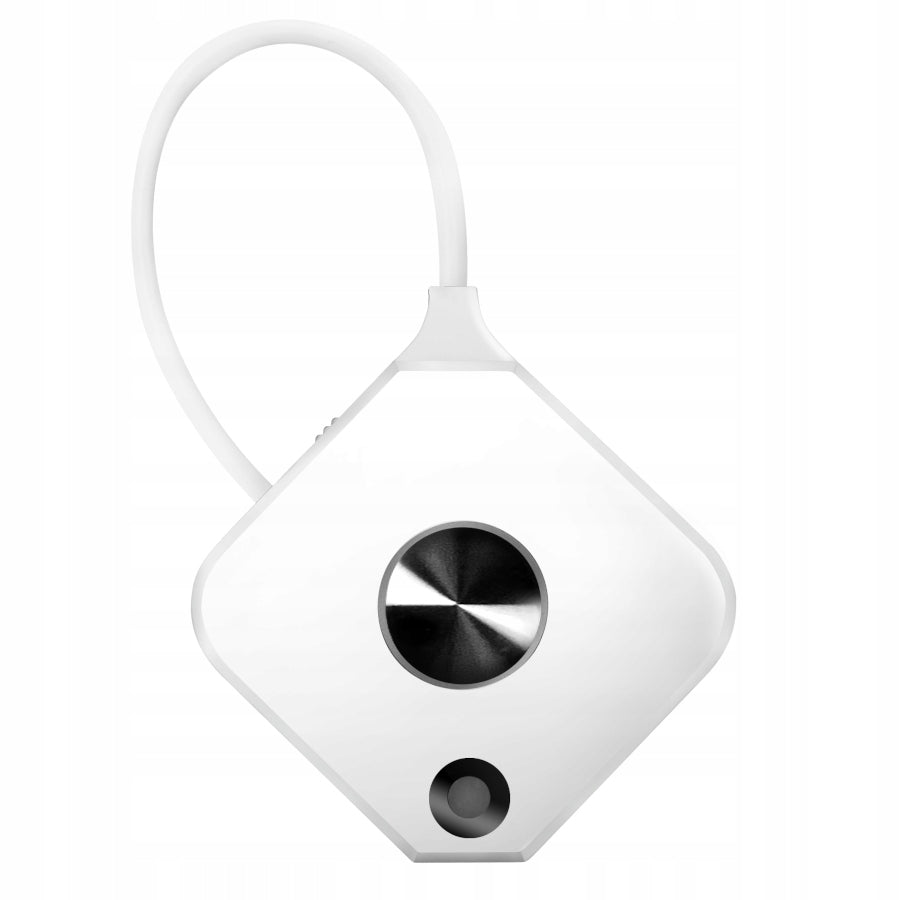

• QuattroPod T03 is the latest transmitter in the family of professional devices for wireless transmission of video signals.
• It has all the features of its predecessor, QuattroPod T02 – works with R01 receivers, supports 1080p@60Hz resolutions for HDMI sources and 4K@30Hz for Airplay, Miracast and Chromecast with Google Chrome.
• Transmission up to 30m.
• Support Windows, MacOS, Linux, Android and iOS. AirPlay support. 5Ghz, 802.11 AC and Gigabit LAN WiFi with PoE support.
• Support HDMI and USB, Plug’n’Play.
• The new functionality is the ability to connect a USB camera with a microphone to the R01 receiver, and send the signal back to the transmitter and consequently to a computer with a video conferencing application.
• Through just two devices, wireless transmission is carried out in both directions. Content is transmitted from the computer to the monitor and from the camera to the computer.

The presentation system based on the QuattroPod T03 transmitter is part of the latest version of the professional system for wireless audio-video signal transmission. It works with QuattroPod R01 receivers, providing all the existing functions of the QuattroPod system and allows you to use this system for video conferencing. In this scenario, you can connect a USB camera (also a camera assembly with a speakerphone) to the R01 receiver, while the T03 transmitter should be connected to the computer via USB and HDMI ports. Then the content from the HDMI output of the computer can be transmitted to the receiver and monitor and at the same time the content from the camera (and microphone) will be sent to the computer. The camera will be visible as a USB device and can be used in any video conferencing application (Zoom, Teams, etc. ).

NOTE: The kit supports video signal feedback from the camera and audio from the microphone. Support for audio transmission to speakerphon (speaker function) is not yet supported.

The QuattroPod wireless presentation system is an ideal solution for small and medium-sized conference rooms and a great alternative to popular Barco ClickShare solutions. It allows you to wirelessly transfer video and audio from any device with any operating system. It enables innovative sharing of content with anyone by clicking a button on a previously connected transmitter. The system works on Mac and PC or mobile devices. The ease of use of this conference BYOD solution means that every user can cope with the presentation of content, even if they have not had contact with this type of device before. QuattroPod offers full support for Android and iOS devices and allows you to support up to 32 users (transmitters).

QuattroPod is the most innovative BYOD solution system – Bring Your Own Device in conference rooms, streamlining collaboration with wireless screen sharing! Compared to other systems, e.g. Barco ClickShare or Benq Instashow, QuattroPod Mini gives you the ability to send not only static presentations as in the case of competitive solutions, but also video clips without loss of quality and delays in the audio stream.

QuattroPod fully works with Windows, macOS, iOS and Android devices, which means it is compatible with almost every notebook, tablet and smartphone of every manufacturer. The presented presentation system offers wireless connectivity up to 30m (between the transmitter and receiver) when transferring video and sound to a TV, monitor or projector.

The offered wireless transmitter supports resolutions up to Full HD@60Hz and can work with state-of-the-art devices, allowing you to transfer video and audio in perfect quality. When transferring content from mobile devices via AirPlay or from Google Chrome (Chromecast function) to the R01 receiver, the device will support up to 4K@30Hz.

The system allows you to connect up to 64 transmitters to one receiver. QuattroPod allows you to display the signal from up to 4 transmitters at the same time and is “Plug & Play*”, i.e., it does not require any additional software.

Main features of QuattroPod:

• No need to install software/applications on devices
• Simple and intuitive operation
• Support for any operating system (Windows, MacOS, Linux) and mobile Android and iOS
• Supports resolutions up to Full HD@60Hz when transmitted via HDMI transmitter and 3840 x 2160@30Hz when using AirPlay/Chromecast for mobile devices and Google Chrome devices
• Each transmitter has HDMI and USB inputs (for wired connection of mobile devices)
• The system has its own Wi-Fi network – without the need to connect to a local Ethernet network, but there is also such a possibility
• Display up to 4 screens simultaneously – Multiview
• Security of use – no possibility of data theft (encrypted AES 128-bit network and WPA2 authentication)
• Support up to 32 users
• AirPlay, Miracast and Chromecast support for Google Chrome – sending an image without the need to connect a transmitter from your phone, tablet or Chrome browser
• For AirPlay and Google Chrome (Chromecast) support 4K 30Hz - this only applies to working with the R01 receiver itself
• Intuitive operation and configuration
• PoE power supply (receiver R01)

PLUG AND PLAY

The device does not require installing programs/drivers and the like on your computer/phone. The transmitter's HDMI and USB inputs allow you to connect any device, from devices like a notebook, tablet, or smartphone, regardless of the manufacturer or operating system you're using.

4K resolution

Stream wirelessly to your 4K TV or projector to enhance your audience experience during presentations. QuattroPod R01 receivers can display resolutions up to 4K 2160p at 30Hz as well as lower. They are fully compatible with existing 4K screens, monitors and projectors. The distance between the transmitter and receiver modules can be up to 30 meters. The T03 transmitter transmits only full HD video.

Mobile devices

It doesn’t matter where you want to share the image from your Android or iOS phone. QuattroPod supports AirPlay natively. Transferring from Android devices with Miracast is very easy thanks to the publicly available, free application from Google Play.

Convenient wireless presentations

Connect, click, and stream wirelessly from your favorite devices. It does not require an application for PC or iOS, unlike even Very ClickShare.

Multi-platform presentation system

Share the image from your Windows/Mac and Android/iOS phone, and with QuattroPod you can create your BYOD conference room – Bring Your Own Device. The user, regardless of the source device they have, can share presentations on a larger screen in seconds.

Host Management

Control your presentations with the host management system – you decide whether you will allow the next source to be displayed. The administrator who manages the presentation easily switches between hosts, animating the meeting.

4-to-1 real-time split screen – Multiview function

Display up to 4 sources simultaneously with MultiView.

Comments:

• The given transmission distances refer to a situation close to the ideal – open space between devices, no obstacles, no external interference and correct positioning of devices relative to each other.
• Wireless video transmission is always a very technically demanding solution. Despite all the implemented security measures, it may happen that there will be some image disturbances, a slight lack of fluidity, etc. Especially in the case of very dynamic scenes. This may be due to the characteristics of the environment in which the device operates, interference there, other signals, materials from which the walls and other elements of the environment are made.
• The process of starting wireless devices, establishing, reconciling and stabilizing the connection usually takes much longer than with wired solutions.

In the configuration of devices other than the original (combination of sets, replacement of components) – other functionalities of the device may not work properly!

CPU: 1GHz AM8270

Memory: DDR3 256MB, NAND Flash 256MB

Output resolution:

• 1920×1080 60Hz
• 1920x1080i 60Hz
• 1280×720 60hz
• 1280×720 50hz
• 1920×1080 30Hz
• 1920×1080 50Hz
• 1920x1080i 50Hz

Inputs/outputs:

• HDMI 1.4 IN x1
• USB 2.0 type A female x1
• USB 2.0 type A male x1

WiFi: 802.11ac 1T1R, max. bandwidth 433Mb/s (5Ghz)

WiFi frequency: 5Ghz (5.150Ghz~5.825Ghz)

Power supply: 5V, 0,9A

HDCP : 1.4

Buttons:

• reset,
• Evaporation

Power consumption:

• standby: approx. 2W
• during work approx. 4W

Working temperature: 0-40 degrees C

Storage temperature: -20-70 degrees C

Contents of the set:

• 1x QuattroPod Mini Transmitter (T03)
• 1x short flat HDMI cable
• 1x long HDMI cable
• 1x CMS program code

Dimensions of the T03 transmitter:

R01 (RX receiver)

CPU: Dual core, AM8270 SoC

Memory: DDR3 1GB, NAND: 256MB

Inputs/Outputs: 1x HDMI output, 1x RJ-45 (Gigabit LAN 10M/100M/1000M), 1x USB 2.0 Host (max. output 5V 1A), 1x DC 5V input

WiFi: 802.11ac 2T2R, Max. 866Mbps, 5Ghz: 5.150Ghz~5.825Ghz

Antenna: 2 pcs.

Power supply: USB 5V2A~3A, POE (max. 5V 3A), compatible with 802.3AT

Inputs: WiFi or LAN 4Kx2K@30p max

Supports simultaneous display of 4 sources

Output: HDMI max. 4Kx2K@30p (HDMI 1.4 with HDCP 1.4)

Supported resolutions: 4096×2160@24hz, 3840×2160@30hz, 3840×2160@25hz, 3840×2160@24hz, 1920×1080@60Hz, 1280×720@60hz, 1920×1080@50Hz, 1920×1080@24Hz, 1280×720@50hz

LEDs: Power, Ethernet, WiFi status, USB

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	T03+R01
Parametry	Manufacturer	no brand
Parametry	EAN (GTIN)	0851939008021
Parametry	Packaging status	original
