Belaidė LPG sąsaja PTBT-QgenAC su Bluetooth, STAG Q-box, Q-next, Q-max

Trumpai apie prekę

Prekė: Belaidė LPG sąsaja PTBT-QgenAC su Bluetooth, STAG Q-box, Q-next, Q-max. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: no brand
• Modelis: PTBT-QgenAC

CNG ProjektTECH LPG diagnostic interface in BLUETOOTH wireless version with 3xLED signaling

model: PTBT-QgenAC

Diagnostic device designed for workshop applications. Branded electronics and additional protection systems make our devices work stably and safely regardless of external factors generated by the working engine and vehicle components (protection protects transmission lines from the so-called. voltage pins up to 8kV).

3 x LED signaling allows visual assessment of the operating status of the device.

The offered interface allows you to carry out full diagnostics of the LPG system as well as make adjustments (autocalibration, maps, switching temperature, rotation, etc. )

It is a fully functional tool enabling full operation of the LPG / CNG system: error reading, gasoline / gas operating parameters, calibration, maps, switching temperatures, revolutions, etc.

The capabilities of our device:

• reading the operating parameters of the gas system (gas and MAP pressure, temperature, gasoline and gas injection times, engine speed, etc. )
• reading and erasing diagnostic errors in the gas controller
• reading and modification of maps and multiplier
• auto calibration
• change of installation parameters (after possible replacement, you can change the type of injectors, sensors, etc. so that the controller can control them more precisely)
• tests of implementing elements
• in newer drivers you can update the firmware
• modification of petrol injection
• modification of temperature and switching speed
• calibration of the gas level indicator in the tank
• deleting, enabling or completely disabling the service reminder (so-called. call for service for inspection)

And many others that you have done so far in the workshops.

NOTE: the scope and number of options depends on the type of your LPG installation, some drivers have a limited number of functions so the interface will only support those that are available in a given vehicle.

FREE SOFTWARE DATABASE

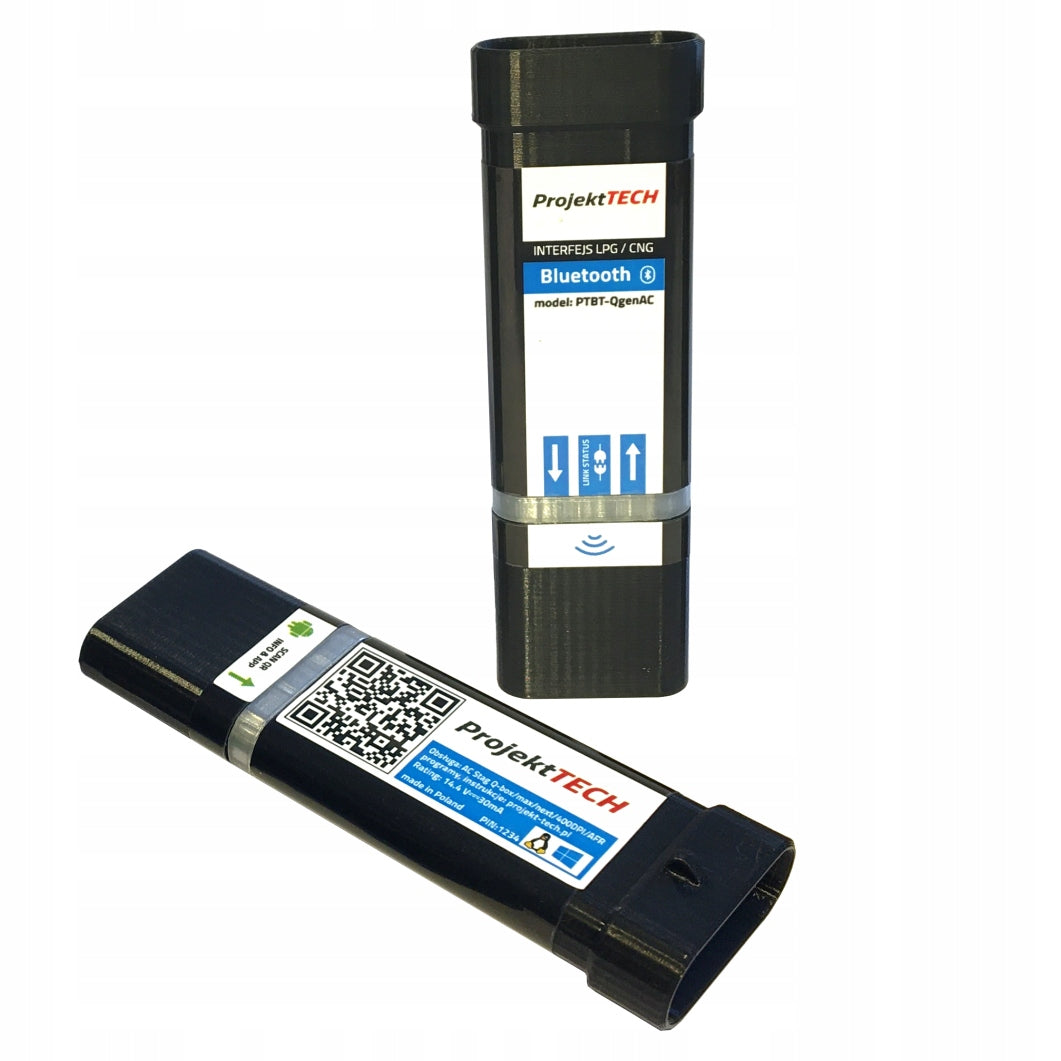

QR code on the case - close the phone with the camera turned on (or a dedicated application reading qr-codes) to go to the page with free software.

Application of PTBT-QgenAC interface (number 7):

AC STAG: Q-BOX, Q-MAX, Q-NEXT, (200) GO FAST, 400 DPI, AFR

Other models in our other auctions...

Software:

Windows and Linux: AC-STAG, AFR, Stag 400DPI

Android - "stag mobile", "stag gas computer", "stag afr mobile" available in play google

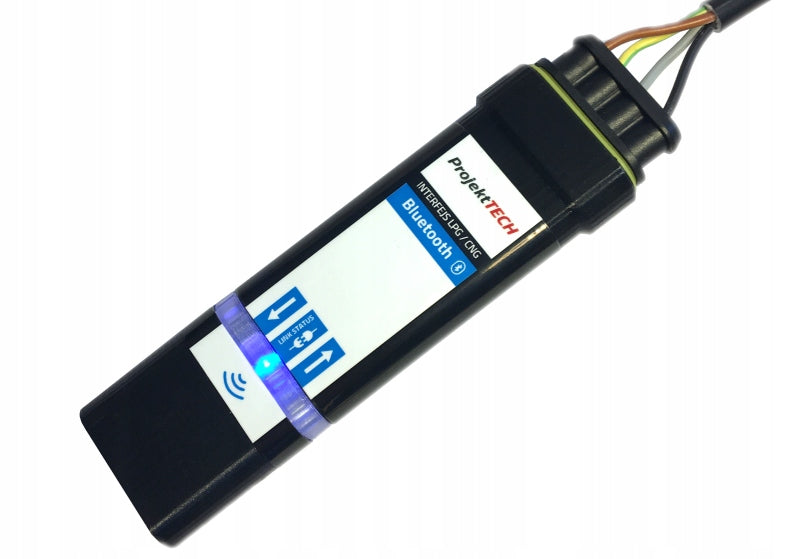

LED signaling in housing:

• Receiving data from the vehicle
• LINK STATUS (blinks when ready to work / lights up constantly when a connection with the vehicle is established)
• data stream towards the vehicle

Main features

• quick installation without the use of additional drivers for the interface
• supply voltage: 8...16V
• power consumption: max. 30mA at 14.4V
• Bluetooth class 2 +EDR (10m range)
• Sensitivity: -84dBm
• operating frequency 2,4GHz
• full voltage 5V on transmission lines
• Connectors adapted to interchangeable adapters (fit adapters from our USB interfaces)
• interface electronics (PCB printable board) is machine made in SMD technology
• housing and label resistant to wiggle, insoluble in oils
• PRODUCT Polish

Actual photos of us

The interface comes in several variants depending on the type of installation (on this auction we offer the PTBT-QgenAC model)

Example programs

Specifications
