Automobilio ratų transportavimo vežimėlis STIX, 680 kg

Trumpai apie prekę

Prekė: Automobilio ratų transportavimo vežimėlis STIX, 680 kg. Kategorija: Transportavimo vežimėliai ir ratukiniai ritinėliai.

• Gamintojas: Stix
• Modelis: 23-03-75295

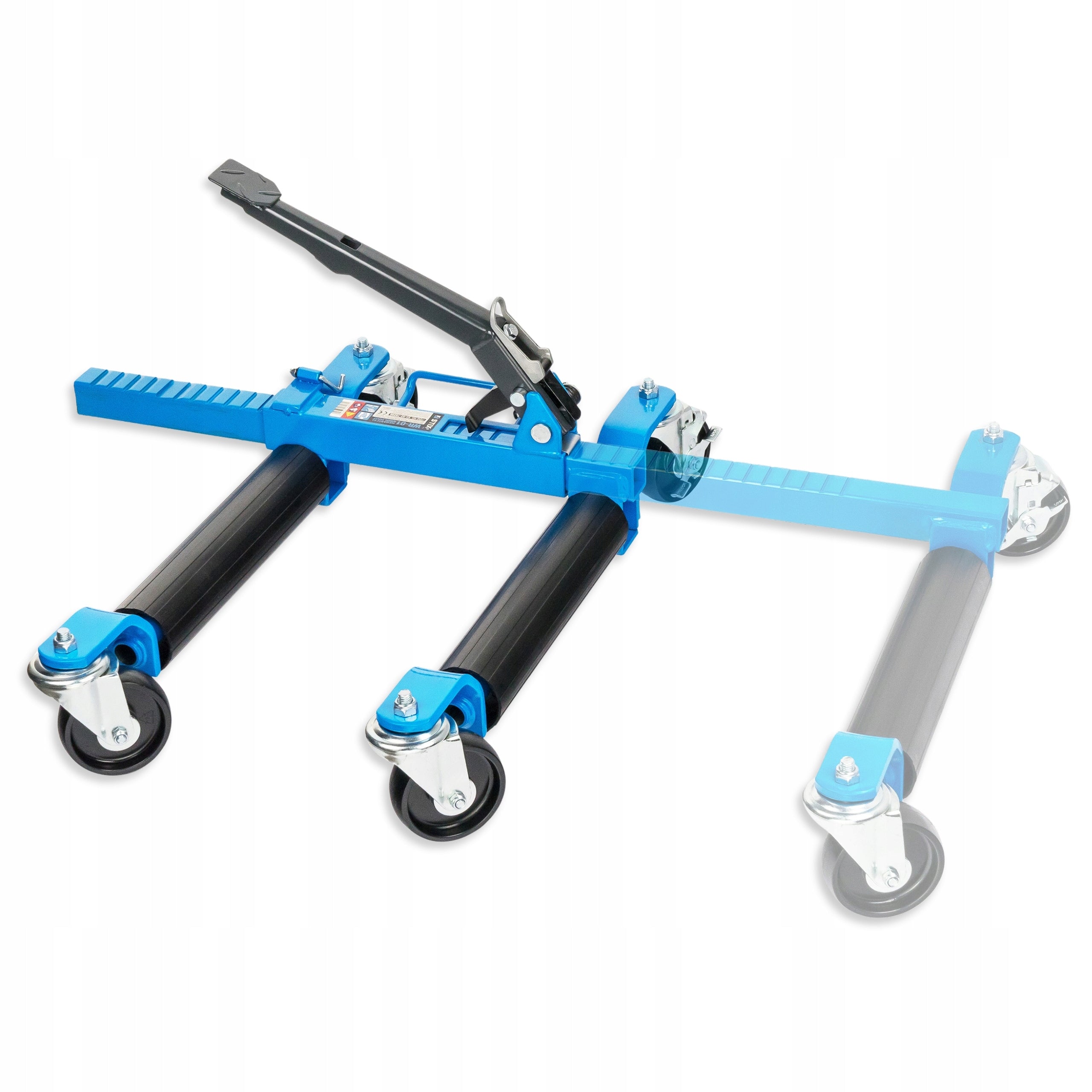

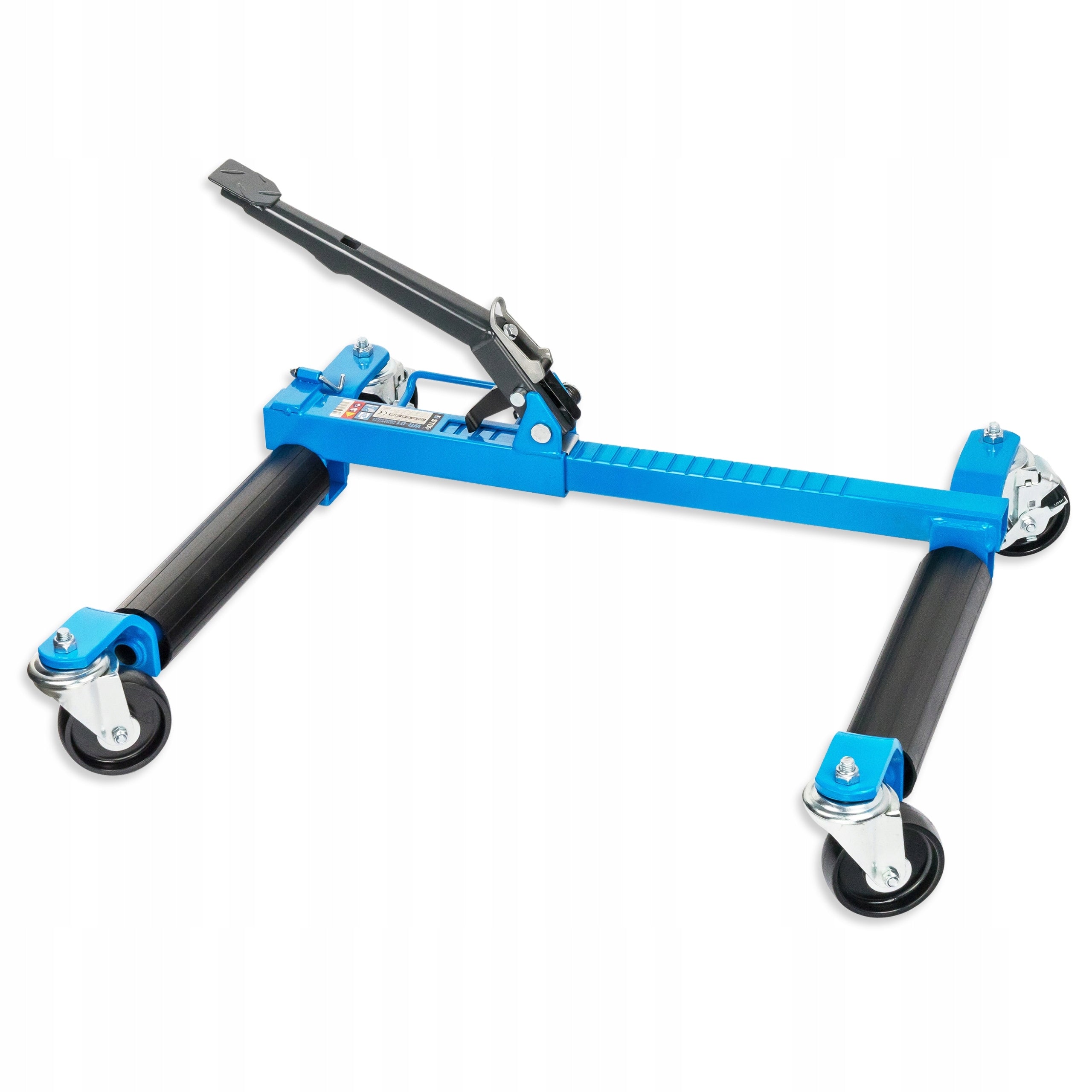

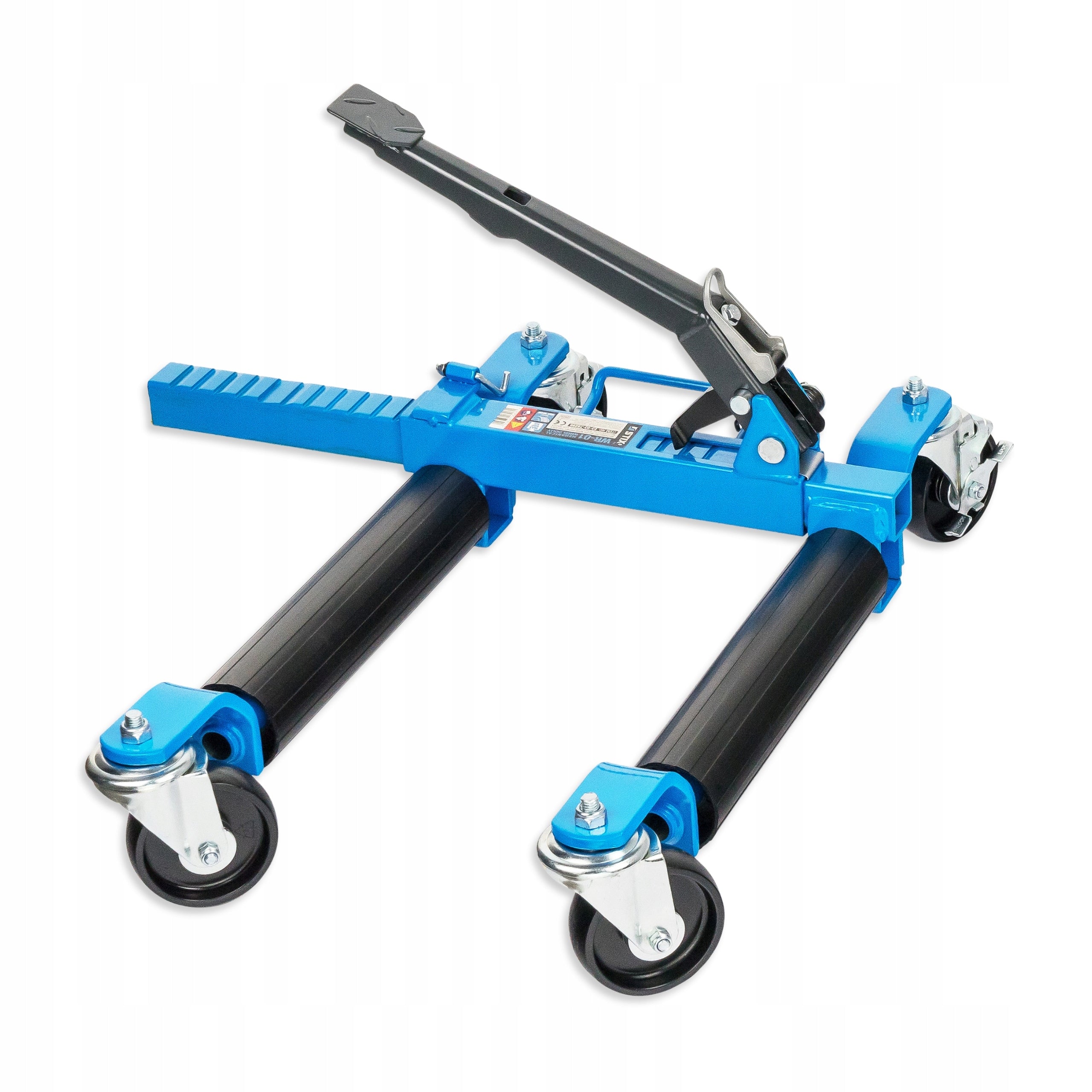

The Model WR-01 from Stix Tool is a mechanical manoeuvring trolley, ideal for moving vehicles in tight workshop, garage and exhibition spaces.

Thanks to its simplicity and reliability, the trolley is a great solution for operating cars with damaged drive or for precise positioning of vehicles at service stations. The ratchet mechanism ensures comfortable and durable operation without the need for plumbing.

Catalog number: 23-03-75316

Model: WR-01

Manufacturer: Stix Tool

Quantity: 1 pcs.

⚙ Technical specification

• Maximum lifting capacity: 680 kg
• Maximum tyre width: 330 mm
• Bracket spacing: 340 x 710 mm
• Wheel diameter: 100 mm
• Weight of trolley: 14,8 kg

⚙ Technical drawing

➡ Wide tyre support

The WR-01 is equipped with long rollers with a length of 330 mm, made of resistant plastic. Thanks to this, the trolley can handle tires up to 330 mm wide, as well as tires with an external diameter of 450 to 810 mm. The rollers protect the tire from damage and ensure smooth wheel lift.

➡ Stable mobility

The WR-01 manoeuvring trolley is equipped with four swivel wheels, two of which have brakes, which ensure the stability of the trolley when lifting and moving the vehicle. This configuration allows you to safely and easily maneuver the stroller, even in confined spaces.

➡ Ratcheting mechanism

The WR-01 is equipped with a ratcheting mechanism, which allows you to easily lift the vehicle with a pedal. After pressing the pedal, the arms gradually approach each other, lifting near the vehicle. The absence of plumbing makes the design simpler, which increases the reliability and durability of the trolley.

➡ Ergonomic side handle

The robust side handle, welded to the trolley frame, allows you to move the vehicle comfortably and safely, as well as carry the trolley itself. Thanks to this, the use of the device becomes even easier and more ergonomic.

🌟 What sets this product apart?

• Ratchet mechanism – easy lifting without the need for hydraulics
• Capacity 680 kg – sufficient to operate one vehicle wheel
• Long rollers (33 cm) – support for tyres up to 330 mm wide and 450 to 810 mm in diameter
• Stability and maneuverability – swivel casters with lock ensure safe maneuverability
• Ergonomic side handle – facilitates transport and precise movement of the vehicle
• Solid steel construction – resistance to intensive use

🤔 Why is it worth it?

• Simple operation – ratchet mechanism ensures comfortable and reliable lifting of vehicles
• Suitable for wide tires – fits most vehicles
• Sturdy construction – ideal for everyday use in workshops and garages
• Safe manoeuvring – swivel casters with lock provide full control during operation
• Easy installation – quick installation of the trolley without the need for specialized tools

💡 FAQ – Frequently Asked Questions

How many strollers are included?

• The set includes 1 manoeuvring trolley, designed to handle one wheel of the vehicle. To move the entire vehicle, use 4 trolleys (one under each wheel).

Is the trolley suitable for use on uneven surfaces?

• The trolley works best on smooth, hard surfaces, such as concrete or stoneware. On uneven surfaces such as paving stones, maneuvering can be difficult.

What is the maximum load on the trolley?

• The maximum load of the trolley is 680 kg per wheel of the vehicle.

Is the trolley easy to use?

• Yes, the trolley is very easy to operate thanks to the mechanical ratcheting system. Pressing the pedal causes the vehicle to gradually lift.

📷 Gallery

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Stix
Parametry	Product weight with unit packaging	15.6 kg
Parametry	Manufacturer code	23-03-75295
Parametry	EAN (GTIN)	5903636064031
Parametry	Type	cart
