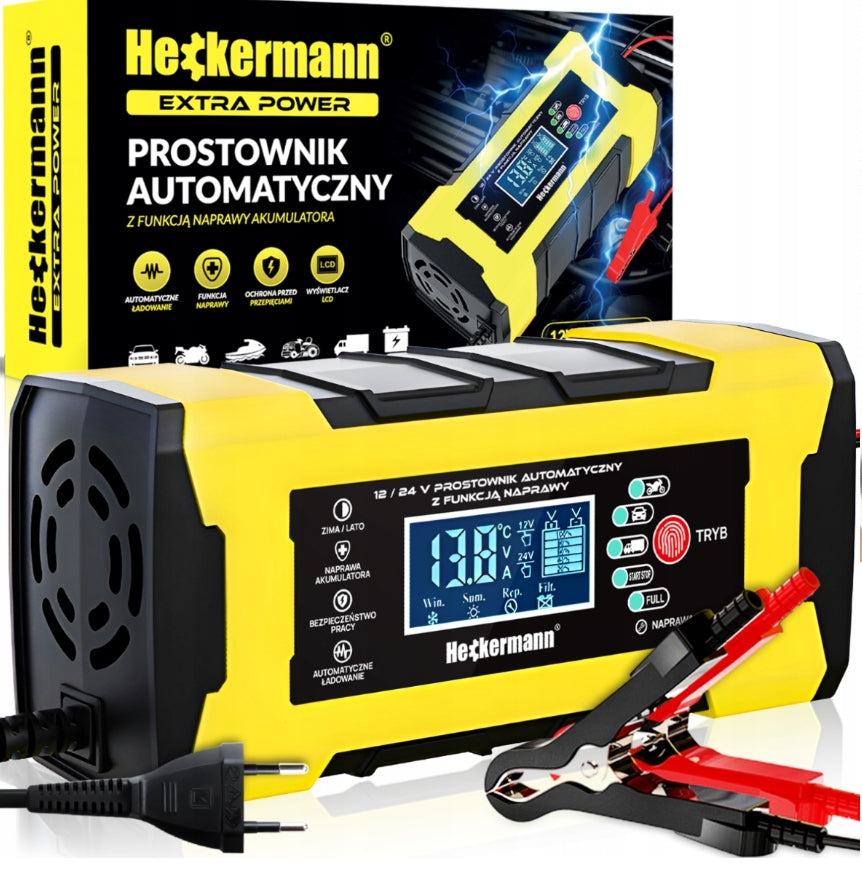

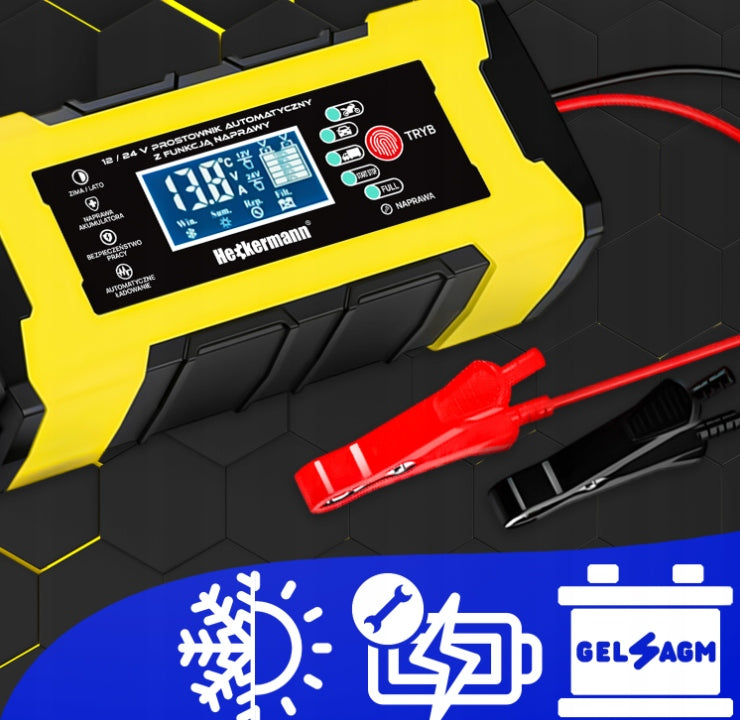

Automobilio akumuliatoriaus lygintuvas

Trumpai apie prekę

Prekė: Automobilio akumuliatoriaus lygintuvas. Kategorija: Baterijų įkrovikliai.

• Gamintojas: no brand
• Modelis: 12V

⚡12V/24V MICROPROCESSOR RECTIFIER WITH REPAIR FUNCTION⚡

⚡ KEY STRENGTHS IN A NUTSHELL⚡

✅Intelligent battery regeneration: Advanced "Repair" mode allows you to effectively restore the efficiency of old, unused or deeply discharged batteries.

✅Full process automation: 3-stage microprocessor controlled charging system (CPU) automatically selects parameters and goes into backup mode after completion of operation.

✅ Comprehensive compatibility: The device supports a wide range of 12V and 24V batteries, including lead-acid, maintenance-free, gel, AGM, EFB and Start-Stop systems.

✅Thermal adaptation: The "Winter-Summer" function automatically detects the ambient temperature and corrects the charging voltage, eliminating the risk of overcharging in hot weather or undercharging in frost.

⚡Specialized Working Modes⚡

✅VEHICLE MODE: Standard charging of lead-acid and maintenance-free batteries with a capacity of 15 Ah - 100 Ah (12V).

✅START/STOP mode: Dedicated algorithm for modern AGM, gel and EFB batteries (10 Ah - 100 Ah), intensively used in Start-Stop systems.

✅MOTORCYCLE MODE: Precise charging of smaller 12V (2 Ah - 20 Ah) batteries used in two-wheelers, with automatic voltage support function.

✅TRUCK mode: Efficient program for large vehicles (vans, trucks) supporting capacities from 15 Ah to 150 Ah.

✅REPAIR MODE (Regeneration): A specialized cycle lasting from 5 to 24 hours, designed to desulftize and restore parameters to batteries that do not accept charge using the traditional method.

⚡Safety and Security Systems⚡

✅Electrical protection package: The device has built-in protection against reverse polarity (misconnected clamps), short circuit, overvoltage and excessive current.

✅Active cooling system: The integrated fan ensures optimal operating temperature of electronic systems, guaranteeing the stability of the charging process.

✅Thermal monitoring: Overheating protection automatically interrupts operation when critical temperature is detected.

✅Digital parameter control: A clear LCD display shows the current voltage, current and charge status, eliminating the need to guess the battery status.

⚡Technical Specification⚡

✅Input voltage: 100-240 V AC, 50-60 Hz.

✅Rated output power: 12V 5A/24V 10A DC.

✅Minimum starting voltage: 8,0 V.

✅Supported capacity range: 4 - 100 Ah (depending on mode up to 150 Ah).

✅Charging voltage (constant): 14,7 V.

✅Charging voltage (liquid): 13,8 V.

✅Certificates and standards: CB, CE, IEC60335, EN61000, EN55014.

✅Weight of the device: 480 g.

⚡Safety and Usage⚡

✅Connection Order Rule: To ensure maximum safety of the vehicle electronics, always connect the red (+) clamp to the positive terminal of the battery first, then the black (-) clamp to the negative (ground) terminal. Disconnect in reverse order.

⚡Maintenance and Durability⚡

✅Instructions: Before each connection of the rectifier, it is worth cleaning the battery poles (so-called. posts) with a wire brush or sandpaper. Removing the oxide and dirt layer significantly improves current flow and increases the efficiency of the charging and regeneration process.

⚡Fun fact⚡

✅Fact: The "Repair" mode uses high and low frequency pulse technology. These specific pulses help break down lead sulfate crystals that settle on the battery plates during a long stop in the discharge state, which is the main cause of battery capacity loss.
