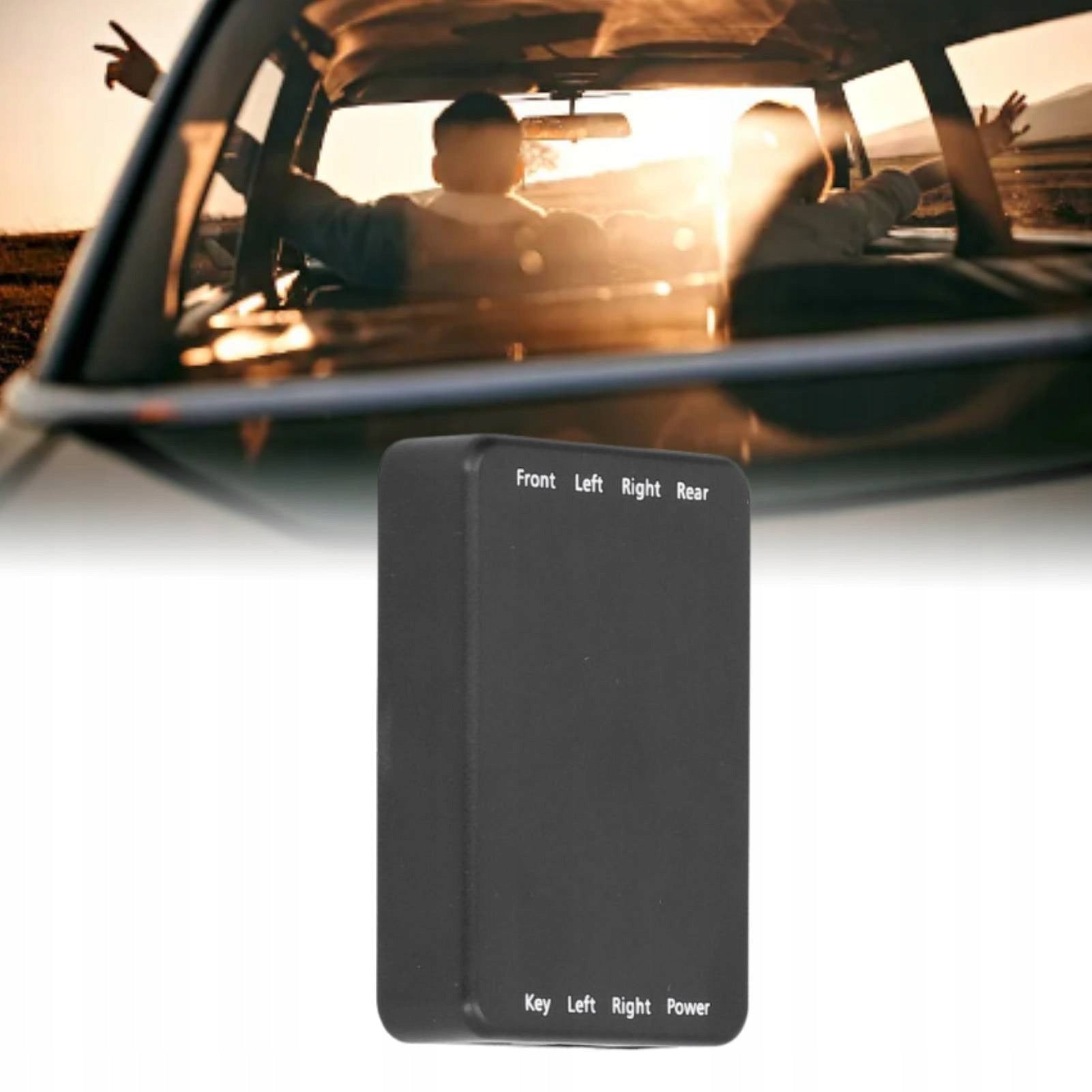

Automobilio 4 krypčių 360° vaizdo jungiklis

Trumpai apie prekę

Prekė: Automobilio 4 krypčių 360° vaizdo jungiklis. Kategorija: Automobilio vaizdo registratoriai.

• Gamintojas: no brand
• Modelis: 1610210049011

1、When the car engine starts, the system turns on the car monitor and all cameras sequentially to check the view around the vehicle for 10 seconds and then turns them off.

2、The system starts in front view mode by default. The front view is controlled by a switch (included), and the image from the front camera can be turned off by pressing the control switch again for 2 seconds.

3、Pressing the control switch for 2 seconds will cause the car monitor and front camera to operate continuously unless no other trigger signal is triggered, which provides greater convenience of use.

4、Pressing the control switch for less than 1 second causes the side view mode to go into. When the turn signal switch is turned on, the system activates the monitor and side cameras (controlled by the left/right turn signal).

5、The monitor and camera will turn off 1,5 seconds after the turn is completed. Press the control switch again for less than 1 second to go into front view mode.

• Product Type: Car Video Switch
• Material: ABS
• Power Current: 50 mA
• Supply Voltage: 9 to 15 V
• Power: 1 W
• Operating temperature: -20 to 80 ℃
• Color system: PAL/NTSC system (automatic system search)
• Compatibility: Universal
• Wiring instructions:
• Black wire – ground wire
• Green wire – ACC
• Red wire – DVV trigger cable
• Blue wire – reversing trigger cable
• White wire – cable triggering the view to the right
• Yellow wire – cable triggering the view to the left
• RCA plug – video output

List of packages:

• 7 x Wire Harness
• 1 x Controller
• 1 x Manual
