Automobilinis žirklinis keltuvas geometrijai Superlift 5000SCX, 5,5 t, 400 V

Trumpai apie prekę

Prekė: Automobilinis žirklinis keltuvas geometrijai Superlift 5000SCX, 5,5 t, 400 V. Kategorija: Žirkliniai keltuvai.

• Gamintojas: Magneti Marelli
• Modelis: 007935011070

Professional lift for wheel geometry and handling of heavier vehicles

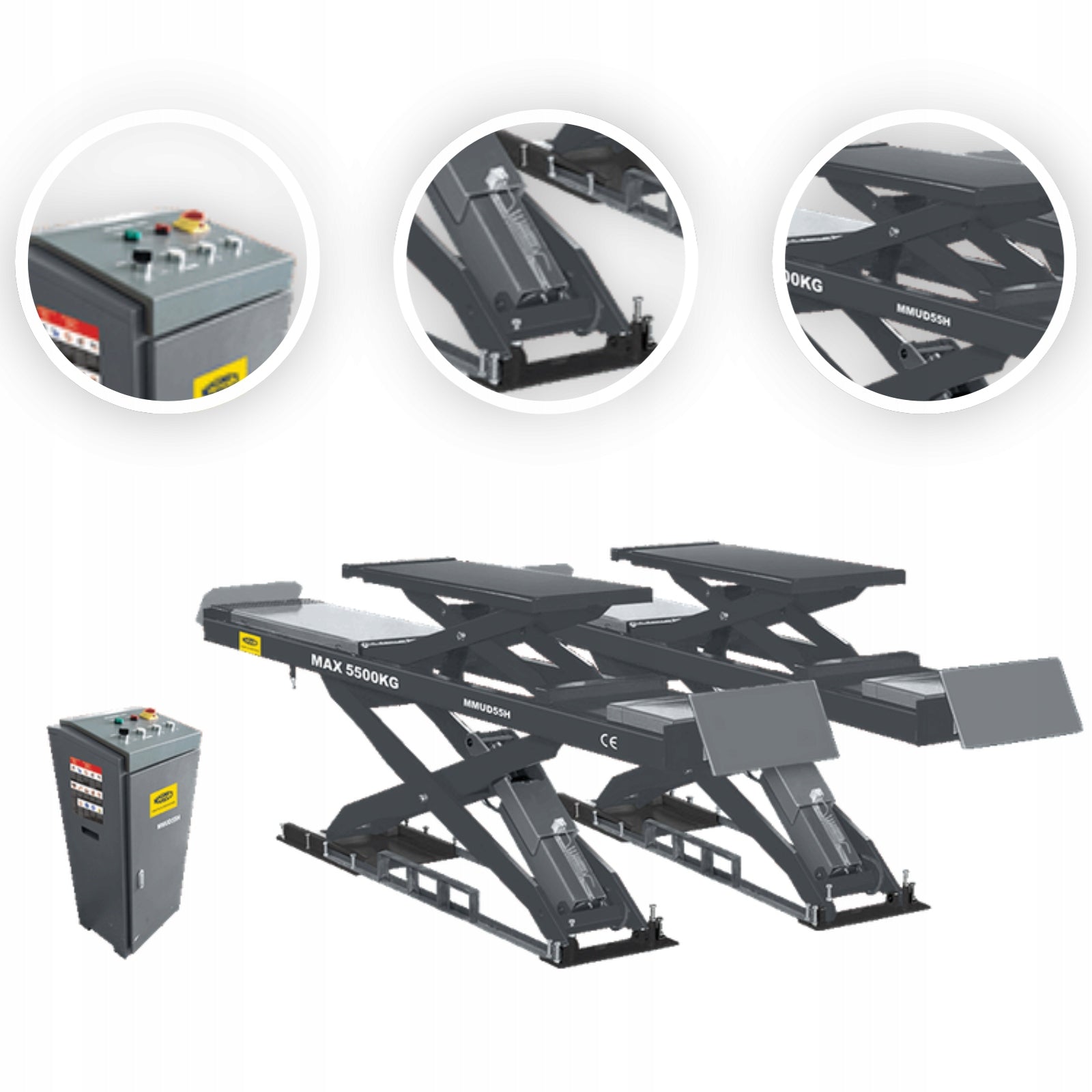

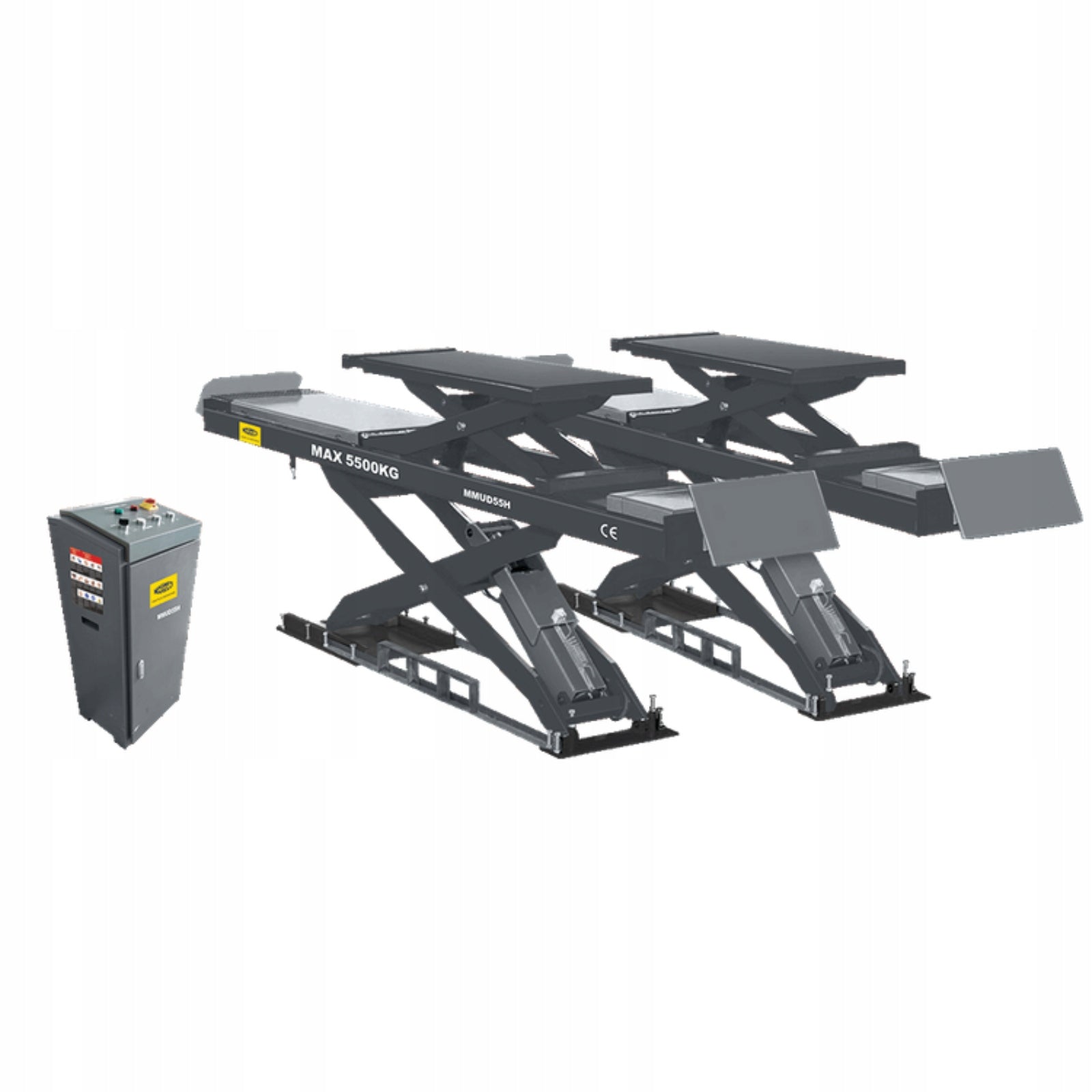

Magneti Marelli MM Superlift 5000SCX is an advanced scissor lift designed for wheel geometry, suspension diagnostics and comprehensive service of passenger cars, SUVs and commercial vehicles. With a lifting capacity of 5500 kg and an integrated subliminal lift, it is an ideal equipment for modern workshops and diagnostic stations.

Precise construction made in laser cutting technology and robotic welding guarantees high durability, stability and safety of use even under intensive use.

The most important advantages

✔ Main load capacity up to 5500 kg

✔ Built-in subliminal lift for lifting the vehicle axle

✔ Suitable for wheel geometry stations

✔ Electrohydraulic drive

✔ Platforms with a length of 5000 mm

✔ Hydraulic double lowering protection system

✔ Emergency lowering at power outage

✔ Warning signal when leaving

✔ Robust construction made by laser cutting

✔ Durable powder coated coating

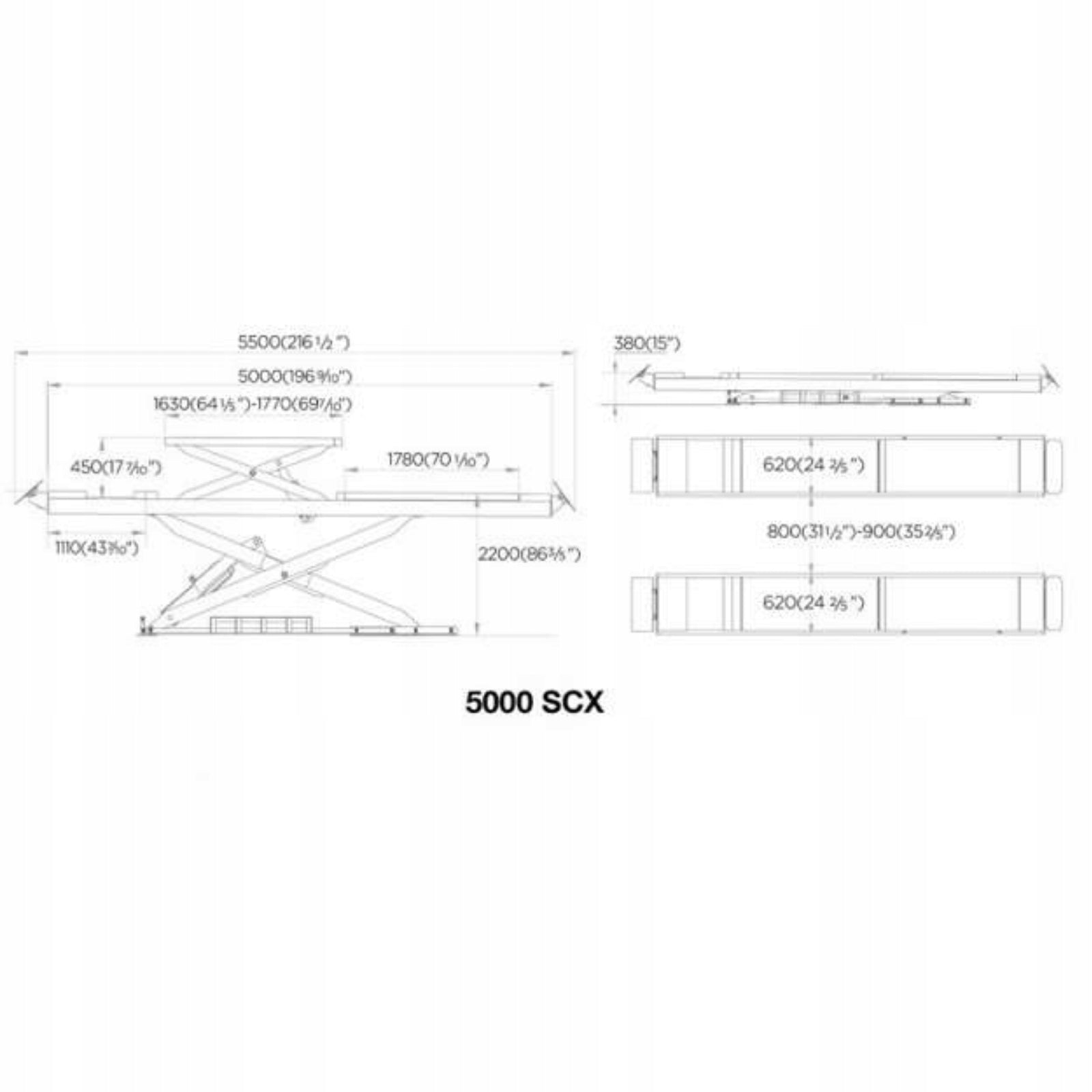

Technical data

Main lift

• Producer: Magneti Marelli
• Model: MM Superlift 5000SCX
• Type: Scissor lift for wheel geometry
• Drive: electrohydraulic
• Lifting capacity: 5500 kg
• Lifting height: 2200 mm
• Initial platform height: 380 mm
• Platform length: 5000 mm
• Platform Width: 620 mm
• Total length of the lift: 5500 mm
• Overall width of the lift: 2140 – 2240 mm
• Lifting time: ≤ 55 s
• Lowering time: ≤ 55 s

Internal lift

• Lifting height: 450 mm
• Platform length: 1560 – 1770 mm
• Lifting time: ≤ 10 s
• Lowering time: ≤ 20 s

Safety of use

The lift is equipped with advanced operator protection systems:

✅ Dual hydraulic lowering lock system

✅ Emergency lowering at power outage

✅ Mechanical system for full lifting power

✅ Automatic working protection

✅ Warning beep when lowering

Ideal for:

✅ 3D wheel geometry

✅ Suspension diagnostics

✅ Car workshops

✅ Vehicle inspection stations

✅ Services for SUVs and vans

✅ Professional vehicle service centres
