Trumpai apie prekę

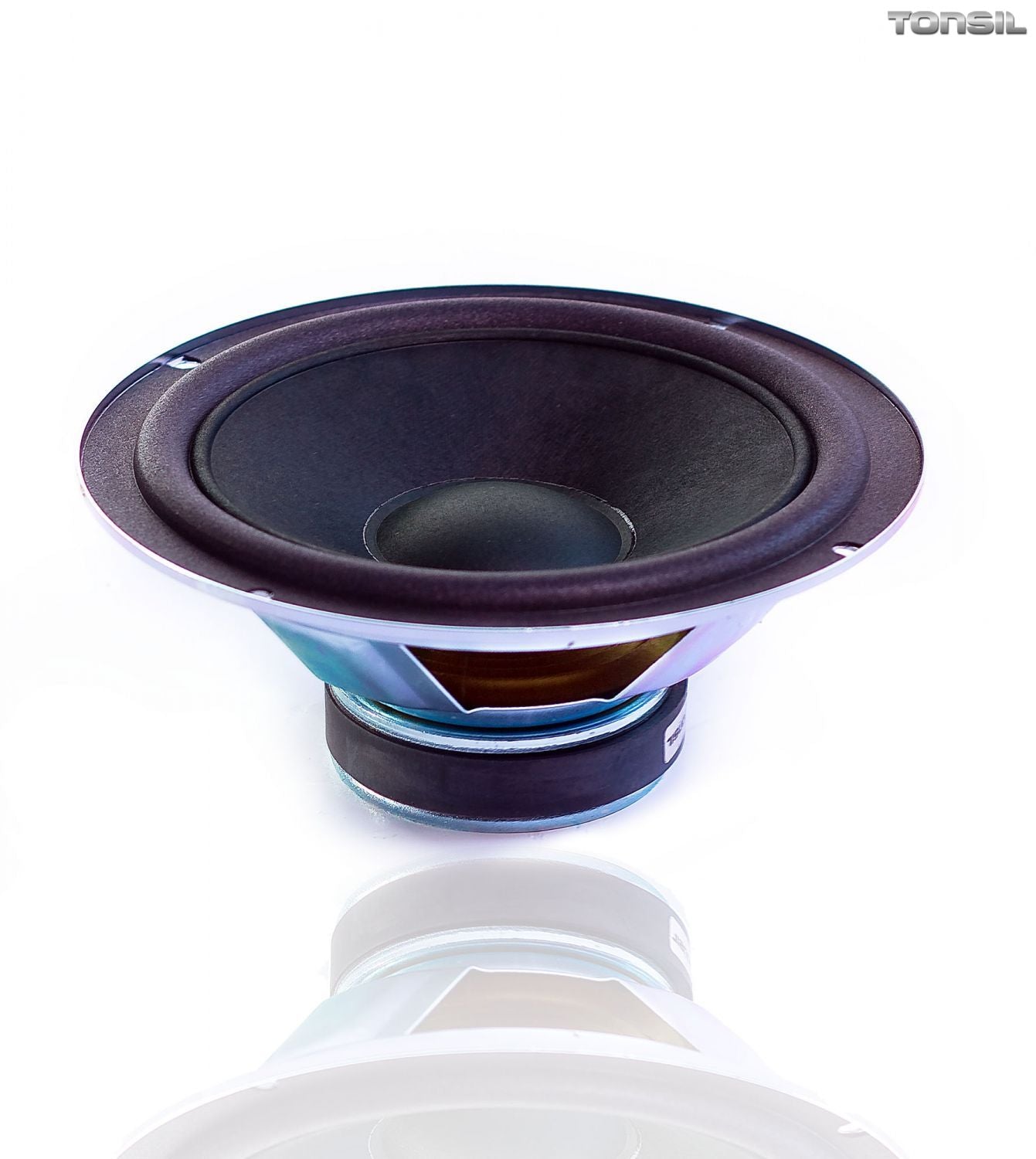

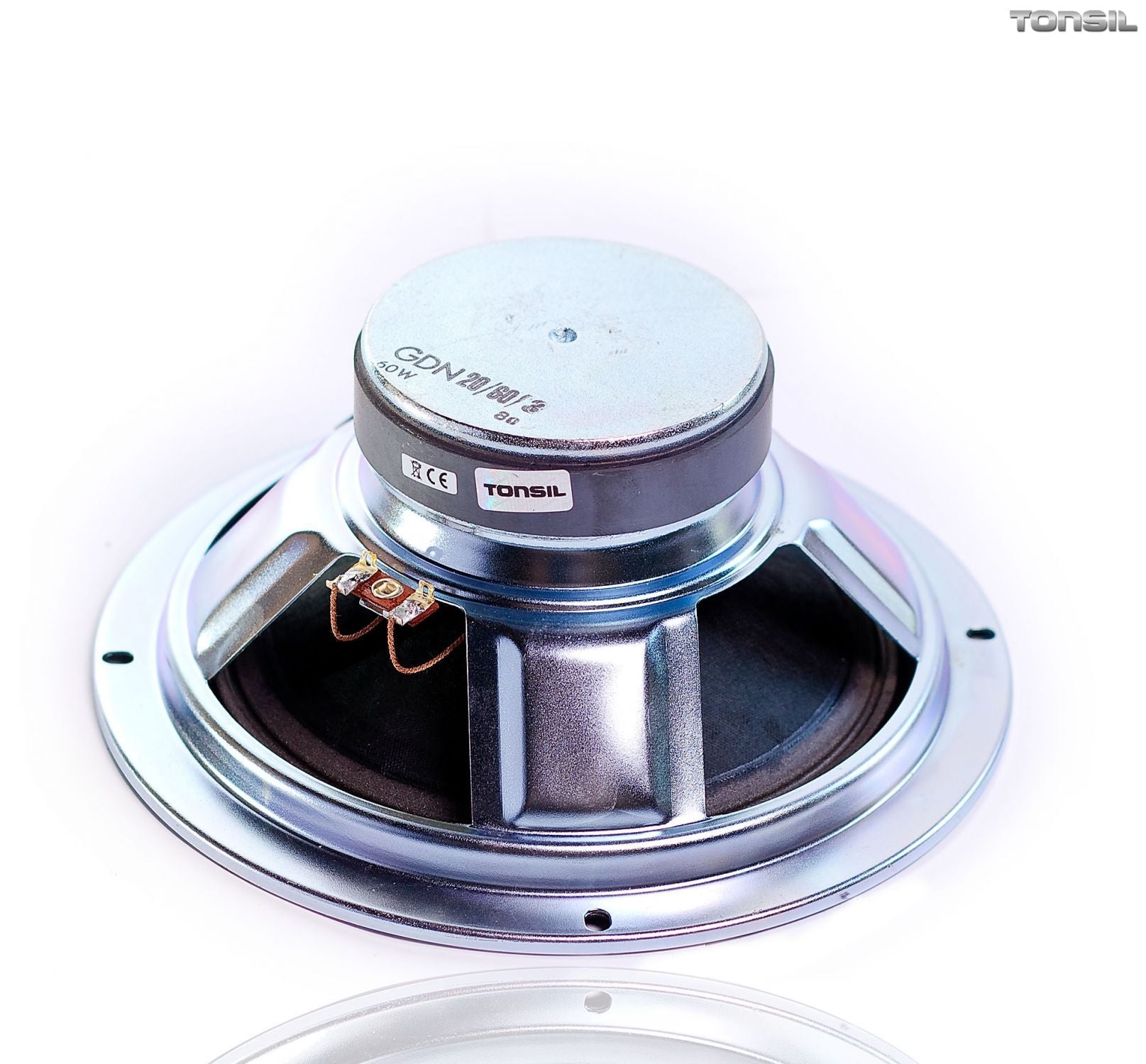

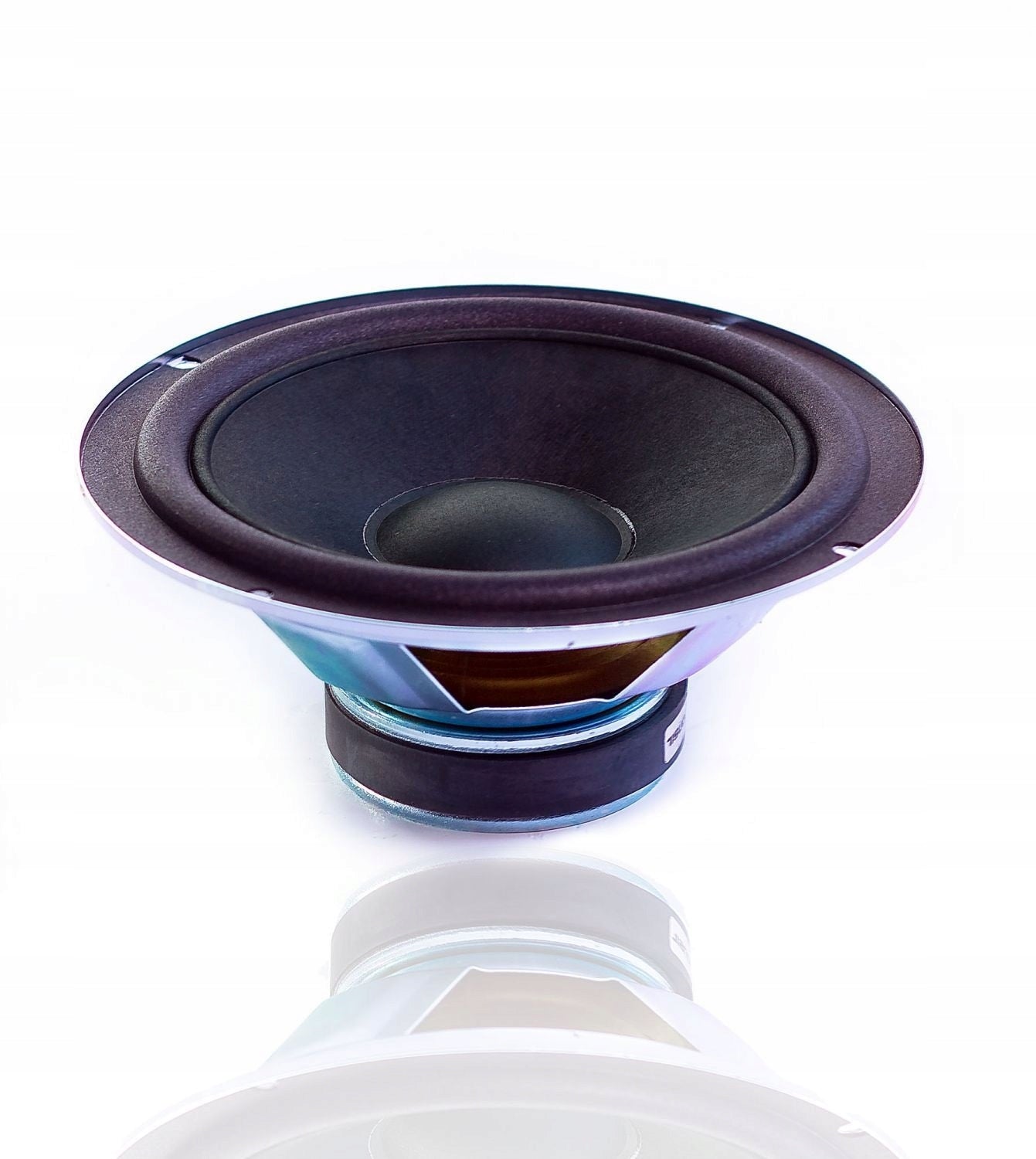

Prekė: Aukštų dažnių garsiakalbis Tonsil GDN 20/60/3 4 Ohm juodas. Kategorija: Žemieji garsiakalbiai.
- Gamintojas: Tonsil
- Modelis: GDN 20/60/3 4 Ohm
GDN 20/60/3 4 Ohm woofer with cellulosic membrane.
- Impedance - 4 [Ohm]
- Frequency Response - 45 - 4 000 [Hz]
- Nominal power (housing 24 dm^3, 100 hrs. continuous operation) - 60 [W]
- Maximum power - 120 [W]
- Efficiency - 90 [dB]
- Resonant frequency FS - 36 [Hz]
- Coil resistance - 3,3 [Ohm]
- Coil height - 11 [mm]
- Coil core diameter - 35 [mm]
- Slot height - 6 [mm]
- Slot width - 1,3 [mm]
- Outer diameter of magnet - 90 [mm]
- Inner diameter of magnet - 45 [mm]
- Magnet height - 15,5 [mm]
- Magnet weight - 0,37 [kg]
- Induction in slot B - 0,8 [T]
- Energy in the gap - 224,1 [mJ]
- Magnet material - ferrite
- Membrane material - cellulose
- Suspension material - foam
- Coil body material - aluminium
- Coil material - copper
- Basket material - steel sheet
- Equivalent volume VAS - 0.07 [m^3]
- Mechanical goodness QMS - 2,62
- Electrical goodness QES - 0,55
- Total goodness QTS - 0,45
- Total mobile mass MMS - 0.018 [kg]
- Mechanical Suspension Vulnerability CMS - 105,5x10^-5 [m/N]
- BI strength index - 5,275 [Tm]
- Active surface of SD membrane - 0,021 [m^2]
- Speaker weight - 1.3 [kg]
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Design | one-way |
| Parametry | Brand | Tonsil |
| Parametry | EAN (GTIN) | 5904209571246 |
| Parametry | Model | GDN 20/60/3 4 Ohm |
| Parametry | Manufacturer code | GDN 20/60/3 4 Ohm |
