Prekė: Analoginė išvesties sąsaja CUE PEA208 CS0225-2, 2 kanalų. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.
- Gamintojas: no brand
- Modelis: CS0225-2
Product code: CS0225
CS0225-2 version 230 VAC
- Two independent analog outputs 0 - 10 V
- 10 bit resolution
- Possibility to control devices with 0-10V interface (ballast for fluorescent lamps, dimmers, frequency converters, etc. )
- Two switching outputs to power ballasts
- Control via PEbus and external buttons
- Test buttons on the front panel
- Programmable parameters
- Indication of power supply, PEbus activity and output level
- Unified housing designed for mounting on DIN rail

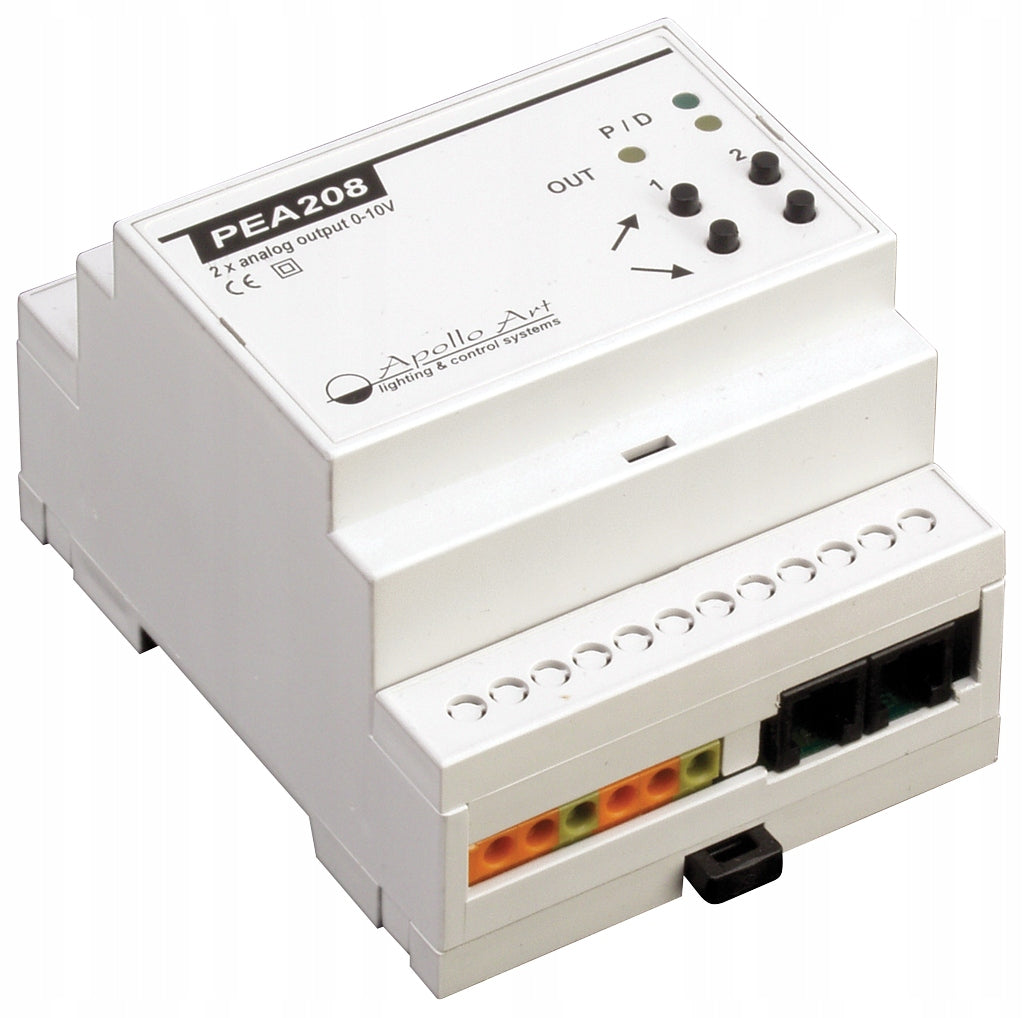

PEA208 is a two-channel analog output interface. Each independent 0 - 10 V analog output allows you to control VCA devices, light dimmer, hydraulic or pneumatic valves. The device can be controlled via the PEbus bus and potential-free inputs. Programmable parameters include input response, minimum and maximum output voltage, dimming speed and output characteristics. If the value of the analog output is greater than 1 V, the relay switches on automatically. There is an LED indicator on the front panel for each output. The housing allows simple installation on the DIN rail.
- Commercial applications in single rooms
- Conference rooms, etc.
- Huge, multi-room and multi-storey distributed systems
- Complete residential house automation
- High-tech houses
Control ports
1x RS-485 Series
4x Potential free contact input, terminals 1.5 mm2
2x
Analogue output
- 0 – 10 V, terminals 1.5 mm2
- 10 bits resolution
- Max. 100 mA sink
- Max. 15 mA source
2x Relay 230 V, max. 8 A, terminals 1.5 mm2
Communication system
- 2x PEbus, RJ-11 connector
LED indicators
- Power/PEbus activity
- Level of both outputs
Power supply
- 110 or 230 VAC, 50 / 60 Hz, 12 W
Physical
- Plastic DIN rail compatible enclosure
- Dimensions
71 x 90 x 58 mm / 2.8” x 3.5” x 2.3”
4 DIN modules 17.5 mm
- Weight 0.3 kg / 0.7 lb
Operating environment
- Temperature 0° to 60° C
- Humidity 10% is 90% non-condensing
- PEA208
- PEbus cable
- Date Sheet
- Cue System Connector Wiring Sheet
- Warranty Conditions, Declaration of Conformity
Product codes
CS0225-1 version 110 VAC
CS0225-2 version 230 VAC
