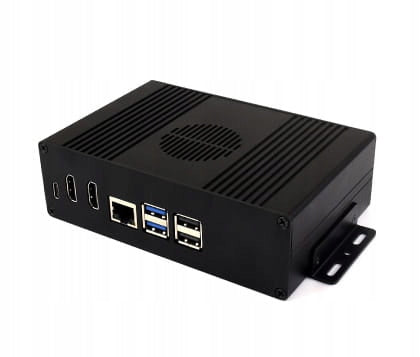

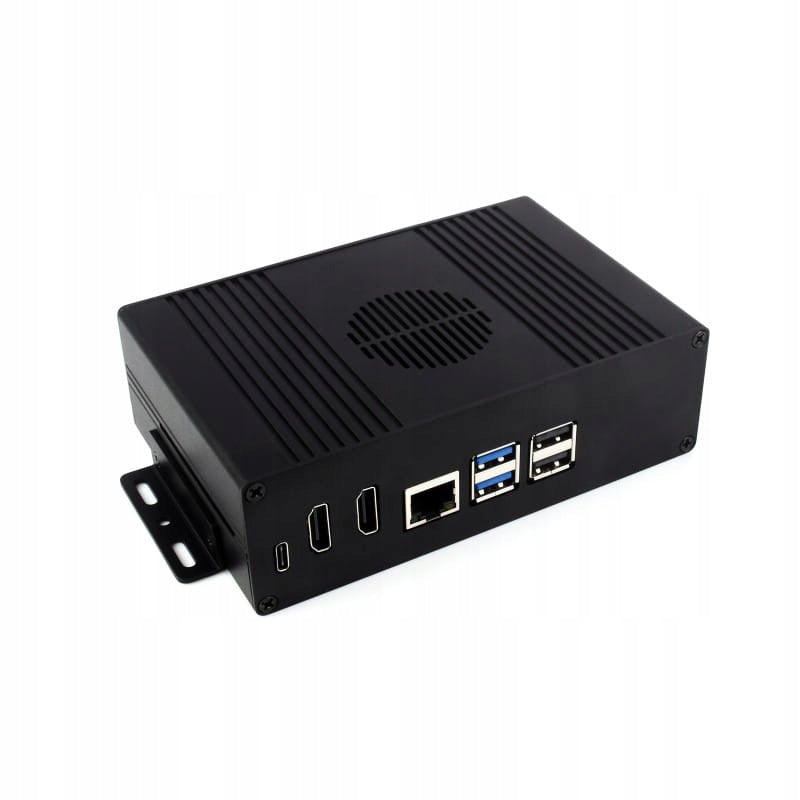

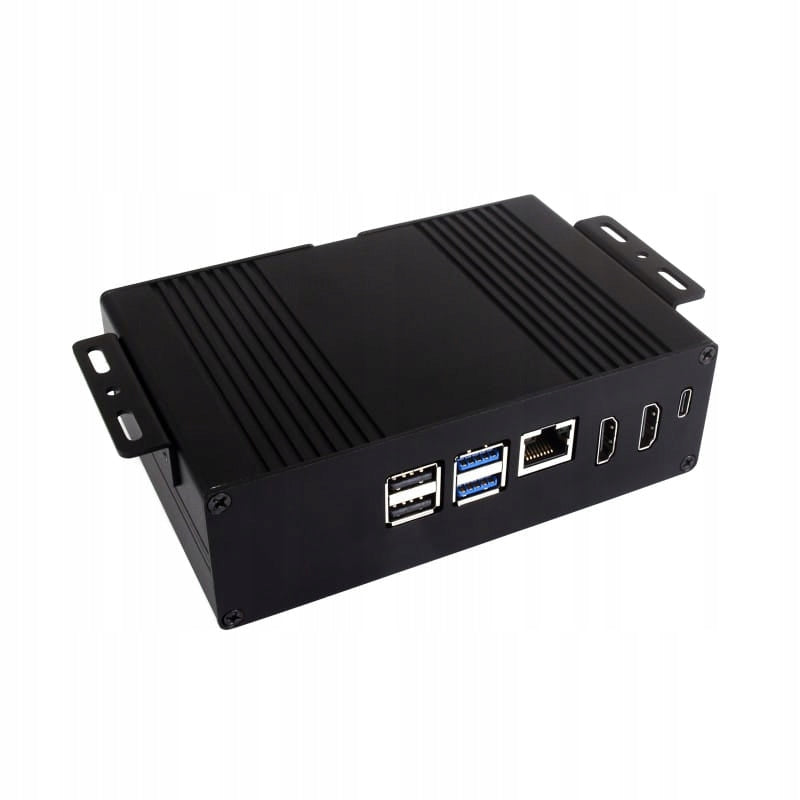

Aliumininis korpusas su jungtimi M.2 SSD diskui, skirtas Raspberry Pi 5

Trumpai apie prekę

Prekė: Aliumininis korpusas su jungtimi M.2 SSD diskui, skirtas Raspberry Pi 5. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: Pi5 Module BOX-C Waveshare 27833

Multifunctional minicomputer kit with M.2 drive support for Raspberry Pi 5

The M.2-enabled minicomputer is the perfect solution for Raspberry Pi 5 users who want to increase the performance of their device by adding a high-speed SSD. The set consists of a robust aluminum housing that provides not only protection, but also effective cooling. The Pi5 Module BOX-C version allows you to extend the Raspberry Pi 5 with the M.2 interface, compatible with SSDs in formats 2230, 2242, 2260 and 2280. Thanks to support for Gen2 and Gen3 modes, users can enjoy high read and write speeds, which significantly speeds up the system.

The kit is equipped with an aluminum housing, which guarantees proper cooling and protection of components. With LED indicators, you can monitor the operating status of your SSD. The kit also supports booting the Raspberry Pi 5 from an SSD after proper system modification, which allows you to boot the operating system and applications even faster.

Specification:

• PCIe interface: PCIe ×1 Gen2 or Gen3
• Compatibility: Raspberry Pi 5
• Supported SSD formats: 2230, 2242, 2260, 2280
• SSD protocol: NVMe
• Support booting from SSD: Yes (modification required)
• Housing material: Aluminium
• Assembly: Side mounting with acrylic tile
• Working indicators: LEDs indicating power supply and disk activity
• Additional ports: 2xHDMI, Type-C
• Cooling: Fan mountable, ventilation holes

Product properties:

• Quick expansion of the Raspberry Pi 5 with an M.2 SSD, increasing the speed of reading and writing data.
• Support for SSDs in 2230, 2242, 2260, 2280 formats, providing flexibility of choice.
• The ability to boot from an SSD after proper system modification.
• Solid aluminum housing for protection and efficient cooling.
• Simple installation and the ability to connect additional modules and cable management.
• Additional HDMI and Type-C ports for easy connection of peripherals.

HDMI and USB-C adapter included:

Two HDMI 4K outputs

Ventilation openings for easy heat dissipation:

Dimensions:

The set includes:

1. Pi5 HDMI and Type-C x1 Adapter
2. PCIe card on M.2 x1
3. Matal housing and white aluminum alloy base plate x1
4. Silicone button x1
5. Solid State Drive Screw M.2 x1
6. PCIe x1 cable
7. Screw clamp x1
8. Package x1
9. SH1.0 3PIN x1
10. SH1.0 3PIN x1
11. PH2.0 3PIN x1

The Rasberry Pi shown in the pictures is not part of the set and must be purchased separately!
