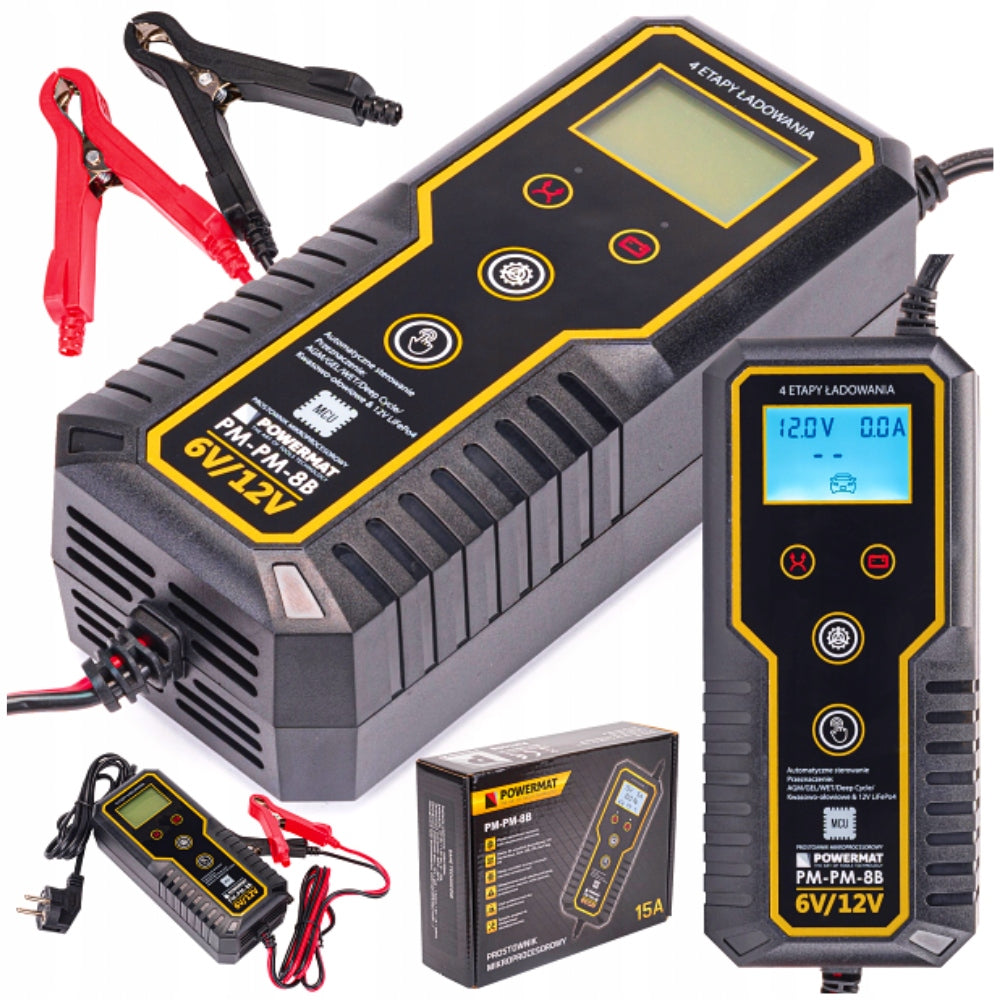

Akumuliatorių kroviklis 6V/12V su mikroprocesoriumi

Trumpai apie prekę

Prekė: Akumuliatorių kroviklis 6V/12V su mikroprocesoriumi. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Powermat
• Modelis: POWERMAT 6V/12V

✔ Microprocessor control

✔ Low current charging function

✔ Reclaim battery life and efficiency

TECHNICAL DATA:

• Rated voltage: 230V/50Hz
• Charging current: 6V [0 - 5A / 2 - 7.2V DC] - 12V [0 - 5A / 8 - 15 V]
• Battery capacity: 6V: 4 - 200 [Ah]; 12V: 20 - 150 [Ah]
• Charging Current Voltage: 6V/12V (pulse dynamic)
• Charging process: 4 - stage (automatic)
• Operating temperature: -30°C - 50°C
• Efficiency: 98%
• Waterproof Class: IP 65
• Length of cables type "clamp": 120 cm
• Length of power cord: 135 cm

CHARGING MODES

• 12V STD - up to 14,5V (charging standard 12V lead-acid battery)
• 12V AGM/C - up to 15V (recharging the 12V AGM battery or charging in winter mode at ambient temperature from - 20 to +5 degrees Celsius)
• 12V GEL - up to 14,3V (12V gel battery charging)
• 12V LFP - up to 14,6V (12V lithium battery charge)
• 6V STD - up to 7,2V (6V motorcycle battery charging)

HIGHEST QUALITY CABLES

• The core of the cable made of copper and fully rubber-coated clamps "crocodiles" ensure full operational safety and protection against frost.
• FULLY SECURED "CROCODILES"
• Durable and durable, safe to use.

THE CHARGER CAN BE USED FOR

• Passenger cars
• Quadricycles
• Motorcycles
• Mower
• Snowmobiles and water scooters
• Boats
• Forklifts
• Tractors

FOR EQUIPMENT / VEHICLES USING:

• AGM Accumulators
• Gel batteries
• Lead-acid batteries (SLA)
• Liquid electrolyte batteries

The rectifier housing has a protection rating of IP 65 (splash-proof and dustproof)

WIRE CORE MADE OF COPPER

• The use of copper wire can guarantee stable current performance.
• Charging cables are viable and do not produce heat.

MODERN PWM CHARGING TECHNOLOGY WITH MCU

• High-quality automatic and precise microprocessor battery rectifier POWERMAT PM-PM-8B is perfect for professional car services and workshops as well as in home garages.
• The device can charge with 6V and 12V current.
• It has a voltage support function. By recharging the battery with low current, you will regain its life and in addition it will be constantly charged to the maximum voltage value.

MICROPROCESSOR CONTROL

• Polarity reversal protection - blocks the transmission of energy to the output wires if the reverse connection of the poles is detected.
• Short-circuit protection - energy will be blocked on the output wires.
• Surge protection - protection is activated when setting the charging voltage other than the detected parameter.
• Battery diagnostic function - the rectifier constantly monitors the condition of the battery and can report a charging error in the form of an error code.
• Overheating protection - the rectifier will reduce the charging intensity and even turn off completely if overheating is found.
• After cooling, the rectifier will automatically resume operation.

4 - STAGE AUTOMATIC CHARGING

• The 10-step charging process ensures optimal battery charging conditions.
• The automatic control system will adjust each of the 10 charging stages to properly charge the battery.
• The rectifier for charging 6 V and 12 V batteries from 20 to 200 Ah also enables maintenance charging.

EQUIPMENT:

• 1x Rectifier
• Cables with terminals "-" ; "+"
• Box
• User manual in Polish

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	POWERMAT 6V/12V
Parametry	Brand	Powermat
Parametry	Maximum amperage	5 A
Parametry	EAN (GTIN)	5904844545473
Parametry	Packaging status	original
