Akumuliatorių įkroviklis Mastervolt EasyCharge 10A

Trumpai apie prekę

Prekė: Akumuliatorių įkroviklis Mastervolt EasyCharge 10A. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Mastervolt
• Modelis: EasyCharge 10A (EU/UK)

Battery charger

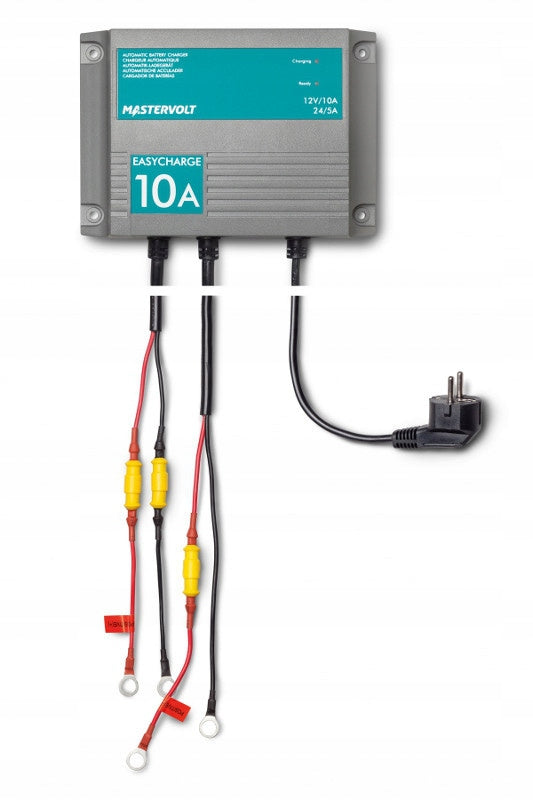

Mastervolt EasyCharge 10A

Fixed, waterproof units are completely epoxy sealed, the housing is corrosion resistant and built according to IP68 waterproof standards, easily meet global regulations such as CE, CSA, CEC and ABYC. The outputs are completely isolated and can be used in series or in parallel for higher voltage or current, include 12 or 24 V outputs. Highly efficient and easy to use, these chargers are designed to work in harsh environments and are fully tested for salt, shock and vibration. Currently, 6 A single bank and 10 A double bank models are available.

The basic improvement is the 'recognize and send' technology, which allows chargers to detect which batteries need the most charging and set their priorities accordingly. Battery chargers have the ability to charge wet, AGM and gel batteries, thanks to the universal input (120-230 V) so that they can be used all over the world.

Technical specification

General specification

Total charging current: 10 A at 12 V / 5 A at 24 V

Recommended battery capacity: charging (based on 50% battery discharge): Up to 120 Ah

Nominal input voltage: 120/230 V (90-265 V), 50/60 Hz

AC connection: 1.2 m (4 ft) cable + Euro plug

DC Connection: Ring Terminals

Dimensions, H. x width x depth: 127 x 178 x 51 mm; 5.0 x 7.0 x 2.0 inches

Weight: 2.8 kg

Technical specification

Charging characteristics

IUoUo, automatic 3-step+ for gel/AGM/wet batteries

Temperature range (temp. Ambient): -20 °C to 50 °C; -4 to 122 °F

Degree of protection: IP68

Security:

before sparking, before short circuit, before reverse polarity, before overvoltage, before limited current, before overheating
