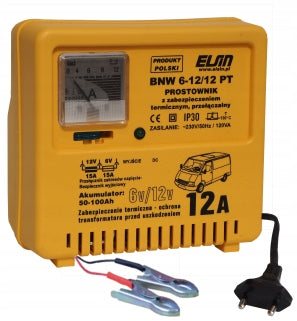

Akumuliatoriaus lygintuvas-įkroviklis BNW 6-12/12-TP

Trumpai apie prekę

Prekė: Akumuliatoriaus lygintuvas-įkroviklis BNW 6-12/12-TP. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Elsin

Destiny:

• Charging 6V or 12V capacity batteries from 50Ah do 100Ah used in passenger cars, vans, etc. Charging method according to the characteristics of "W" - constant voltage with decreasing current, i.e. The charging current decreases as the battery level increases.

Construction and protection:

The rectifier housing is made of plastic (PP with the addition of recycled plastic).

An efficient and durable transformer on the EI fitting was used. Transformer coil windings made of copper wire. Cooling of the rectifier system on aluminum radiators.

The rectifier transformer has thermal protection to protect the transformer from excessive heating of coil windings and thus from damage.

Changing the charging voltage range of 6V / 12V is done by moving the car fuse "UNIVAL" located on the front of the rectifier housing.

Overload resistance is ensured by the use of a replaceable car fuse "UNIVAL", which is also a switch of 6V/12V ranges.

The rectifier has a tilting charging current indicator (ammeter) allowing for ongoing control of the battery charging process.

The output voltage is indicated by an LED.

Power cord length approx. 1,5m.

Output cables (black and red) length approx. 1,5m terminated with "crocodile" clamps.

• Supply Voltage: 230V/50Hz
• DC Output Voltage: 6V or 12V
• Rated charging current: 12A
• Battery Capacity: 50-100Ah
• IP Class: 20
• Overall dimensions (width. x H x L ): 170 x 160 x 85 mm
• Weight: 2,2 kg

Rectifier manufactured in our plant located in Ząbkowice Śląskie (Lower Silesia).

The production is based largely on its own components, including: transformer fitting, transformer bodies and rectifier housings. We wind transformer coils on our own, assemble ready-made transformers, assemble printed circuits and in the final stage we assemble the final product.

Many years of experience in production and the use of our own machine park allows us to maintain the high quality of our products. By choosing "ELSIN" products you support the Polish manufacturer!
