Akumuliatoriaus įkroviklis su lygintuvu, LCD, 6V/12V, 15A, 2 vnt.

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis su lygintuvu, LCD, 6V/12V, 15A, 2 vnt.. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Volt
• Modelis: Smart A86

Each rectifier comes with a set of two bulbs:

M-TECH SuperWhite H7 12V 55W H7

MANUFACTURER -VOLT Poland

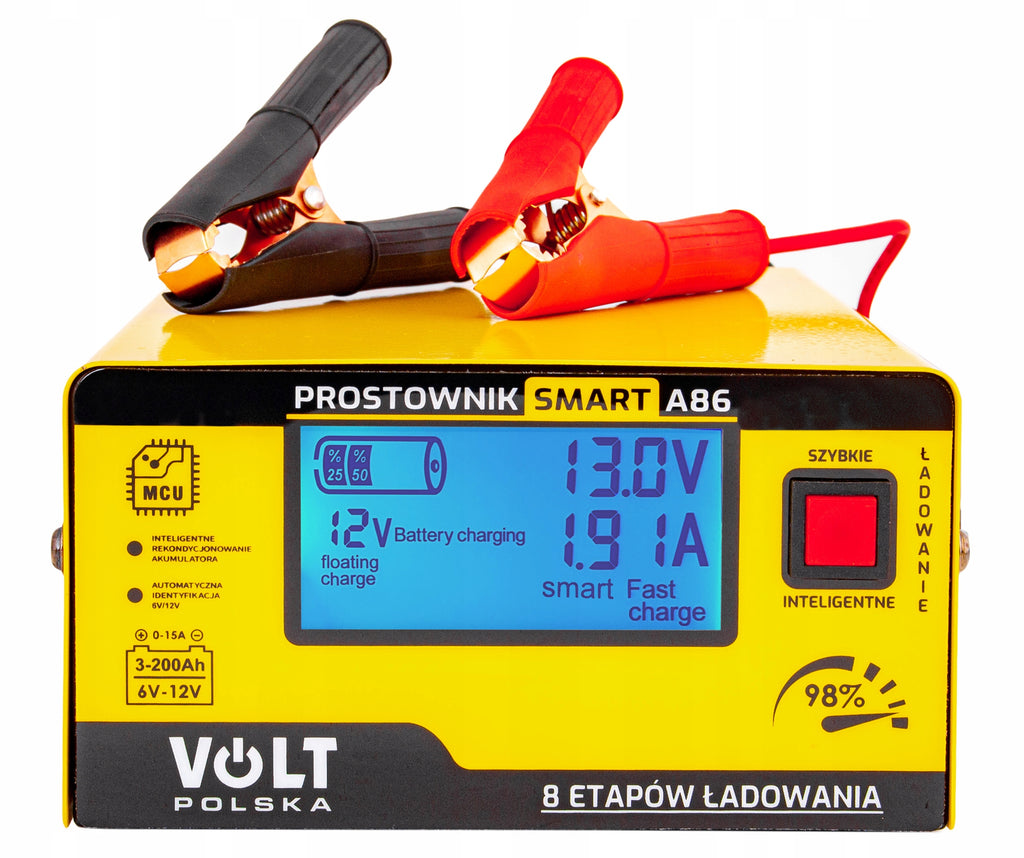

SMART 6V/12V 15A A86 rectifier is the first battery charger on the market with a microprocessor control and control system in PWM technology with the possibility of charging batteries up to 6V and 12V and the possibility of choosing non-standard types of battery voltages.

TECHNICAL DATA:

• brand: VOLT Poland
• model: SMART A86
• rated voltage: 230V / 50 Hz
• supported battery voltages: 6V/12V
• Voltage identification for 12V: 8V - 14,5V
• Voltage identification for 6V: 2V - 7,4V
• supported battery capacity 6V/12V: 3Ah - 200Ah
• Charging intensity: 0A - 15A
• operating temperature: -30°C - 50°C
• Efficiency: 98%
• supports batteries: VRLA, WET, GEL, EFB, AGM
• built-in fan controlled by MCU
• net weight: 0,95 kg
• length of power cord: 100 cm
• length of wires "+" and "-": 120cm

Key features:

• Automatic charger designed to charge 6V and 12V lead-acid car batteries m.in. VRLA maintenance-free batteries: AGM and GEL.
• Continuous system test and charging switching in 4 modes (Constant Voltage; Constant Current; Trickle Charge Modulation; Floating Charge Modulation) regenerating battery.
• Multi-stage battery protection, thanks to the use of an advanced microcomputer management system.
• Pulse width modulation (PWM) technology allowing automatic charging of the battery in a 4-stage charging cycle.

Charging process

• The process of charging the rectifier is based on the impulse charging system - charging for 5 seconds, then interrupting the charging for 1 second, causes most of the oxygen that was created during charging to become an electrolyte. This method not only reduces the formation of gases, but the rectifier can also repair the sulphated battery.
• When the charging indicator displays 25%, 50%, 75%, 100%, it shows the battery charge percentage:
• Blinking - when the battery capacity is too low, the rectifier on the display will warn about too low voltage flashing. After the battery is repaired by the charger, it will display the normal charge level again.
• Sound signal - when the battery is fully charged, a cyclic beep will appear every minute.
• Every time you charge, this product scans and tests the battery. The battery will be displayed on the screen for battery testing. After a while, the rectifier will enter the mode (repair, maintenance or maintenance).

• Constant Voltage: Using DC voltage to charge the battery, checking that the charging current is not too high, reducing it during the process.
• Constant Current: Indicates that the battery voltage is lower than the set voltage of the charger, but the charger will maintain a constant charging current of the battery.
• Trickle Charge Modulation (Direct Current Charging): When the battery voltage approaches the set voltage and the charging current is low to the set current, it will switch to floating charge modulation mode. This means that the battery is charged, but it is constantly checked for voltage drops and recharged automatically with alternating current.
• Floating Charge Modulation: The mode will maintain the state of full charge of the battery.

Protective functions

• Overheating protection (Protection against overheating of the charger): When the temperature of the charger exceeds 150°C, the charger will stop charging. When the temperature drops to 80°C or the rectifier turns off for approx. 10 min, after this time you can charge the battery again.
• Short-circuit protection (short circuit protection): When a short circuit occurs in the circuit, the operation will automatically stop. This will be manifested by a long beep. Then you need to plug it in thoroughly to restart the charging automatically.
• Reverse-connecting protection (Reverse connection protection): When the terminals ( +/- ) are mistakenly connected the other way around, the charger will signal this in the form of intermittent long beeps. After properly connecting the terminals, it will be recharged.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	Smart A86
Parametry	Brand	Volt
Parametry	Maximum amperage	15 A
Parametry	Product weight with unit packaging	1 kg
Parametry	EAN (GTIN)	5903760240080
Parametry	Batteries included	no
