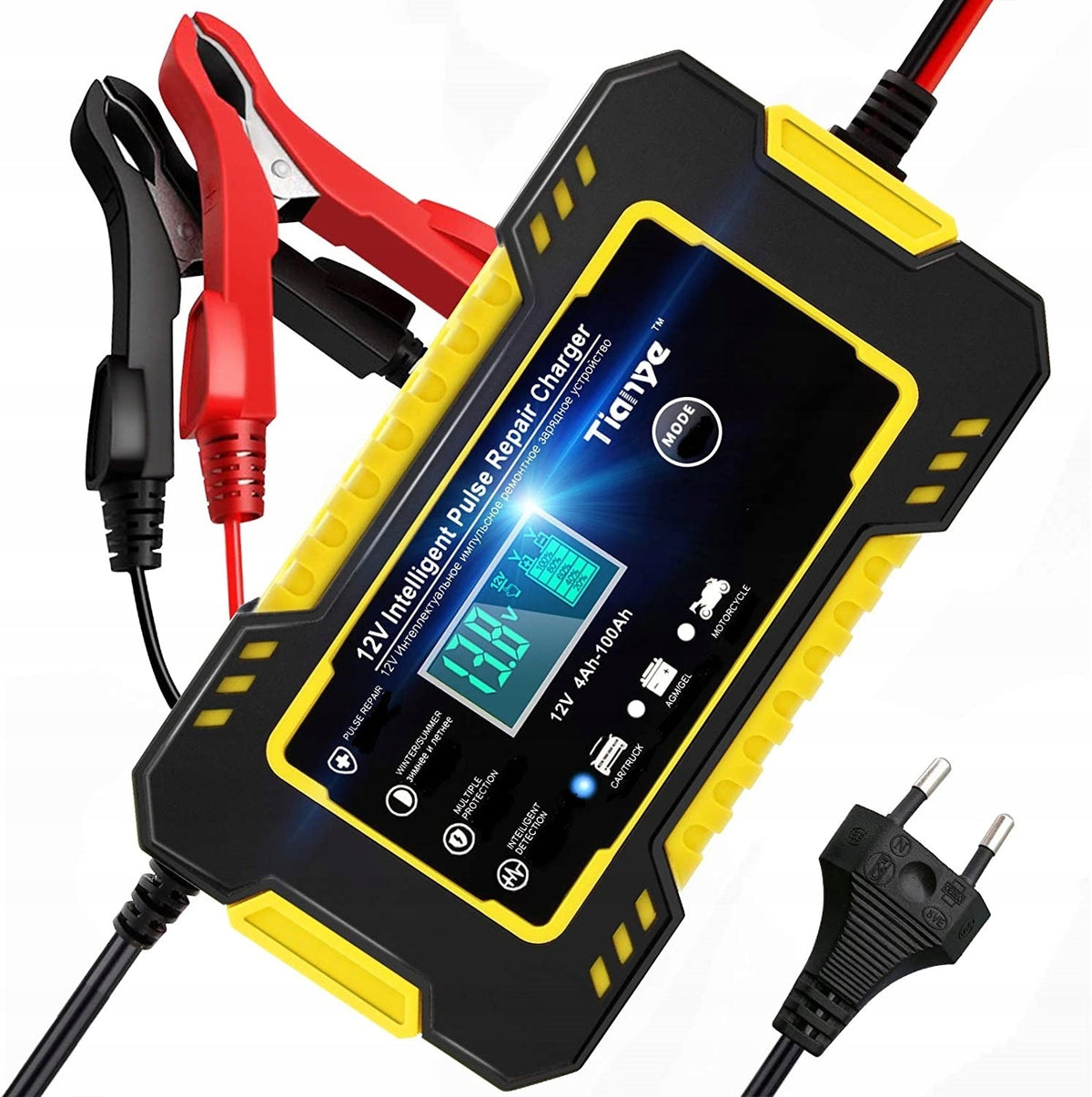

Akumuliatoriaus įkroviklis su LCD, 12V, 6A, remonto funkcija, 2 vnt.

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis su LCD, 12V, 6A, remonto funkcija, 2 vnt.. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Foxsur

High-end rectifier for charging batteries (cars, motorcycles, agricultural vehicles or boats) 12 V.

Suitable for 2-100 Ah lead-acid batteries, lithium batteries are not suitable.

The device is controlled by a microprocessor - when fully charged, it automatically turns off, keeping the battery ready.

The rectifier is small in size and is extremely easy to use, making it great for home use.

One-button battery control. We choose the appropriate mode of operation (car, motorcycle, Start-Stop battery).

The rectifier has a special operating mode, designed for charging batteries for cars with START / STOP engine. More and more cars have the function of turning off the engine during a stop. The batteries in these cars require special charging.

The automatically detects the ambient temperature and selects the appropriate charging voltage depending on the ambient temperature (summer mode and winter mode). In the case of winter mode - the charging voltage is slightly higher.

The rectifier has a special function " repairing batteries discharged to zero . The device uses high and low frequency pulse technology in this mode, it has a good effect of repairing and activating a very heavily discharged battery. We use this function when charging batteries that are completely discharged or have been idle for a long time and cannot be charged with other rectifiers.

Product model: RJ-C 120501A.

Product size: 150 x 85 x 62 mm.

Net weight: 400 g.

Output cable length: 65 cm,

length of the input cable: 90 cm.

Input voltage: AC 110 - 220 V (50 - 60 Hz).

Output voltage: DC 13,8 - 15,5 V.

Output current: 6 A (max. ).

The battery charger provides protection against reverse polarity, short circuit, overvoltage, low voltage, overcurrent and overheating, feedback, against electric shock (fully wrapped crocodile clamps are robust and safe to use).

It has the function of maintaining a constant pulse current, stops when fully charged and prevents overcharging and discharge.

The device has a fireproof coating

The equipment has an aluminum heat sink, and a quiet fan for heat dissipation, which significantly extends the life of the charger and protects the equipment from overheating. , before electric shock (fully wrapped crocodile clamps are sturdy and safe to use).

The device has a very thick copper wire

The display shows the most important parameters of the charging process, and the status of the charged battery

passenger cars and trucks

motorcycles

yachts

agricultural machinery

Connection instructions

1. Connect the red crocodile to the electrode +

2. Connect the black crocodile to the electrode -

3. After properly connecting the rectifier - the battery parameters will appear on the display.

4. In case of incorrect connection, the following inscription will appear on the display: reverse conection - then you need to change the crocodile connections

5. Insert plug into 220 V power supply

6. Select the MODE type of rectifier operation

7. When charging is finished on the display, the battery is full 100%.

8. For better charging, you can leave the battery connected to the charger for another hour

9. We disconnect the device in reverse order: first we pull the plug from the contact, then we disconnect the black crocodile, and finally the red one.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	Foxsur
Parametry	Maximum amperage	6 A
Parametry	Product weight with unit packaging	0.14 kg
Parametry	EAN (GTIN)	5905991497011
Parametry	Batteries included	no
