Akumuliatoriaus įkroviklis 4 IDEAL, išmanus įkrovimas

Trumpai apie prekę

Prekė: Akumuliatoriaus įkroviklis 4 IDEAL, išmanus įkrovimas. Kategorija: Baterijų įkrovikliai.

• Gamintojas: IDEAL
• Modelis: SMART CHARGER 4

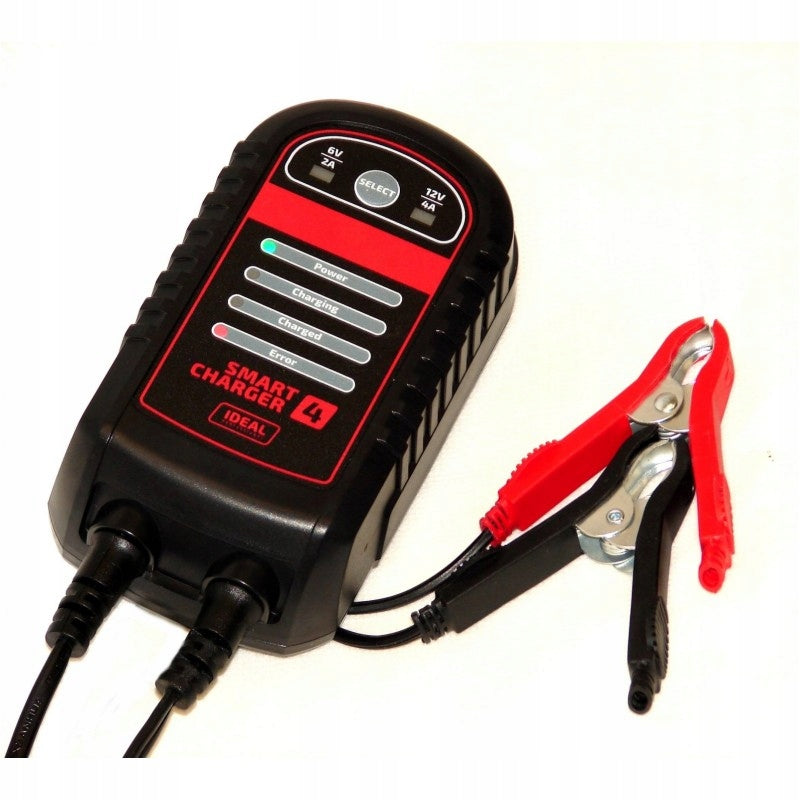

Intelligent, portable charger

SMART CHARGER 4 is an inverter, intelligent and portable rectifier for 6 and 12 volt acid, gel, AGM, MF and EFB batteries with free electrolyte flow, designed for motor vehicles (petrol and diesel), motorcycles, motor boats, etc.

Automatic shutdown when the required voltage is reached on the battery and automatic resumption of charging after the voltage drops on the battery.

SUMMARY OF PRODUCT CHARACTERISTICS

• Single-phase power supply.

• Length of power cord 180 cm, length of pole wires 180 cm.

The 7-step charging process ensures optimal battery charging conditions. The automatic control system will adjust each of the 7 charging stages to properly charge the battery:

STAGE 1 - diagnostics - analyzes the battery and checks whether it can accept charging current, prevents charging the damaged battery

STAGE 2 - pre-charging - low voltage batteries are pre-charged with low current, this ensures longer battery life

STAGE 3 - soft start - rectifier gradually increases the charging current from reaching full charging current

STAGE 4 - CC1, CC2, CC3 (Constant Current) - fast charging. Charging current is set automatically depending on the state of charge of the battery

STAGE 5 - CV (Constant Voltage - constant voltage charging) - charging to a voltage of 14.6V. Designed to charge batteries almost fully charged. Will finish charging the battery when reaching 14.6V

STAGE 6 - Resting - completion of the charging process when the battery is fully charged

STAGE 7 - Restoring - automatic monitoring of the battery. The charging process will resume after the voltage drops on the battery below 12.8V (for 12V batteries). The rectifier will restart the charging process starting from step 1.

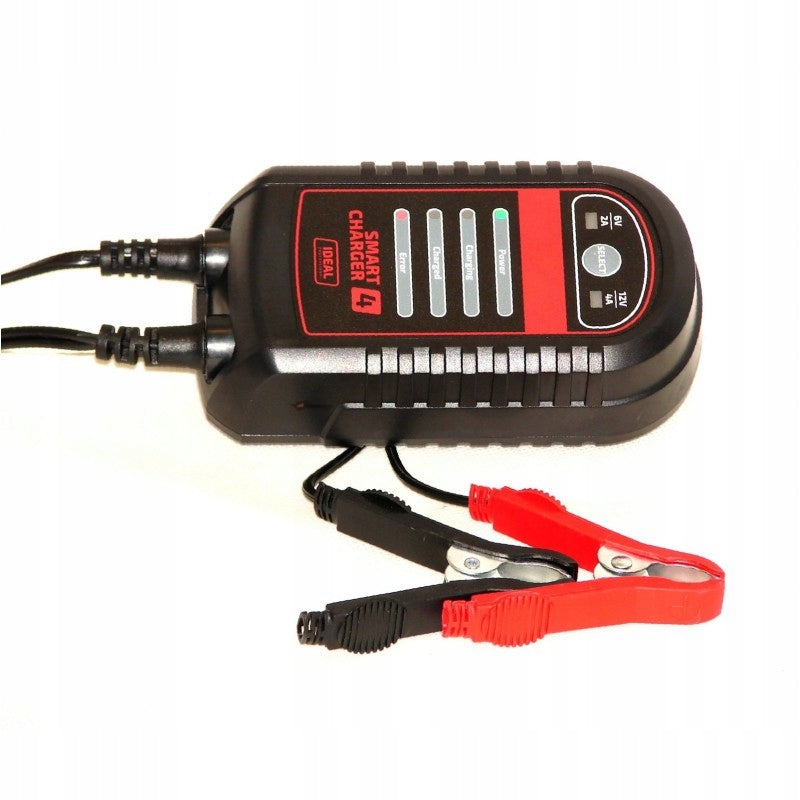

Rectifiers have a microprocessor control system, LEDs indicating the operating status of the rectifier:

6/12 V charging voltage SELECT switch depending on the rated voltage of the battery 2A - 6V and 4A - 12V

LED Power - signals the connection of the rectifier to the mains

LED Charging - signals the charging stage of the battery

LED Charged - signals the end of charging

Error LED - signals battery connection error, lack of battery recognition or incorrect selection of charging voltage.

TECHNICAL PARAMETERS

• Charging voltage 6V / 12V
• Charging current 6V - 2A / 12V - 4A
• Rated battery capacity (min/max) 1.2—14AH (6V), 14—120Ah (12V), maintenance charging up to 160Ah
• Rated charging current EN 60335-2-29 6V - 3,5A / 12V - 7A
• Weight 0,45 kg
• Rated power supply voltage 230 V - 1 ph 50/60Hz

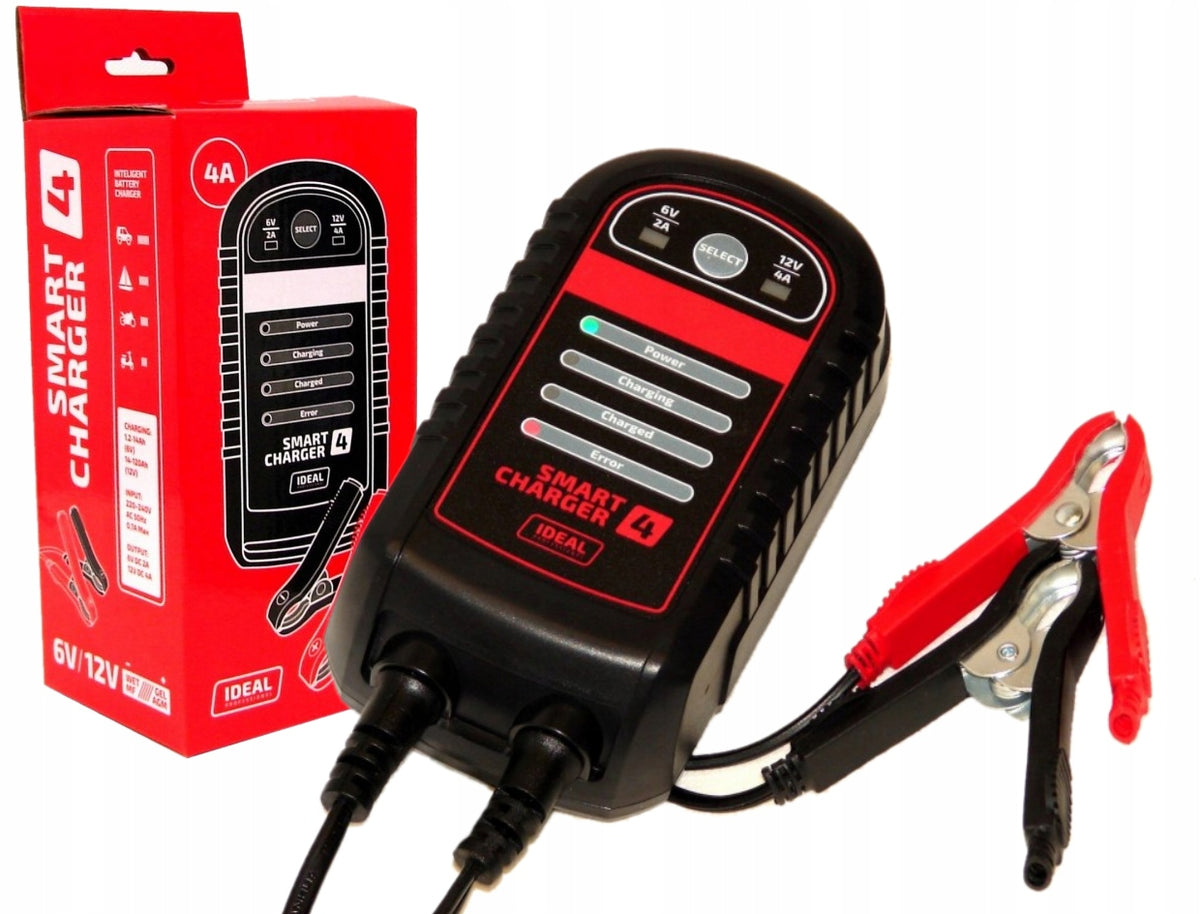

DELIVERY INCLUDES

• Portable rectifier for charging 6 and 12 volt batteries
• Operating instructions
• Warranty card
