Adapterio plokštė Raspberry Pi 5: PCIe į 4×M.2 NVMe, Waveshare 30535

Trumpai apie prekę

Prekė: Adapterio plokštė Raspberry Pi 5: PCIe į 4×M.2 NVMe, Waveshare 30535. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: Waveshare 30535

PCIe to 4×M.2 NVMe adapter board for Raspberry Pi 5 (without power) - Waveshare 30535

Description

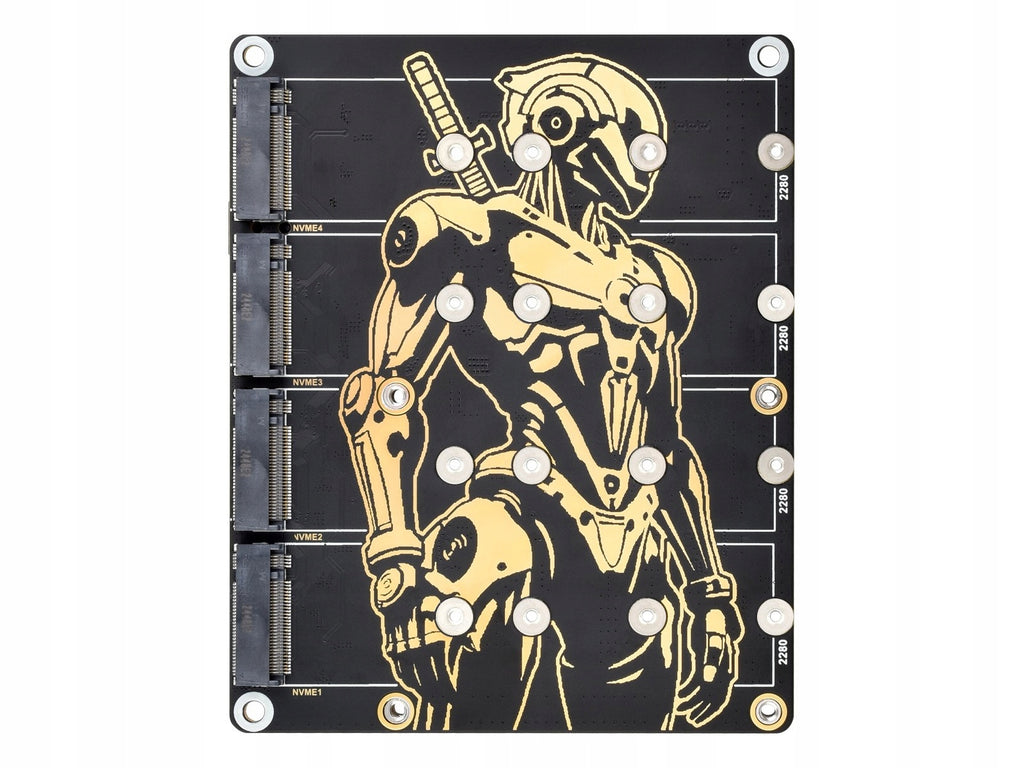

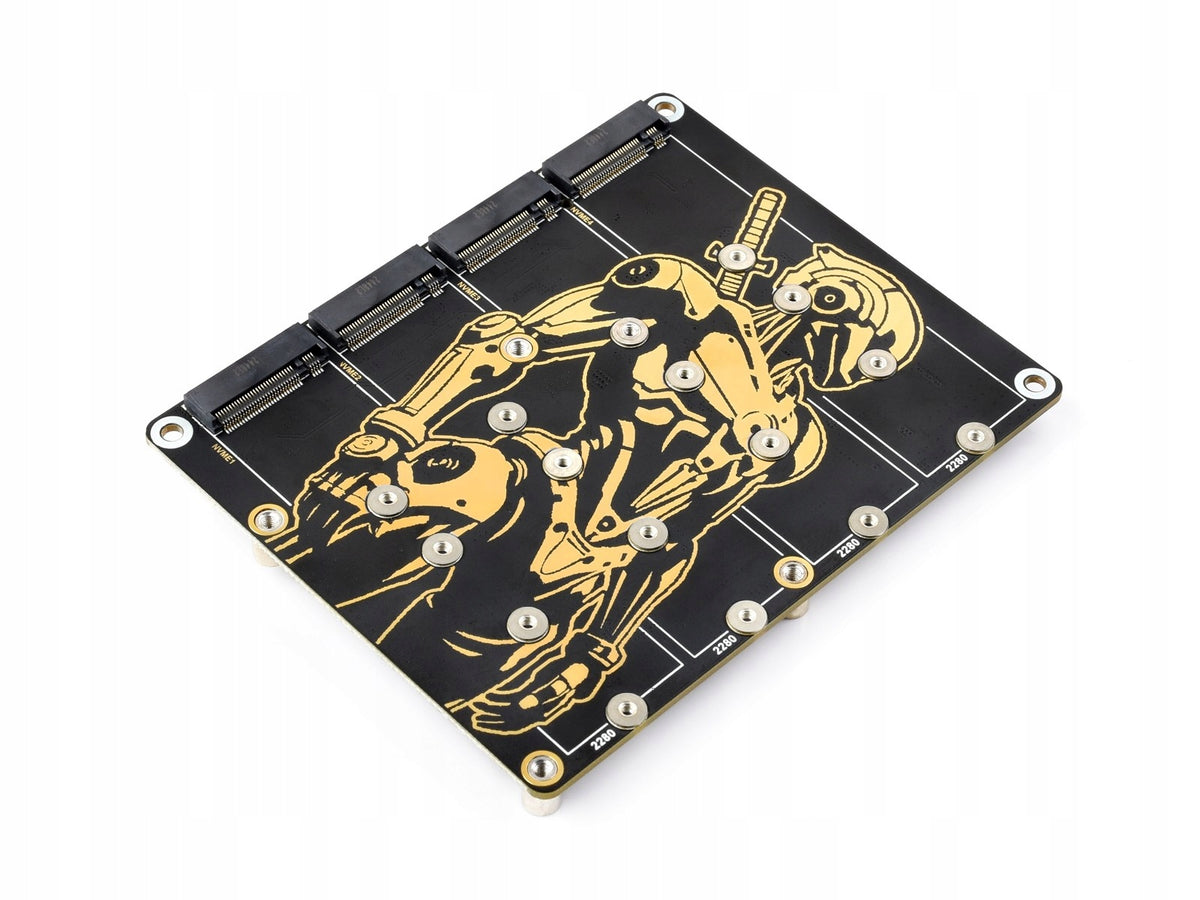

PCIe adapter board designed specifically for the Raspberry Pi 5, allowing you to connect up to four M.2 NVMe SSDs (NVMe protocol only, M-Key connector). It allows you to significantly increase the speed of reading and writing data compared to traditional microSD cards, and also supports running the Raspberry Pi 5 directly from the SSD. The "NP" version does not include a power supply or power cord.

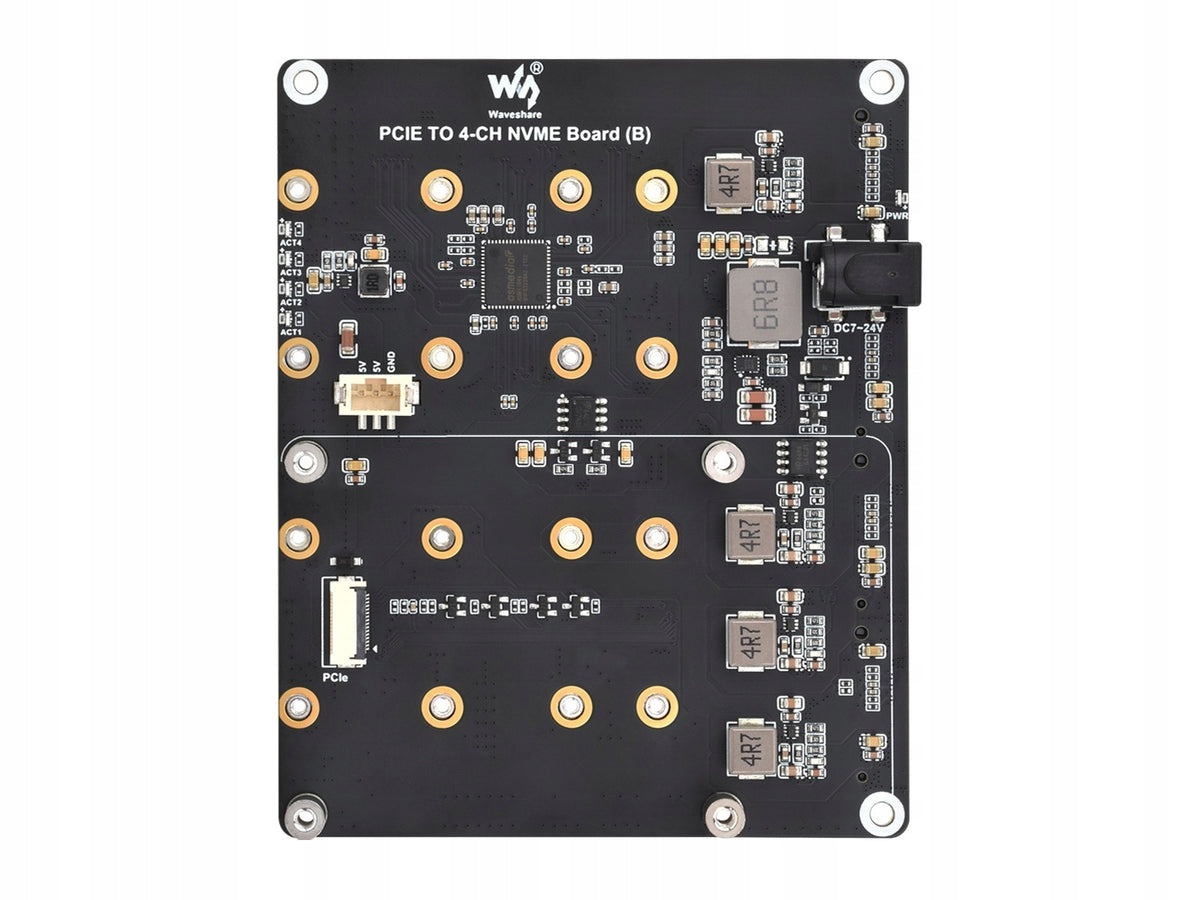

The adapter communicates with the Raspberry Pi 5 via a 16-pin PCIe (x1 Gen2) connector. Supports 2280, 2260, 2242 and 2230 disk formats. The board includes a DC power connector (7 to 24 V) and a 3-pin interface to power the Raspberry Pi 5 to 5 V/5 A. It is also possible to power the board through the Raspberry Pi 5 board itself. There are LED indicators on the PCB that indicate the operating status of the drives.

Properties

• Compatibility: Raspberry Pi 5
• Interface: PCIe x1 Gen2 (16-pin connector)
• Drive Support: 4× M.2 NVMe SSD (M-Key, 2230 / 2242 / 2260 / 2280)
• Power supply: DC 7 to 24 V via DC socket or power supply with Pi5 (up to 5 V 5 A)
• Indicators: LED for monitoring operating status
• Support booting Raspberry Pi 5 from SSD
• Pi5 power connector: PH2.0 3-pin

Comes with

• PCIE TO 4-CH NVME Board (B)
• PH2.0 3-pin cable
• 16P-Cable-40mm Tape
• Set of screws

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	Waveshare 30535
Parametry	Manufacturer	WaveShare
Parametry	Kind	Expansion board
Parametry	EAN (GTIN)	5902186322110
