50T automobilių svarstyklių montavimo rinkinys

Trumpai apie prekę

Prekė: 50T automobilių svarstyklių montavimo rinkinys. Kategorija: Svarstyklės.

• Gamintojas: Bielskie Wagi
• Modelis: LP7516 Zestaw do budowy wagi samochodowe

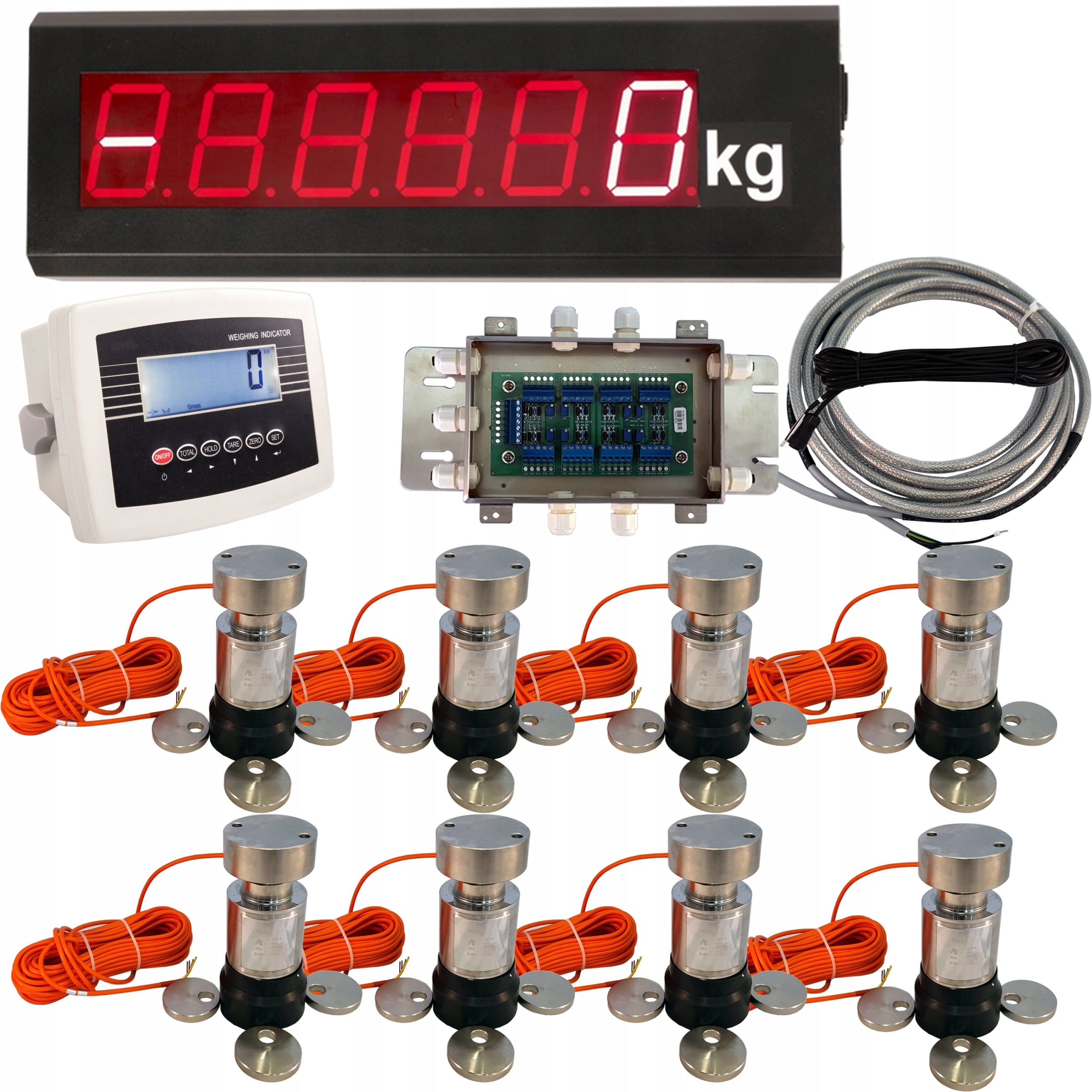

The set consists of high-quality components:

• 8 strain gauges
• Weight meter
• Summary can
• Overall display
• Wires connecting all elements

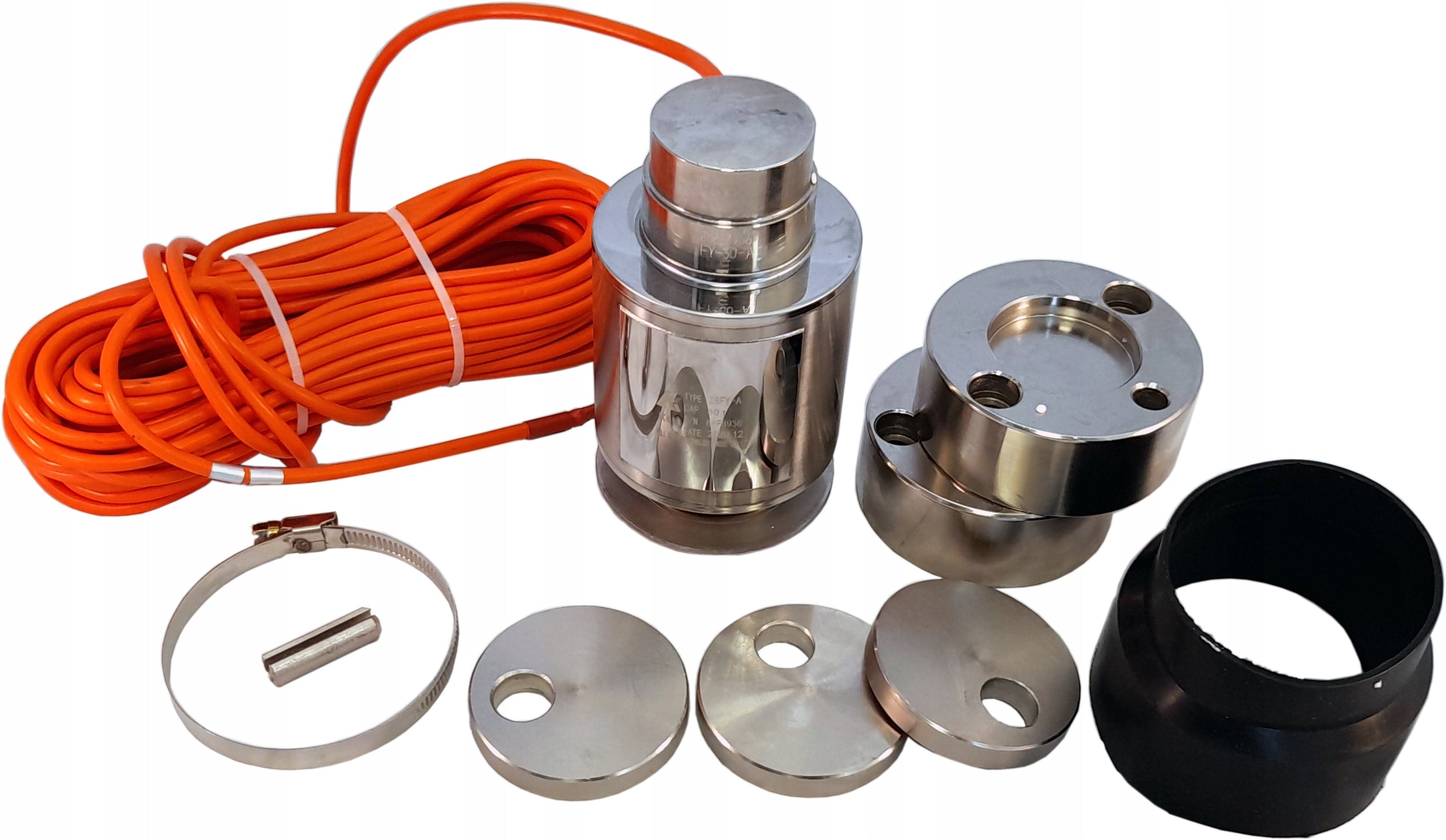

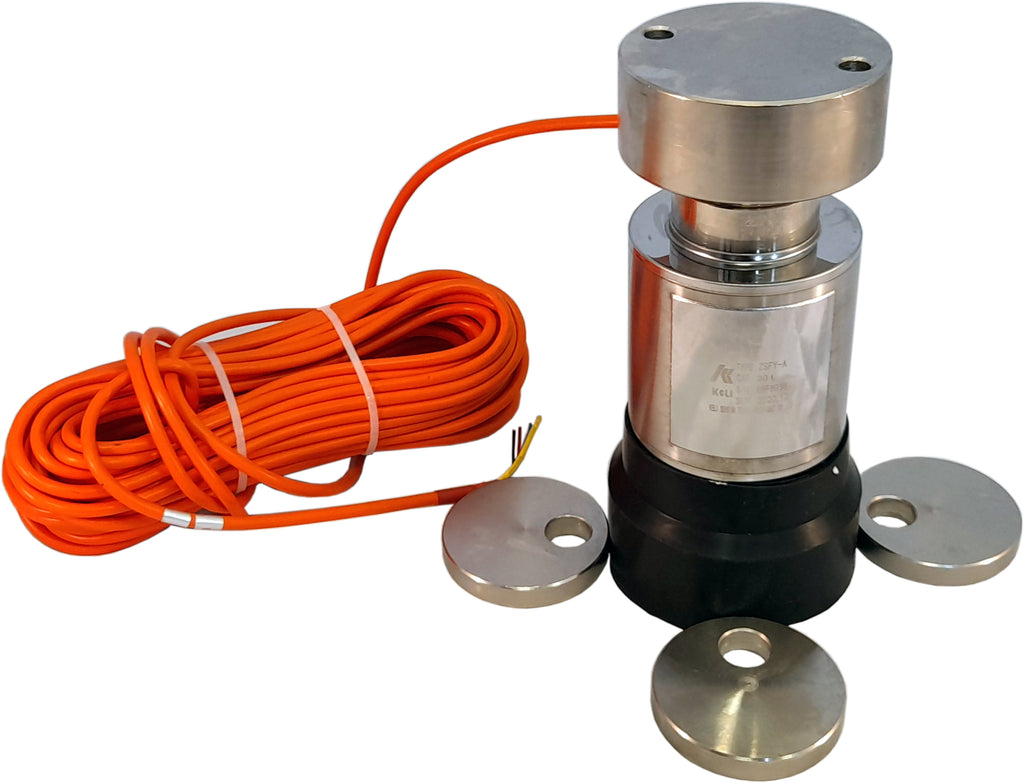

ZSFY-A 30t C3 strain gauge sensor with mounting accessories:

- Manufacturer KELI SENSING TECHNOLOGY (NINGBO) Co., LTD

- maximum lifting capacity of 30 000kg,

- Class C3,

- cable in orange,

- operating temperature from -30 to +70 degrees Celsius,

- input resistance 700 (+/-20) Ohms,

- Output resistance 706 (+/-6) Ohms.

- IP68

- high-quality steel construction.

• Dimensions 540 x 180 mm, depth 55 mm
• Digit height 75 mm,
• Number of digits - 6
• 7 segments
• Color of numbers - red
• RS-232 communication
• Mains power supply ~230V - power cable included
• Sturdy steel construction

• Works with any weight
• Large easy-to-read LCD
• Battery and mains power
• Includes cable for connecting the scale and handle
• Operating temperature of the scale: - 10C to + 40C
• Power supply: 230V/50Hz and 6V/4Ah battery
• Battery life up to 90 hours
• LCD display readable in all lighting conditions
• Tare
• Zero
• State memory
• Summary of weighings
• Overload sound signaling (high/low)
• Weighing of goods in motion enabling accurate weighing of farm animals
• Possibility to set automatic transition to rest (energy saving mode)
• Possibility to connect an oversized display (available at other auctions)

The scale is not subject to legalization, it cannot be used for commercial settlements.

At our other auctions, EC conformity assessment scales are available - legalized

Specifications
