4D 360° savaime išsilyginantis lazerinis lygis

Trumpai apie prekę

Prekė: 4D 360° savaime išsilyginantis lazerinis lygis. Kategorija: Lazeriniai nivelyrai.

• Gamintojas: BIGSTREN
• Modelis: 5904665712016
• Ilgis: 12.5 cm
• Svoris: 0.56 kg

• 4D MEASUREMENT – 360 DEGREES – emits 16 measurement lines, including 8 vertical and 8 horizontal. Green laser beams provide precise and clear leveling.

• WALL MOUNT BRACKET – a wall bracket is included with the set. Simply screw the metal plate to your chosen wall, then use the adjustable bracket equipped with two strong magnets for a secure connection to the previously attached plate. This allows for easy mounting of the level at any height on the wall.

• WATER AND DIRT RESISTANT – the level is made from durable materials. With an IP 54 protection rating, the device is waterproof and resistant to dust and dirt.

• SELF-LEVELING FUNCTION - the self-leveling function can compensate for small uneven surfaces up to 3°. Above 3°, the laser light will flash, reminding you to place it on a flat surface.

• SPECIFICATIONS - laser diode: 532 nm; green light; beams: 360° x 3 12 (3D), 360° x 4 16 (3D); self-leveling range: +/- 3°; voltage: 220-240V; vertical/horizontal accuracy: 0.2 mm/10 m; waterproof rating: IP54; working range: up to 25 m; working time: up to 5 h; charging: mains power; operating temperature: -5°C to 50°C; level dimensions: 12 x 10 x 13; case dimensions: 15x 22 x20; weight: 0.56kg; package weight: 1.644kg

SPECIFICATION

• laser diode: 532 nm green light
• Rays: 360° x 3 12 (3D), 360° x 4 16 (4D)
• self-leveling range: +/- 3°
• Voltage: 220-240V
• Vertical/horizontal precision: 0,2 mm/10 m
• waterproof: IP54
• working range: up to 25 m
• working time: up to 5 hours
• charging: network
• 150mAh battery
• Operating temperature: -5°C to 50°C
• Level dimensions: 12 x 10 x 13 cm
• dimensions in the case: 15 x 22 x 20 cm
• Weight: 0,56kg
• Package weight: 1,644kg

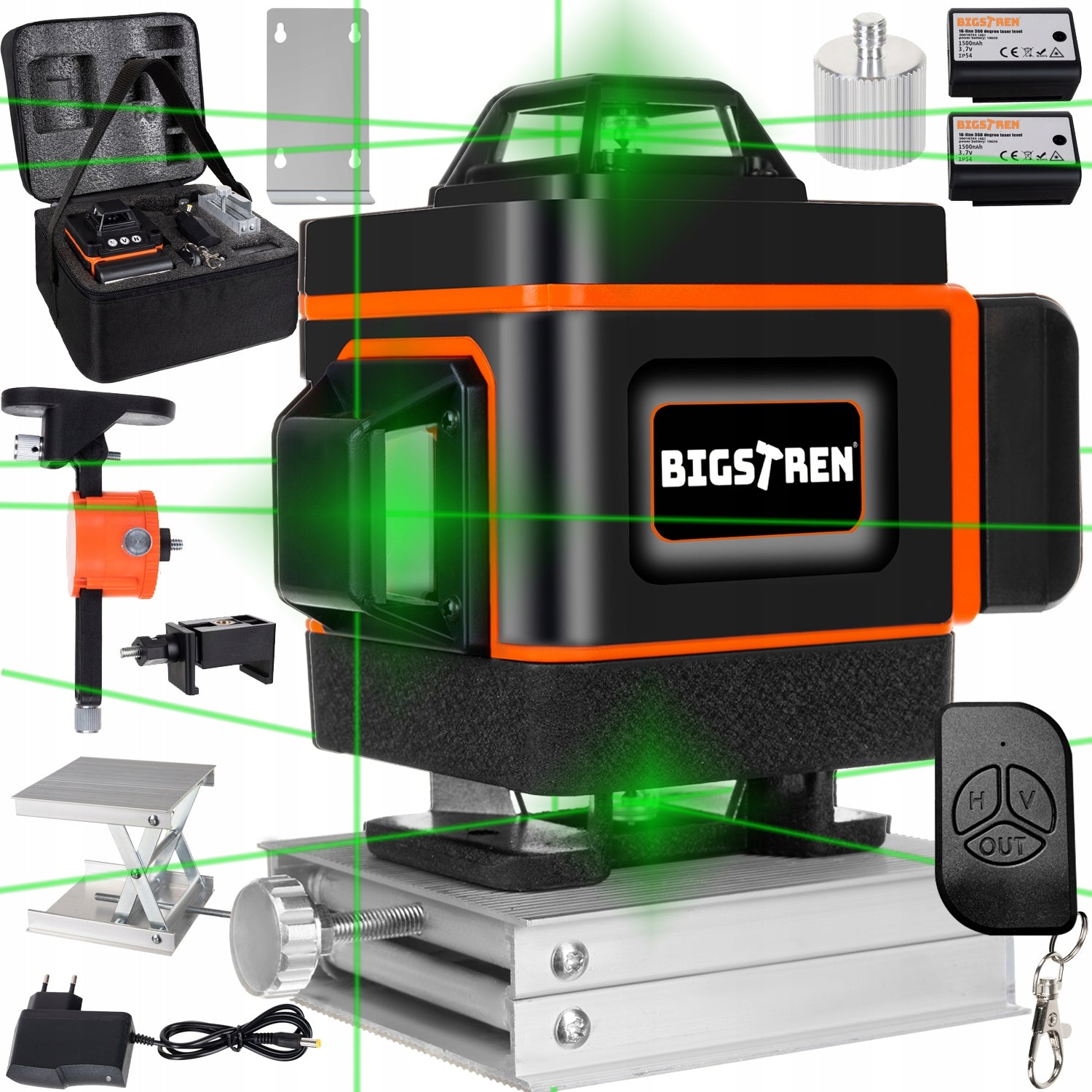

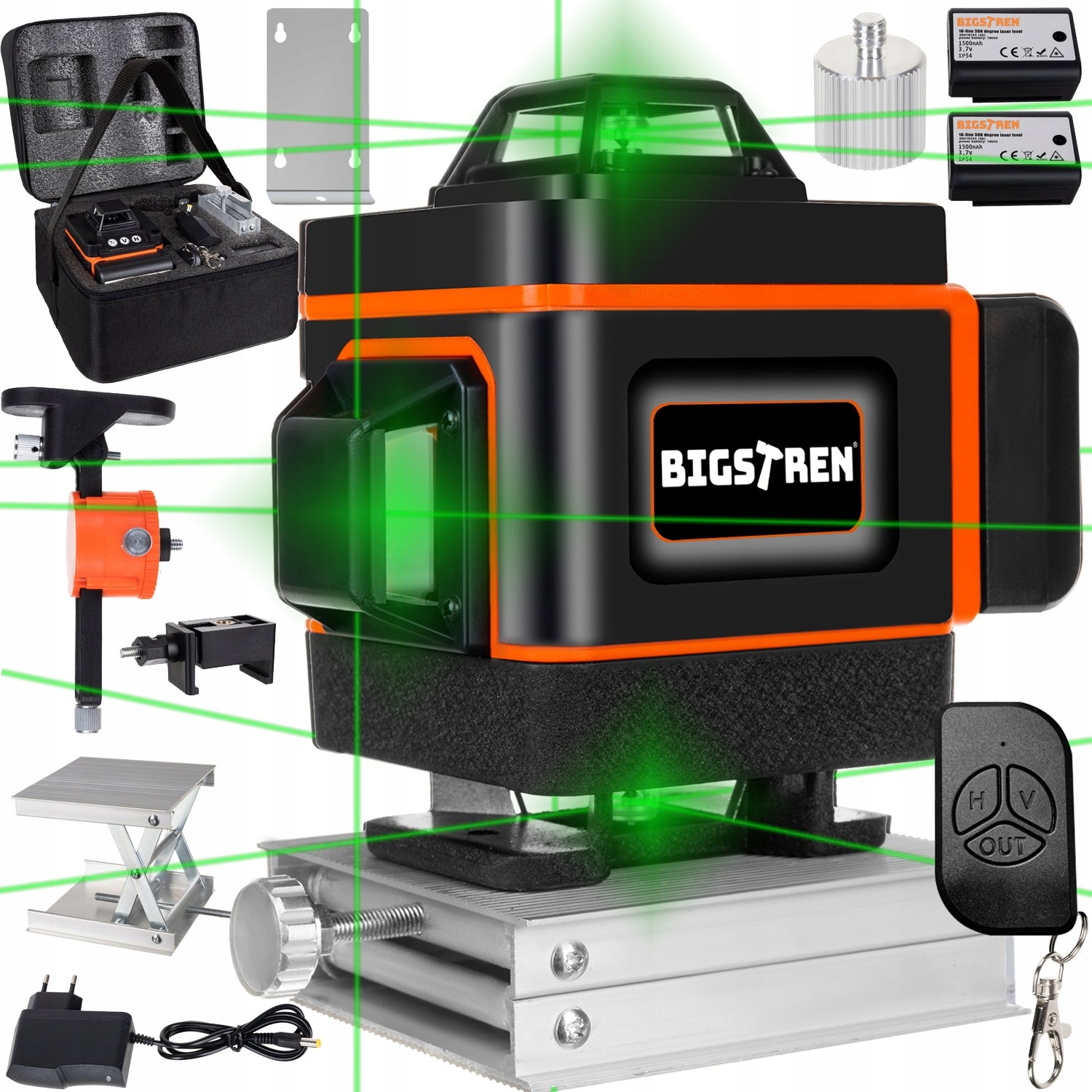

INCLUDED

• level 4d
• 2x battery
• charger
• lifting platform
• multifunctional magnetic rotary base
• wall mount
• adapter for tripod
• pilot
• bag/etui

The easy-to-use 360° laser level will help to lay not only tiles on the floor, but also on the wall. At the same time, it sets horizontal and vertical lines with high precision, so that there can be no inequalities.

• 3 laser windows
• Operating temperature from -20°C to 50°C
• determination of vertical and horizontal lines
• for indoor and outdoor use
• IP54 waterproof
• possibility of controlling the remote control
• high precision down to millimeter
• level does not require manual adjustment
• built-in line flicker alarm
• included bag, magnetic holder, adjustable platform, 2 batteries, charger, tripod holder
• 360° display range
• visible green colour of the beam
• sensitive and accurate
• self-levelling
• 4D - 16 lines

• Tile installation
• Floor installation
• Ceiling installation
• Partition wall installation
• Wall masonry
• Wooden structure installation
• Electrical wiring installation
• Plumbing installation
• Built-in furniture installation
• An indispensable aid in construction

• On/beam switch
• V - horizontal measurement button
• H – vertical measurement button
• on/off

Simply screw the metal plate to the wall of your choice, and then use an adjustable handle equipped with two strong magnets that provide a solid connection to the previously screwed sheet metal. This allows you to easily attach the level to any wall height.

The self-leveling function can overcome small, uneven places, dp 3°, above 3° the laser light will flash, reminding you to place it on a flat place.

During the measurement, it signals with sound, after the measurement is finished, it stops giving a signal.

It is a kind of high quality bracket for laser level lifting. It is made of lightweight and corrosion-resistant aluminum alloy, which will provide you with a long time of use. The non-slip surface increases friction and thus stability of the entire structure. In addition, the stand has height adjustment, the maximum height adjustable is 62 mm.

The level also works on the remote. When the level is turned on, you can take measurements with the level and vertical remote control. It also has a mini carabiner, so you can attach it e.g. to the belt loop for trousers.

The level has an adapter to mount the tripod.

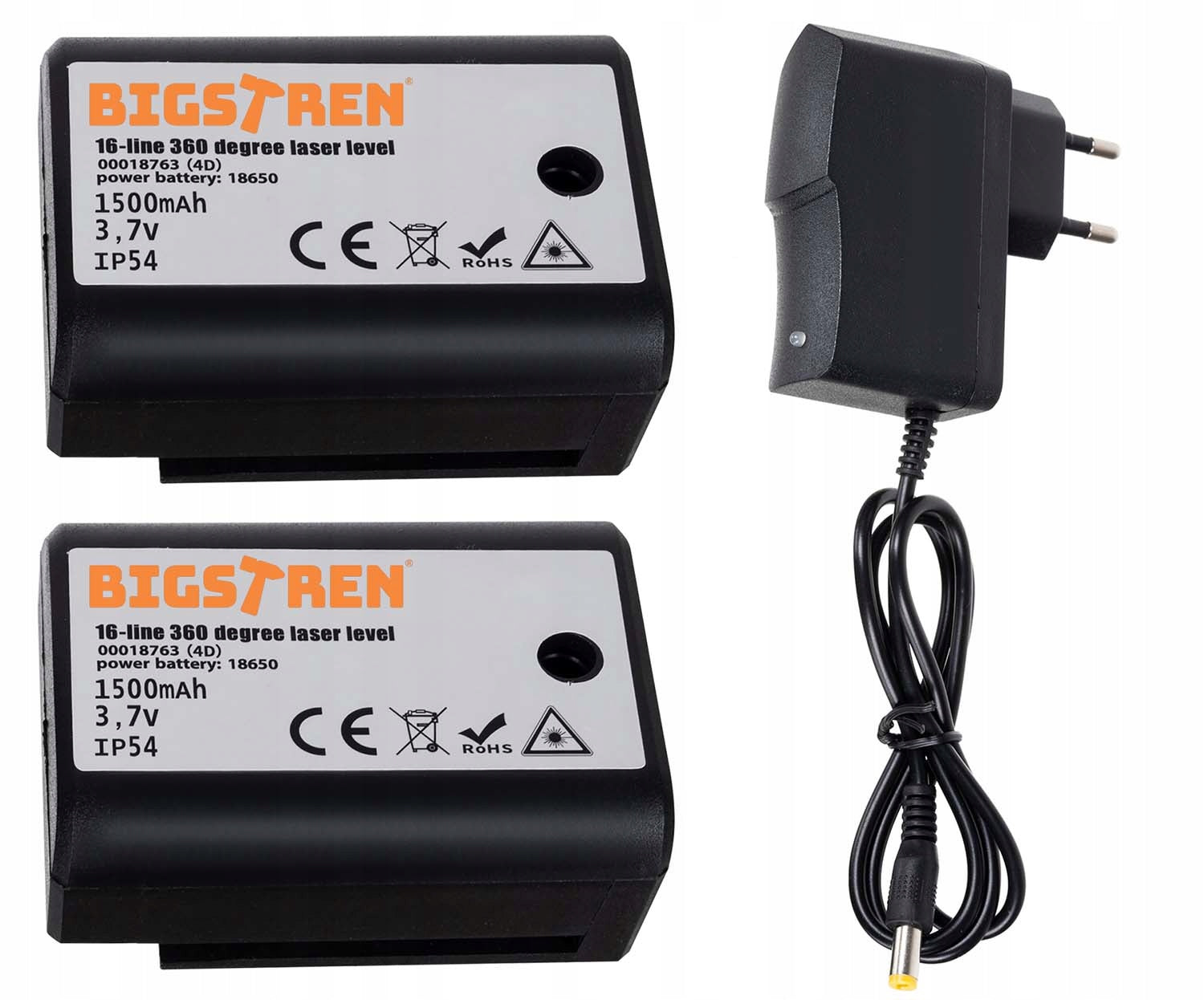

The set includes 2 batteries with a capacity of 1500 mAh. Charging is done using the charger included in the kit.

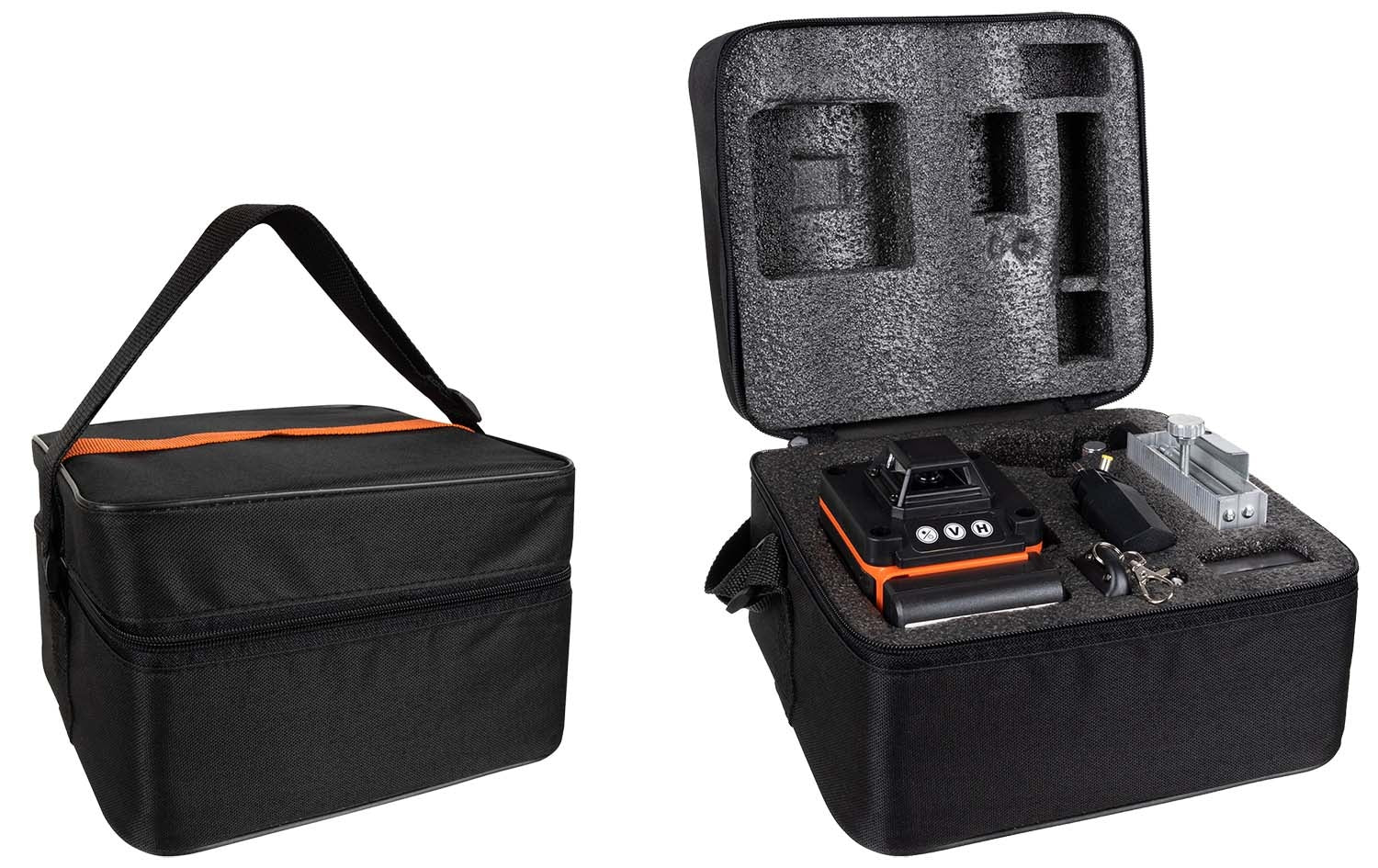

The set comes in a bag with an adjustable strap. It also has a foam stamping that secures the level and its accessories during transport or storage.

Our BRIGSTREN brand has already been trusted by thousands of users around the world. So don't wait until the last minute to buy it and get it today!

Product code: 18763

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Type	cross-line
Parametry	Brand	BIGSTREN
Parametry	Power supply	rechargeable battery
Parametry	Maximum working range	25 m
Parametry	Measurement accuracy (+/-)	3 mm
Parametry	Number of laser beams	16
Parametry	Laser color	green
Parametry	Horizontal line display angle	360°
Parametry	Vertical line display angle	360°
Parametry	Protection rating	IP54
Parametry	Product height	12.5 cm
Parametry	Product width	10 cm
Parametry	Length	12.5 cm
Parametry	Weight	0.56 kg
Parametry	Manufacturer code	5904665712016
Parametry	EAN (GTIN)	5904665712016
Parametry	Product weight with unit packaging	1.71 kg
Parametry	Batteries included	yes
Parametry	Certificates of conformity	CE
Parametry	Additional features	360° laser,works below zero degrees Celsius,cover included,self-leveling,handle included
