26 prievadų PoE komutatorius SF124WP Pulsar, 24 kameroms, be maitinimo šaltinio

Cena:
€273,05
Noliktava:
Ir noliktavā

Trumpai apie prekę

Prekė: 26 prievadų PoE komutatorius SF124WP Pulsar, 24 kameroms, be maitinimo šaltinio. Kategorija: Jungikliai ir koncentratoriai.

  • Gamintojas: Pulsar
  • Modelis: SF124WP

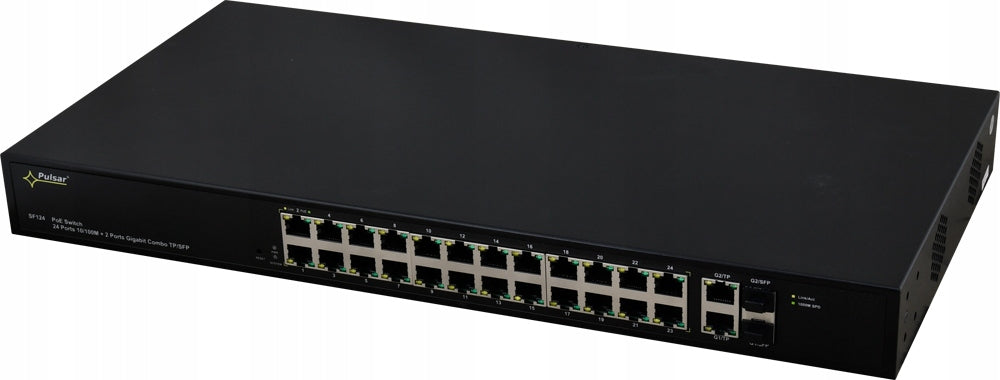

Switch PULSAR PoE 26-port SF124WP without power supply for up to 24 IP cameras

  • Switch 26 ports
  • 24 PoE ports 10/100 Mbps (data transfer and power supply)
  • 2 RJ45 10/100/1000 Mbps ports (G1/TP, G2/TP ports) (UpLink)
  • 2 SFP ports 10/100/1000 Mbps (G1/SFP, G2/SFP port) (UpLink)
  • 30W for each PoE port, support IEEE 802.3af/at compliant devices (PoE+)
  • Support auto-learning and auto-aging MAC addresses (16K size table)
  • Additional mounting hardware
  • Optical signalling

The SF124WP is a 26-port PoE switch designed to power IP cameras operating in the IEEE 802.3af/at standard.

Switch on ports 1 to 24 has the function of automatic detection of devices powered in the PoE / PoE + standard.

Ports marked G1/TP and G2/TP are used to connect further network devices via RJ45 connector.

The switch also has two SFP sockets (marked G1/SFP and G2/SFP), which after using a fiber optic module (GBIC insert) allow transmission over optical fiber. On the front panel there is an indication of the operating status of the device realized on LEDs.

PoE technology provides a network connection and reduces installation costs, eliminating the need to supply a separate power cable to each device. In addition to cameras, network devices that use this technology can be powered in this way, e.g. IP phone, access point, router.

Technical data:

  • Switch type: standard
  • Power supply:
  • 48÷54VDC, disconnected power socket
  • no power supply included
  • Ports: 26
  • PoE ports:
  • 24 x 10/100 Mbps - IEEE 802.3af/at, PoE+
  • 48÷54VDC, 30W/port, 360W/all ports
  • UPLINK ports: 2 x 1Gb/s - G1/TP, G2/TP
  • SFP UPLINK sockets:
  • 2 x 1Gb/s - G1/SFP, G2/SFP
  • G1/TP and G1/SFP – cannot work simultaneously
  • G2/TP and G2/SFP – cannot work simultaneously
  • Dimensions: 442 x 44 x 224 [+/-2 mm]
  • Assembly: standard / RACK 19"
  • Signaling: LED optical signaling

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Manufacturer Pulsar
Parametry Product weight with unit packaging 2.7 kg
Parametry Number of ports 26
Parametry EAN (GTIN) 5902135319796
Parametry Manufacturer code SF124WP
