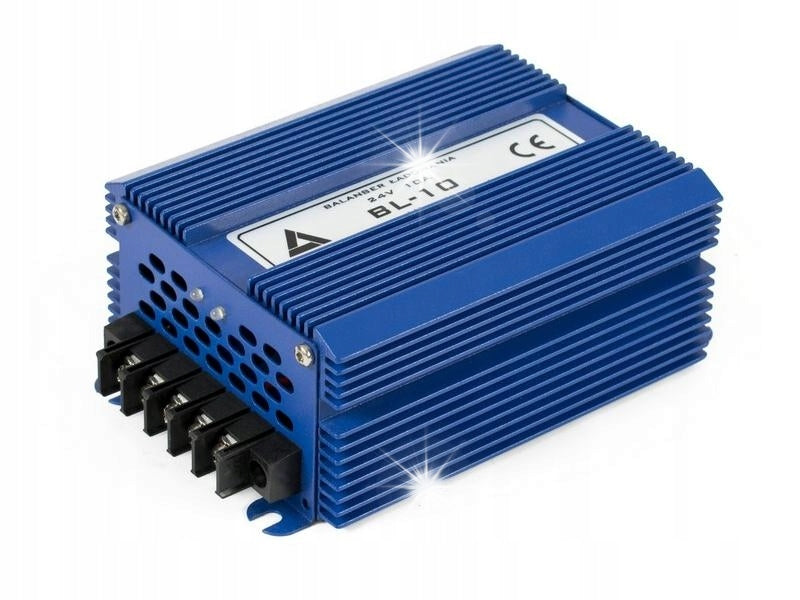

24V 10A akumuliatoriaus krovimo balansuoklis

Trumpai apie prekę

Prekė: 24V 10A akumuliatoriaus krovimo balansuoklis. Kategorija: Baterijų įkrovikliai.

• Gamintojas: no brand

The charging balancer, also commonly known as the voltage equalizer, is a device used to maintain at the same level the voltages of 12 V batteries connected to each other in a serial system.

Thanks to this, individual batteries of the system are protected against overcharging, which can lead to excessive gassing as well as against uneven discharge, which can lead to sulphation, which in both cases may result in permanent damage to the batteries.

The principle of operation consists in independent measurement of the voltages of two 12V batteries connected in a 24V bank, determining the middle point of such a series of batteries and transferring energy from a higher voltage battery to a lower voltage battery.

Characteristics of work:

• The device operates in the entire range of voltages permissible for the battery, always trying to maintain equal voltage values on them
• In the entire voltage range and both during charging and discharging of batteries, the balancer compensates for the difference in battery capacity so that the charging and discharging process takes place optimally
• With large differences in battery charge in all conditions, it guarantees the transfer of energy from a more charged battery to a less charged one so that the voltages on them are equal
• Thanks to its high current capacity, it is perfect for both batteries with capacities up to 100 Ah - version BL 5 (compensates for charging and discharging current up to 5A) and above 100Ah version BL 10 (compensates up to 10A)

If there is a need to build an energy bank with a voltage higher than 24 V from 12V batteries, a larger number of batteries and balancers in the system should be connected in series:

If there is a need to build an energy bank with a voltage higher than 24 V from 12V batteries, a larger number of batteries and balancers in the system should be connected in series:

• 36V - 3 batteries and 2 balancers
• 48V - 4 batteries and 3 balancers

Technical data

• supply voltage: 15V ÷ 30V
• Balanced voltage range: 18V ÷ 30V
• maximum balancing current: 10A
• recommended battery capacity: 80Ah ÷ 240Ah
• Overload protection: 11A
• fuse: 15A
• thermal protection: 70 St. C
• No-load current consumption: 13mA
• Output interference: less than 50mV
• Input interference: less than 50mV
• operating temperature range: -25 to 50 St.C
• Alarm connector load capacity: 2A
• Efficiency: 92%
• cooling: active
• Leads: 5x M4 screw connector
• housing: aluminium
• degree of protection: IP21
• dimensions (L. x sz. x H ): 150x95x55 [mm]
• Weight: 500g
