Trumpai apie prekę
Prekė: 2,8" IPS ekranas 480x640 Raspberry Pi, DPI LCD. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: 2.8inch DPI LCD Waveshare 18628
SKU: 18628

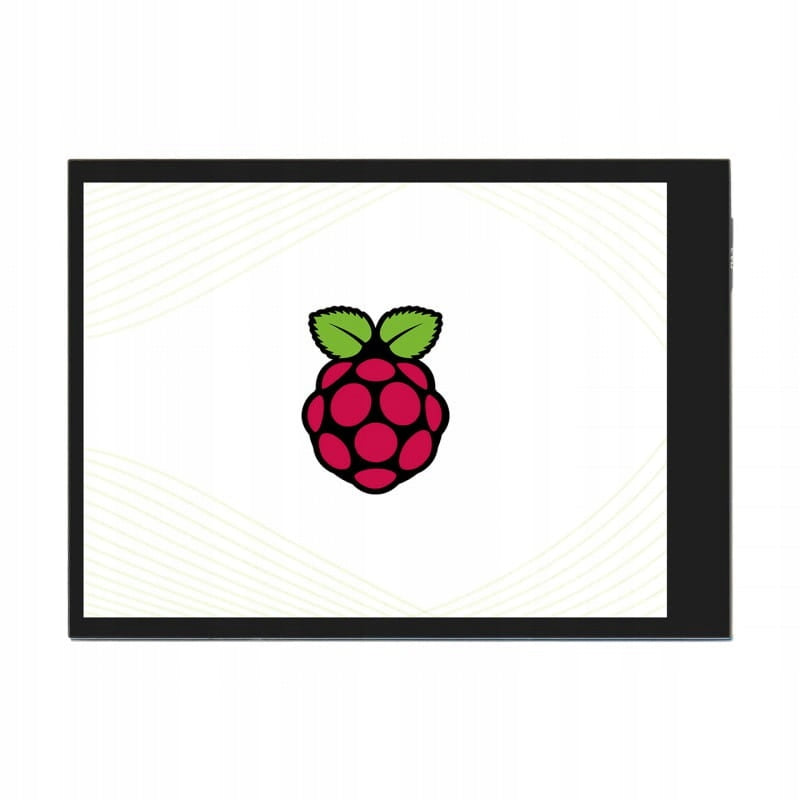

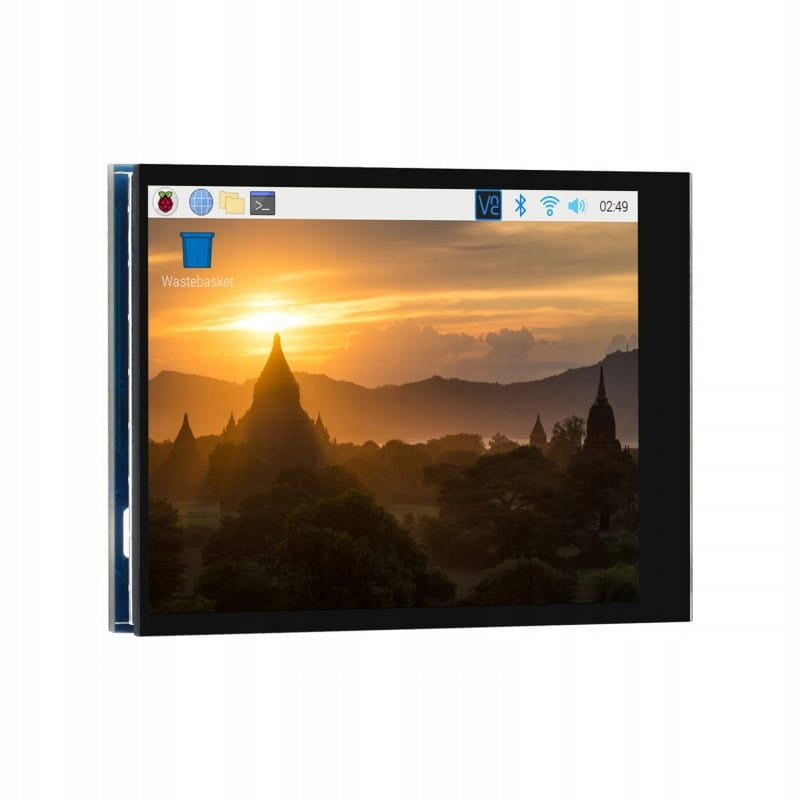

Compact and high-quality LCD display with a diagonal of 2.8", designed to work with the Raspberry Pi. With its DPI interface, it ensures smooth and fast image transmission without the need for drivers. Equipped with capacitive touch panel and tempered glass for better durability.
Application: Raspberry Pi (all models with 40-pin GPIO), user interfaces, control panels, DIY projects, educational systems, data visualization.
Additional information: https://www. waveshare . com/wiki/2.8inch_DPI_LCD
Most important features:
- 2.8" IPS display with a resolution of 480×640 pixels, 262 thousand. colors
- Refresh Rate: 60 Hz
- Connection directly to the GPIO 40-pin Raspberry Pi connector
- Capacitive touch panel operated by I2C bus
- Tempered glass with a hardness of 6H – scratch resistance
- Fully laminated construction – better contrast and less reflections
- Supported Systems: Raspbian, Kali Linux
Technical specification:
- Screen Type: IPS
- Diagonal: 2.8"
- Resolution: 480×640 px
- Colours: 262K (DPI666)
- Refresh Rate: 60 Hz
- Touch: capacitive, I2C
- Protection: 6H tempered glass
- Connector: GPIO 40-pin (Raspberry Pi)
The set includes:
- LCD Display 2.8" IPS DPI 480x640 for Raspberry Pi
The raspberry Pi modules shown in the pictures are not included in the sold set.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 2.8inch DPI LCD Waveshare 18628 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Display |
| Parametry | EAN (GTIN) | 5905123540967 |
| Parametry | Packaging status | original |
| Parametry | Batteries included | no |
