Trumpai apie prekę
Prekė: 2,13 colio lietimui jautrus e-popieriaus ekranas, modulis. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: 19493
2.13inch Touch e-Paper HAT - Module with Touch Display e-Paper 2,13" 250x122 for Raspberry Pi
Description

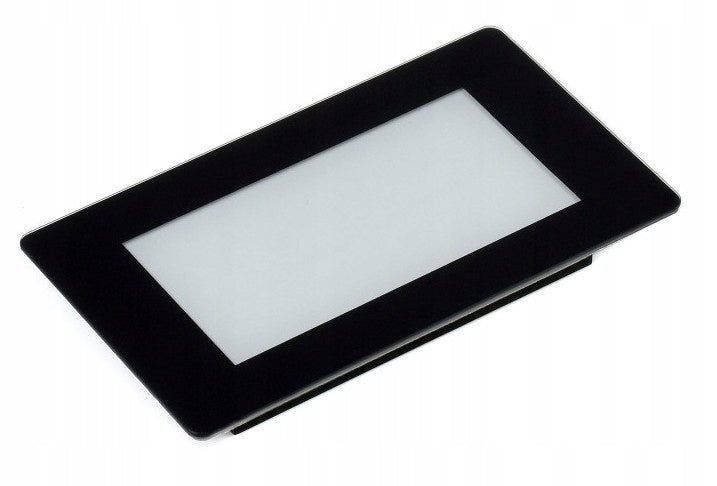

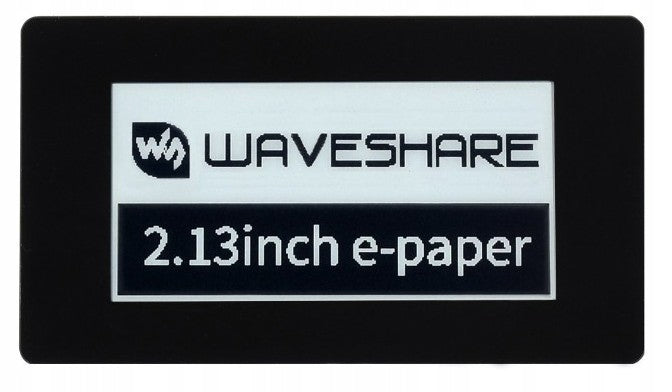

Module with black and white e-Paper display with a diagonal of 2,13" and a resolution of 250x122 px. It has the ability to display content with a two-stage grayscale and a partial refresh function. The built-in controller realizes communication with the display using the SPI interface, and the I2C interface was used to operate the touch panel. The e-Paper displays are characterized by high contrast of the displayed image and draw current only if the displayed content changes. The module is compatible with 3,3 V systems. The board has a socket that allows you to connect the display to the Raspberry Pi via a 40-pin connector.
Properties
- Diagonal 2,13"
- Resolution: 250x122 px
- Display Interface: SPI
- Capacitive touch screen (5-point)
- Touch Screen Interface: I2C
- Tempered glass panel
- Spot size: 0,194 × 0,194 mm
- Display Color: Black, White
- Grayscale: 2
- Full refresh time: 2 s
- Refresh power: 26,4 mW (Typ. )
- Standby power: < 0,017 mW
- Viewing angle: >170°
- Voltage: 3,3 V
- Contour dimensions: 69,15 x 38,9 mm
- Display dimensions: 48,55 x 23,7 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 19493 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Display |
| Parametry | EAN (GTIN) | 5906623422463 |
| Parametry | Batteries included | no |
