12 kanalų IRS kaskadinis loop stiprintuvas Separates DK

Trumpai apie prekę

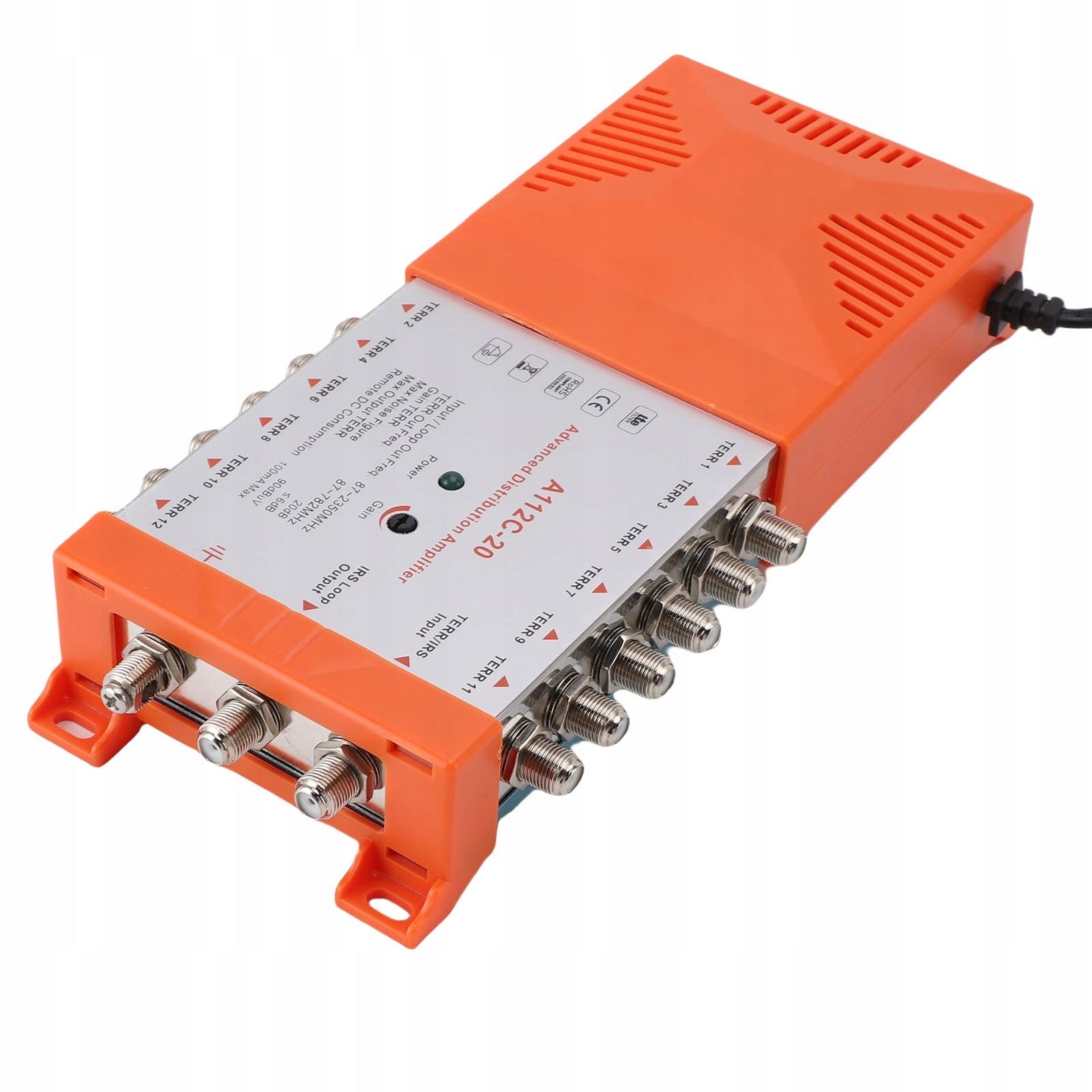

Prekė: 12 kanalų IRS kaskadinis loop stiprintuvas Separates DK. Kategorija: Maitinimo šaltiniai ir įkrovikliai.

• Gamintojas: no brand
• Modelis: AG250910089467

Function:

1. 12 Way Cascading Splitter: 12 channel distribution amplifier complies with red standard, including IRS loop cascading and 4G LTE filter support, ensuring signal integrity

2. Low Noise Efficiency: With a low noise rating of ≤4dB, this 12-channel decomposition amplifier offers exceptional clarity and minimal interference, enhancing the overall experience with experience

3. Versatile connectivity: The cascade splitter provides 1 input and 12 outputs, allowing for seamless connection to multiple TVs or cable TV boxes, meeting a variety of entertainment needs

4. Remote power and cable management: Designed with remote power supply on all outputs and proper cable clearance, this distribution amplifier facilitates easy cable routing underneath

5. Compact and practical: The compact design of this 12-way distribution amplifier makes it easy to connect and use, suitable for both home and professional studio settings where space is limited

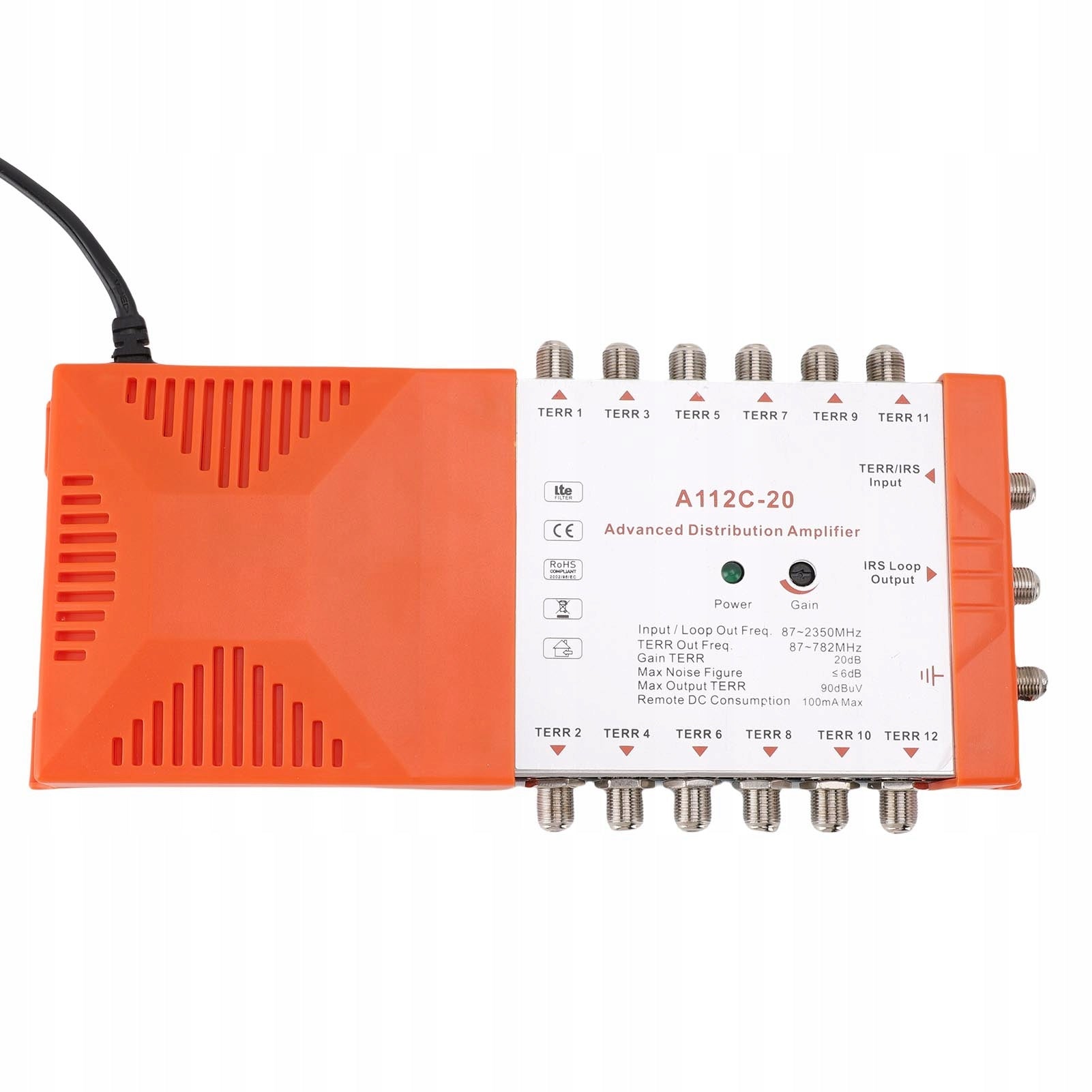

Specification:

• Item Type: 12 Channel Distribution Amplifier
• Therm frequency range: 87 MHz-782MHz
• Ter/IRS Input (Woman Type F): 1
• Output TAT (type f): 12
• SAT Loop Go Through (Type F Female): 87-2350 MHz
• Red Compatibility: Class 3
• Term term: 20db
• Maximum output tert (IMA3 -60dB): 90DBUV
• Maximum Noise Figure: ≤6dB
• Sitting by Loss: 4db
• Resistive value: 75 Ω
• Loop go through: 13/18v/22 kHz/diseqc
• Remote DC power supply (via thermal output): 12 V DC
• Product Material: Tinplate, ABS

How to use:

• Install and use

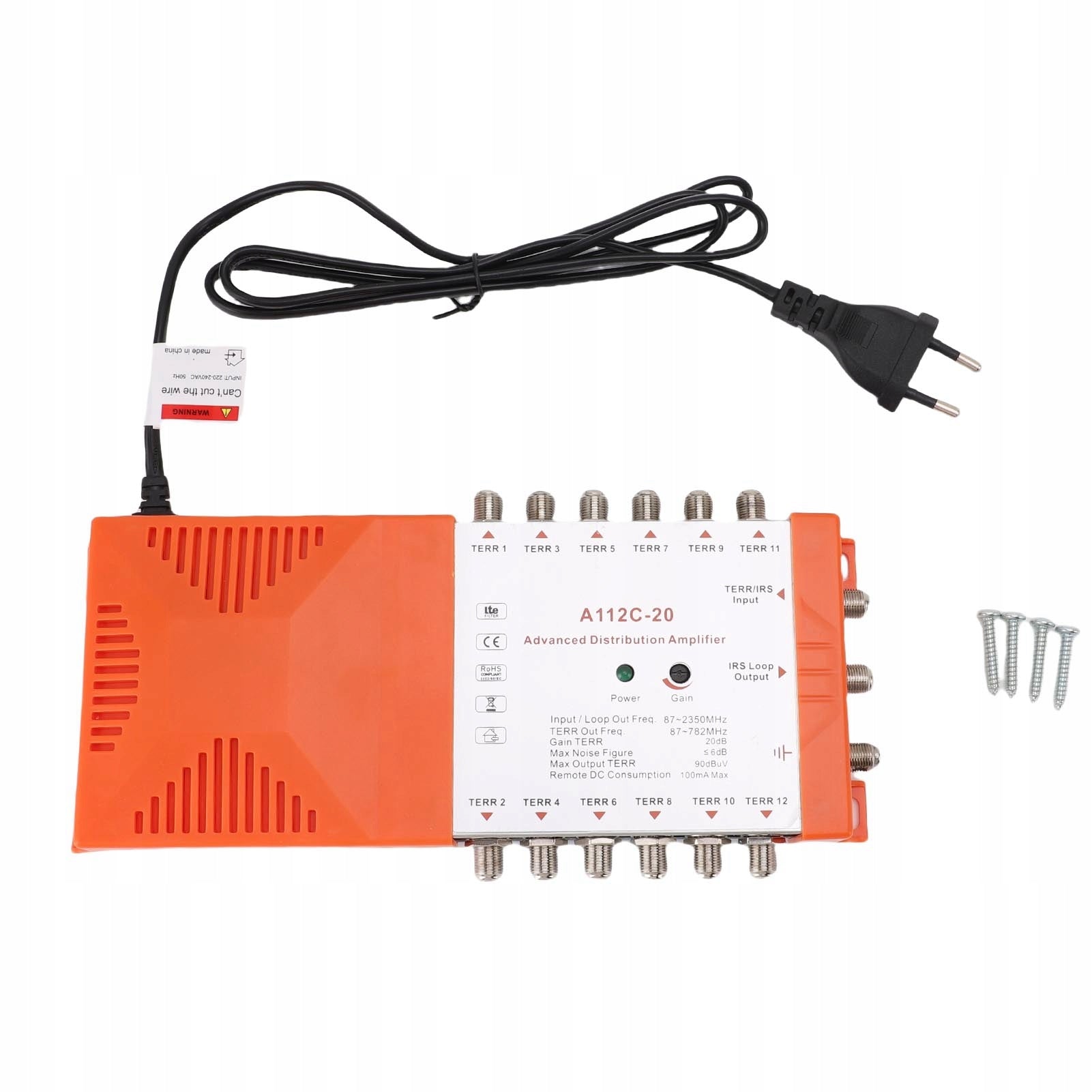

• List of packages

:

• 1 x Distribution Amplifier
• 1 x User Manual
• 4 x Screws
