Trumpai apie prekę
Prekė: WiFi modulis Pico-ESP8266 Raspberry Pi Pico. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: 20182

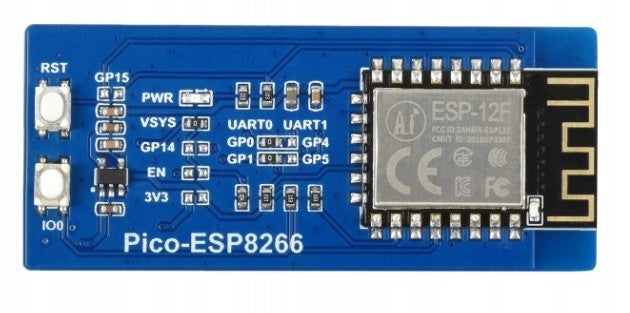

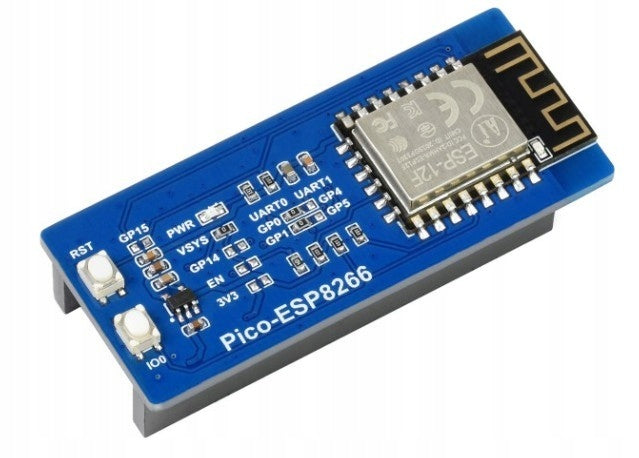

Pico-ESP8266 - WiFi module with ESP8266 for Raspberry Pi Pico
Description
WiFi module with ESP8266 designed to work with Raspberry Pi Pico. It communicates via UART interface and AT commands and supports TCP/UDP communication protocol. It supports three modes of operation WiFi STA, AP and STA+AP and has a built-in LWIP protocol stack. There are two buttons used on the board m.in. in the process of updating ESP8266 software. The module provides an easy-to-use solution for adding WiFi functionality for Raspberry Pi Pico e.g. for IoT projects. Full documentation with examples is available on the product wiki page.
Note!
The kit does not include Raspberry Pi Pico. They must be purchased separately.

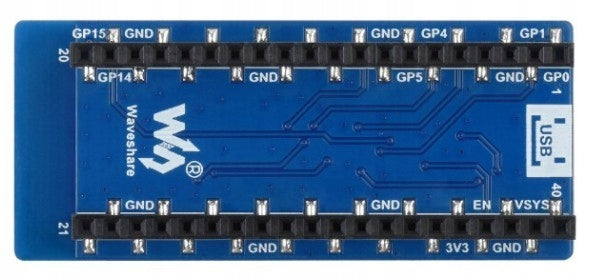

Description of exits
Properties
- UART interface
- Baud rate 115200 bps
- IEEE 802.11b/g/n WiFi Standard
- Frequency band from 2400 to 2483,5 MHz
- Operating Modes: WiFi STA, WiFi AP, WiFi STA+AP
- PCB Antenna
- Voltage: 3,3 V V
- Operating temperature: -40℃ to 85℃
- PCB Dimensions: 58 x 25 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 20182 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5904422350802 |
| Parametry | Batteries included | no |
