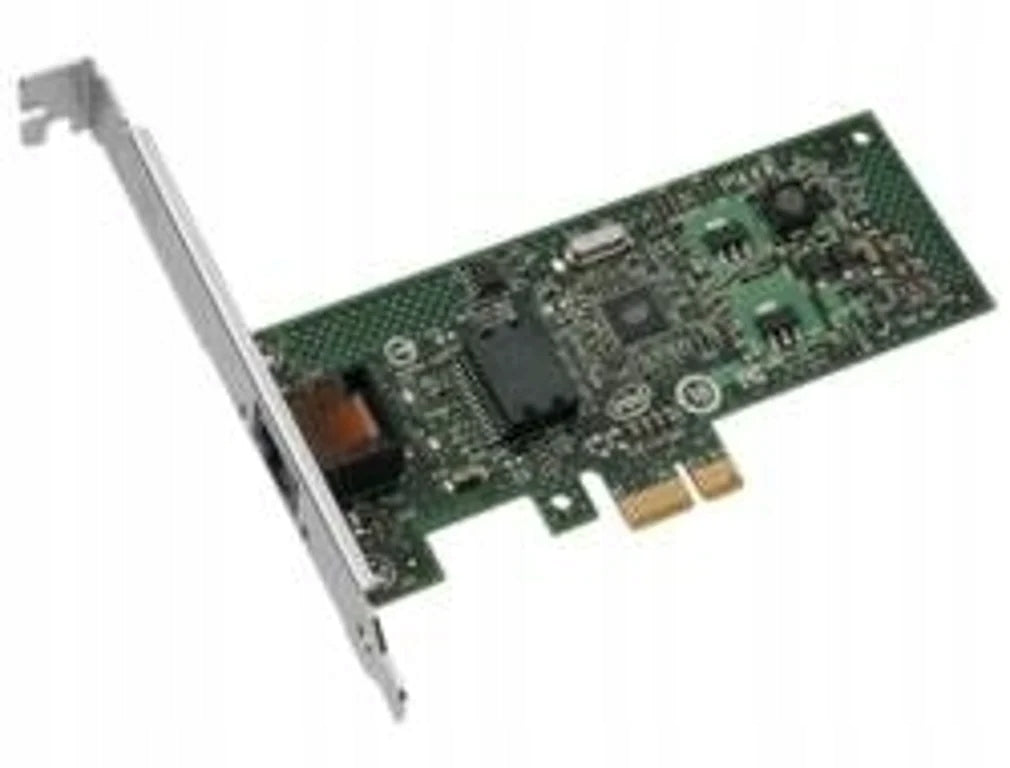

Vidinė tinklo plokštė Intel EXPI9301CT, 1000 Mbit/s

Trumpai apie prekę

Prekė: Vidinė tinklo plokštė Intel EXPI9301CT, 1000 Mbit/s. Kategorija: Tinklo plokštės.

• Gamintojas: Intel
• Modelis: EXPI9301CT

Intel EXPI9301CT. Internal. Connectivity technology: Wired, Host interface: PCI Express. Maximum data transfer rate: 1000 Mbit/s

✏ The most important technical parameters:

• Processor - Processor Type: Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
• Ports and interfaces - Connectivity technology: Wired
• Ports and interfaces - Maximum data transfer rate: 1000 Mbit/s
• Ports and interfaces - Number of Ethernet LAN ports (RJ-45): 1
• Ports and interfaces - PCI version: 1.1
• Ports and interfaces - Wiring type: Category-5 up to 100m
• Network - LAN Controller: Intel® 82574L
• Design - Bracket height: Low-Profile (LP) / Full-Height (FH)
• Design - Interface type: PCIe v1.1 (2.5 GT/s)
• Working conditions - Temperature range (operation): 0 - 55 °C
• Working conditions - Temperature range (storage): -40 - 70 °C
• Performance - Market segment: Desktop computer
• Performance - Internal: Yes
• Performance - Host Interface: PCI Express
• Features - Product Type: Network Interface Card
• Features - Maximum operating range: 100 m
• Features - Cable type: Category-5 up to 100m
• Features - Export Control Classification Number (ECCN): 5A991
• Features - Automated Goods Classification Tracking System (CCATS): NA
• Power - Power consumption: 1,9 W
• Power - Thermal power supply (TDP): 1,9 W
• Input device - Controller type: Intel 82574L
• Weight and sizes - Product width: 55,3 mm
• Weight and sizes - Product depth: 119,2 mm
• Weight and sizes - Product height: 120 mm
• System requirements - Minimum system requirements: Windows 2000/XP/Vista/Server 2003/Server 2008, Linux, DOS
• Certificates - Compliant with industry standards: 802.3z
• Technical details - Data rate: 10/100/1000 Mbit/s
• Technical details - Status: Launched
• Technical details - Release date: Q3'08
• Technical details - Last change: 63903513
• Technical details - Product family: Intel Gigabit desktop adapter
• Other functions - Slot speed and width: 2.5 GT/s, x1 Lane
• Other functions - Low halogen options available: No
• Other functions - URL to the instructions:
• Other functions - Network adapter: Desktop
• Other functions - Network adapter cable: Copper
• Other functions - Ethernet adapter ARK ID: 50395
• Other functions - Certificates: FCC B, UL, CE
• Other Features - Product Series: Intel Gigabit CT
• Other Features - Product Code Name: Shelter Island
• Logistics data - Harmonised system code (HS): 8517620090
• Classification - Manufacturer code: EXPI9301CT
• Classification - EAN: 0735858202169
• Classification - Product ID: 3504758
