Vidinė 2.5Gb/s LAN tinklo plokštė PCIe

Trumpai apie prekę

Prekė: Vidinė 2.5Gb/s LAN tinklo plokštė PCIe. Kategorija: Tinklo plokštės.

• Gamintojas: no brand
• Modelis: Tech-Connect

.

High-end polish network card from Tech-Connect. Allows you to connect this adapter to an RJ45 Ethernet jack. The adapter supports all the latest technologies for the fastest data transfer speed (Gigabit Ethernet), so you can transfer data at speeds up to 2500 Mbps (2,5G).

Card based on the latest chip from REALTEK RTL8156.

Connect any laptop equipped with the MacOSX or Windows 7 / 8 / 10 operating system and a USB-C port. The device works on the principle of PLUG and PLAY - no driver installation required.

Until recently, the market, with the exception of the server segment, was not particularly interested in the 2.5GBASE-T, 5GBASE-T and 10GBASE-T standards. This was due to the fact that Gigabit Ethernet was enough for most home and office applications, and network cards compliant with the new standards were simply very expensive. Their price often exceeded 1000 PLN.

The approach of users began to change when the Wi-Fi 6 standard (IEEE 802.11ax) appeared on the market. This wireless standard allows transmission at speeds up to 9,6 Gbps (in Wi-Fi 5 it is 6,9 Gbps). Such a high transmission speed is enabled by m.in. Simultaneous streaming of several movies or videos (e.g. from CCTV camera) in 4K and even 8K resolution. This data must be received or sent somehow to or from the access point. Gigabit networking is too slow and becomes a bottleneck compared to wireless networking.

Because fiber optic solutions are too expensive, users have taken an interest in the 2.5GBASE-T standards, which uses Lan CAT 5 and 6 cables.

Product Features:

• High-quality workmanship - durable housing made of durable aluminum.
• Safety of use - made using proven electronic components.
• Standard Plug and Play - adapter does not require installation of any drivers. It works immediately when connected to the device.
• Gigabit Ethernet Port (RJ-45) - connect the cable to the Internet to the adapter and enjoy stable and fast online operation without delays and signal quality drops,
• Comfort of use - ergonomic and compact housing, low weight of the device.
• Compact dimensions - This is one of the lightest adapters of this type on the market. Its weight is only 30 grams.
• Diodes informing about the status of the network
• Speed 10/100/1000/2500 Mbps (2,5G)
• Supports IPv4 and IPv6
• Network interface: RJ45 Auto MDIX socket
• Full duplex: 10/100/1000/2500
• Half duplex: 10/100
• Temp: work: 0-70*C

• Supported network standards:

  • Integrated 10M BASE-T and 100/1000M/2.5G BASE-T 802.3 compatible transceiver

  • Supports 2.5G Lite (1G data rate) mode

  • Auto-Negotiation with Extended Next Page capability (XNP)

  • Compatible with NBASE-TTM Alliance PHY Specification

  • Supports PCI Express 2.1

  • Supports pair swap/polarity/skew correction

  • Crossover Detection & Auto-Correction

  • Supports 1-Lane 2.5/5Gbps PCI Express Bus

  • Supports hardware ECC (Error Correction Code) function

  • Supports hardware CRC (Cyclic Redundancy Check) function

  • Transmit/Receive on-chip buffer support

  • Supports PCI MSI (Message Signaled Interrupt) and MSI-X

  • Supports power down/link down power saving/PHY disable mode

  • Supports ECMA-393 ProxZzzy Standard for sleeping hosts

  • Supports LTR (Latency Tolerance Reporting)

  • Wake-On-LAN and 'RealWoW! ' Technology (remote wake-up) support

  • Supports 32-set 128-byte Wake-Up Frame pattern exact matching

  • Supports Microsoft WPI (Wake Packet Indication)

  • Supports PCIe L1 substate L1.1and L1.2

  • Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

  • Supports IEEE 1588v1, IEEE 1588v2, IEEE 802.1AS time synchronization

  • Supports IEEE 802.1Qav credit-based shaper algorithm

  • Supports IEEE 802.1P Layer 2 Priority Encoding

  • Supports IEEE 802.1Q VLAN tagging

  • Supports IEEE 802.1ad Double VLAN

  • Supports IEEE 802.3az (Energy Efficient Ethernet)

  • Supports IEEE 802.3bz (2.5GBase-T)

  • Supports Full Duplex flow control (IEEE 802.3x)

  • Supports jumbo frame to 16K bytes

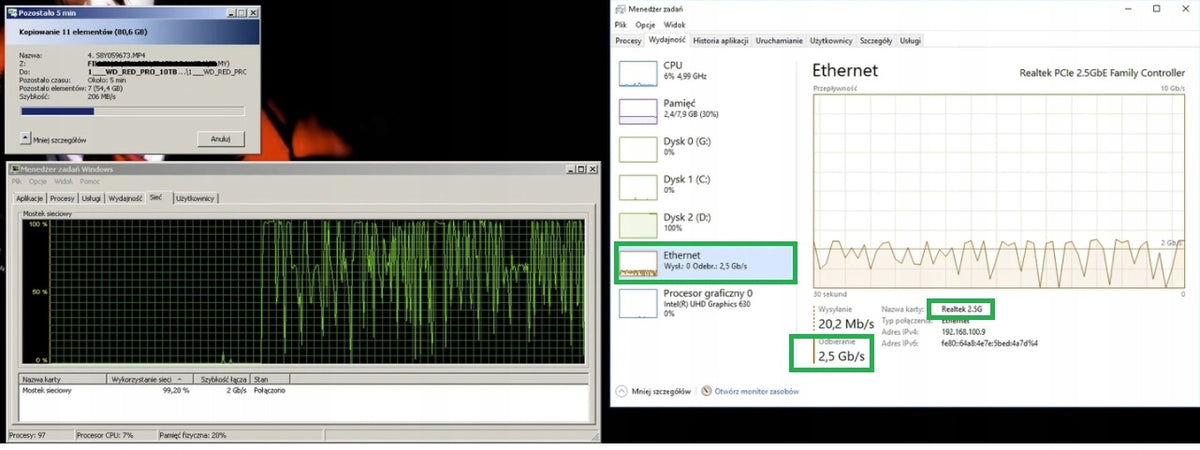

The offered cards easily achieve the declared parameters, which we personally checked.

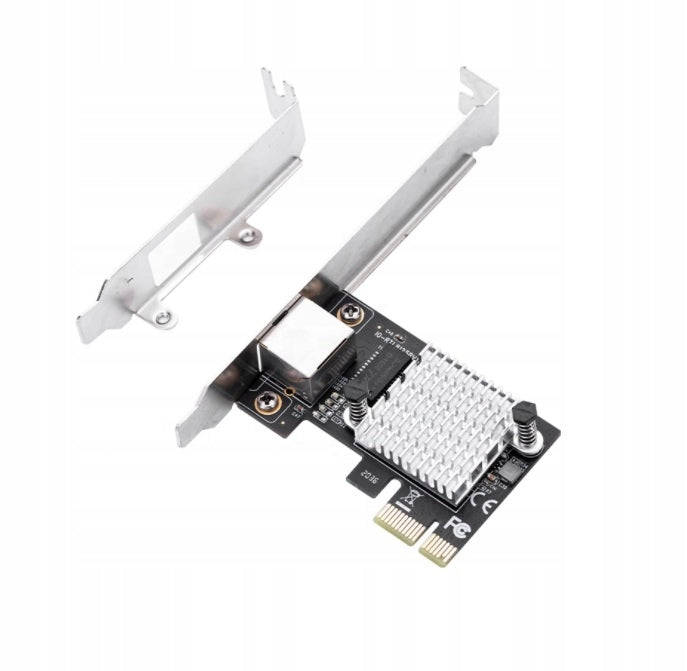

LAN 2.5Gb/s PCIE Internal Network Card

Specifications
