Trumpai apie prekę
Prekė: Variklių valdiklis MDD10 HAT, 2 kanalai, 10A, 6–24V DC. Kategorija: Priedai.
- Gamintojas: no brand
- Modelis: b/d

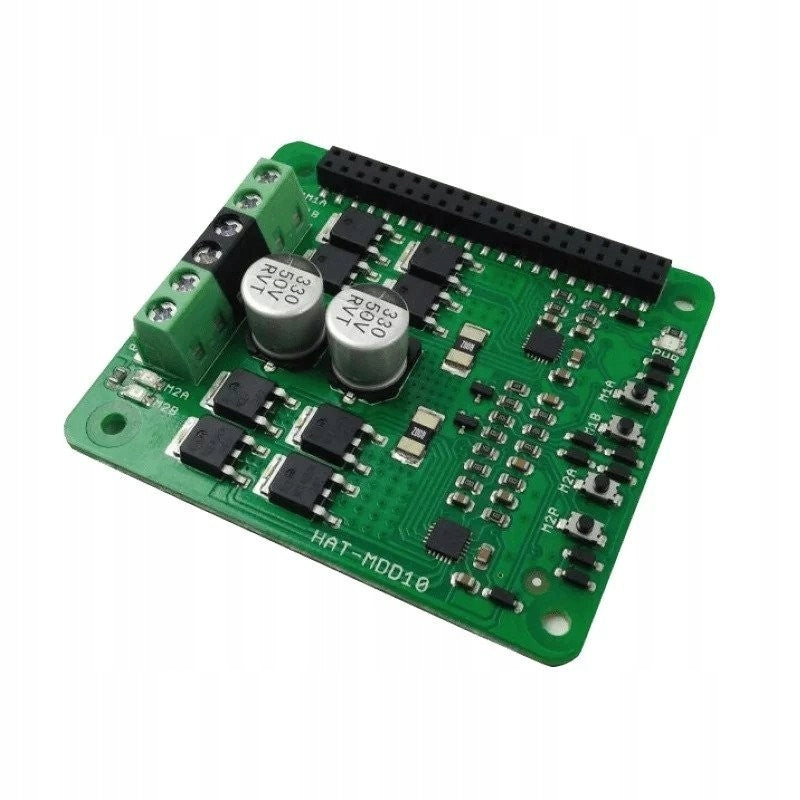

MDD10 DC Motor Driver HAT 10A 6V-24V - 2 Channel DC Motor Driver for Raspberry Pi
Description
HAT with dual channel DC motor controller designed for Raspberry Pi. It allows you to control the movement of motors with a supply voltage from 6 to 24 V and current consumption up to 10 A (continuous current). The control can be done via PWM signal or using built-in buttons that allow very easy testing of drives without the need to connect a controller. A library with an instruction manual is available in the GitHub repository.
Properties
- Dual channel DC motor controller
- Motor supply voltage from 6 V to 24 V
- Maximum continuous current up to 10 A and instantaneous current 30 A
- The components used ensure fast response time
- Screw connector for connecting power supply and motors
- Control buttons
- Connector compatible with Raspberry Pi
- Speed control via PWM signal up to 20 kHz
Comes with
- HAT with DC motor driver MDD10 10A
- Connector 2x20-pin PC104
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | b/d |
| Parametry | Manufacturer | no brand |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5904422319199 |
| Parametry | Batteries included | no |
