Variklio pakabos sija 3IN1 TECHWAR

Trumpai apie prekę

Prekė: Variklio pakabos sija 3IN1 TECHWAR. Kategorija: Variklio balkiai.

• Gamintojas: Techwar
• Modelis: tp0021

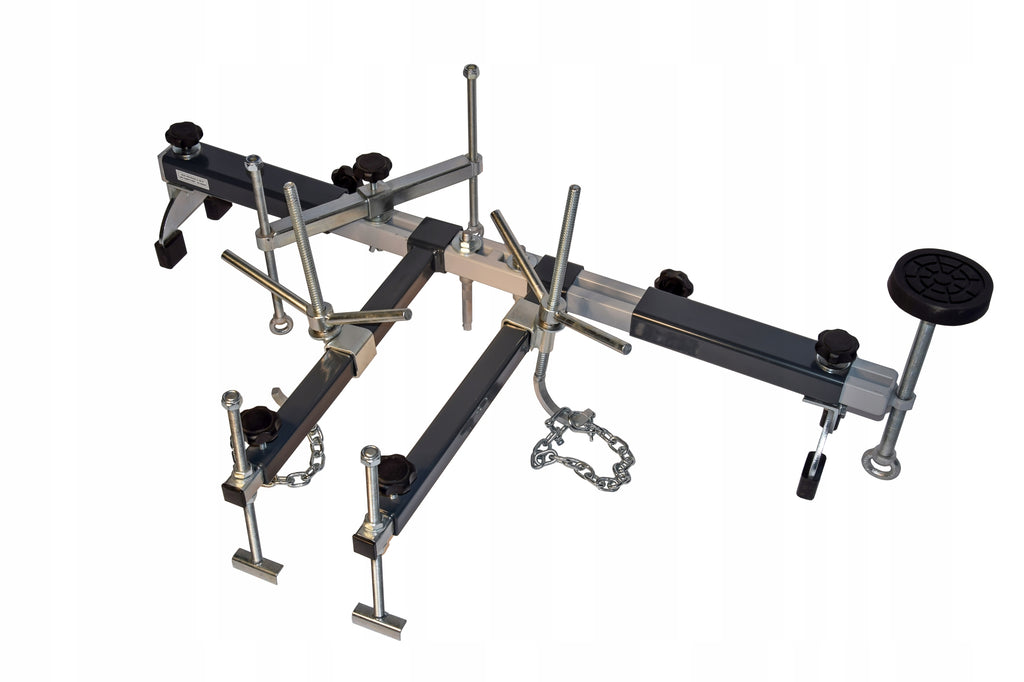

3IN1 ENGINE SUSPENSION AND SUPPORT BEAM

TP0021

POLISH PRODUCT!!!

MANUFACTURER TECHWAR

Suspension beam is a very useful device when replacing the clutch, replacing the cushions under the engine, as well as when dismantling the gearbox and engine.

The TP0021 beam can be used in three configurations:

1. Standard beam supported on the inner edges of the fender - with smooth adjustment of slings along the axis of the beam
2. Beam supported on shock absorber columns and at two points on the front belt - with smooth adjustment of slings in two planes, along and across the axis of the beam.
3. Beam suspended from the bottom of the engine. Access to the engine compartment remains completely free.

   Application in cars without the possibility of supporting the beam on fenders or shock absorbers.

Convenient service

The standard equipment includes two hooks with chains and fasteners. Hooks, based on thrust bearings, twist slightly and precisely. The thrust bearing is essential for lifting and lowering heavier weights.

Security

A solid screw with trapezoidal thread in combination with a wide nut ensure maximum safety during operation. Rubber feet protecting the inner edges of the fenders are very thick and wide, in addition to the protective function, allow stable positioning of the beam on the fender, ensuring safe operation.

Solid execution

Precise execution of components translates into longer beam life. The construction of the beam was made of welded closed profiles. In addition, thick supports are cut from one element, to increase their strength. The robust construction, combined with the trapezoidal screw and bearing, ensure that our product will serve you for years to come.

The set includes:

• beam
• Hook with thrust bearing 2 pieces
• chain 2 pieces
• fender stands 2 pieces
• Front belt stands 2 pieces
• shock absorber dome stands 2 pieces
• mounting from the bottom of the engine

TECHNICAL DATA:

• Model: TP0021
• Maximum lifting capacity: 350kg
• Width: 1600mm
• Equipment: Two hooks with screw and bearing
• Equipment: Two chains with shackles
• Equipment: Two fender supports
• Equipment: Two front belt supports
• Equipment: Two supports for shock absorber domes
• Equipment: Mounting from the bottom of the engine
• Powder coating: Yes
• EC/CE declaration of conformity

Service

We have all standardized parts and consumables for our beams.

SET INCLUDES:

• beam

• hook with thrust bearing 2 pieces

• chain 2 pieces

• fender stands 2 pieces

• Front belt stands 2 pieces

• shock absorber dome stands 2 pieces

• mounting from the bottom of the engine

Specifications
