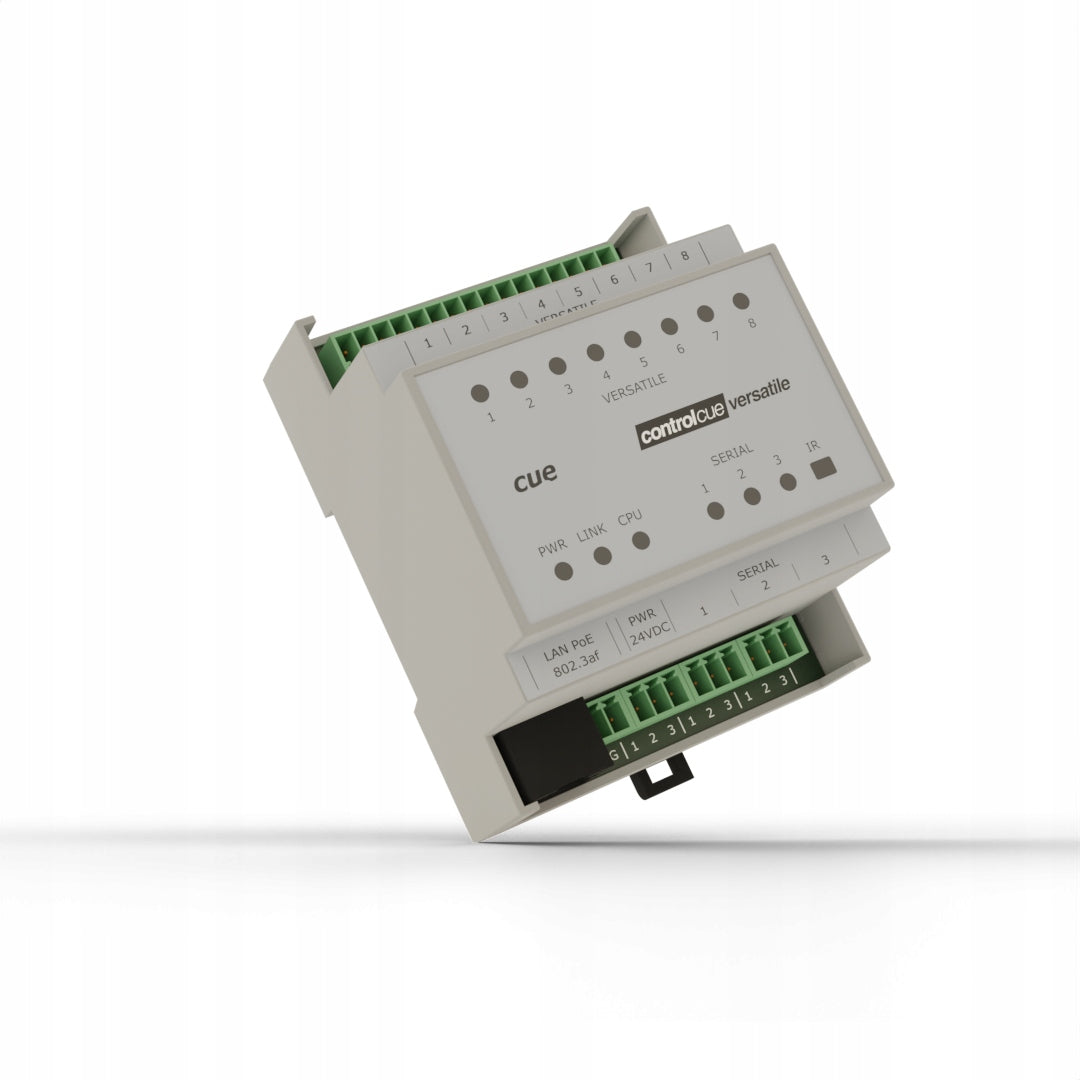

Valdymo pultas CUE CUE-Versatile-D CS0453

Trumpai apie prekę

Prekė: Valdymo pultas CUE CUE-Versatile-D CS0453. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: no brand
• Modelis: CS0453

Product code: CS0453

• Wired LAN 10/100 BaseT
• 1x

  IP control port

• 3x

  Two-way RS-232/485

  port
• 8x

  Comprehensive port

• ARM® Processor Platform
• Internal RAM LPDDR 64 MB, flash 256 MB
• Built-in real-time clock
• IR code capture sensor
• Indicators on the front panel
• Power over Ethernet or 24 VDC power supply
• Plastic housing for DIN rail, width 4 modules
• Web server and administrator websites for configuration

controlCUE-versatile-d is a full-featured IP controller with eight universal ports and three two-way RS-232/485 control ports. Fully compatible with CUE touch panels, this controller can work as a standalone device.

Single-cable Ethernet connection provides easy integration into your network. The controller is equipped with Power over Ethernet (PoE) technology, which allows you to transfer data and power using an Ethernet network cable.

The controller can be easily mounted on a DIN rail or wall.

This controller is equipped with a web server and allows configuration through a standard web browser. Unit programming is based on the standard CUE Cue Visual Composer development tool.

Control ports

• 1x

  IP control port

• 3x

  Bi-directional RS-232/485 port

• 8x

  Versatile port

Internal IR sensor

• IR code capture

LED indicators

• Blue Power - indicates power is presented and the unit is ready.
• Green Link - indicates network link and activity.
• Yellow CPU - confirms the system default function is performed.
• Green Versatile - indicates the output is closed.
• Yellow Versatile - indicates IR or serial data is being transmitted.
• Green Serial - indicates serial data is being transmitted.
• Red Serial - indicates serial data is being received.

Button

• System Default sets the default IP address and password.

Real-time and date

• RTC with battery backup

memories

• Internal RAM LPDDR 64 MB
• Internal non-volatile flash 256 MB

Software technologies

• Web Admin
• XPL2 inside

Communication system

• 10/100 BaseT Ethernet, RJ-45 connector

Power supply

• 24 VDC (+/-20%), 3 W, 2-pin 3.5 mm connector
• Power over Ethernet, 802.3af compatible

Physical

• DIN rail plastic enclosure compatible with DIN EN 50022
• Width 4 modules
• Dimensions 70 x 90 x 58 mm / 2.8” x 3.5” x 2.3”
• Weight 0.2 kg / 0.5 lb

Environment conditions

• Operating temperature 10° to 40° C
• Storage temperature 0° to 60° C
• Relative humidity 10% to 90% non-condensing

• Controller controlCUE-versatile-d
• Connector set
• Ethernet cable
• DIN rail compatible power supply 24 VDC / 15 W
• QuickStart

Specifications
