Trumpai apie prekę
Prekė: Valdymo plokštė Raspberry CM4S/CM3/CM3 su Ethernet, WiFi, PoE, GSM ir HDMI. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: Waveshare 19061

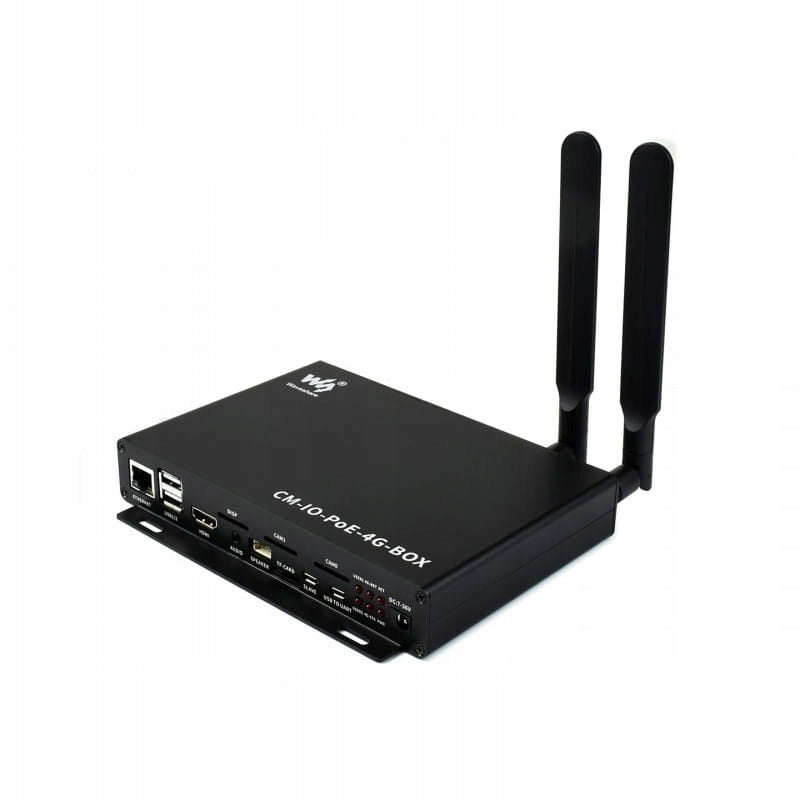

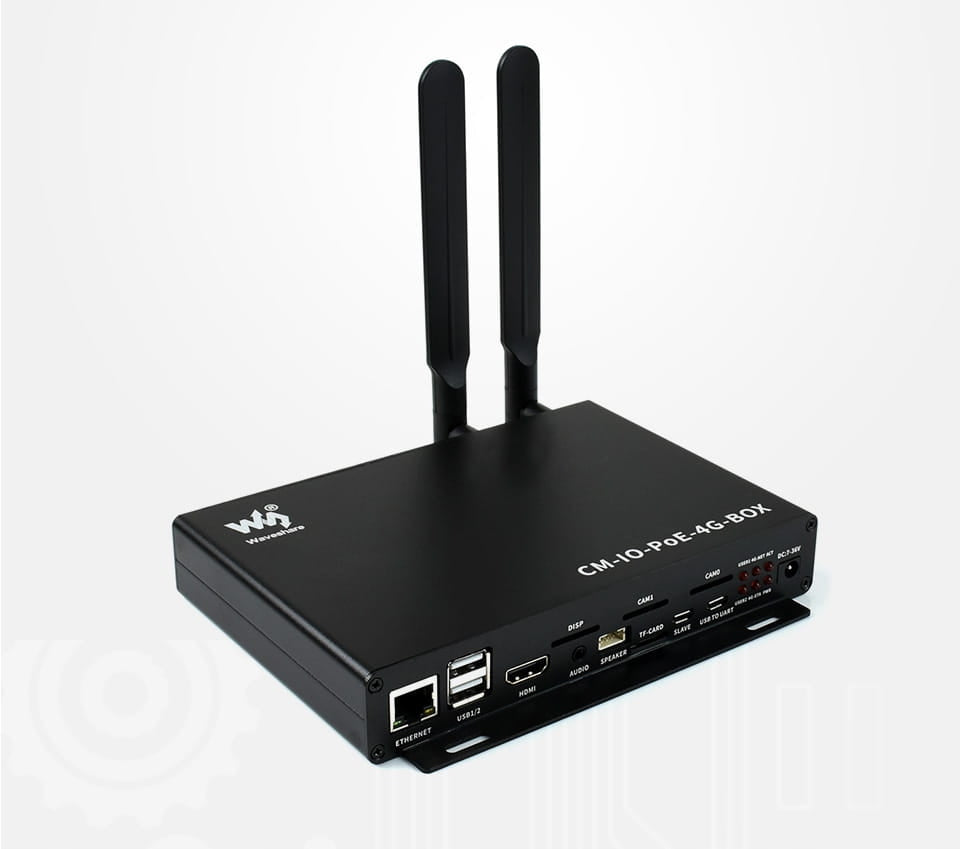

Computing module IoT base plate for Raspberry Pi CM3/CM3+ with housing.
✅ Module specification:
- 10/100M Ethernet Port with Automatic Negotiation, PoE Enabled, RJ45 Connector
- Mobile supports 4G/3G/2G global communication (via built-in SIM slot)
- Wi-Fi supports 802.11b/g/n, 2,4 GHz
- Camera 2x CSI ports, can be used simultaneously
- HDMI Port HDMI HD
- DSI Port Display, for connecting Raspberry Pi DSI Display
- Audio jack 3,5 mm, stereo output
- Speaker 4PIN speaker connector, supports 8Ω 5W speaker
- ISOLATED INDUSTRIAL INTERFACES
- 1 × RS232 DR9 (male), isolated, with TVS protection, surge protection and ESD
- 1 × RS485 screw terminal, insulated, with lightning protection 600W, surge protection and 15KV ESD, allows the use of 120Ω end resistor
- 1 × CAN screw terminal, insulated, lightning protection and ESD, enables the use of 120Ω final resistor
- 4 × GPIO screw terminal, insulated, 2 channels as isolated input, 2 channels as isolated output
- 1 × ADC Screw Clamp, Insulated, 16-bit, 860SPS
- 2 × USB2.0 USB Type-A connector
- 1 × USB SLAVE for burning system image to CM3/CM3+
- 1 × USB DO UART connects to Raspberry Pi serial port by default, configured with jumper
- 1 × RTC real-time clock
- 1 × Micro SD card slot for Micro SD card with pre-burn system (CM3 Lite / CM3+ Lite only)
- 1× SIM slot supports standard 4G/3G/2G cellular SIM card
- Power Supply Input with wide voltage range DC 7~36V
- Case Industrial Grade Aluminum Alloy Housing
⭐ CONSTRUCTION OF THE MODULE:
- Compute Module socket
- PoE-enabled Ethernet port
- USB ports
- HDMI ports
- Audio jack 3,5 mm
- Dual Channel Speaker Connector
- USB-SLAVE
- USB TO UART
- DC power input supports 7-36V power supply
- DSI Display Port
- CSI Camera Port
- RTC real-time clock battery holder supports Li ML1220 battery
- 4G Antenna Connector
- WiFi Antenna Connector
- Isolated ADC ADC Differential Input
- Isolated maximum output current 5V 100mA
- Isolated GPIO enables GPIO control/detection of devices
- Isolated RS485 interface
- Isolated CAN interface
- Isolated RS232 interface
- SIM slot supports standard 4G/3G/2G SIM card
- Micro SD card slot
- SIM7600G-H communication module
24. WiFi module supports 2.4G WiFi connection
25. Buzzer
26. DS3231 High Precision RTC System, I2C Bus
27. Raspberry Pi Indicator
▶ ACT: Raspberry Pi operating status indicator
▶ PWR: Raspberry Pi Power Indicator
28. SIM7600G-H indicator
▶ NET: network indicator
▶ STA: status indicator
29. Useful user LED >for testing I/O outputs or monitoring program operating status
30. Setting the serial port connection
31. Volume control
32. PoE Configuration
▶ DIS: turn off PoE
▶ EN: turn on PoE
33. Selection of ADC power supply
34. Selection of RS485 CAN terminal resistor
▶ PoE Ethernet, 4G cellular network, Wi-Fi connectivity
▶ Aluminum Alloy Heatsink
▶ Wall Mount Bracket
▶ Examples of application
▶ Dimensions
✅ Set includes:
- Aluminum Alloy Housing x1
- Compute Module PoE 4G x1 Board
- Aluminum Alloy Heatsink x1
- Screw set x1
- Thermal tape x2
- Power supply 12V/2A x1
- Screwdriver x1
- Antenna x2
❗ Raspberry Pi and display are NOT included. ❗
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | Waveshare 19061 |
| Parametry | Manufacturer | WaveShare |
| Parametry | EAN (GTIN) | 5905123540530 |
| Parametry | Packaging status | original |
| Parametry | Kind | Expansion board,Case,Breadboard |
