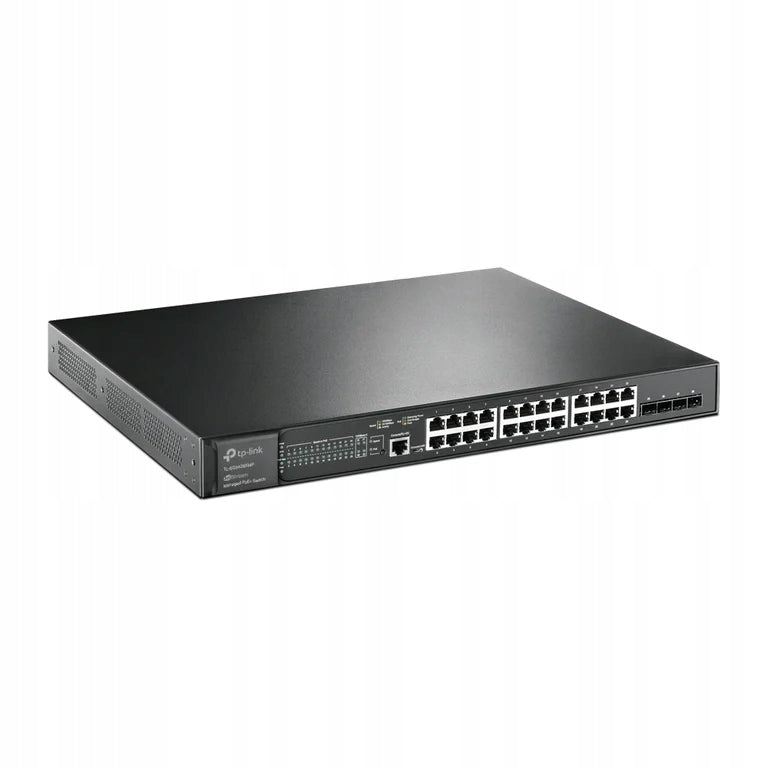

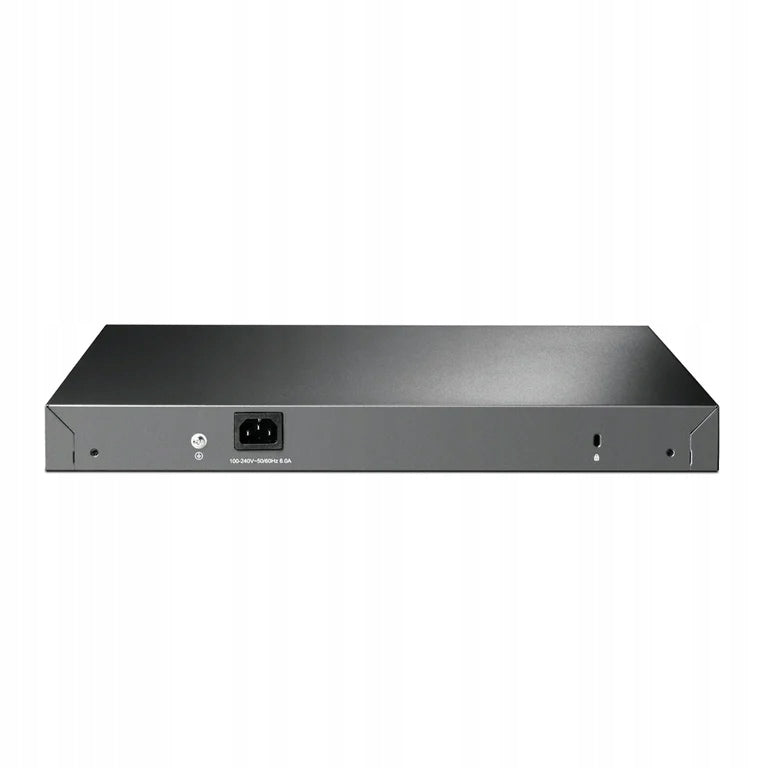

Valdomas tinklo komutatorius TP-Link JetStream TL-SG3428XMP, L2+

Trumpai apie prekę

Prekė: Valdomas tinklo komutatorius TP-Link JetStream TL-SG3428XMP, L2+. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: SG3428XMP

TP-Link JetStream TL-SG3428XMP. Switch Type: Managed, Switch Layer: L2+. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 24, Console Port: RJ-45/Micro-USB. Address table size: 16000 inputs, Routing/switching throughput: 128 Gbit/s. Communication standards: IEEE 802.11d, IEEE 802.1s, IEEE 802.1w. Power connector: AC input socket. PoE support. Rack Mount Capabilities, Layout: 1U

✏ The most important technical parameters:

• Data transfer - Routing/switching bandwidth: 128 Gbit/s
• Data transfer - Forwarding speed: 95,23 Mpps
• Data transfer - Address table size: 16000 inputs
• Data transfer - Number of static routes: 48
• Data transfer - Compatible with Jumbo Frames: Yes
• Data transfer - Jumbo Frames extension: 9000
• Data transfer - Packet buffer memory: 12 MB
• Multicast Features - Multicast Support: Yes
• Power over Ethernet (PoE) - Power over Ethernet Plus (PoE+) number of ports: 24
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget: 384 W
• Ports and interfaces - Console port: RJ-45/Micro-USB
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 24
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of Gigabit Ethernet ports: 24
• Ports and interfaces - Number of SFP+ slots: 4
• Ports and interfaces - Power connector: AC input socket
• Performance - LEDs: Yes
• Power - Power supply included: Yes
• Power - Power Source: AC
• Power - AC input voltage: 100 - 240 V
• Power - AC input frequency: 50/60 Hz
• Power - PoE Support: Yes
• Power - Maximum power consumption: 455,5 W
• Power - Heat emission: 1554,39 BTU/h
• Protection - DHCP client functions: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
• Protection - Access Control List (ACL): Yes
• Design - Layout: 1U
• Protection - IGMP snooping: Yes
• Construction - Rack mounting options: Yes
• Protection - supports SSH/SSL: Yes
• Protection - protection against entering the loop: Yes
• Protection - BPDU filtering / Protection: Yes
• Protection - IP-MAC-Port Address Binding: Yes
• Network - 10G support: Yes
• Network - Data transfer speed over Ethernet LAN: 10,100,1000 Mbit/s
• Network - Flow control support: Yes
• Network - Port duplication: Yes
• Network - Routing based on rules: Yes
• Network - Service Quality (QoS): Yes
• Network - Connection aggregator: Yes
• Network - Traffic increase control: Yes
• Network - Frequency limit: Yes
• Network - Spanning tree protocol: Yes
• Network - Head-of-line (HOL) blocking: Yes
• Network - Active call search: Yes
• Network - Virtual LAN functions: MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
• Network - Number of VLANs: 4000
• Features - Communication standards: IEEE 802.11d, IEEE 802.1s, IEEE 802.1w
• Features - Colour of product: Black
• Features - VLAN support: Yes
• Features - Number of fans: 2 went.
• Management Features - Switch Type: Managed
• Management features - Switch layer: L2+
• Management Features - Website Management: Yes
• Management Features - Cloud Managed: Yes
• Management features - Management protocols: SNMPv1/v2c/v3, SNTP
• Management Features - System Event Report: Yes
• Management Features - MIB Support: Yes
• Working conditions - Temperature range (storage): -40 - 70 °C
• Working conditions - Relative humidity range: 10 - 90%
• Working conditions - Permissible relative humidity: 5 - 90%
• Working conditions - Temperature range (operation): 0 - 45 °C
• Packaging data - Quick Start Guide: Yes
• Logistics data - Harmonised system code (HS): 85176990
• Packaging data - Package width: 440 mm
• Packaging data - Package depth: 528 mm
• Packaging data - Package height: 100 mm
• Packaging data - Weight including packaging: 6,17 kg
• Weight and sizes - Product width: 440 mm
• Weight and sizes - Product depth: 330 mm
• Weight and sizes - Product height: 44 mm
• Content of the package - Cables: LAN (RJ-45)
• Classification - Manufacturer code: TL-SG3428XMP
• Classification - EAN: 1210002611619
• Classification - Product ID: 87237057

Specifications
