Valdiklis CUE Control CUE-three CS0595

Trumpai apie prekę

Prekė: Valdiklis CUE Control CUE-three CS0595. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: no brand
• Modelis: CS0595

Product code: CS0595

• 1x wired LAN 10/100/1000 BaseT
• IP control port
• 4x

  Two-way RS-232/485

  port
• 8x

  Universal port

• 2x

  Low voltage relay

• IR code capture sensor
• Internal RAM 2 GB
• Internal non-volatile 16 GB eMMC memory
• Built-in real-time clock
• PoE power supply 802.3af or 12 28 VDC
• Unified aluminum housing design for mounting on a desk or in a 19-inch cabinet
• Network server and administrative network for configuration

controlCUE-three is a high-end controller that supports Ethernet IP and features various control ports. It is recommended for commercial, government and residential applications on medium and large scale.

Control ports include RS-232/485 bidirectional serial channels, universal ports and low-voltage relays. The Ethernet port enables two-way IP control of IP-enabled products from any manufacturer.

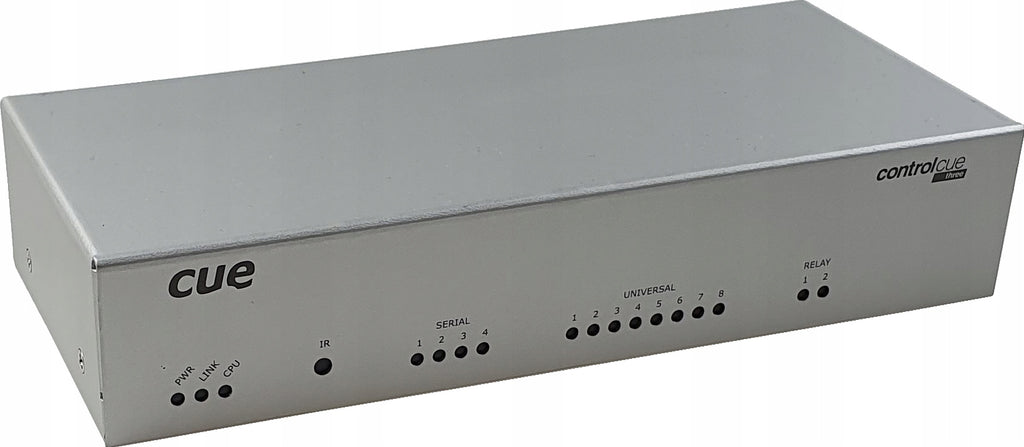

This model has LED indicators on the front panel that indicate the status of all control ports. The device maintains date and time using the built-in real-time clock (RTC), enabling a wide range of distributed planning applications. The internal infrared sensor allows you to capture IR codes.

ControlCUE-three is equipped with an administrative interface and allows configuration using a standard web browser and is fully compatible with the existing line of touch panels and CUE keyboards.

Network

• 10/100/1000 BaseT LAN, RJ-45 connector
• 802.1X authentication mechanism supported
• Proxy Server support

Control ports

• IP control port
• 4x

  Bi-directional RS-232/485 port

• 8x

  Universal port

• 2x

  Low-voltage relay

Internal IR sensor

• IR code capture

LED indicators

• Power

  Blue - power is presented, and the unit is ready.

• Link

  Green - network link and activity.

• CPU

  Yellow - confirms the system default function is performed.

• Series

  Green - serial data is being transmitted.

  Red - serial data is being received.

• Universal

  Green - output is closed.

  Yellow - IR or serial data is being transmitted.

• Relay

  Red - output is closed.

Button

• System Default - sets the default IP address and password.

Real-time and date

• RTC with battery backup

memories

• 2GB RAM
• 16GB NAND Flash (EMMC)

Software technologies

• Web Admin
• XPL2 inside

Power supply

• 12÷28 VDC, max. 4 W, 2-pin 3.5 mm connector
• Power over Ethernet, 802.3af compatible

Physical

• Compact aluminum enclosure
• Dimensions 210 x 42 x 92 mm / 8.27” x 1.7” x 3.6”
• 1/2 rack space, 1 U
• Weight 0.3 kg / 0.7 lb

Environment conditions

• Operating temperature 10° to 40° C
• Storage temperature 0° to 60° C
• Relative humidity 10% to 90% non-condensing

• Controller controlCUE-three
• 4x bumpon for tabletop usage
• Connector set
• Ethernet cable
• Power supply 24 VDC / 24 W
