Vaizdo konferencijų sistema Cisco Webex Room Kit Plus CS-KITPLUS-K9

Trumpai apie prekę

Prekė: Vaizdo konferencijų sistema Cisco Webex Room Kit Plus CS-KITPLUS-K9. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: Cisco
• Modelis: CS-KITPLUS-K9

The Cisco Webex Room Kit Plus (CS‑KITPLUS‑K9) is an advanced video conferencing system designed for medium to large meeting rooms that offers intelligent video and audio capabilities. Signal encoding and decoding is carried out by Webex Codec Plus, and video transmission is supported by Quad 4K camera with 5× zoom, automatic speaker framing and face detection. The system supports resolutions up to 1080p for the main video channel and presentation channel in 4K quality. The Webex Room Navigator touch controller is used to manage the device, which provides intuitive meetings. A 6-element microphone array in the camera, noise reduction, automatic gain adjustment (AGC) and lip-sync synchronization were used. The device allows you to automatically join scheduled meetings (One Button To Push), as well as “wake up” when someone enters the room. The system supports dual screens and two content sources and allows for wireless and wired screen sharing in 4K quality. Connection is via HDMI (2 HDMI outputs) and Ethernet network interface, as well as Wi-Fi connectivity is possible. It requires up to 6 Mbps bandwidth for point-to-point connections and supports H.264, H.265 and H.263 standards. Security is ensured through encryption and integration with the Webex platform (cloud or on-premises registration).

Specification:

Brand: Cisco

Model: Webex Room Kit Plus (CS-KITPLUS-K9)

Codec / Video Processor: Webex Codec Plus

Maximum video resolution: Up to 3840 × 2160 (4K) per presentation channel; main video stream in Full HD

Video inputs: 3x HDMI (including 2 supporting 4K)

Video outputs: 2x HDMI (up to 4K)

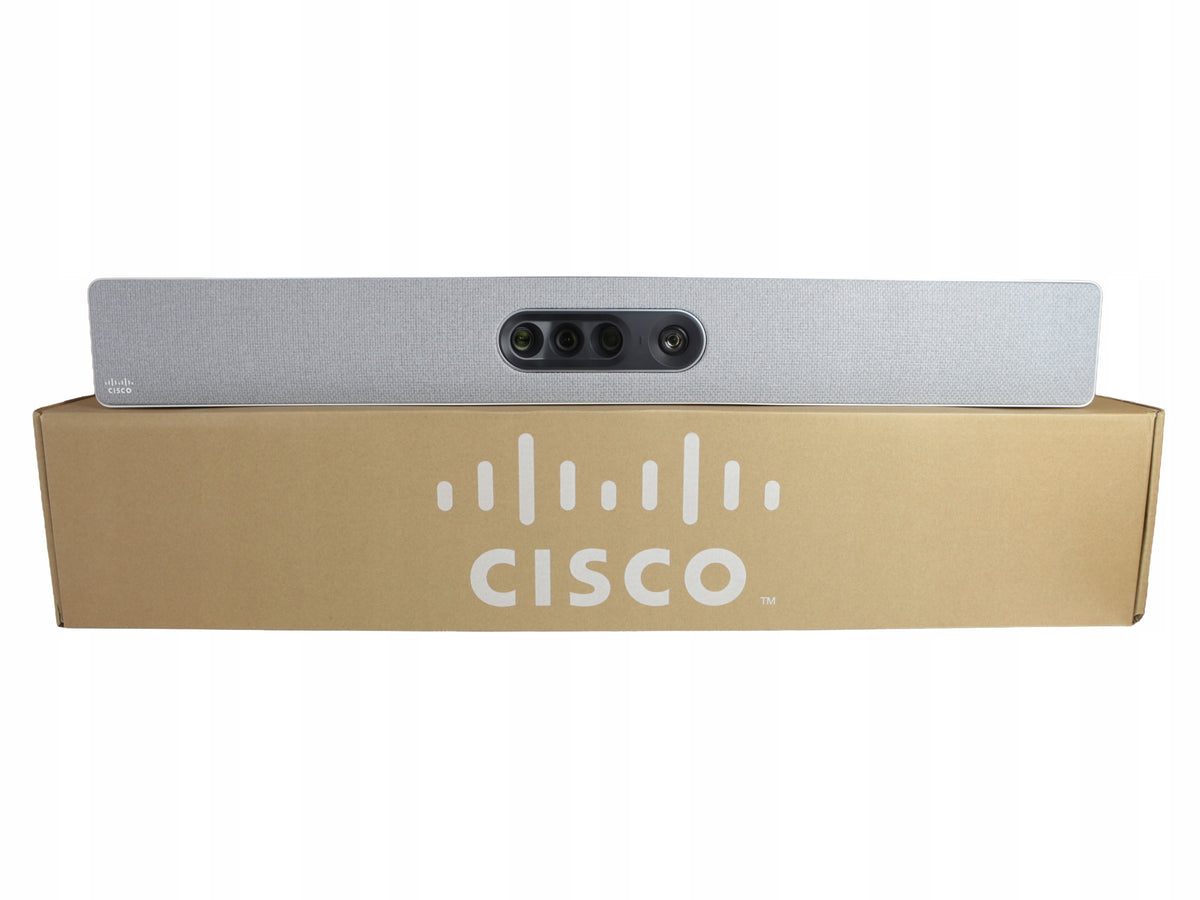

Camera: Webex Quad Camera - 15,1 MP sensor, resolution up to 5120 × 2880, 5x digital zoom, automatic framing, speaker tracking

Audio / microphones: 6-piece microphone board in camera (speaker tracking), 3× mini-jack input, AGC, noise reduction, lip synchronization ("lip sync")

Speakers: Built-in camera, frequency response 70 Hz – 20 kHz, maximum SPL 90 dB

Audio output: Line out (mini-jack stereo), subwoofer (RCA), embedded audio to HDMI

Video protocols: H.264, H.265, H.263 (with MXP compatibility)

Network: 1x Ethernet RJ-45, Wi-Fi 802.11 a/b/g/n/ac (2,4 / 5 GHz)

Control: TelePresence Touch 10 (CS-TOUCH10) (included)

Power supply: 100 – 240 V AC, 50/60 Hz

Screen sharing features: Wireless content sharing (Webex app, Cisco Proximity) up to 4K

Assembly: Camera – wall mount; possibility of mounting the encoder / unit above / below the screen

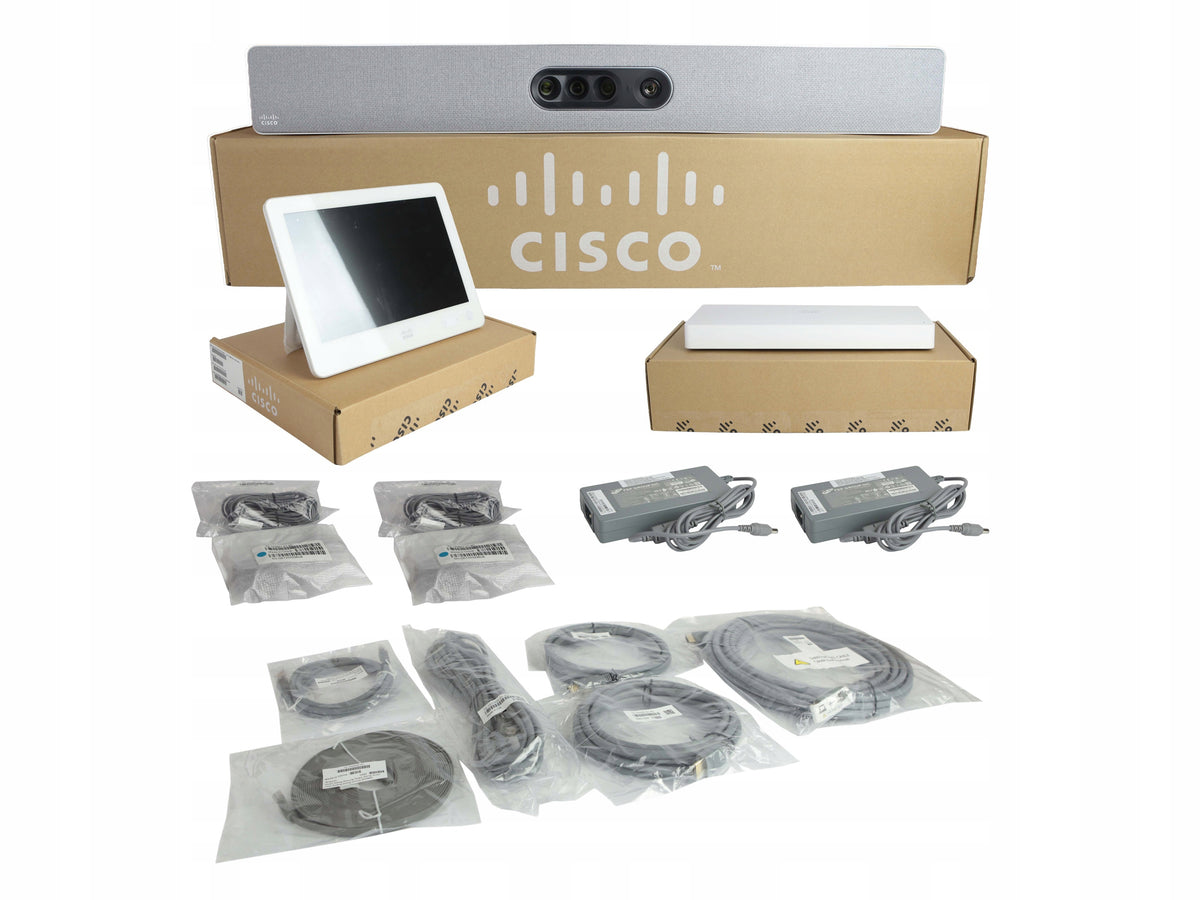

Webex Room Kit Plus (CS-KITPLUS-K9):

- Webex Quad Camera (CS-QUADCAM) (TTC8-10)

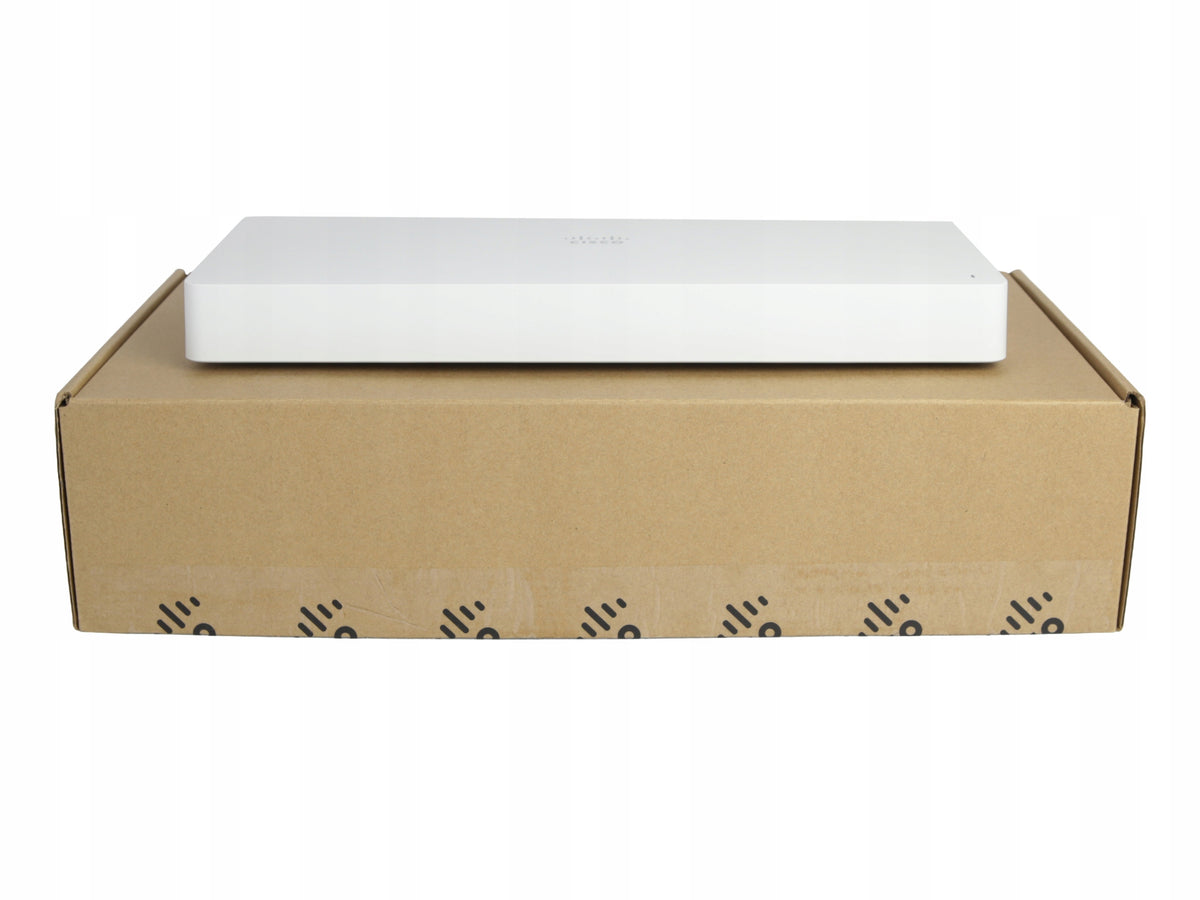

Webex Codec Plus (CS-CODEC-PLUS) (TTC7-25)

TelePresence Touch 10 (CS-TOUCH10) (TTC5-09)

- 2x Cisco Table Microphone (TTC5-14)

- 2x Power Supply

- 3x HDMI cable

- 3x RJ-45 cable

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	CS-KITPLUS-K9
Parametry	Manufacturer	Cisco
Parametry	Product weight with unit packaging	16 kg
Parametry	EAN (GTIN)	5054444018027
Parametry	Packaging status	original
Parametry	Connectivity	Wi-Fi
