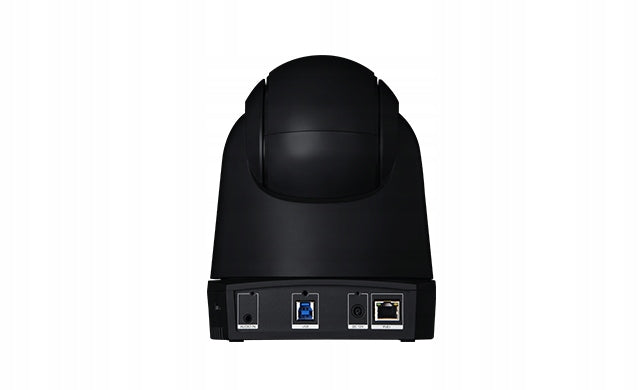

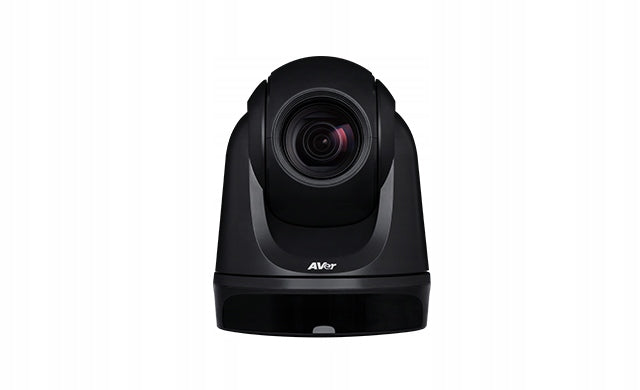

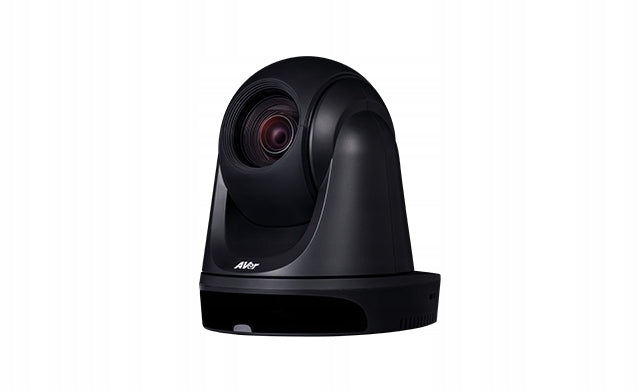

Vaizdo konferencijų kamera AVer PTZ DL30

Trumpai apie prekę

Prekė: Vaizdo konferencijų kamera AVer PTZ DL30. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: AVer
• Modelis: DL30

Upgrade your distance learning with automatic tracking

Tracking camera for distance learning

When distance learning and hybrid classrooms are the new normal, the AVer DL30 is an essential solution for online education. When you connect the DL30 to your laptop, you can freely present on stage during live streaming, so students can learn no matter where they are. Teachers no longer have to be ashamed of the camera — they can just be themselves and teach the way they want with the DL30 tracking camera!

• Distance learning
• Hybrid class
• Full HD 1080p resolution
• 12x optical zoom
• Presenter mode
• Zone mode
• Hybrid mode
• IP/USB outputs

Perfect for online and offline learning

Simple control and plug-and-play connectivity are the biggest advantages of the DL30, which is ideal for installation in any class. Students tuned remotely and present in the classroom can see and learn together as if they were in the same room. Increase student engagement and interaction, and easily create remote and hybrid learning environments.

12x optical zoom

The DL30 is equipped with a 12x optical zoom that runs smoothly without distorting the image. It clearly presents the panorama of the whiteboard in the classroom and the teacher's shots from medium, near and far distances, providing a stable shooting ability while maintaining detailed quality. With the DL30, teachers no longer have to suppress their creativity in hybrid environments!

Human detection supported by artificial intelligence

The well-known human detection function AVer automatically recognizes human shapes in the classroom and dynamically tracks specific targets or areas using multiple tracking modes. The target does not need to carry any devices or sensors to maintain tracking. Even students who are far away can clearly follow every movement of the teacher.

Presenter mode

Excellent tracking and anti-interference features allow teachers to move freely in the classroom. Instructors can adjust tracking settings, stream and record to make their teaching more concise and lively. To change the purpose of tracking, users can simply click one button on the remote control.

Zone mode

Accurate segmented tracking clearly shows content on a whiteboard or screen, automatically changing the tracking area according to the teacher’s position. The content and presenter are displayed at the same time, so students can understand the notes on key points at a glance.

SPECIFICATION:

Specifications

• Camera

• Image sensor

  1/2.8' 1080p Low Lux CMOS

• Effective Picture Elements

  2 Megapixels

• Output Resolution

  1080p/60 (IP Streaming & USB)

• Minimum Illumination

  0.5 Lux (IRE50, F1.6, 30fps)

• S/N Ratio

  > 50 dB

• Gain

  Auto, Manual

• TV Line

  800 (Center), 600 (Corner)

• Shutter Speed

  1/4 to 1/10,000 sec (60 Hz)

  1/3 to 1/10,000 sec (50 Hz)

• Exposure Control

  Auto, Manual, WDR

• WDR

  Yes

• White Balance

  Auto, Manual

• Optical Zoom

  12X

• Digital Zoom

  2X

• Viewing Angles

  DFOV : 84.1° (Wide) to 7.8° (Tele)

  HFOV : 76.5° (Wide) to 6.8° (Tele)

  VFOV : 47.3° (Wide) to 3.8° (Tele)

• Focal length

  f = 3.9 mm (Wide) to 46.8 mm (Tele)

• Aperture (Iris)

  F = 1.6 (Wide) to 2.8 (Tele)

• Minimum Working Distance

  0.3 m (Wide), 1.5 m (Tele)

• Pan / Tilt Angles

  Mr : ±170°, Tilt : ±90°

• Pan / Tilt Speed (Manual)

  Pan: 1° to 90°/sec

  Tilt: 7.85° to 45°/sec

• Preset Speed

  Pan : 120° / sec, Tilt : 110.84° / sec

• Preset Positions

  10 (IR), 256 (IP & USB)

• Camera Control - Interface

  IP, USB

• Camera Control - Protocol

  VISCA (IP), CGI (IP), USB

• Image Processing

  Noise Reduction (2D/3D), Flip, Mirror, WDR

• Power Frequency

  50Hz / 60Hz

• AI Auto Tracking Functions

• Tracking Modes

  Presenter Mode, Zone Mode, Hybrid Mode

• Privacy Protection Mechanisms

• Protection Modes

  Privacy Mode, Sleep Mode

• Audio

• Channels

  2ch (Stereo)

• Codecs

  AAC, PCM

• Sample Rate

  AAC (48, 32, 16, 8 KHz), PCM (48 KHz)

• Interface

• Video Outputs

  IP, USB

• Audio Outputs

  IP, USB

• Audio Inputs

  Mic in, Line in

• General

• Power Requirement

  AC 110–220V to DC 12V/2A

• Power Consumption

  12W

• PoE

  PoE+

• Dimensions (W x H x D)

  158.8 x 200.0 x 162.2 mm

• Net Weight

  1.62 (±0.1) kg

• Application

  Indoor

• Tally Lamp

  N/A

• Security

  Kensington Slot

• Remote Control

  Infrared

• Operating Condition

  Temperature: 0°C to 40°C

  Humidity: 20% to 80%

• Storage Condition

  Temperature: -20°C to 60°C

  Humidity: 20% to 95%

• IP Streaming

• Resolution

  1080p 60fps

• Network Video Compress Formats

  H.264, MJPEG (Web Page)

• Network Audio Compression Formats

  AAC

• Sample Rates

  48, 32, 16, 8 KHz

• Maximum Frame Rate

  1080p 60fps

• Bit-rate Control Modes

  VBR, CBR

• Range of Bit-rate setting

  512 Kbps to 32 Mbps

• Network Interface

  10/100 Base-T

• Multi-stream Capability

  2 (1 for IP Streaming, 1 for Web Page), (1 for USB, 1 for Web Page), 1080p 60fps (max.)

  3 (1 for IP Streaming, 1 for Web Page, 1 for USB), 1080p 30fps (max.)

• Network Protocol

  IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA over IP

• NDI®|HX Capability

  N/A

• USB

• Connector

  USB 3.1 Gen 1 Type-B

• Video Formats

  MJPEG, YUY2

• Maximum Video Resolution

  1080p

• USB Video Class (UVC)

  UVC1.1

• USB Audio Class (UAC)

  UAC1.0

• Web UI

• Live Video Preview

  Yes

• Camera PTZ Control

  Pan / Tilt / Zoom / Focus / Preset Control

• Camera / Image Adjustment

  Exposure / White Balance / Picture

• Network Configuration

  DHCP, IP Address, Gateway, Subnet Mask, DNS

• Software Tools

• IP Search and Configuration Tool

  Supports Windows® 7 or later

• PTZ Management

  Supports Windows® 7 or later

• PTZ Control Panel

  Supports iOS & iPadOS® 9 or later

• CaptureShare

  Supports Windows® 7 or later, macOS® 10.14 or later

• PTZ Link

  Supports Windows® 7 or later, macOS® 10.14 or later

• Camera

  3 Years

• Accessories

  1 Year

• Package Contents

  Camera, Remote Control, Power Adapter, Power Cord, USB Cable, Cable Ties (x4), Cable Fixing Plate (x1), M2 x 4mm Screws (x2), 1/4'-20L 7.5mm Screw (x1), Quick Start Guide

• Optional Accessories

  Wall Mount Kit (Brackets (x2), M4 x 8mm Screws (x2), 1/4'-20L 7.5mm, Screw (x1), Wall Mount Kit Installation Guide), Ceiling Mount Kit (Brackets (x2), M3 x 6mm Screws (x3), 1/4'-20L 7.5mm, Screws (x3), Ceiling Mount Kit Installation Guide)

* Specifications may vary depending on location and are subject to change without notice.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	DL30
Parametry	Manufacturer	AVer
Parametry	Product weight with unit packaging	7.12 kg
Parametry	EAN (GTIN)	4719552126460
