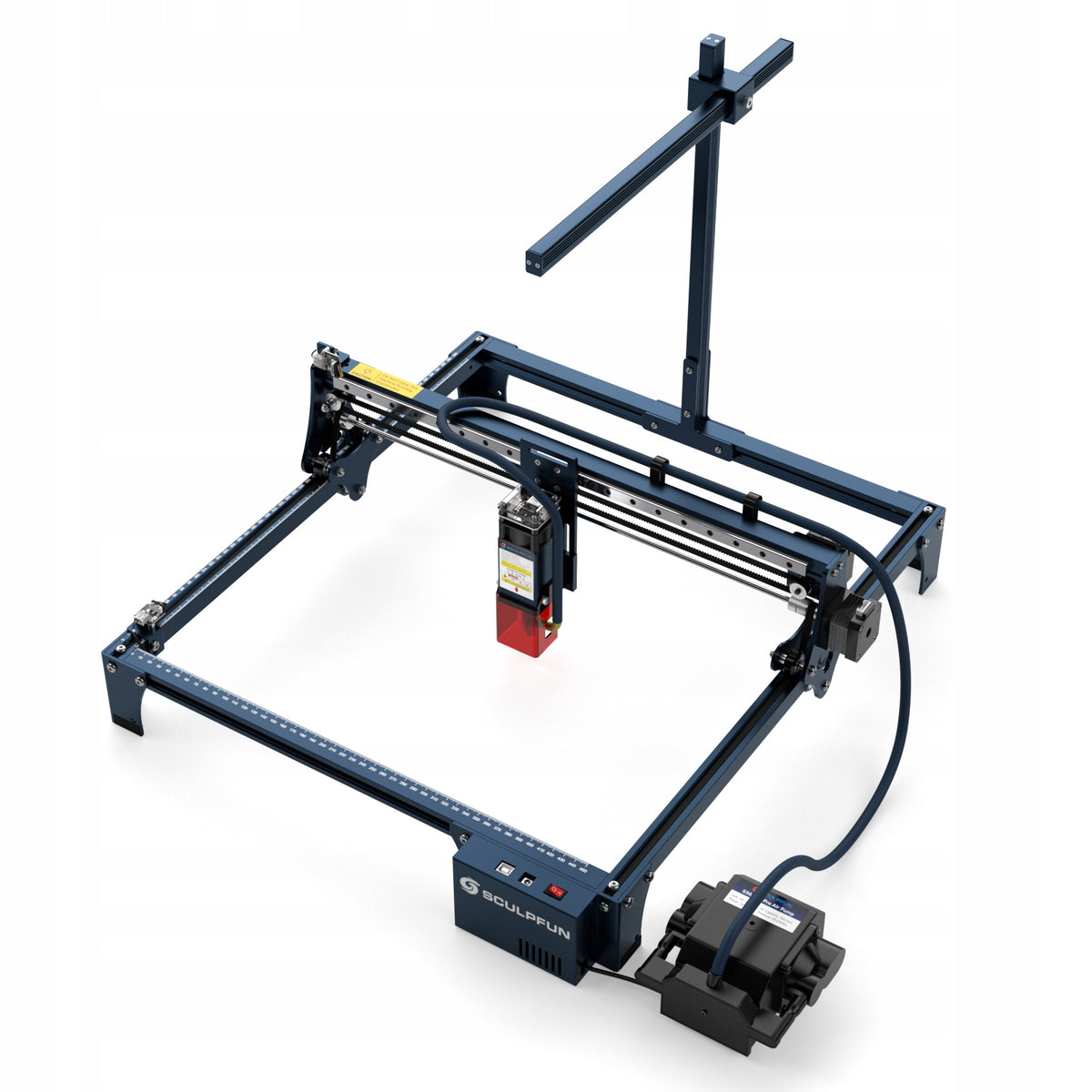

Vaizdo kamera SCULPFUN CAM500, 5 MP, 120° platus kampas, 400x400 mm

Trumpai apie prekę

Prekė: Vaizdo kamera SCULPFUN CAM500, 5 MP, 120° platus kampas, 400x400 mm. Kategorija: Internetinės kameros.

• Gamintojas: no brand
• Modelis: CAM500 Camera

Suitable for Sculpfun S6/S6 pro/S9/S10/S30 and S30 Ultra laser engravers Compatible with win7/win10/win11/macSystem and other modes of D1PRO/falcon2/LM2 PRO S2/20PRO 20S/55/JL3/3 MAX V2 engraving machine

1. Industrial Laser Engraving Camera: This industrial camera is specifically designed for laser engraving machines and is fully compatible with Lightburn software. With a true high-resolution 5MP resolution, this laser camera can capture clearer images and more accurately determine your location.

2. Precise positioning: The SCULPFUN CAM500 is perfectly equipped with Lightburn software CAM function, which can identify the position of engraved objects by camera, with positioning deviation less than 1mm.

3. Engraving Position Control: With the Sculpfun CAM500 Lightburn, you can move the pattern to a specific position of the material using the Lightburn software interface. When the settings are complete, the laser machine will engrave the pattern here.

4. Image tracking: The CAM500 camera module can identify and extract patterns from the surface of objects such as T-shirt designs, hand-drawn patterns for children or other simple designs, as well as engrave vector files, which is very convenient for quickly obtaining vector files.

5. Batch Engraving: With the Lightburn laser camera, you can add multiple engraving objects and perform various independent tasks at once, without having to view the position of each engraving material. The laser will automatically find engraved objects one by one and start working on them, which improves work efficiency.

6. HD video recording: This laser engraving camera is equipped with a 120° wide-angle lens and a 400*400mm working area. It can record the entire process of creating works by taking time-lapse photos with the camera, making it easy to share the creative process with friends. And also makes engraving and cutting visible and observable.

7. High adaptability: 2 clamping structures, T-shaped clamping clamp and U-shaped clamping clamp. The T-shaped clamping clamp is suitable for SCULPFUN machine models, including S6, S6 pro, S9, S10, S30/S30 Ultra series and almost all V-slot structure engraving machines. Please note that the additional purchased area expansion kit does not apply. U-shaped clamping clamp is suitable for machines with U-shaped beam. Other suitable models: D1PRO, falcon2, LM2 PRO S2, 20PRO 20S, 55, JL3, 3 MAX V2.

Specification:

Product model: SCULPFUN CAM500

Mounting Material: Aluminum

Recommended height from camera to engraving position: 325 mm

Optimal working area: 400*400mm

Product size (horizontal rod and vertical rod are the same): 400*15*20mm Note: please allow the differences resulting from manual measurement!

Compatible system: win7/win10/win11/mac (Note: for better use of the product, we recommend using it with win7 in a newer version)

Camera Parameters:

Pixels: 5 MP

Color Image Sensor: 1/4 inch CMOS

Maximum resolution: 2592*1944

Pixel Size: 1,4um*1,4um

Focal length: 1,79 mm

Focus Mode: Constant Focus

Constant distance

focal length: 325 mm Viewing angle width: 120°

Aperture: F2.4

USB Interface: USB 2.0

Package Weight: 0,8 kg /28,2 oz

Package Size: 462 x 180 x 55 mm / 18,1 x 7 x 2,1 inch

Note: The recommended height from the camera to the engraving site is 325 mm. When the camera is well positioned, the objects should be placed as close as possible to the center of the camera, in a working area of 400*400 mm. Precision will be reduced as objects engraved from the center of the camera are moved away. )

List of things to pack:

1 x Horizontal Camera Rod Assembly

1 x Vertical Camera Rod Assembly

1 x T-Shaped Clamp Assembly

1 x Camera Slider (Bar Connector)

1 x U-Shaped Clamp Assembly

1 x Pouch with Screws

4 x linden plywood

3 x A5 size image calibration paper

1 x User Manual

1 x Soft Ruler
