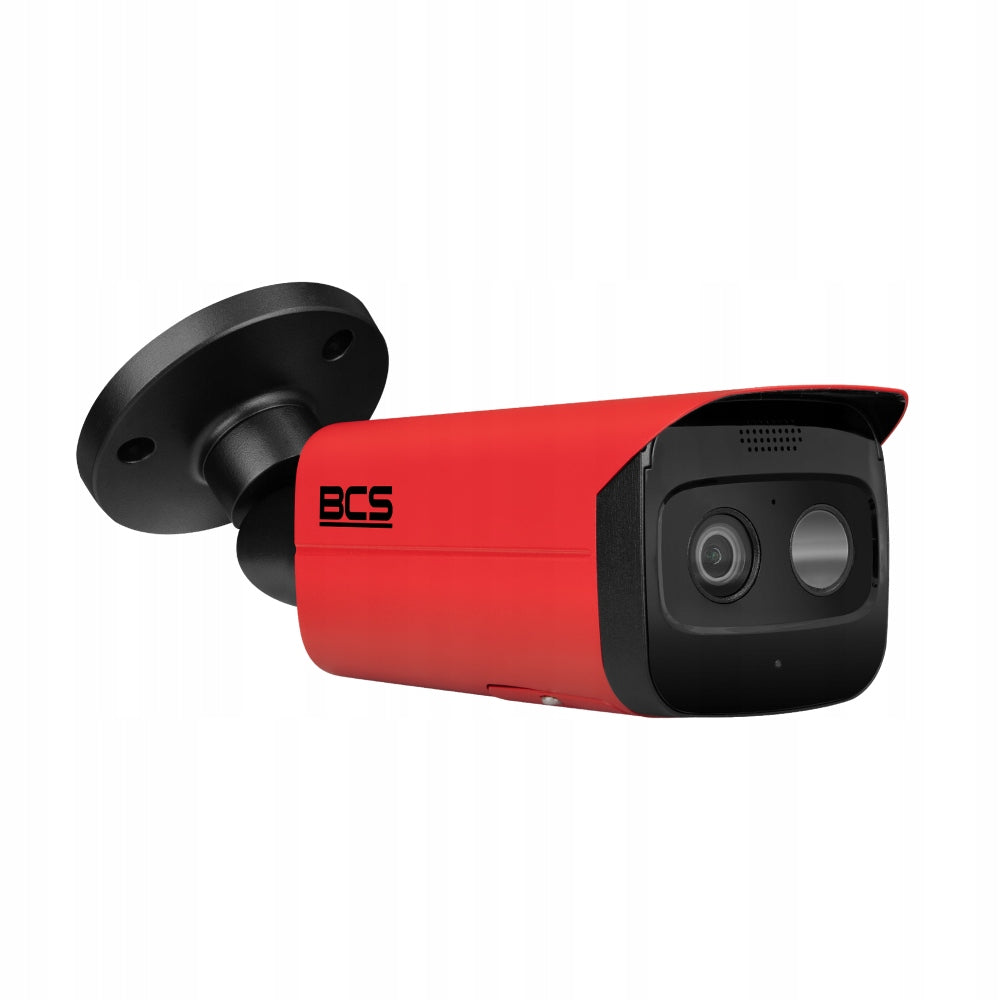

Vaizdo kamera BCS-L-TIP541FSR3-FDT, 4MP, IR30M, radiometrinis gaisro aptikimas, BCS

Trumpai apie prekę

Prekė: Vaizdo kamera BCS-L-TIP541FSR3-FDT, 4MP, IR30M, radiometrinis gaisro aptikimas, BCS. Kategorija: IP kameros.

• Gamintojas: BCS
• Modelis: 1889

TECHNICAL SPECIFICATION

• Product line: BCS LINE
• Camera type: Thermal / Dual-transducer
• Thermal sensor transducer: Vanadium oxide (VOx) microbolometric sensor
• Thermal camera resolution: 120(H)×90(V)
• Thermal camera lens: 1.2 mm
• Thermal camera viewing angle: H: 90° V: 67.5°
• Thermal sensitivity: 60mK
• Temperature measurement: Yes
• Temperature measurement range: -10°C~200°C
• Measurement error: Max (±5°C, ±5%)
• Temperature measurement distance: 10m
• Fire detection and alarm: Yes
• Resolution (vision image): 4 Mpx
• Converter (vision image): 1/2.7'' CMOS
• Scanning system: Progressive Scan
• Pixels: 2688(H)×1520(V)
• Lens (vision image): fixed 4 mm
• Aperture: F1.6
• Viewing angle (vision): H: 85° V: 44° D: 99°
• Camera sensitivity: 0.0052Lux 0.0028Lux(B/W) 0Lux(IR)
• WDR: DWDR
• Background compensation: BLC / HLC / DWDR
• Noise reduction: 2D/3D DNR
• Number of streams: 2
• Video compression: H.265 / H.264 / H.264H / H.264B / MJPEG
• Day/night: ICR mechanical infrared filter
• IR illuminator range: 30m
• Microphone: Yes
• Speaker: Yes
• Emergency Inputs/Outputs: 1/1
• Memory card slot: microSD 256GB
• Support: Web Service, CMS BCS Manager, Mobile App (iOS, android)
• Compatibility: ONVIF
• Security: HTTPS, IEEE 802.1x, MAC filtering, user authorization
• Power Type: 12V DC / PoE(802.3af)
• Housing color: Red
• Protection class: IP67
• Housing: Metal
• Working conditions: -40°C~+60°C
• Dimensions: 244.1×79×75.9mm
