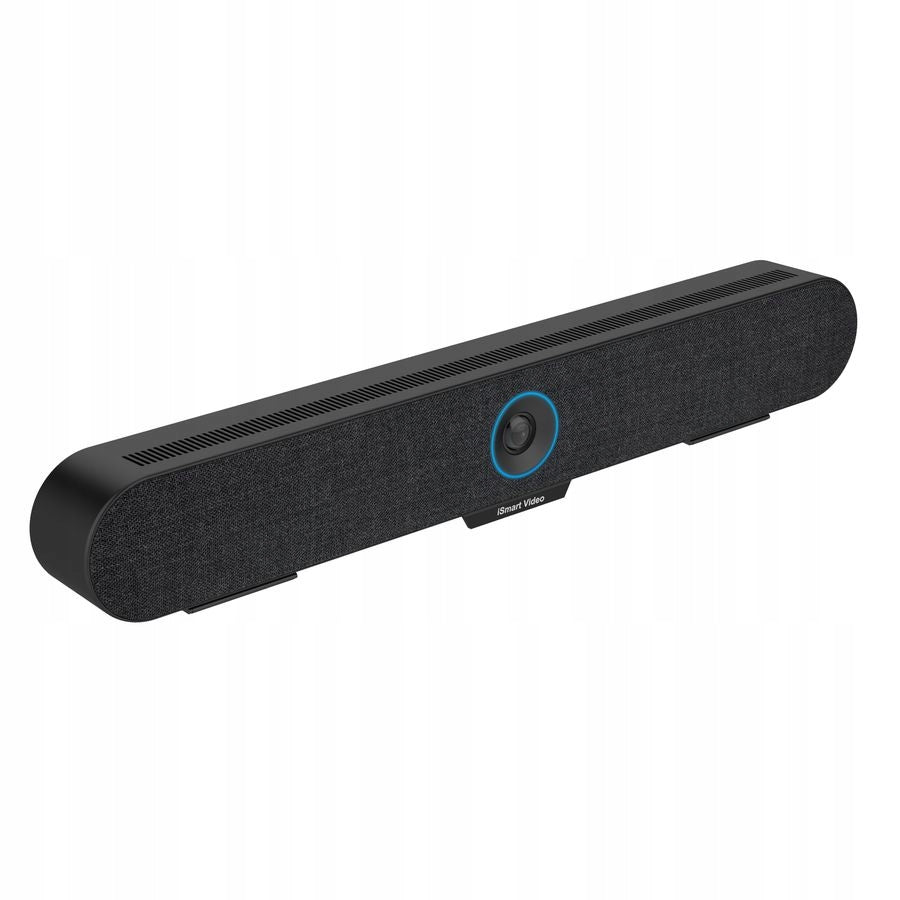

USB vaizdo kamera su EPTZ ir garso juostos mikrofonu AMC-G309U v2

Trumpai apie prekę

Prekė: USB vaizdo kamera su EPTZ ir garso juostos mikrofonu AMC-G309U v2. Kategorija: Internetinės kameros.

• Gamintojas: iSmart
• Modelis: AMC-G309U-v2

• The AMC-G309U v2 EPTZ 4K USB all-in-one camera is equipped with an advanced 4K camera with a wide field of view and intelligent auto framing, people identification and interference avoidance functions.
• In addition, a set of 4 microphones with a range of 5 meters and a speaker have been implemented here.

UHD camera

​

The device is equipped with a high-class UHD camera with an excellent lens:

• matrix size: 1/2.8 inch,
• resolution: 8.46 million pixels,
• focal length 2.1mm,
• brightness: F2.2,
• field of view: 110°,
• digital zoom: 4x.

Crystalline picture

The camera offers a crystal-clear image in 4K resolution in a very wide field of view.

Sensitive omnidirectional microphones

AMC-G309U v2 is equipped with a set of 4 sensitive microphones. The voices of videoconference participants are correctly recorded from a distance of up to 5m from each direction (180° in front of the camera). High audio quality in both directions is ensured by built-in AGC (automatic gain control), AEC (echo suppression system), ANC (noise suppression system).

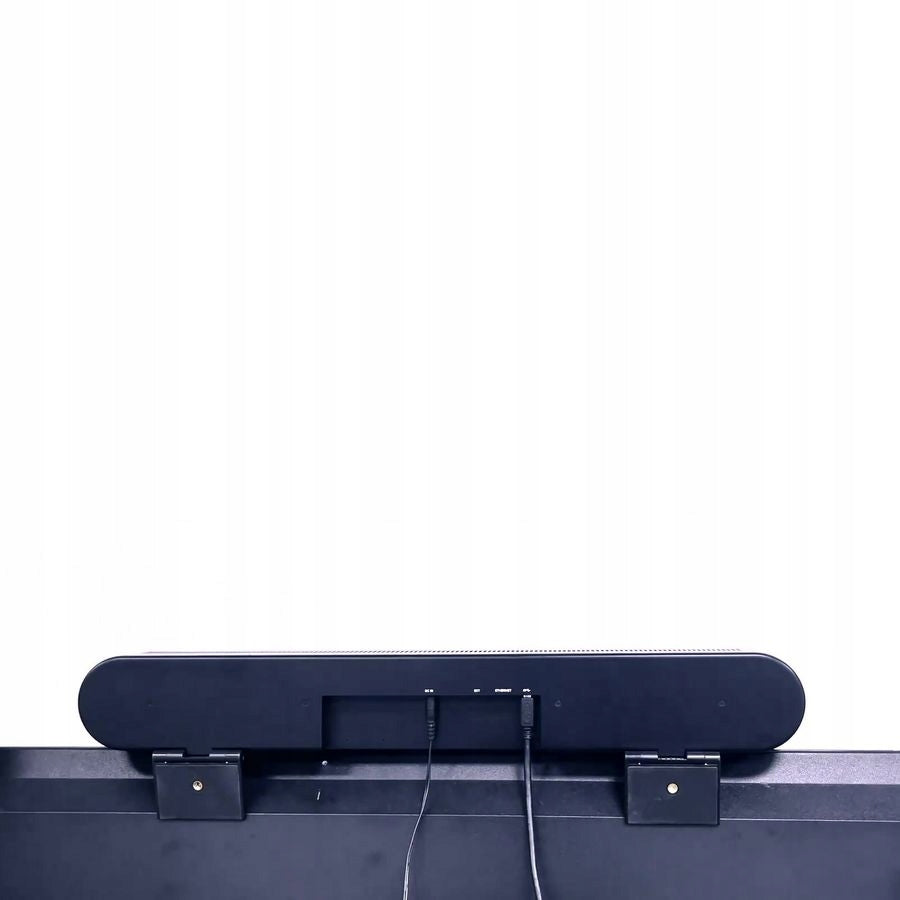

Easy installation and simple operation

The AMC-G309U v2 camera is a versatile and user-friendly solution. The main interface here is the USB B socket, compatible with the 3.0 standard. which provides 4K@p30 image. It is enough to connect it to the computer's USB port (directly or through a suitable extender - e.g. Quattropod set with T03 transmitter) so that it is properly detected by the system and recognized as a webcam and speakerphone - a microphone and a loudspeaker. In addition, the camera has a LAN RJ45 port and can transmit 1080P60 video with H.265 or H.264 compression over the network. It also has a USB-to-network function, i.e. sharing a network connection via a USB port.

Automatic framing without human intervention

The AMC-G309U v2 camera offers Auto Frame functions based on advanced algorithms.

Auto Frame - view of all participants

The camera will automatically crop the image to show all people present in the room.

Auto Zoom on participant leaving the room

The camera automatically zooms in on the participant leaving the room.

Auto Zoom on new participants

The camera automatically zooms in on new people who enter the room

Anti-interference features

The operation of the AMC-G309U v2 camera is not affected by moving objects and the external environment.

Intelligent recognition

The camera can recognize and track participants even if they turn sideways to it.

Intelligent recognition

The AMC-G309U v25 camera can distinguish between characters in images and real people.

High resistance to interference

The operation of the AMC-G309U v2 camera is not disturbed by moving objects.

Precise localization of sound sources

The AMC-G309U v2 camera can locate many sound sources and remember their positions.

When no one is talking

When no one is talking, the camera shows the view of the whole group.

When someone talks

When someone is talking, the camera tracks that person and shows them a close-up.

When speakers change

When the speakers change, the camera tracks the new speaker and zooms in on him.

Application areas

The AMC-G309U v2 camera has been designed as a perfect solution for both small rooms (up to several people) and the so-called huddle rooms, i.e. rooms intended for 1 person, as well as rooms with an average area.

Camera

• Sensor: 1/2.8" CMOS, 8.46MP
• Focal length: f=2.1mm
• Light: F2.2
• Field of view: H: 110°, V: 74°
• max. image resolution: 4K@30p
• AI features: Auto framing, speaker tracking
• Minimum focusing distance: 30 cm
• Minimum illumination level: 10 Lux
• White balance: Auto
• Exposure: Auto/Manual/Shutter Priority
• White balance: Auto/manual
• DNR: 2D / 3D
• Image Processing: Rotate/Reflect

Audio

• Built-in microphone: Set of 4 microphones
• Audio capture range: 5m
• Audio Processing: AEC (Automatic Echo Cancellation)/ANC (Automatic Noise Cancellation)/AGC (Automatic Gain Control)

USB

• USB connector: Type B 1x USB3.0, supports UVC 1.0, MJPEG/H.264/H.265/YUV
• MJPEG: 4KP30/25, 1080P30/25,720P30/25, 360P30/25
• H.264: 4KP20, 1080P30/25,720P30/25, 360P30/25
• H.265: 4KP20, 1080P30/25,720P30/25, 360P30/25
• YUV: 1080P5,720P12, 360P30/25
• Minimum focusing distance: 50 cm
• Minimum illumination level: 10 Lux
• Video resolution: 4K@30p
• Exposure: Auto/Manual/Shutter Priority
• White Balance: Auto/manual
• DNR: 2D / 3D
• Image Processing: Rotate/Reflect

LAN

• Maximum image resolution: 1080P60
• Video compression: H.265 / H.264
• Audio compression: AAC
• Protocols: HTTP/RTSP/RTMP/RTP/TCP/UDP/ONVIF
• Dual stream: Yes

Another

• LAN interface: RJ-45, 10/100/1000M
• Remote Control Remote Control: Support
• Extra Microphone: Support

Physical parameters

• Power: < 8W
• Power supply: DC12V
• Operating conditions: Temperature: 0°C ~ +40°C, Relative humidity: 10%RH ~ 90%RH
• Storage conditions: Temperature: -20℃ ~ +60°C, Relative humidity: 10%RH ~ 95%RH
• Dimensions (L. x Sz. x H): 603mm x 74mm x 93mm
• Weight: ≤1.66kg

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	iSmart
Parametry	EAN (GTIN)	727785377096
Parametry	Manufacturer code	AMC-G309U-v2
Parametry	Model	AMC-G309U-v2
Parametry	Batteries included	no
