Trumpai apie prekę

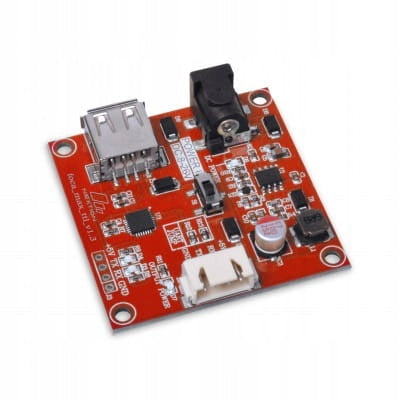

Prekė: USB TTL keitiklis Foca Max ekranams Nextion. Kategorija: Priedai.
- Gamintojas: IteadStudio
- Modelis: IM190620001
The Foca Max converter is a stable power source and convenient USB-TTL communication solution for all Nextion display series. With an external 8-26V DC power input, it ensures reliable operation even with the largest HMI displays.
Technical specification
- USB TTL Converter: SILABS CP2102
- DCDC converter: TPS54331
- Input voltage: 8-26V DC
- Output voltage: 5V/2A
- TTL level: 3.3V
- Baud rate: up to 2 Mbps
- LED indicators: Power supply, RX, TX
- DC socket: 5.5 x 2.1 mm
- Dimensions: 50 x 50 mm
Recommendations for power supply
For Nextion displays with a diagonal of less than 4.3 inches, power supply via USB port is sufficient. For displays 4.3 inches or larger, it is recommended to use an external power supply to ensure stable operation.
Contents of the set
- Foca Max Converter
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | IM190620001 |
| Parametry | Manufacturer | IteadStudio |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5904978304458 |
| Parametry | Packaging status | original |
| Parametry | Batteries included | no |
