USB šakotuvas EXSYS EX-1188HMS-3, 7 jungtys, metalinis, apsauga nuo viršįtampių, 15 kV ESD

Trumpai apie prekę

Prekė: USB šakotuvas EXSYS EX-1188HMS-3, 7 jungtys, metalinis, apsauga nuo viršįtampių, 15 kV ESD. Kategorija: USB šakotuvai.

• Gamintojas: Exsys
• Modelis: 15.06.3391

Product number: 15.06.3391

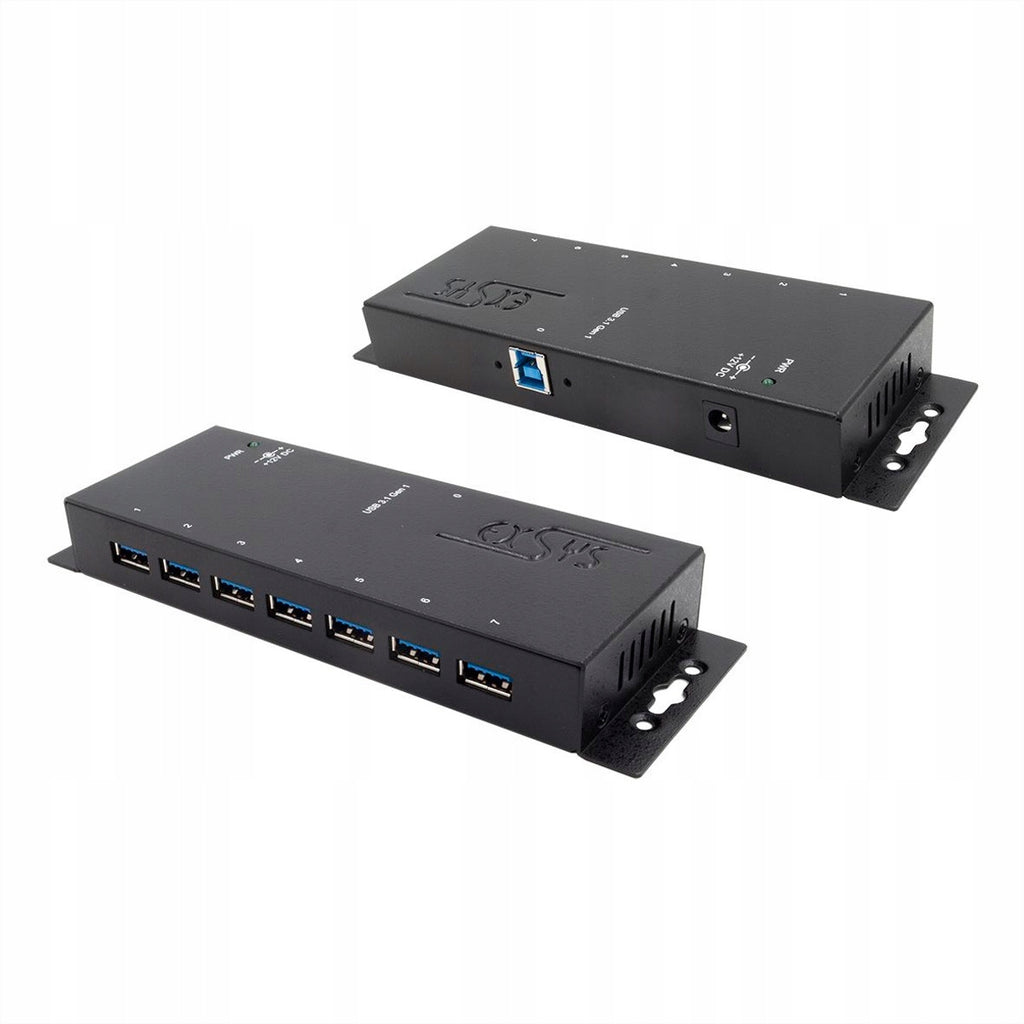

The EX-1188HMS-3 provides 7 USB 3.2 Gen1 ports (formerly called USB 3.0) with 15KV ESD surge protection for each output.

It is possible to connect up to seven external USB peripherals to a single USB 3.2 Gen1 port from a notebook, desktop or server in a 19" rack. It can be used in automation, industrial, and office applications. Thanks to the special housing, the EX-1188HMS-3 can be screwed to the wall, under the table or in a 19-inch cabinet (optionally with the EX-6099).

• USB 3.2 Gen1 with seven output ports
• 15KV ESD surge protection for each output
• 12V/3A power supply with DC socket
• Optional power supply with USB-BUS +5V (bus power supply)
• Automatic detection of data transfer rates for connected peripherals
• Metal housing for wall mounting, table mounting or optionally on support rail (EX-6099)
• 900mA current on all 4 ports
• Durable metal housing
• Chipset: Genesys GL3523

• Color: Black
• Product type: USB hub
• Manufacturer: EXSYS
• Width: 58.5 mm
• Height: 178.4 mm
• Depth: 23.2 mm
• Material (Housing): Metal
• Product group: Hubs
• Weight: 812 g
• Dimensions (H x width x D. ): 178.40 x 58.50 x 23.20 mm
• Transfer quality: USB 3.2 Gen 1 SuperSpeed 5 Gbit/s (USB 3.1 Gen 1, USB 3.0)
• Technical details: Solid metal power supply, 1.5A Stromauf allen Ports
• Number of ports: 7
• Package weight: 0.841 kg, 0.841
• Package width: 190 mm
• Packaging height: 80 mm
• Packaging depth: 260 mm
• Directory page: 3.26
• Catalog circulation: 23.1
• Application: external
• Hardware connection: 7x A-Buchse Downstream verschraubbar
• PC Connection: 1x B-Buchse Upstream verschraubbar
