USB jungiklis Matrix 4x4, 3.2 Gen 1

Trumpai apie prekę

Prekė: USB jungiklis Matrix 4x4, 3.2 Gen 1. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Lindy
• Modelis: L43406

Product number: L43406

• Supports USB 3.2 Gen 1 (USB 3.0), USB 2.0/1.1 backward compatibility
• Switch between computers via buttons, TCP/IP with Internet GUI or RS-232 commands
• Matrix switch with preset function
• Plug & Play, no software required
• 2 years GW

The Lindy USB 3.2 Gen 1 Matrix Switch allows the user to share up to 4 USB devices to 4 hosts in many different ways: by pressing the buttons on the front panel, via the web GUI and using RS-232 commands.

It is possible to save up to 8 pre-set configurations, rename hosts and devices fz at the graphical user interface level and using commands, ensuring smooth and easy operation.

This matrix switch is ideal for sharing printers, storage devices or webcams in office environments, for presentation systems in conference rooms, KVMs or industrial applications. It can support USB 3.2 Gen 1 with data transfer rates up to 5Gbps, USB 2.0 and USB 1.1 devices, ideal for use with multiple PCs or Macs.

Each USB Type-A port delivers up to 900mA of power to the connected device.

USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 are compatible with computers, cables and devices that use a USB Type-A or USB Type-C host interface.

USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 support data transfer speeds of up to 5 Gbps.

USB 3.1 Gen 2 and USB 3.2 Gen 2 support data transfer speeds of up to 10 Gbps.

Specification

• USB standard: USB 3.2 Gen 1
• Supported bandwidth: 5 Gbps
• Chipset: AT32F437 + VL817
• Compatibility: Computers equipped with a USB port
• Power supply: 900 mA for each USB Type-A port
• Special features: Switching via buttons; web GUI, RS-232 commands

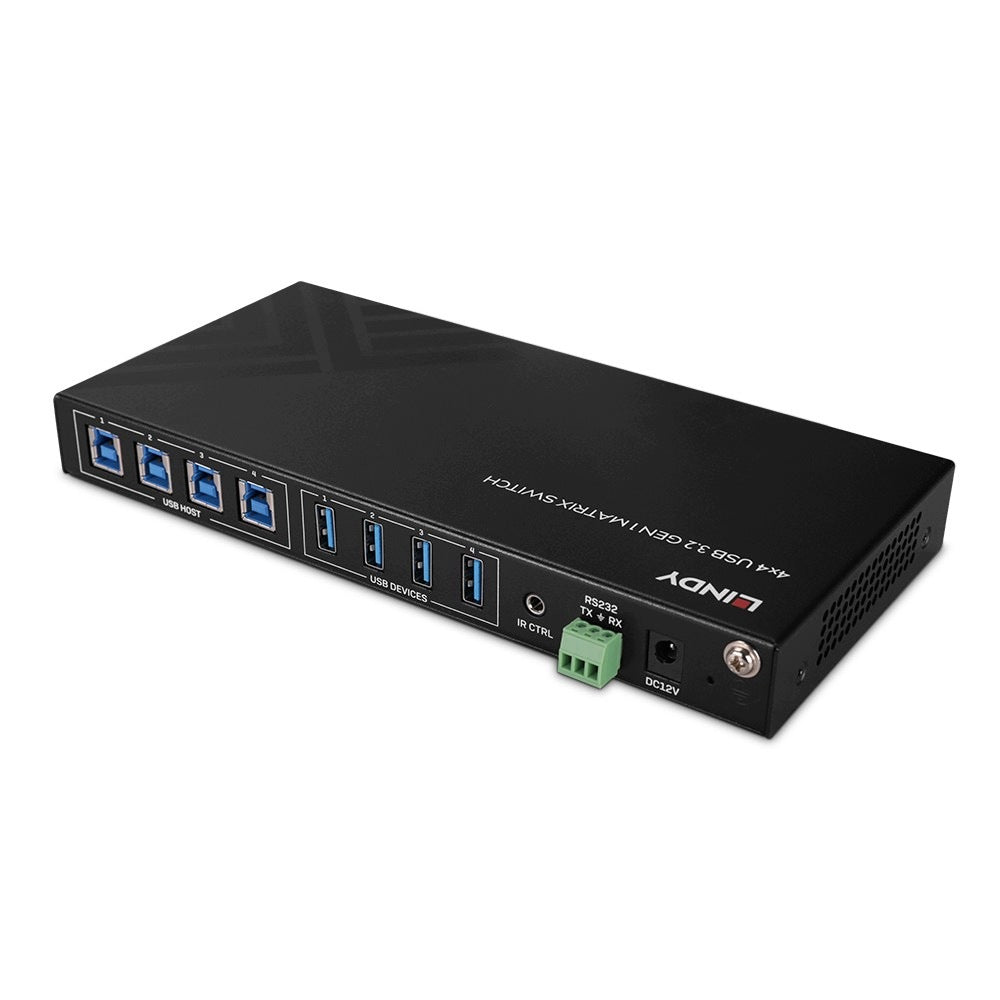

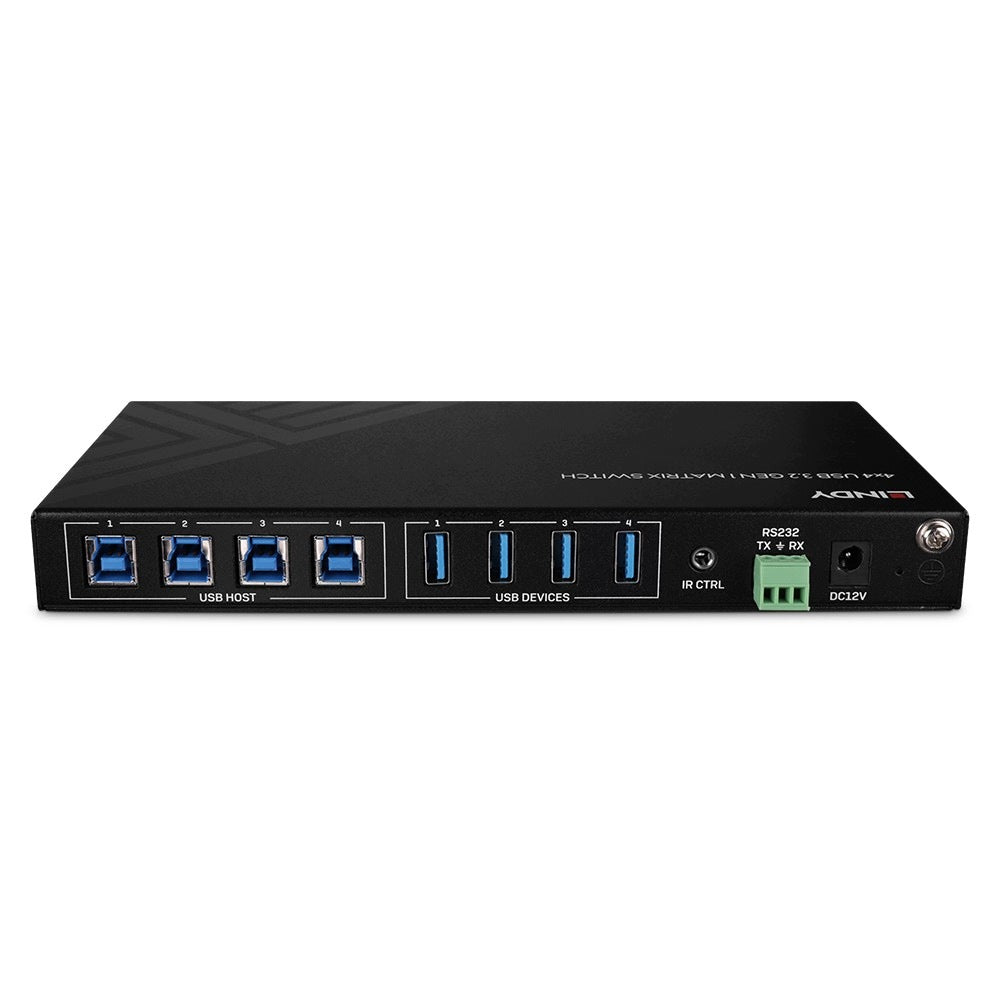

Connections

• Inputs: 4 x USB 3.0 Type B (female)
• Outputs: 4 x USB Type A (Female)
• Control Ports: RJ-45 (Female), RS-232 3-Pin Terminal Block
• Power supply: 5,5/2.5mm

Physical properties

• Dimensions WxDxH: 221x105x26mm (8.7x4.13x1.02in)
• (Fixed) Cable Length: -
• Housing Material: Metal
• Net weight: 1.15kg (2.54lb)
• Operating temperature: 0°C - 40°C (32°F - 104°F)
• Storage temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 0 - 90% RH (non-condensing)
• Power Required: 12V 3A
• Color: Black

Miscellaneous

• Packaging Type: Cardboard Box
• Package Dimensions: 260x173x70mm (10.24x6.81x2.76in)
• Gross weight: 1.45kg (3.2lb)
• GW (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH, California Proposition 65

Content of packaging

• 4x4 USB 3.2 Gen 1 Matrix Switch
• 4x USB 3.2 Gen 1 Type A-B Cable, 1.2m
• Multi-country power supply (UK, EU, US & AUS)
• User manual

Purchase Information

• Cat.43406
• EAN: 4002888434065
