USB-C šakotuvas 11-in-1 su HDMI 4K, DP, VGA, RJ45, PD

Trumpai apie prekę

Prekė: USB-C šakotuvas 11-in-1 su HDMI 4K, DP, VGA, RJ45, PD. Kategorija: USB šakotuvai.

• Gamintojas: no brand
• Modelis: ZLHUB-11IN1-DP

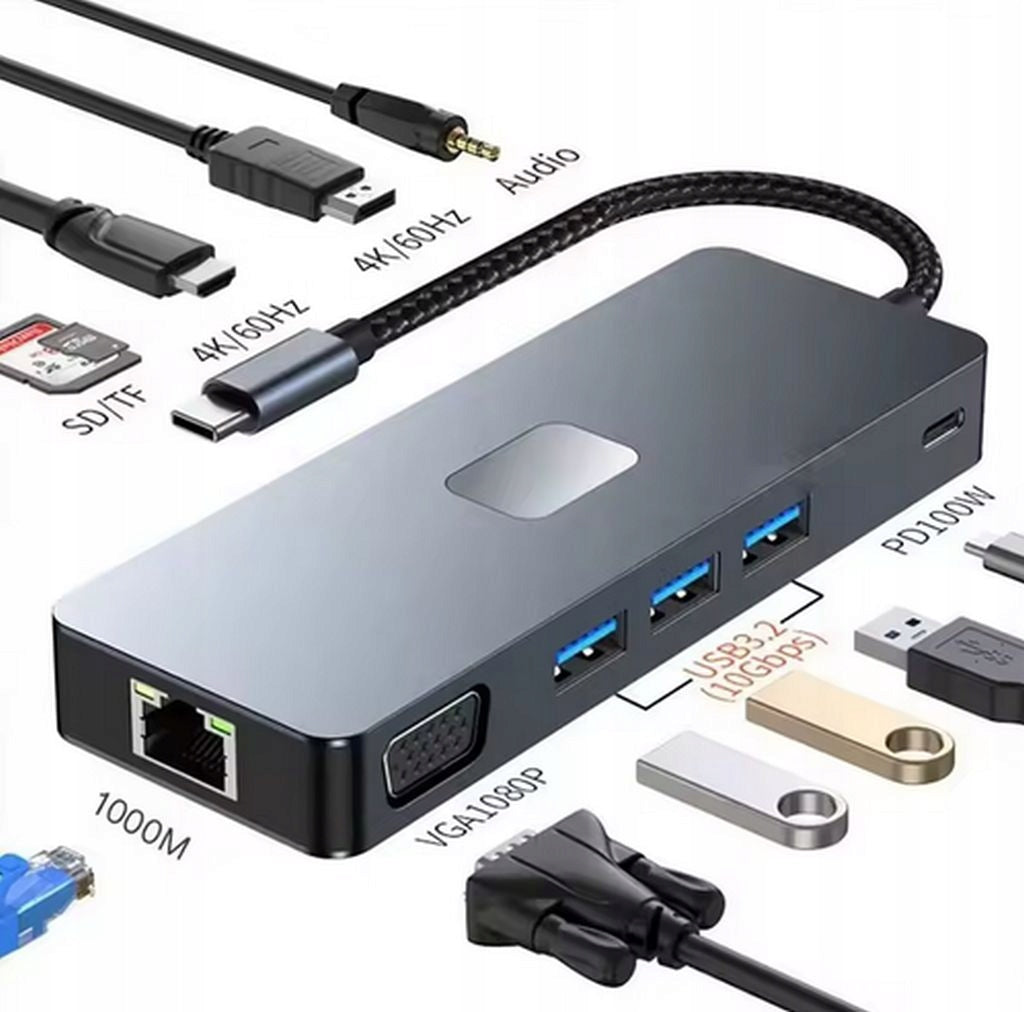

ADAPTER USB-C HUB 11 IN 1 - HDMI 4K DP VGA RJ45 PD DOCKING STATION

The device is a versatile 11-in-1 docking station that allows you to maximize the capabilities of your laptop or tablet through a single USB-C port. thanks to the built-in DisplayPort and HDMI connector, the adapter allows you to create advanced multi-monitor stations, while offering fast access to networks, portable memory and high-power.

Key Features:

Multifunctionality: up to 11 ports in one compact device

Three screen support: simultaneous connection via HDMI, DisplayPort and VGA ports

High image quality: HDMI and DisplayPort output supporting 4K resolution at 60hz

High-speed data transfer: USB 3.2 support up to 10gbps

Fast charging: Power Delivery support up to 100w

Stable network: RJ45 Ethernet connector for speeds up to 1000mbps

Technical specification:

Input: USB-C male (integrated braided cable)

HDMI Output: Up to 4K @ 60hz resolution

DisplayPort Output: Up to 4K @ 60hz resolution

VGA Output: Up to 1080p @ 60hz resolution

USB Ports: 3x USB 3.2 (10gbps)

Ethernet port: RJ45 (10/100/1000 mbps)

Power port: USB-C PD (max 100w)

Card reader: SD and TF (microSD)

Audio Output: Jack 3,5 mm

Material: aluminum and durable plastic

Application:

The docking station is ideal for:

- Professional office and graphic work requiring multiple monitors to be connected at the same time.

- lightning-fast data transfer from memory cards and high-speed USB 3.2 external drives.

- stable operation in local networks requiring a Gigabit Ethernet wired connection.

- organize your desk by connecting all peripherals with one cable.

Hints:

PD power supply: To effectively charge your laptop and power connected accessories, it is recommended to connect a charger with a minimum power of 65w-100w to the USB-C PD port.

DisplayPort Support: Make sure your source device supports DP Alt Mode over USB-C port, which is essential for image transfer.

Multi-screen resolution: When connecting multiple monitors at the same time, the maximum resolution on each monitor depends on the capabilities of the computer's graphics card and DisplayPort standard in the USB-C port.

Information about screens and display capabilities

This adapter is an advanced docking station that offers a wide range of image display options, but their range strictly depends on the operating system of your computer and the parameters of the USB-C port itself.

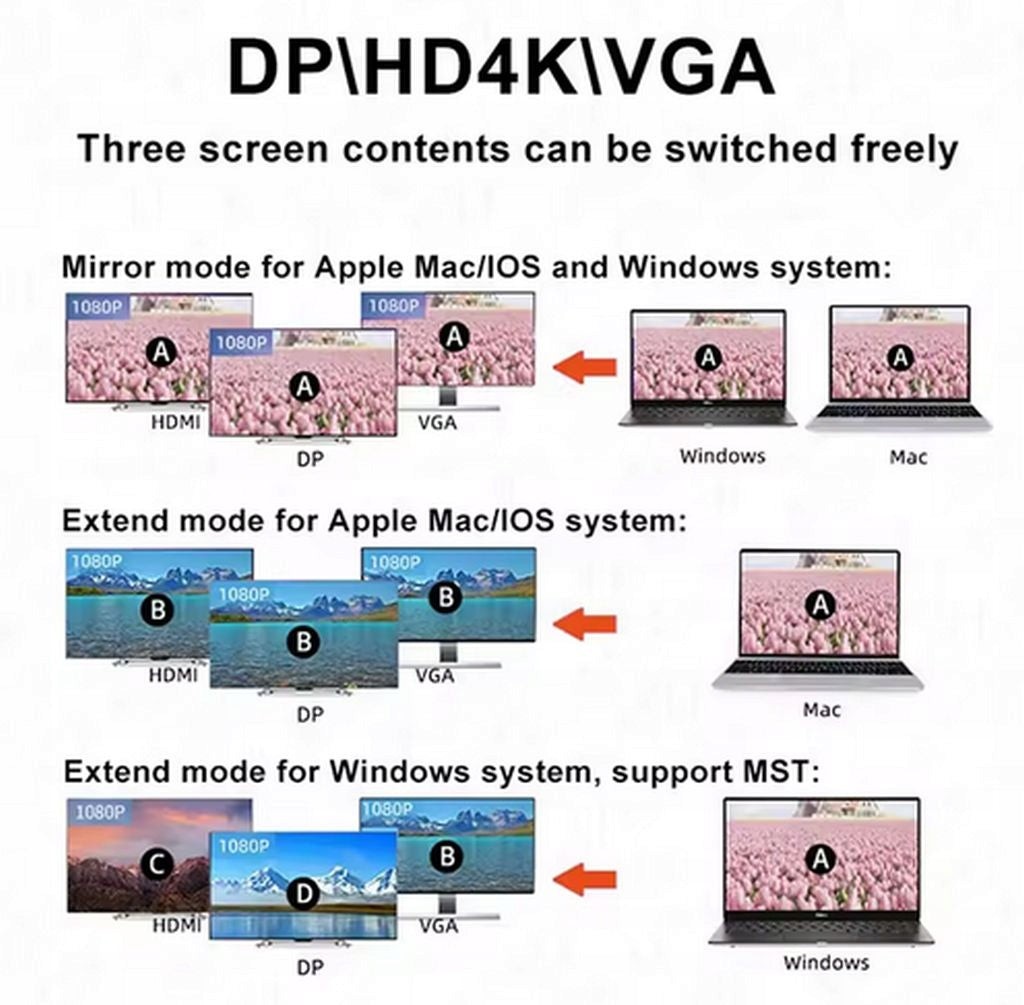

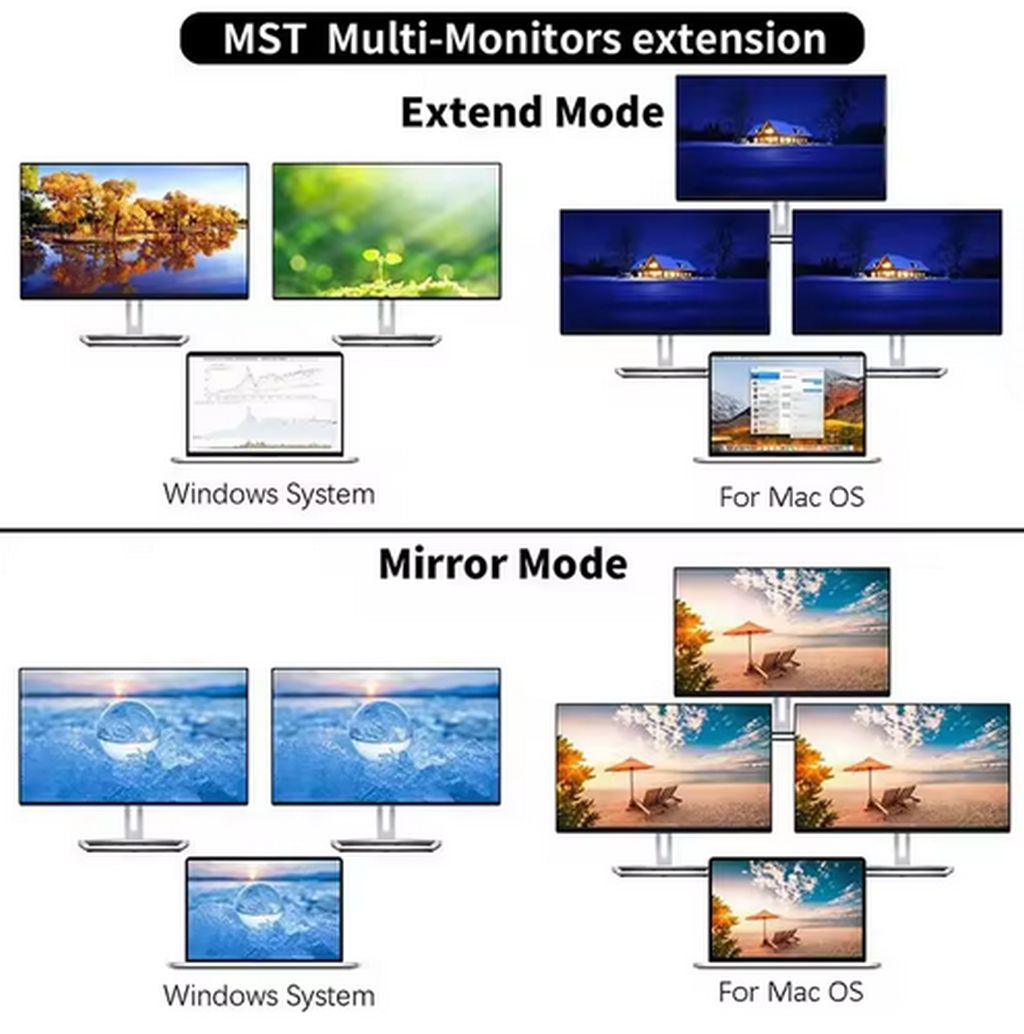

Display Capabilities (Mirror vs Extend)

Screen Duplication (Mirror Mode): The adapter easily supports duplicating the same image on all connected monitors (HDMI, DisplayPort, VGA).

Three independent screens (Extend Mode):

Windows: With MST (Multi-Stream Transport) technology, you can get three different images on three external monitors (including a laptop screen, this gives you 4 different desktops).

macOS (MacBooks): Apple does not support MST technology for these types of hubs. This means that when you connect several monitors, you will see the same image on all external screens (extended relative to the laptop, but identical on external monitors).

USB-C port type required

The designation "USB 3.0" alone is insufficient because this standard only describes the speed of data transfer, not the image. For the adapter to display the image correctly, your USB-C port must support the function:

DisplayPort Alternate Mode (DP Alt Mode): This is the absolute minimum. Without this, the video ports in the hub will not work.

Thunderbolt 3 or Thunderbolt 4: If your laptop has a port with a lightning symbol, you can be sure of full compatibility with video and charging.

USB-C 3.1 Gen 2 / USB 3.2 Gen 2: These newer standards usually have a video transfer feature, but it’s worth checking out in your laptop’s specification (look for the screen icon next to the port).

Important technical comments

Power supply: When connecting three monitors, the hub consumes a lot of power. It is recommended to connect the laptop charger (USB-C PD) directly to the hub to ensure the stability of the video signal.

Resolution: Using three screens at the same time, the resolution on each screen can be limited to 1080p (Full HD), even if the HDMI/DP ports individually support 4K.
